Browning Split Taper Bushing P1 7/8
Browning Split Taper Bushing P1 7/8
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
MPN: P1 7/8
Stock #: 0526-02446

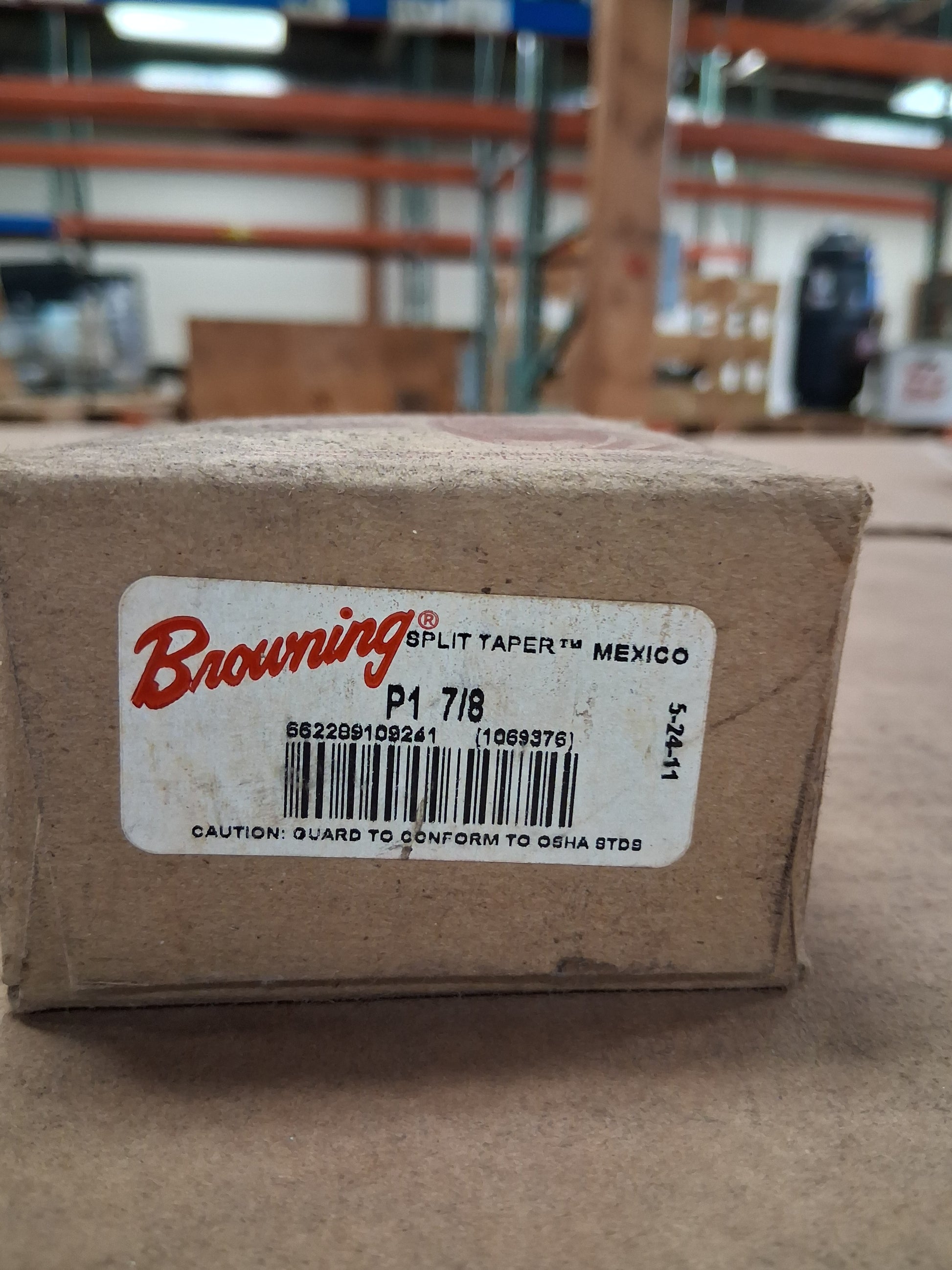

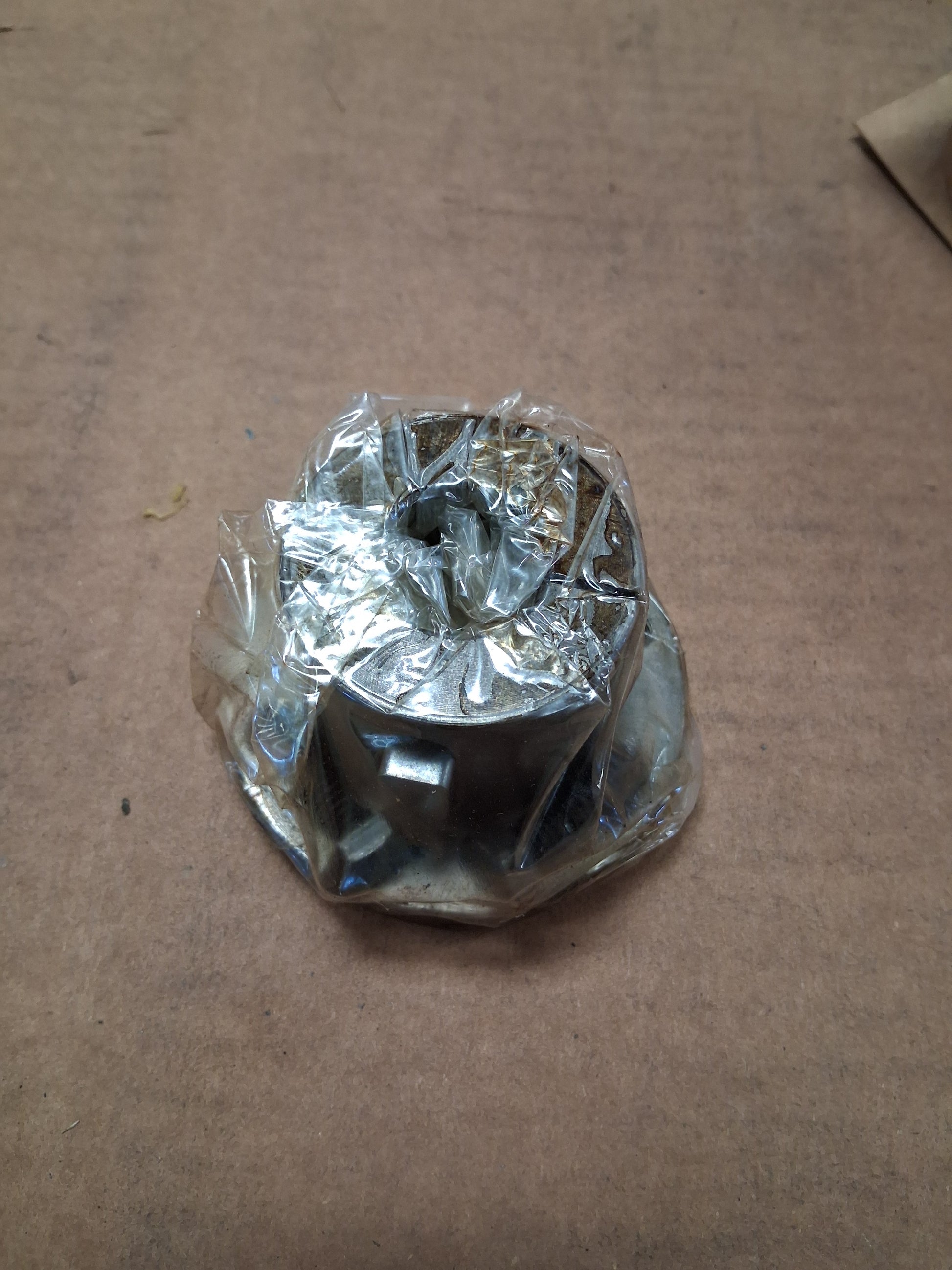

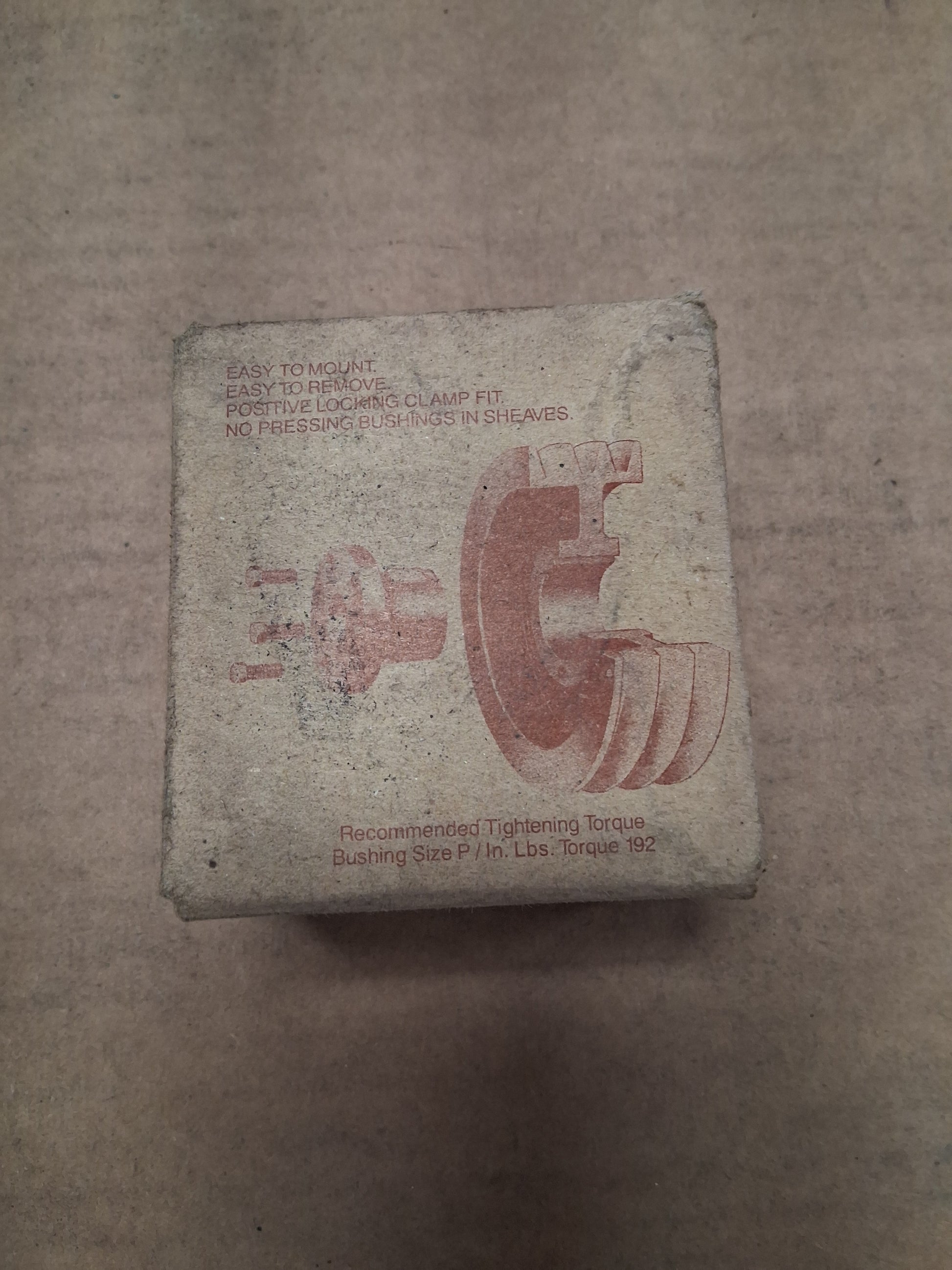

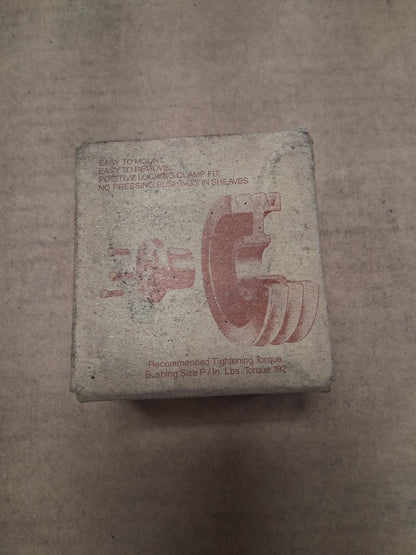

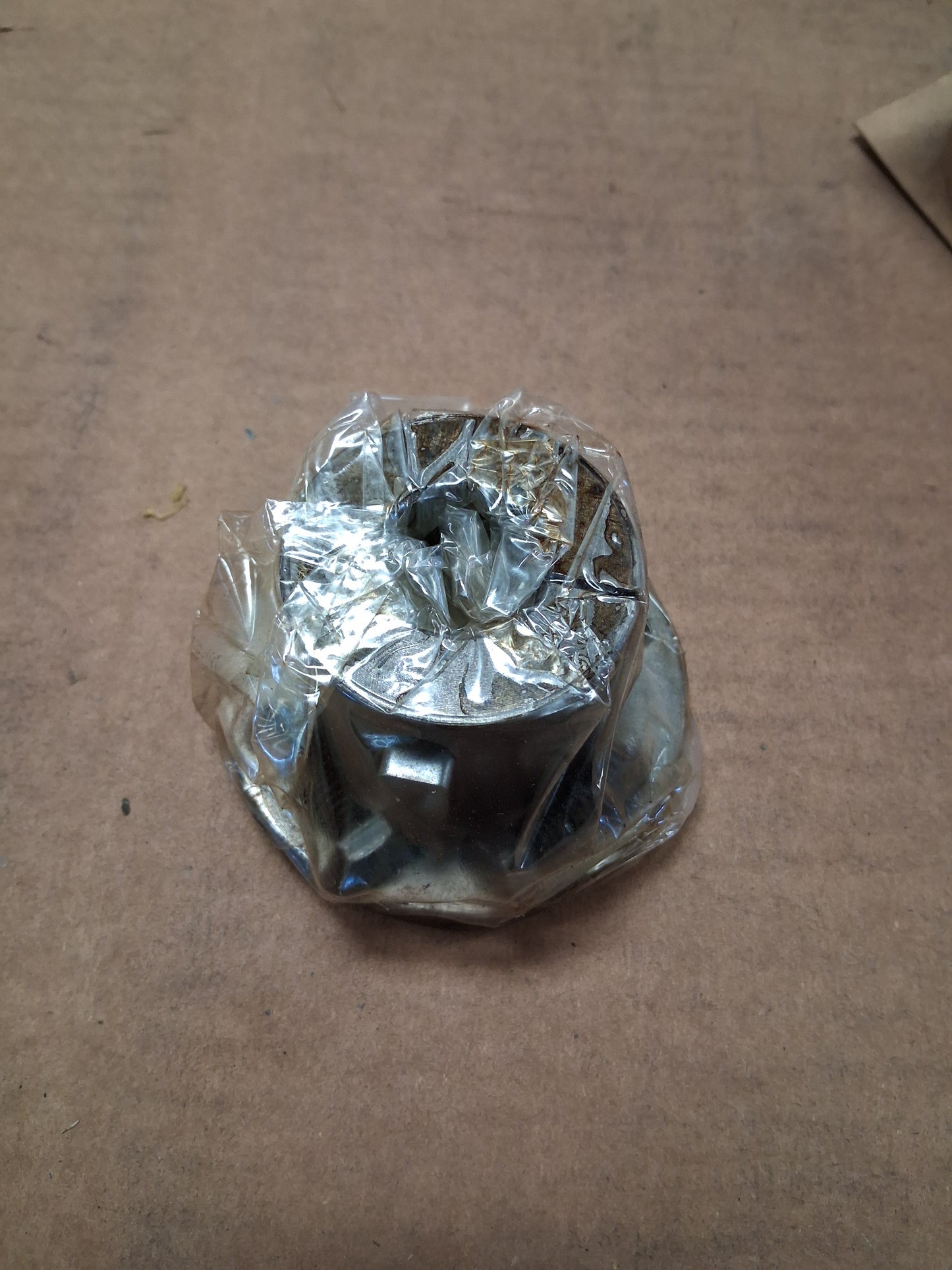

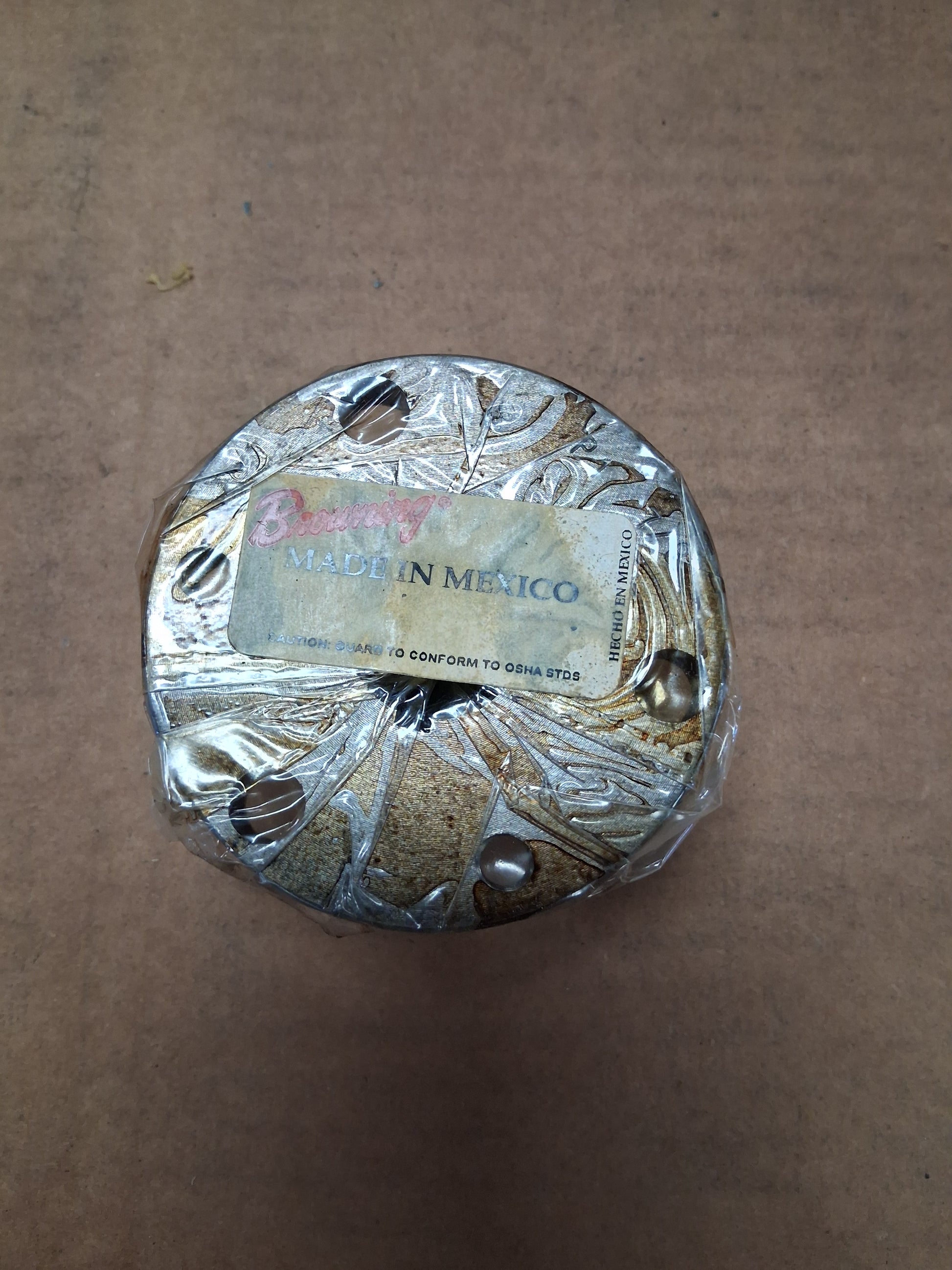

The Browning P1 7/8 is a P1 series split taper bushing with a 7/8 in bore, used to mount sheaves, sprockets, pulleys, and other Browning split tapered hubs to a shaft. The bushing features a solid flange and double split barrel design intended to provide concentric clamping on the shaft, with external keying to both shaft and product for positive drive transmission. Published manufacturer specifications list a 3.0000 in flange outside diameter and a 1.9375 in length through bore. Material is sintered steel or ductile iron per the Browning catalog. The unit ships in its original Browning Split Taper labeled box marked P1 7/8, part number 1069376, UPC 662289109241, with a date code of 5 24 11. The bushing itself is sealed in factory plastic film with the Browning Made in Mexico label intact and the OSHA guard caution sticker affixed. Recommended tightening torque per the box is 192 in lbs for the P series bushing. The flange features three bolt holes on a 2 7/16 in bolt circle for 5/16 x 1 in cap screws. Typical applications include V belt sheaves, timing belt sprockets, chain sprockets, and other mounted power transmission components requiring a 7/8 in shaft fit. New old stock in original sealed packaging.
Stock # 0526-02446
