CKD Corporation High Speed Pneumatic Cylinder HCA-LB-40B783 0.1 to 1.0 MPa
CKD Corporation High Speed Pneumatic Cylinder HCA-LB-40B783 0.1 to 1.0 MPa
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
Stock #:

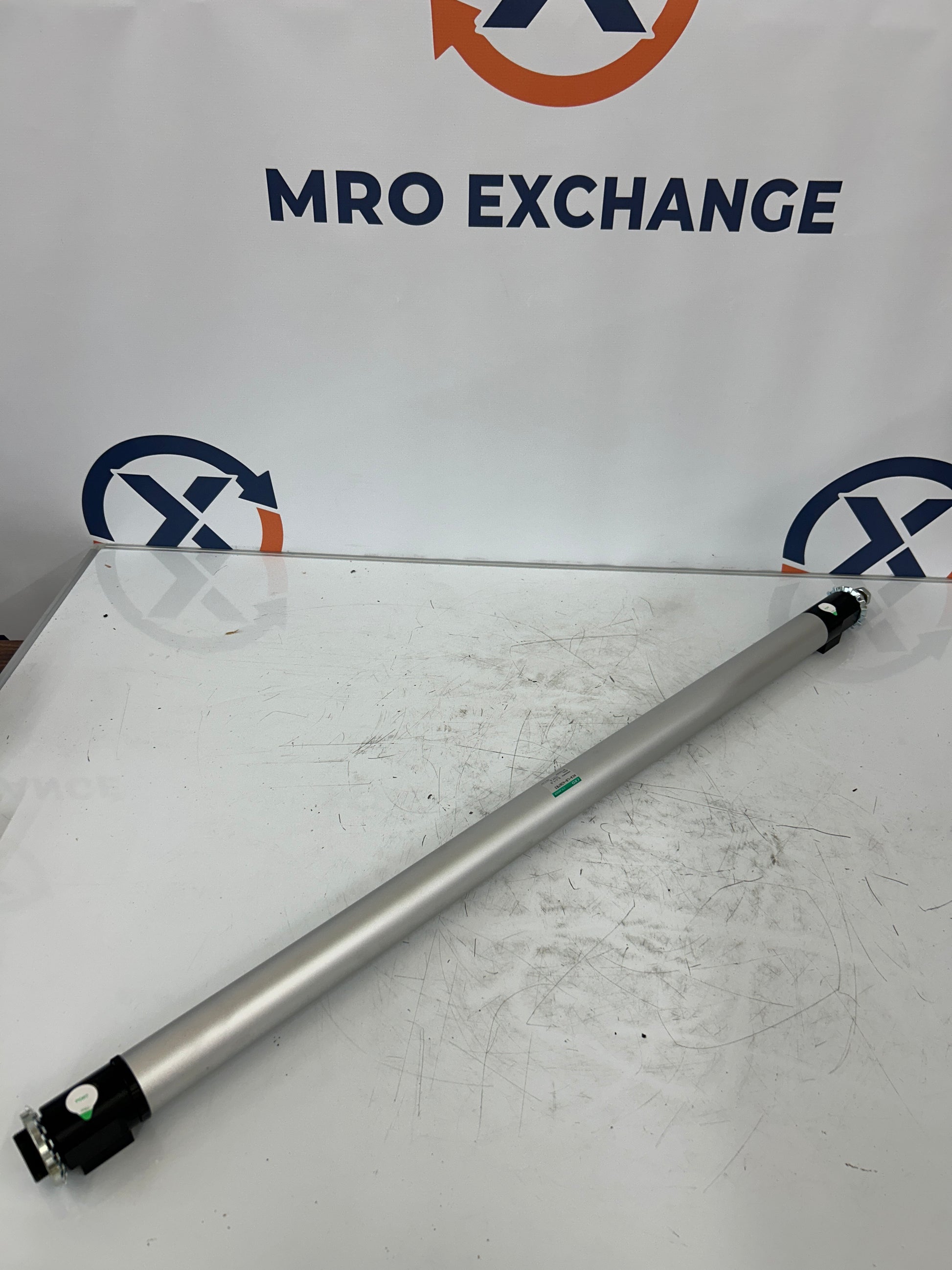

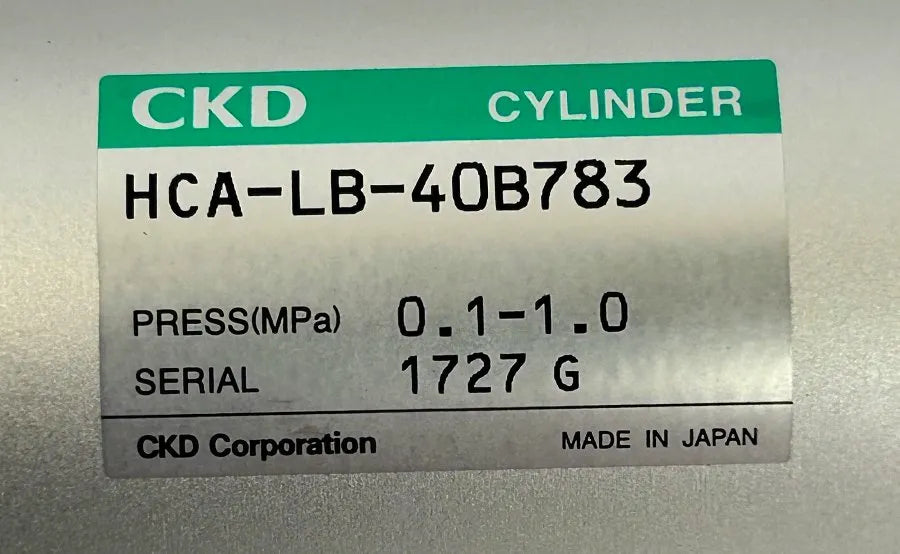

Used in high-speed automation systems including plastic injection mold ejection, press applications, and impact-sensitive workhandling, the CKD HCA-LB-40B783 is a high-speed, high-energy-absorbing pneumatic cylinder manufactured in Japan by CKD Corporation. The nameplate identifies the bore as 40mm (model code "40B") with foot bracket mounting (LB), and a stroke encoded in the model as 783. Operating pressure range is 0.1 to 1.0 MPa as marked on the nameplate. The serial number is 1727 G. CKD's HCA series is rated for operating speeds up to 3000 mm/s and is engineered to absorb significantly higher impact energy than conventional pneumatic cylinders, with CKD specifying approximately 6 to 8 times the energy absorption of standard products. This capability is achieved through the compressibility of air acting as an effective cushion, reducing the need for external shock absorbers in high-cycle applications. The cylinder body is aluminum construction with double-acting operation and a universal foot bracket (LB) for base mounting. CKD Corporation is a Japanese precision pneumatic components manufacturer with global distribution and ISO-certified production facilities.
Stock # 0226-674
