Consolidated Bearings 6011 M C/3 55 mm ID x 90 mm OD x 18 mm Width m00242

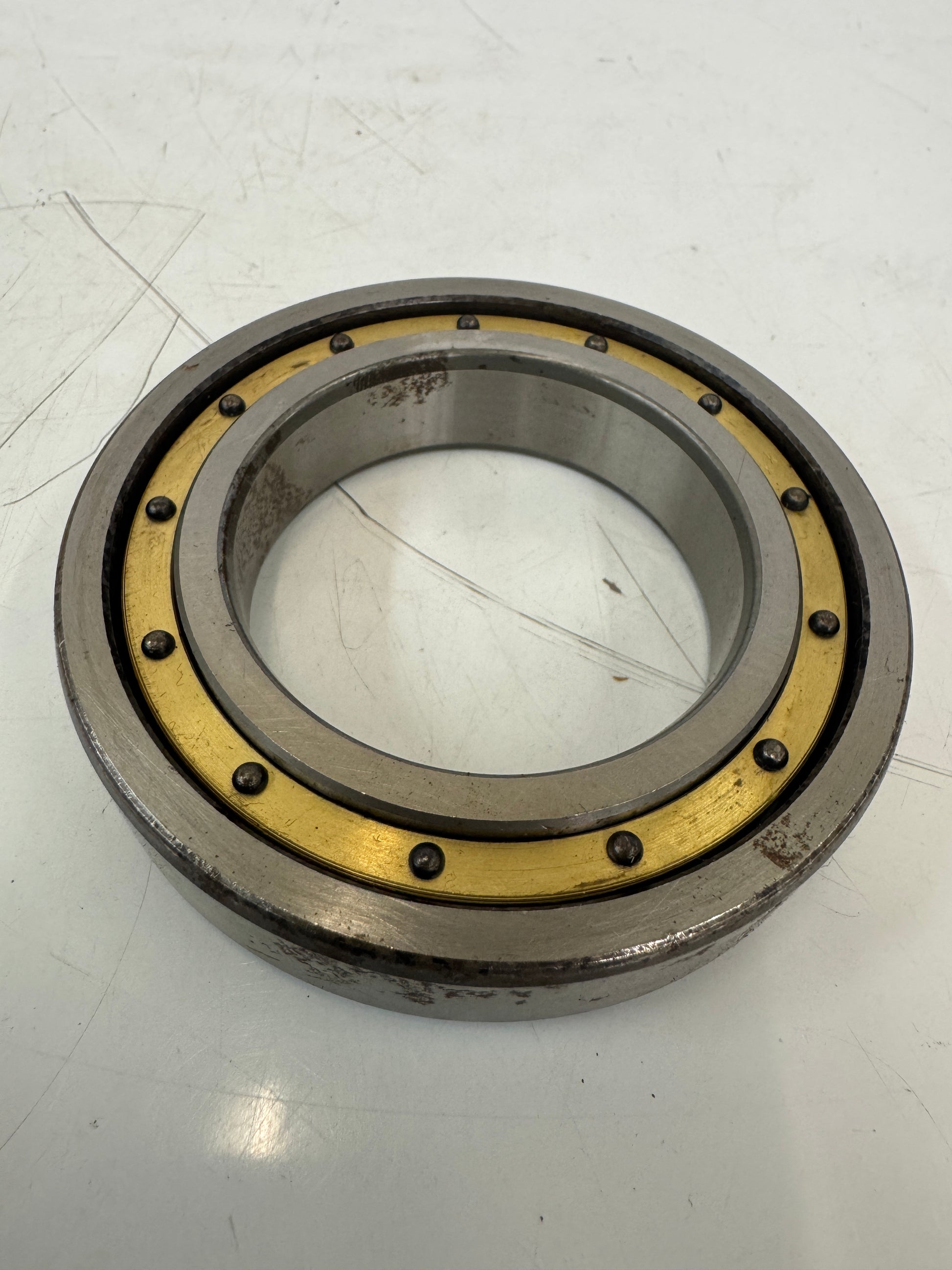

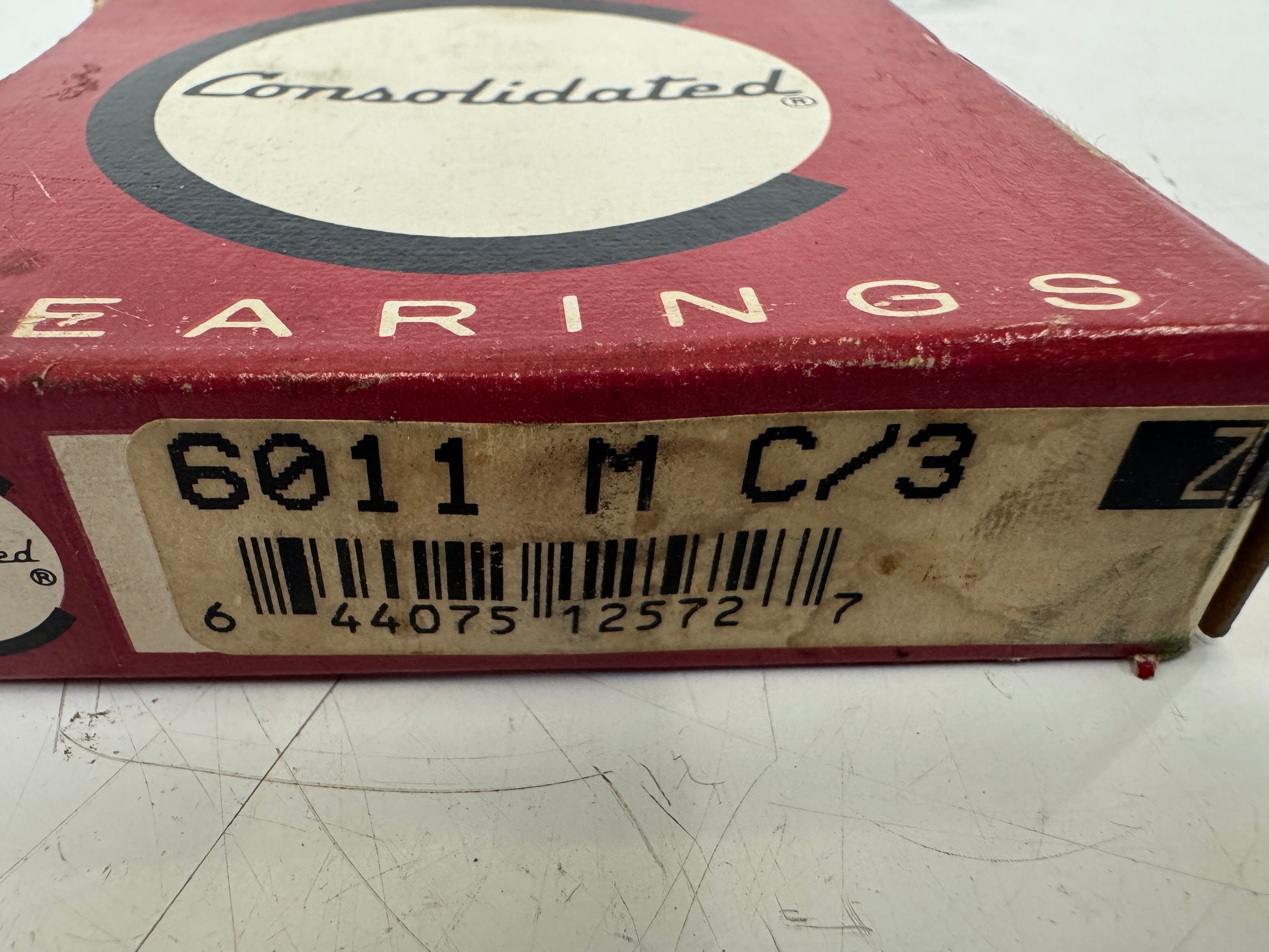

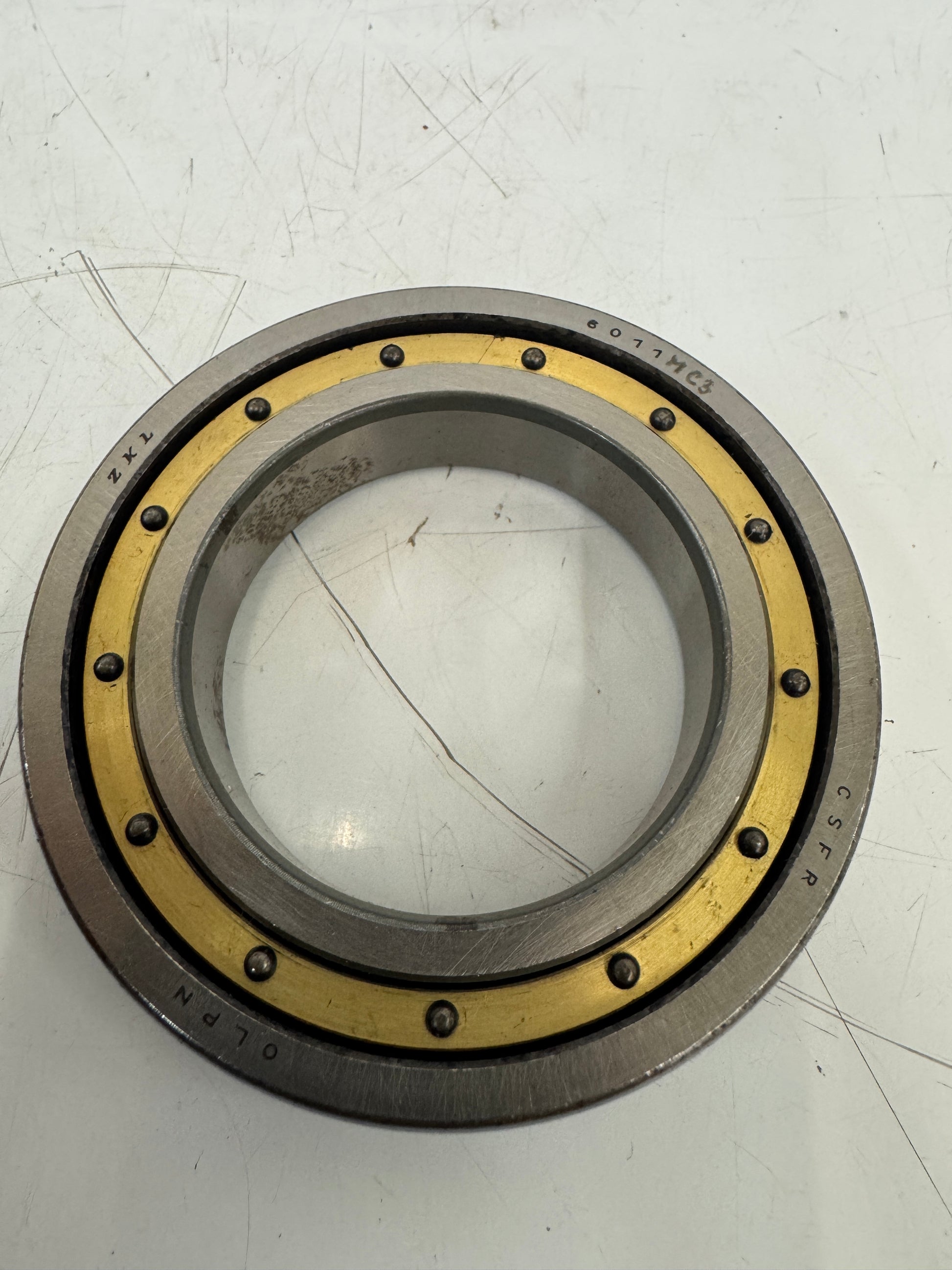

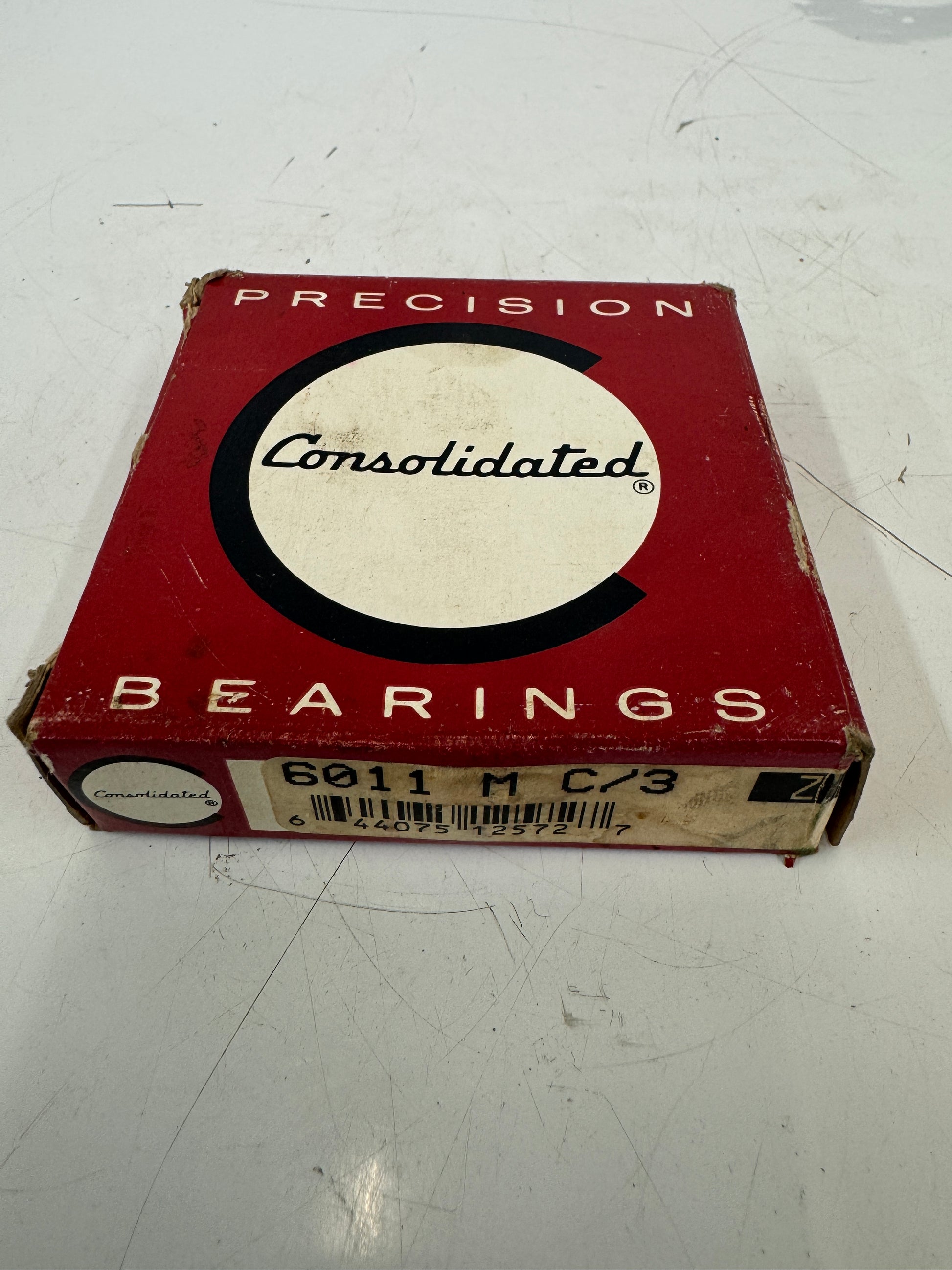

The Consolidated 6011 M C/3 is a single row deep groove ball bearing with a 55 mm bore, 90 mm outside diameter, and 18 mm width. The M suffix designates a machined bronze cage construction, a feature commonly specified for applications involving elevated operating temperatures, higher running speeds, or environments where polymer cages are unsuitable. The C/3 suffix indicates greater than normal internal radial clearance, typically selected for assemblies subject to thermal expansion, interference fit installations, or where shaft and housing tolerances introduce additional preload. Consolidated Bearings Company manufactures interchanges to standard ISO 6000 series dimensions, allowing this unit to function as a direct replacement for equivalent 55x90x18 mm deep groove ball bearings from other major OEMs. Typical applications include electric motors, gearboxes, pumps, fans, conveyor systems, and general industrial power transmission equipment. The open design accepts grease or oil lubrication and provides support for radial loads as well as moderate axial loads in both directions. UPC barcode 644075125727 is present on the original Consolidated packaging label. The box label also displays a Z designation. The item is new old stock in original Consolidated branded box with internal packaging intact. Buyers replacing OEM bearings should cross reference the M cage and C/3 clearance suffixes against their existing application requirements before installation.

Stock # 0226-242
