Consolidated Bearings Cylindrical Roller Bearing NN-3019-KMS P/5 95 x 145 x 37 Mm
Consolidated Bearings Cylindrical Roller Bearing NN-3019-KMS P/5 95 x 145 x 37 Mm
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
MPN: NN-3019-KMS P/5
Stock #: 0426-01325
Used in machine tool spindles, gear reducers, and precision industrial equipment, the Consolidated Bearings NN-3019-KMS P/5 is a double row cylindrical roller bearing with a tapered bore. The designation NN indicates a double row configuration with three ribs on the inner ring and no ribs on the outer ring, allowing the outer ring to be separable for easier mounting and removal. The KMS suffix denotes a tapered bore with a 1:12 taper ratio, and the P/5 designation corresponds to ABEC 5 precision class for tighter dimensional and running accuracy tolerances than standard bearings.

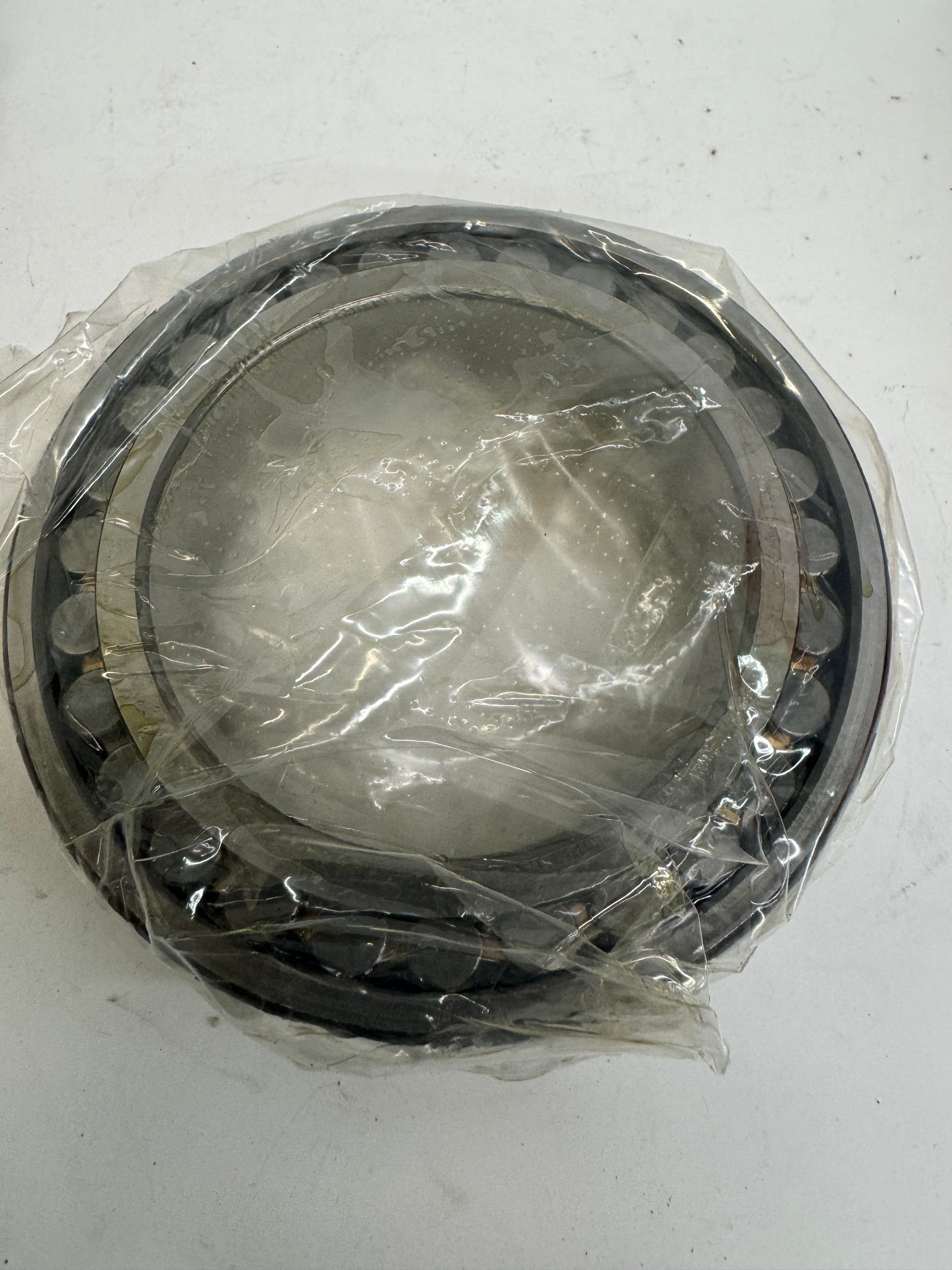

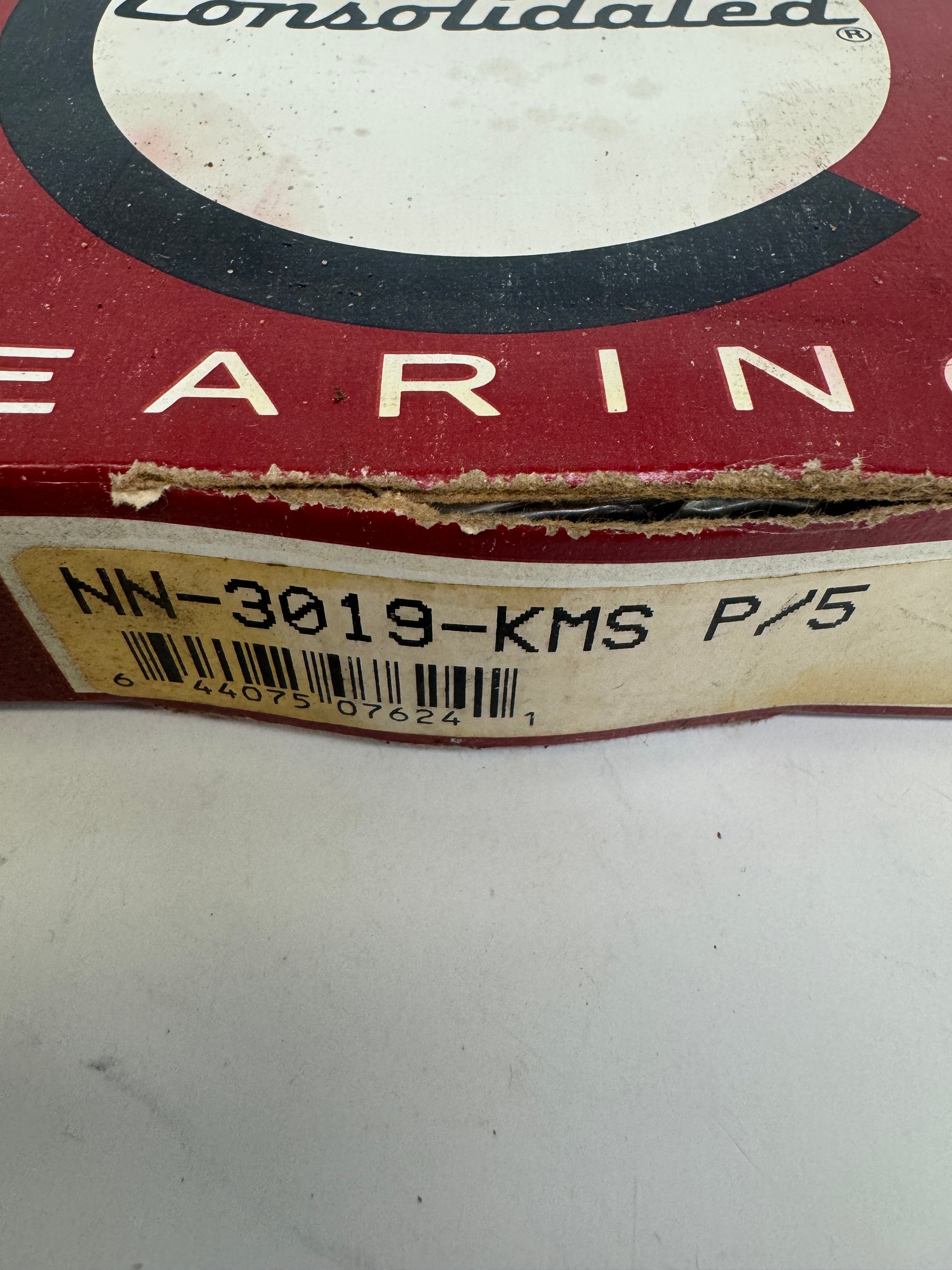

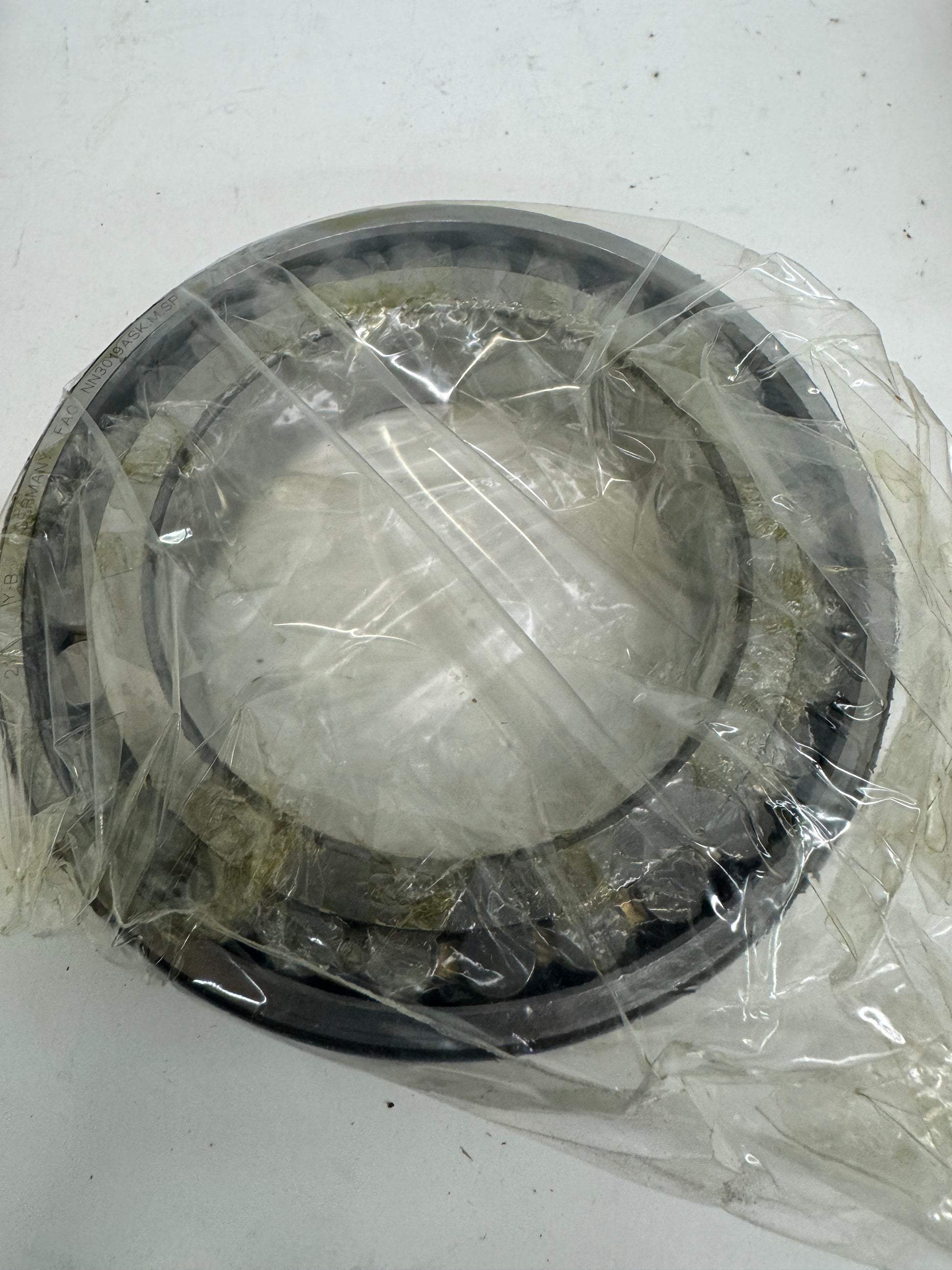

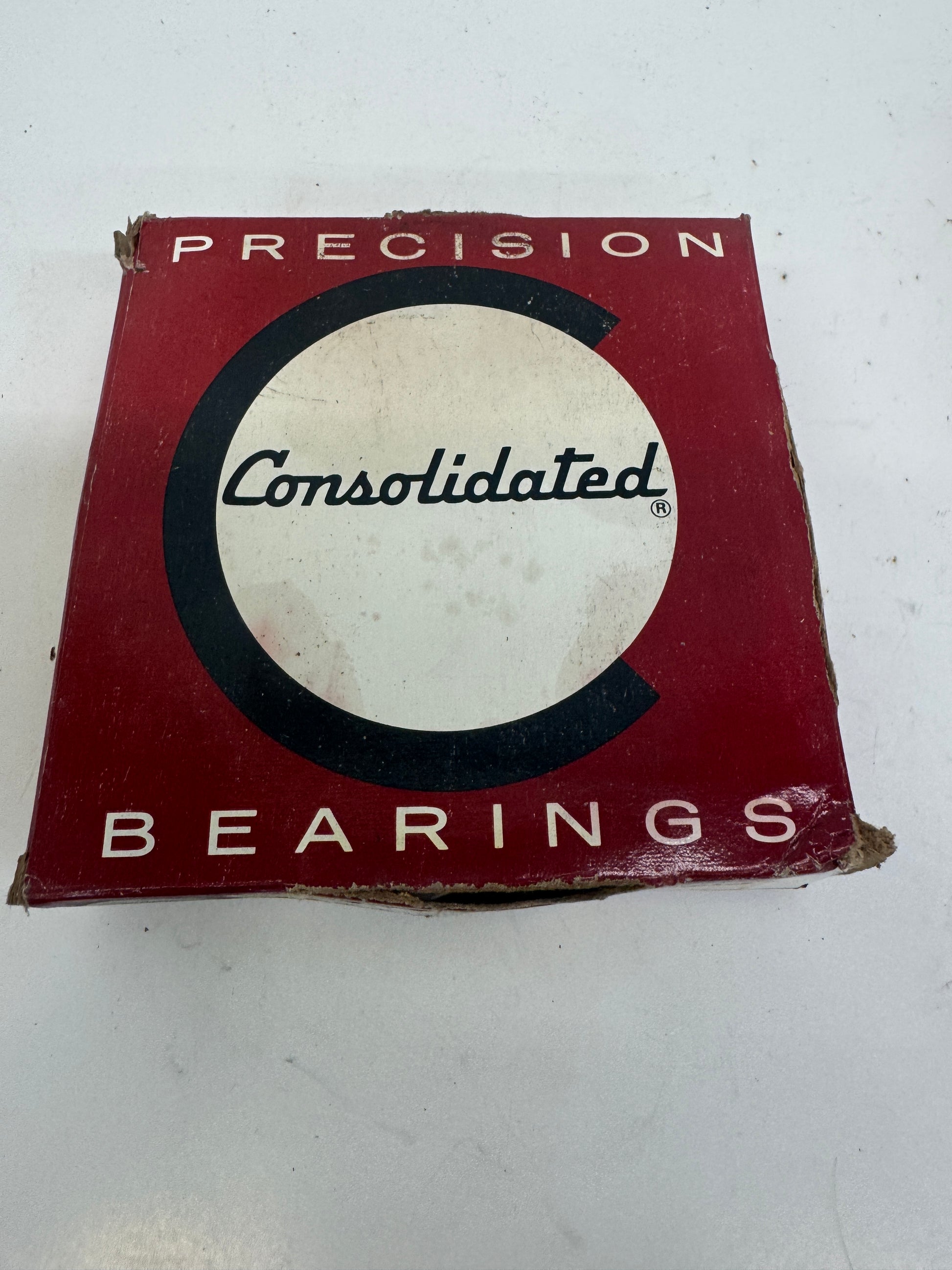

Bore diameter is 95 mm, outside diameter is 145 mm, and width is 37 mm. The part number NN-3019-KMS P/5 is sourced directly from the Consolidated Bearings box label. The bearing is housed in the original Consolidated Precision Bearings packaging and remains wrapped in factory poly wrap. Consolidated Bearings is the North American brand under which this bearing series is commercially distributed, with the NN-3019 frame size cross-referencing to equivalents from SKF, FAG, NSK, and NTN in the same bore and OD dimensions.
Applications for this bearing type include horizontal and vertical machining center spindles, turning center headstocks, and other high-precision rotating assemblies where stiffness, load capacity, and accuracy are required.
Stock # 0426-01325
