Cutler-Hammer HMCP003A0C Motor Circuit Protector 600 VAC / 250 VDC Untested Surplus 1756
Cutler-Hammer HMCP003A0C Motor Circuit Protector 600 VAC / 250 VDC Untested Surplus 1756
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition: Surplus - Untested

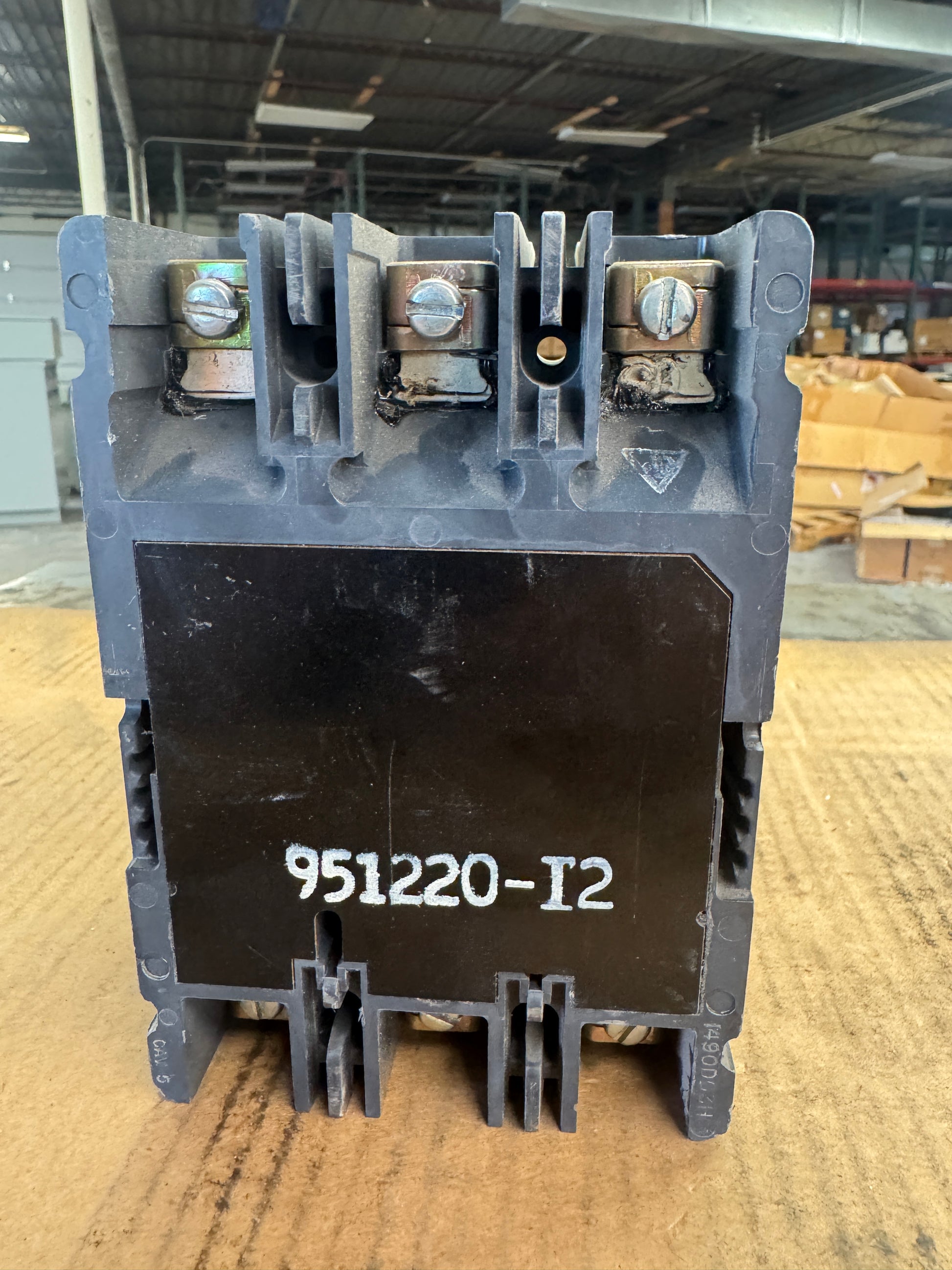

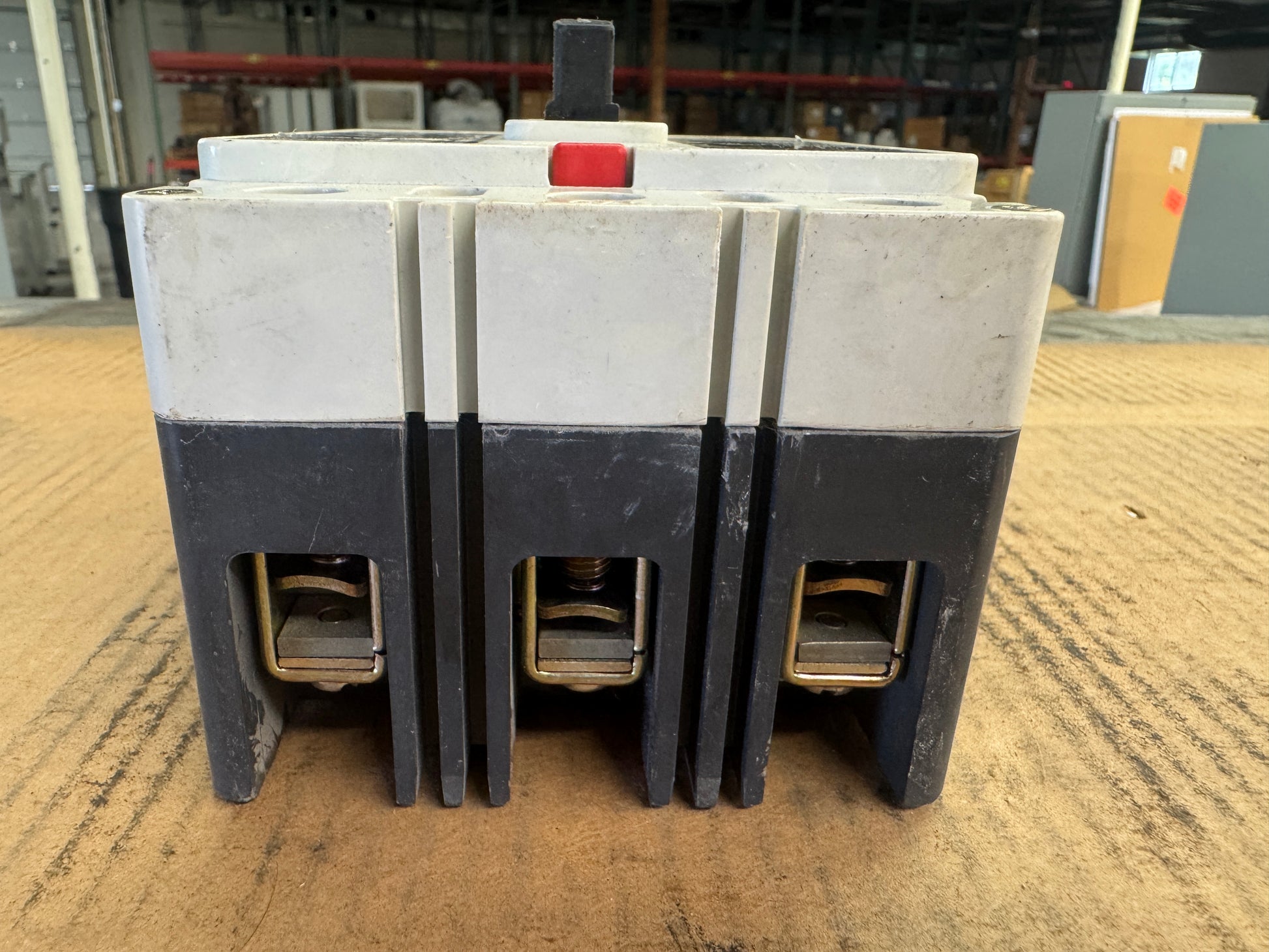

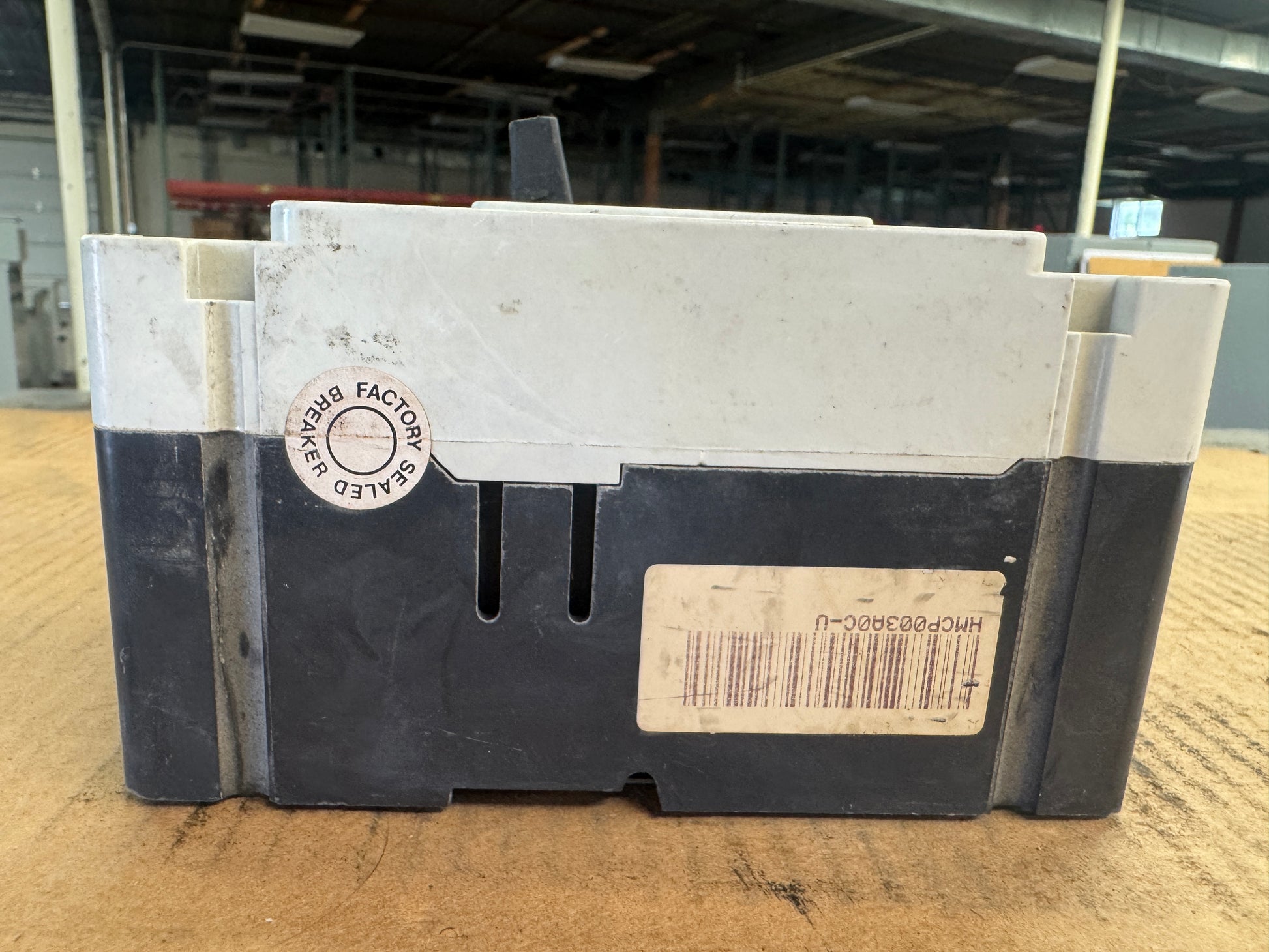

Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
MPN: HMCP003A0C
Stock #: Stock # 0626-01756
Product Specifications
- Manufacturer: Cutler-Hammer
- MPN / Model: HMCP003A0C
- Product Type: Motor Circuit Protector
- Series: Westinghouse Series C
- Style: 6630C87G03
- Amperage: 3 A
- Poles: 3
- Voltage: 600 VAC, 250 VDC
- Frame: F Frame
- Trip Type: Magnetic, Instantaneous Trip Settings 9 to 30 A
- Wire Rating: 60 / 75 C, CU/AL (UL), CU Only (CSA)
- Approvals: UL, CSA, CE, IEC 947
Product Description

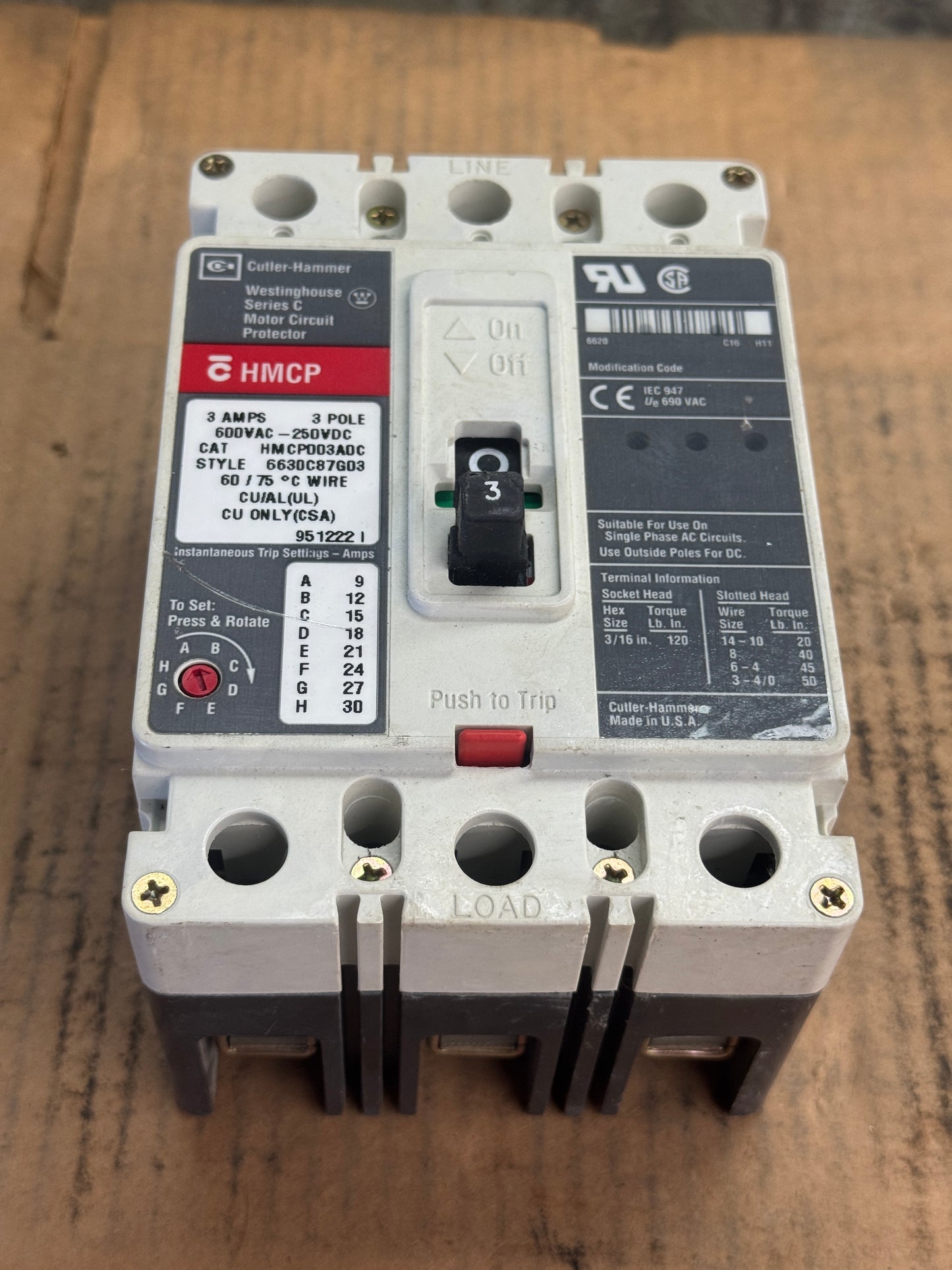

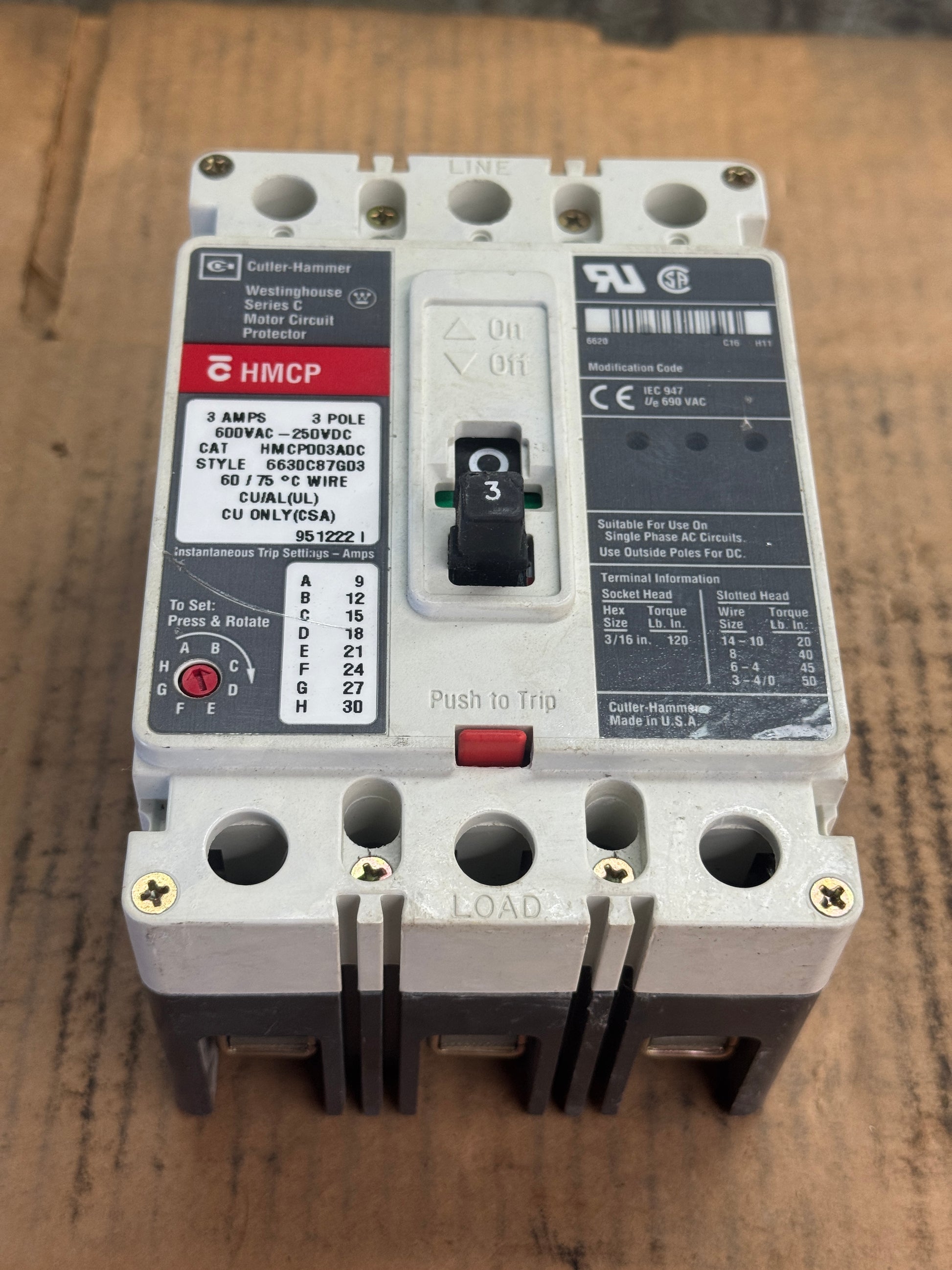

Cutler-Hammer HMCP003A0C is a 3 pole motor circuit protector from the Westinghouse Series C line, identified by catalog number HMCP003A0C and style 6630C87G03. It is a magnetic trip device rated 600 VAC and 250 VDC, with a 3 ampere base rating and adjustable instantaneous trip settings from 9 to 30 amperes selectable by the press and rotate dial. The nameplate confirms 60 / 75 C wire rating, CU/AL terminals under UL and CU only under CSA, and UL, CSA, CE, and IEC 947 approvals. Buyers matching an exact Cutler-Hammer catalog number for motor branch circuit short circuit protection, panel replacement, or spare inventory can use the MPN HMCP003A0C and the visible style number to confirm fit against existing equipment.
