Cutler-Hammer HMCP003A0C Motor Circuit Protector 600 VAC / 250 VDC Untested Surplus 1760
Cutler-Hammer HMCP003A0C Motor Circuit Protector 600 VAC / 250 VDC Untested Surplus 1760
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition: Surplus - Untested
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
MPN: HMCP003A0C
Stock #: Stock # 0626-01760
Product Specifications
- Manufacturer: Cutler-Hammer
- MPN / Model: HMCP003A0C
- Product Type: Motor Circuit Protector
- Series: Series C
- Style: 6601C87G01
- Amperage: 3 Amps
- Poles: 3 Pole
- Voltage: 600 VAC, 250 VDC
- Instantaneous Trip Range: 9 to 30 Amps (settings A through H)
- Wire Rating: 60/75 C, CU/AL (UL), CU Only (CSA)
- Approvals: UL, CSA, CE, IEC 947
Product Description

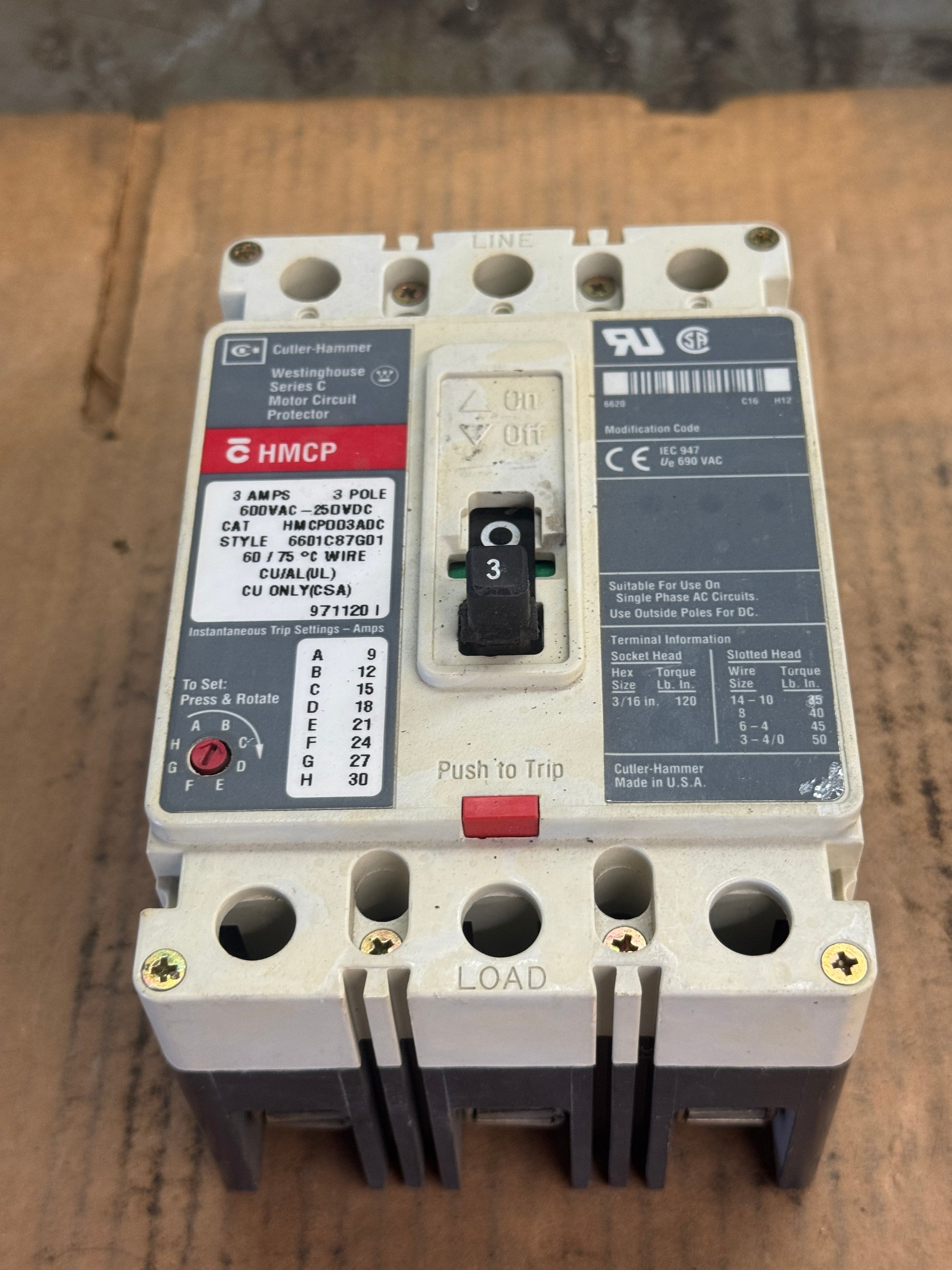

Cutler-Hammer HMCP003A0C is a Series C HMCP motor circuit protector rated at 3 Amps, 3 Pole, 600 VAC and 250 VDC, carrying style number 6601C87G01. The nameplate lists an adjustable instantaneous trip range of 9 to 30 Amps across press and rotate settings A through H, with terminals rated for 60/75 C copper or aluminum wire under UL and copper only under CSA. Markings on the device include UL, CSA, CE, and IEC 947 references. Buyers matching an exact Cutler-Hammer or Westinghouse catalog number for replacement, spare inventory, or maintenance sourcing can use the visible nameplate data and MPN HMCP003A0C to confirm fit against their existing motor branch protection.
