Danaher Motion M-1017-1314 CNC Control Module PCB Board
Danaher Motion M-1017-1314 CNC Control Module PCB Board
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
MPN: M-1017-1314
Stock #: 0226-00445
Industrial CNC control module board for Danaher Motion / Giddings & Lewis control systems. PCB control electronics used within the CNC cabinet. The identification label shows part number M-1017-1314 with reference number 503-16939-10 and serial number F29288. The board is marked “OP STATION 1.44M COLOR BOARD,” confirming its function within a color graphics operator interface system.

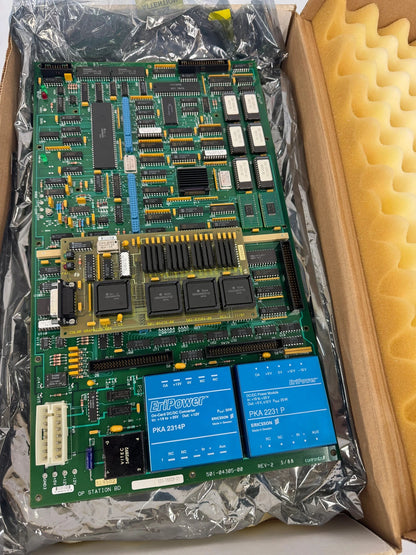

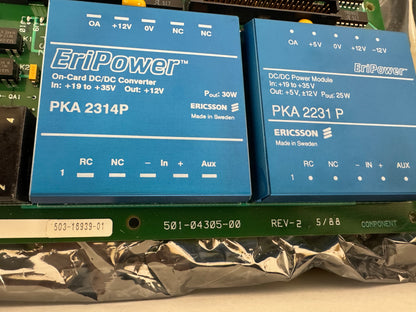

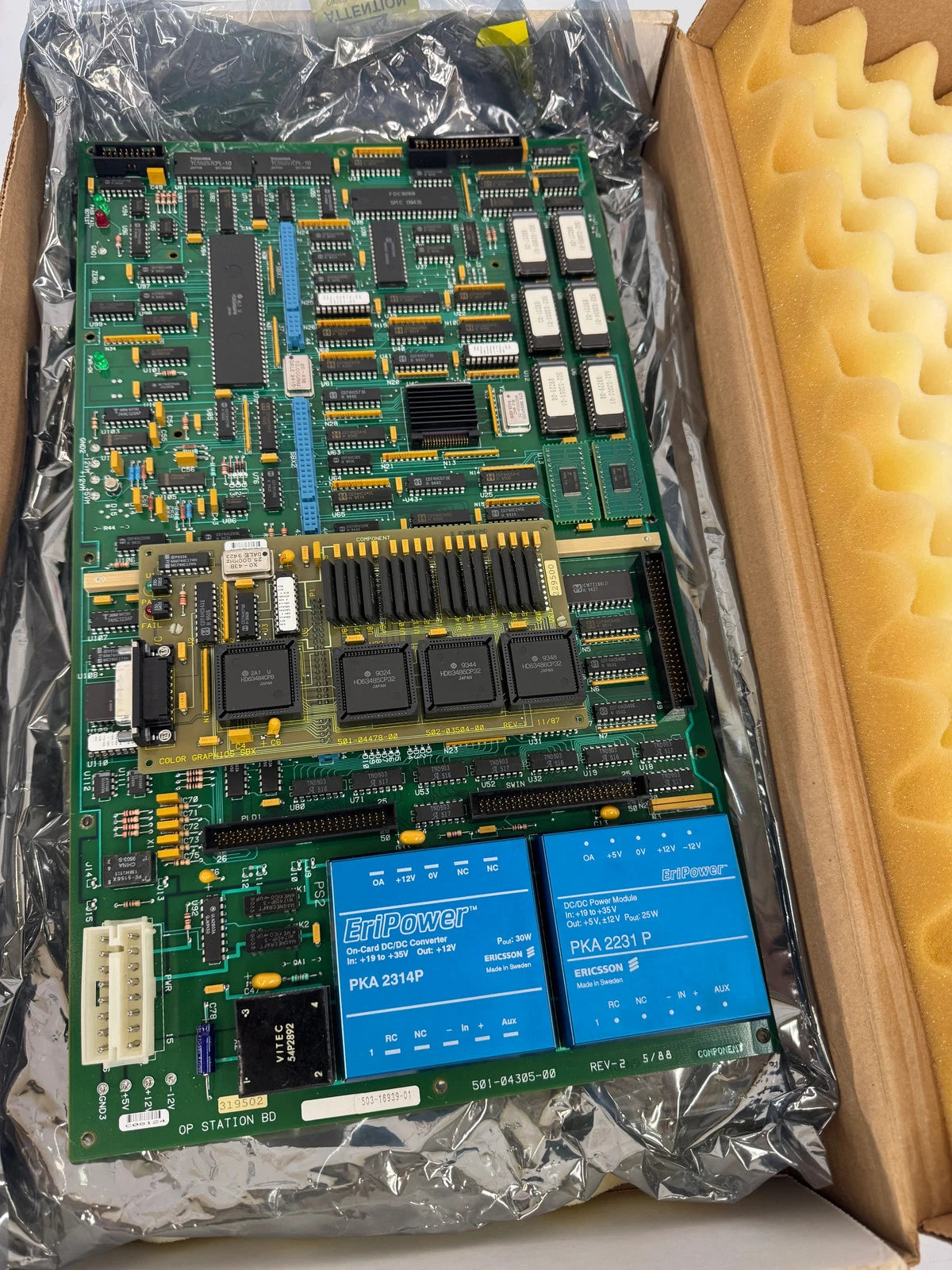

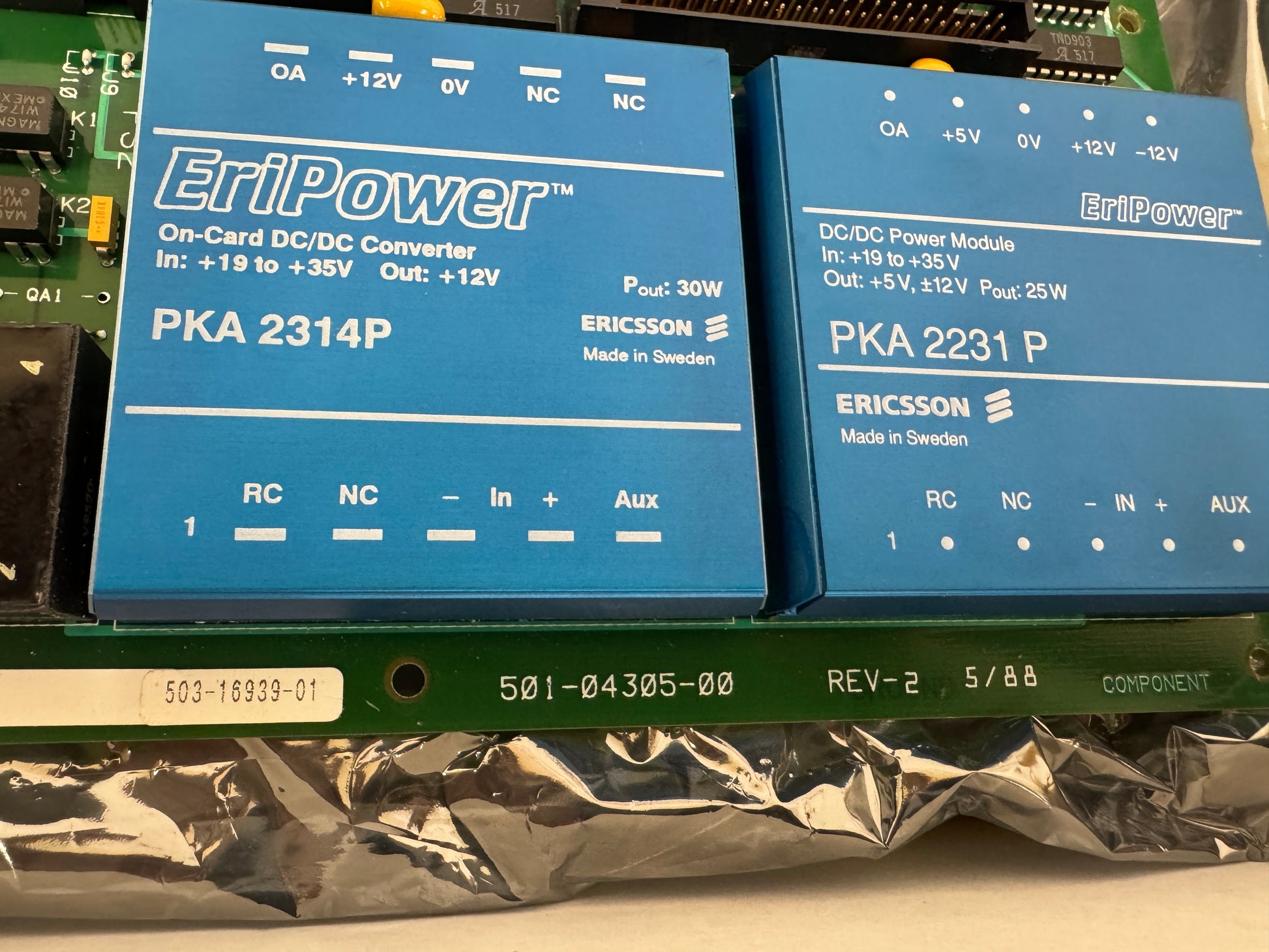

The assembly incorporates multiple integrated circuits, memory devices, and a plug-in color graphics sub-board labeled “COLOR GRAPHICS SBX.” Power conversion is handled by onboard Ericsson EriPower DC/DC modules, including models PKA 2314P and PKA 2231P. These modules specify an input range of +19 to +35 VDC and provide regulated +5V and ±12V outputs as printed on the modules.
The board features dual edge connectors for rack or chassis installation, multiple ribbon cable headers, and clearly labeled test points. Identification details and electrical input range are based strictly on visible labels and component markings present on the assembly.
