Dayton Immersion Coolant Pump 5K459V6 3/8 in. NPT
Dayton Immersion Coolant Pump 5K459V6 3/8 in. NPT
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
Stock #:

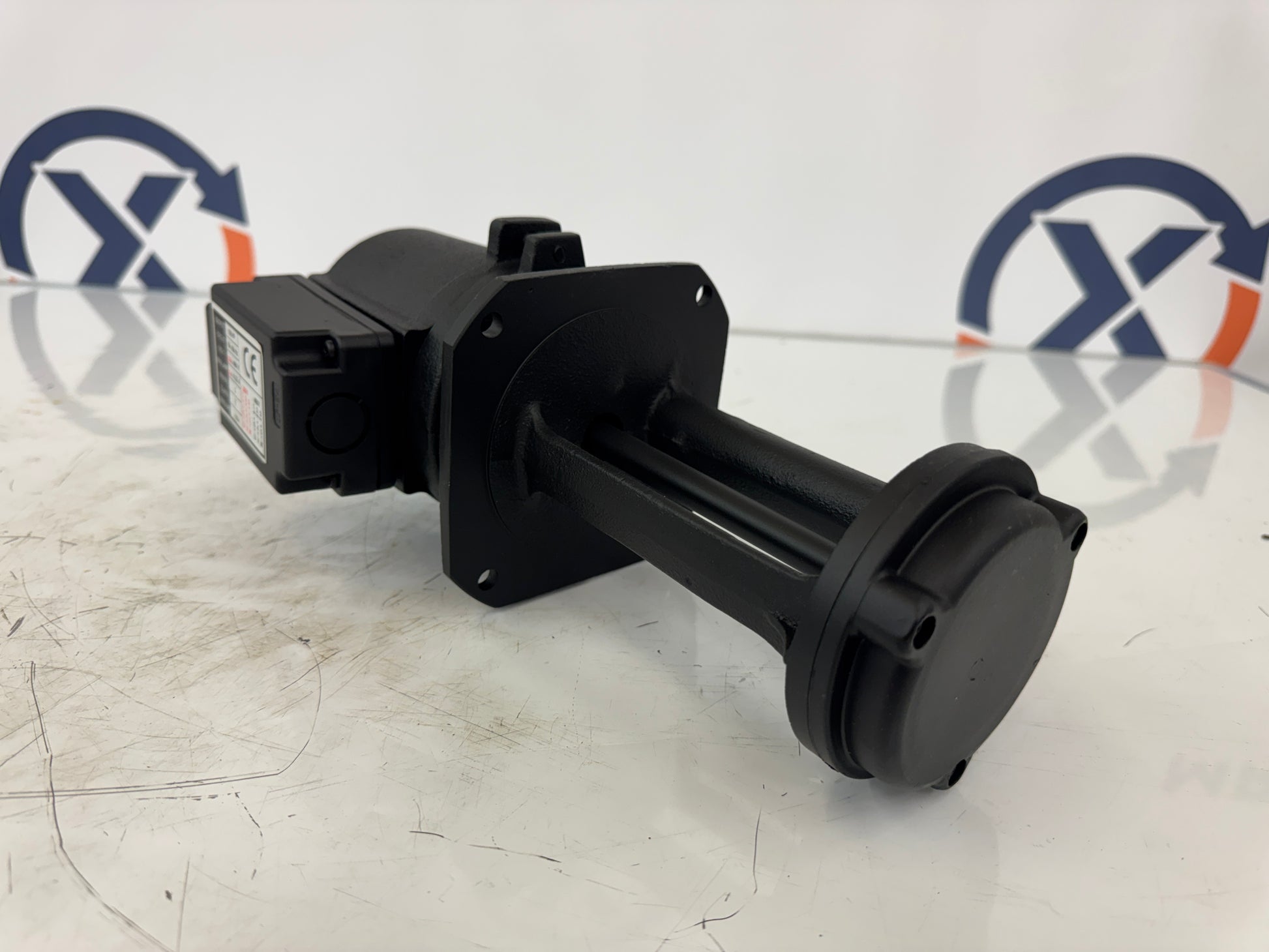

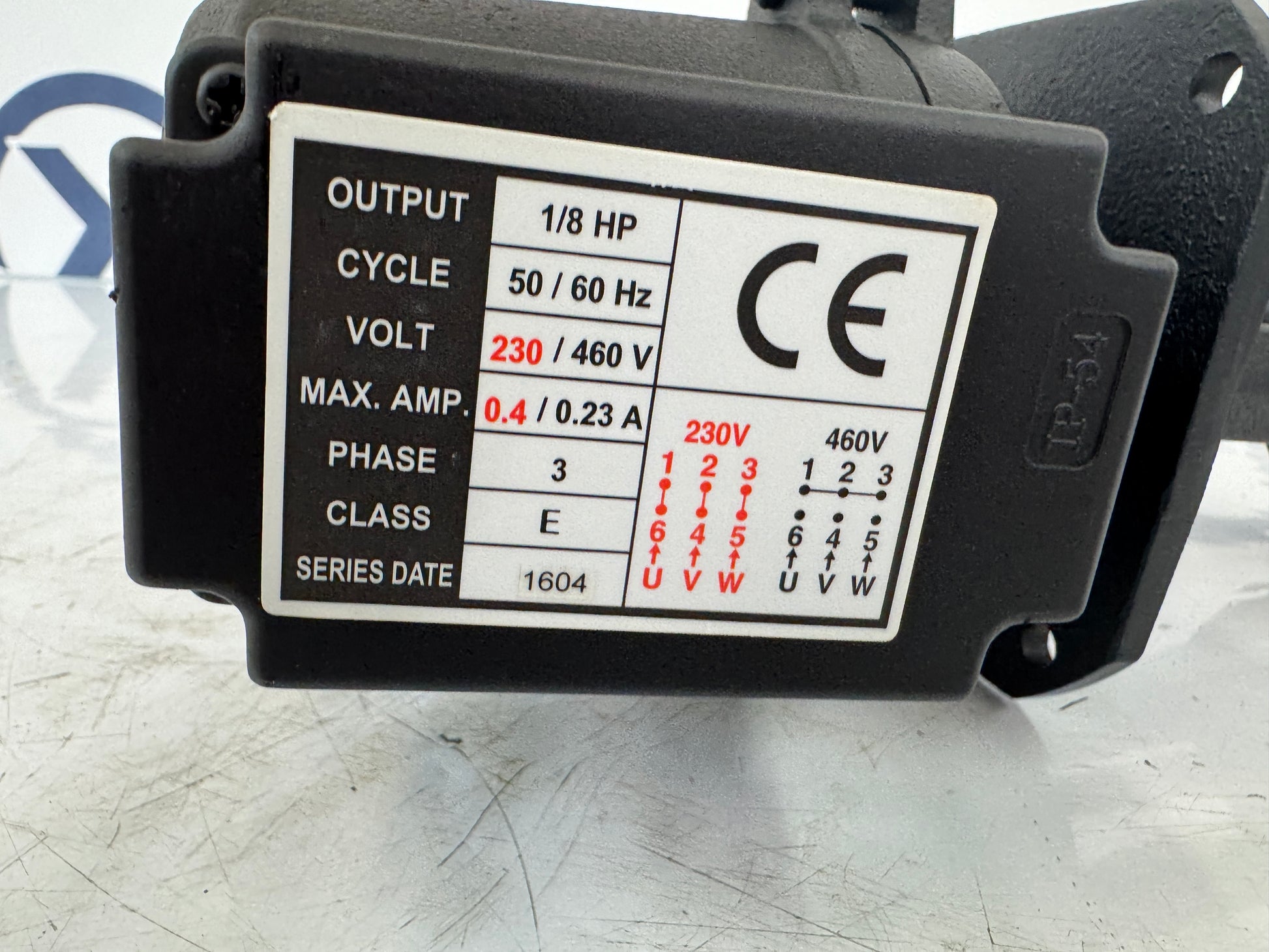

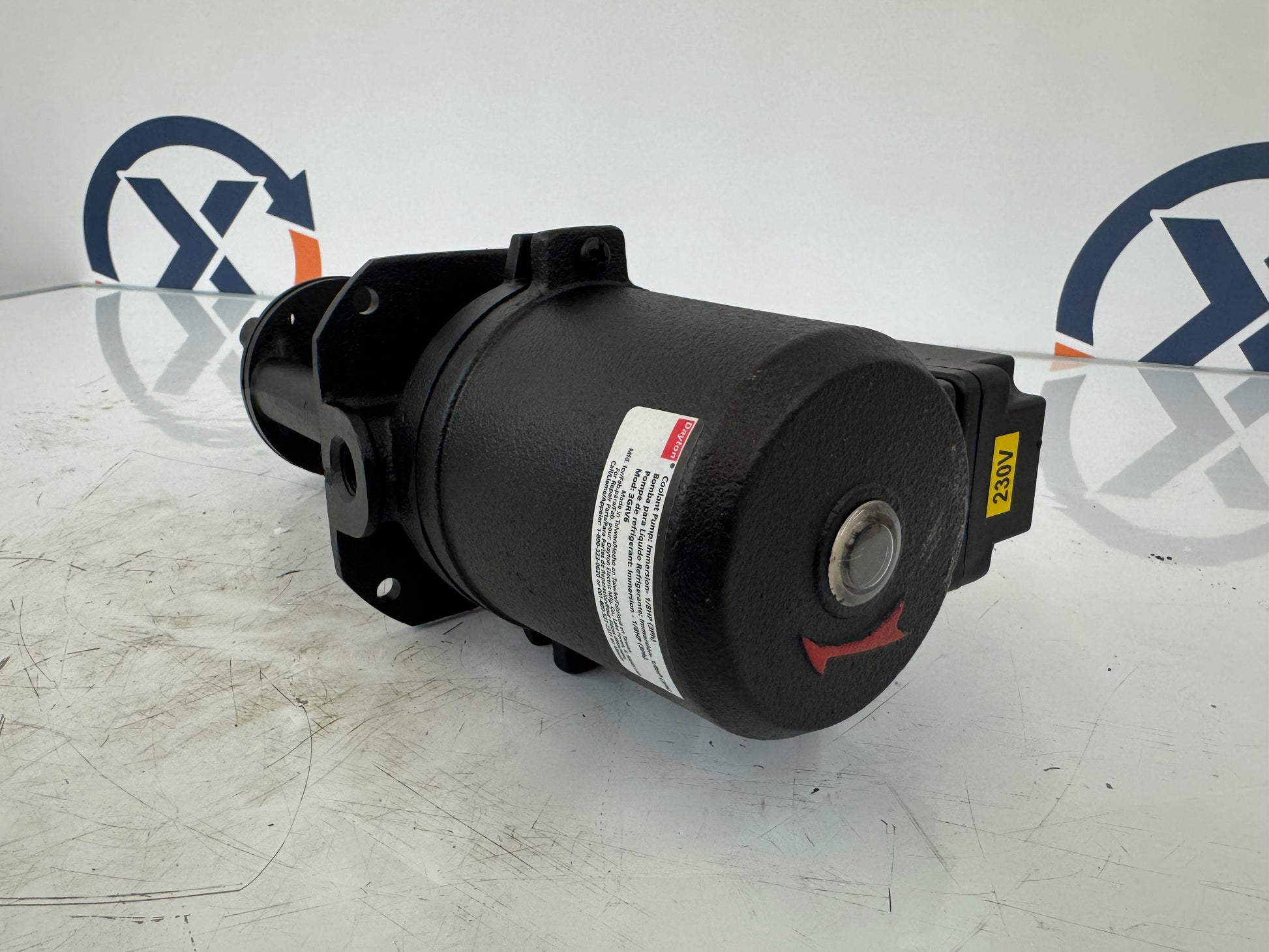

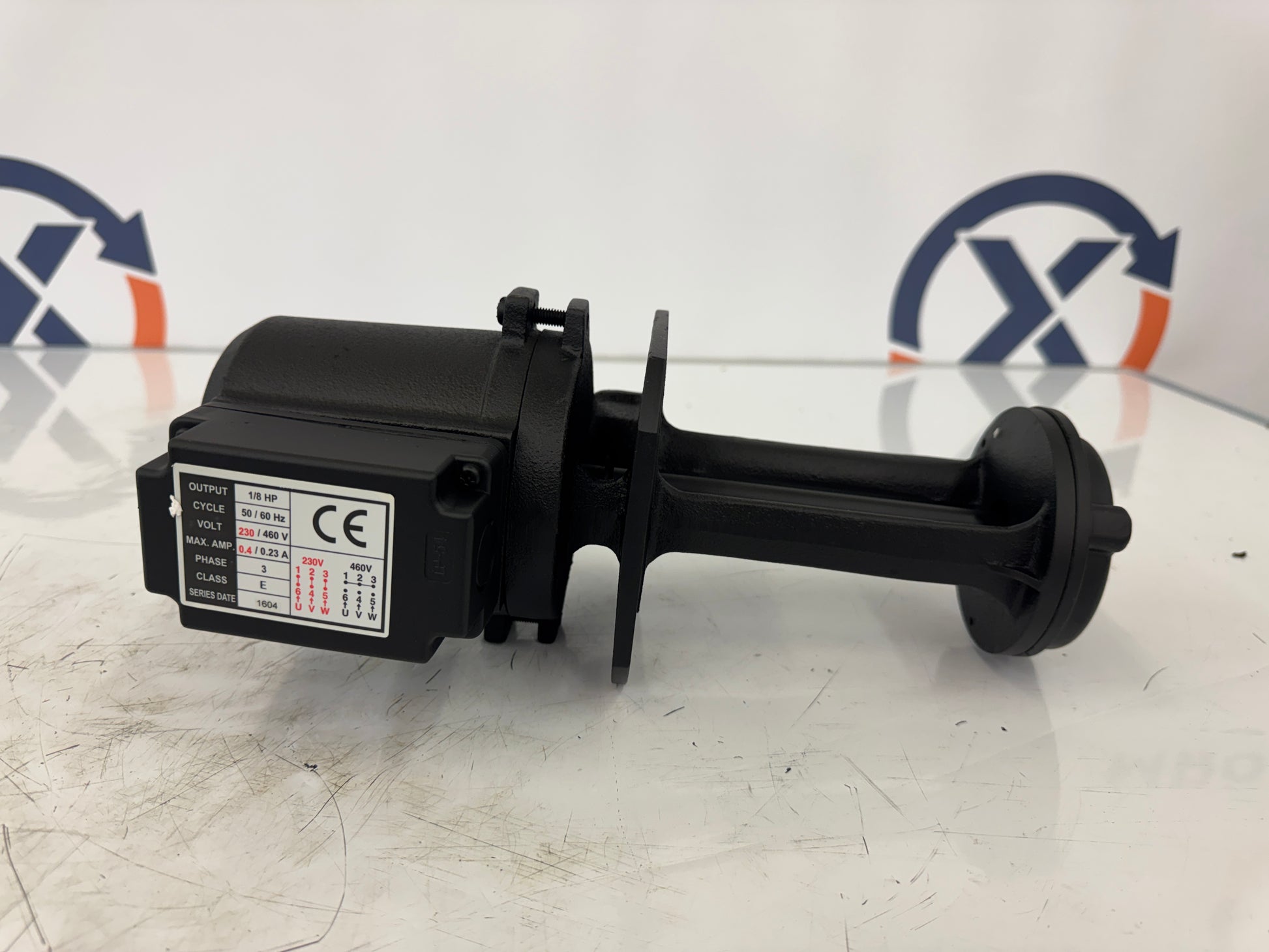

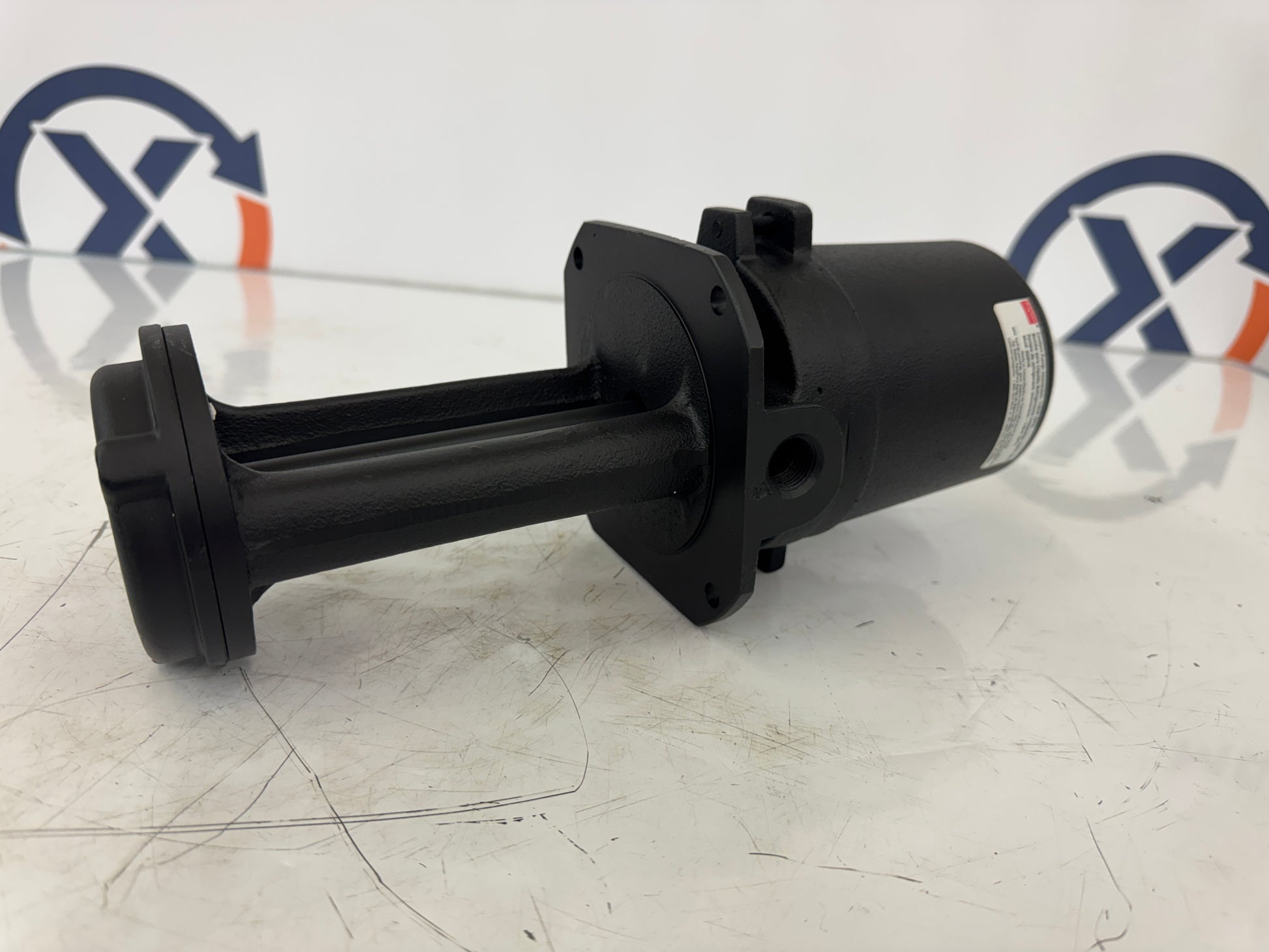

Used in machine tool applications requiring coolant circulation and cutting oil delivery, the Dayton immersion coolant pump carries model number 5K459V6 with a series date of 1604. The unit is rated at 1/8 HP output and operates on a 3-phase power supply at 230/460V, 50/60 Hz, drawing a maximum of 0.4A at 230V or 0.23A at 460V. Insulation is Class E, and the enclosure is rated IP54, providing protection against dust ingress and water splash. The cast iron construction and tubular immersion column are consistent with Dayton immersion pump configurations used across a wide range of milling machines, lathes, grinders, and other CNC or manual machine tools. The pump mounts via a flange plate and submerges directly into a coolant reservoir. Based on published specifications for the OEM equivalent Dayton 3GRV6, flow rate reaches up to 10 GPM with a maximum head of 13 ft, a maximum immersion depth of 6 in., and a 3/8 in. NPT discharge port. The plastic impeller and cast iron housing are compatible with nonflammable cutting fluids and water-soluble coolants with viscosities up to 500 SSU. Maximum fluid temperature is 180 degrees F.
Stock # 0226-401
