Eaton Cutler-Hammer Manual Motor Starter B100M1C 600VAC

$250.00 USD

Sale Sold out

U.S. shipping, securely packaged. Ships in 1-2 Days
Questions? Real support team available before purchase
Secure checkout with trusted payment methods

Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.

MPN: B100M1C
Stock #: 0526-02327

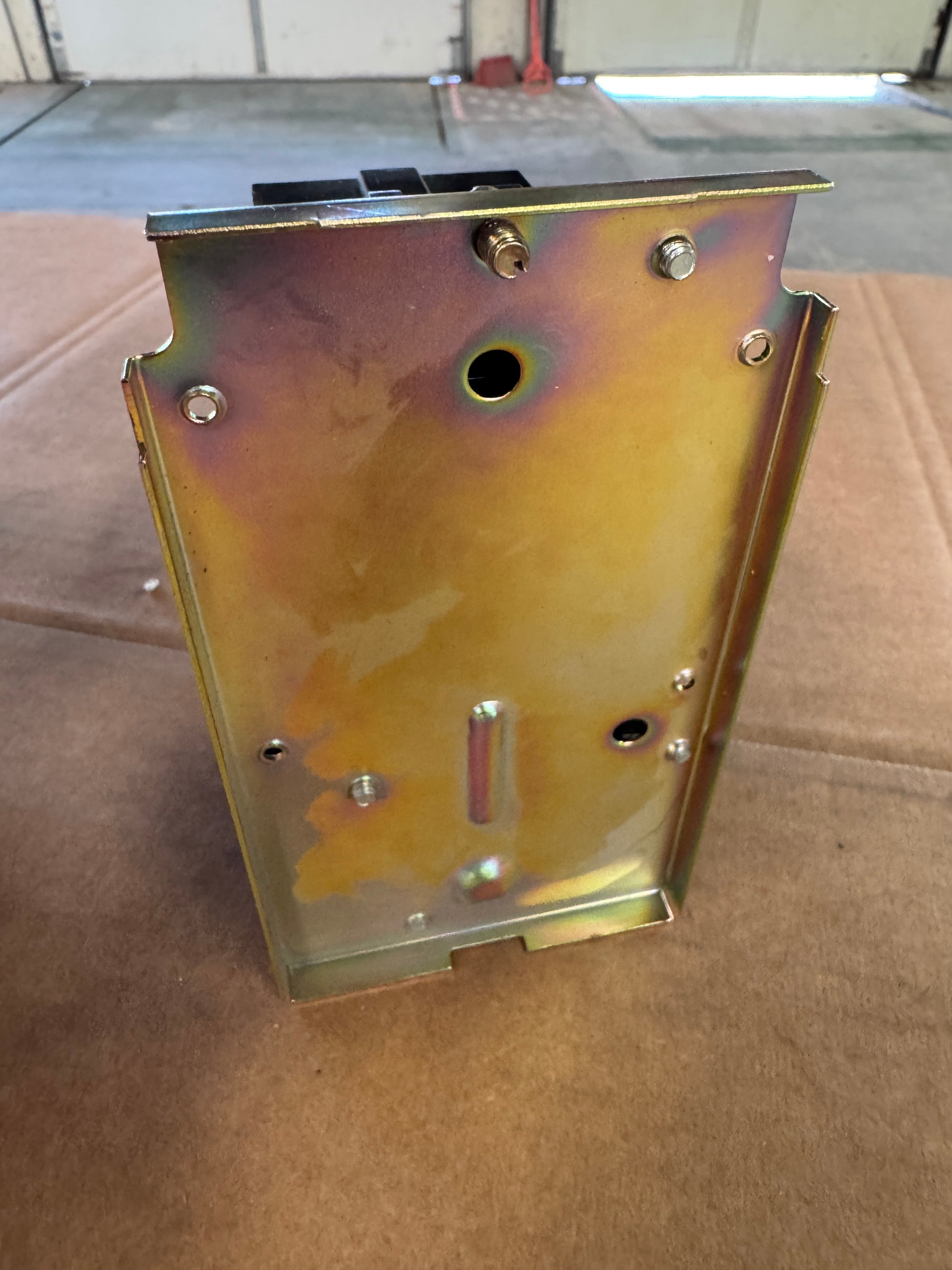

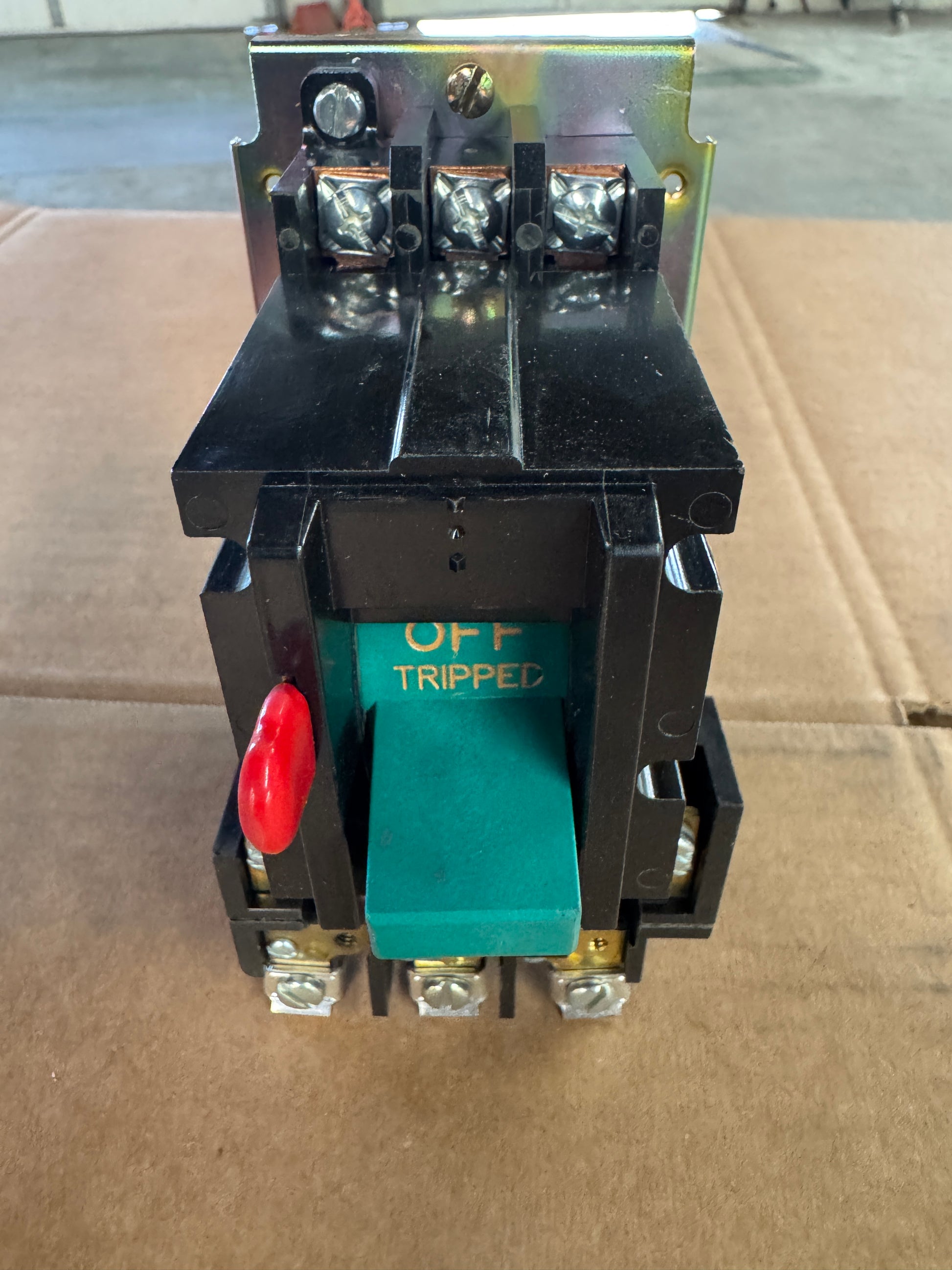

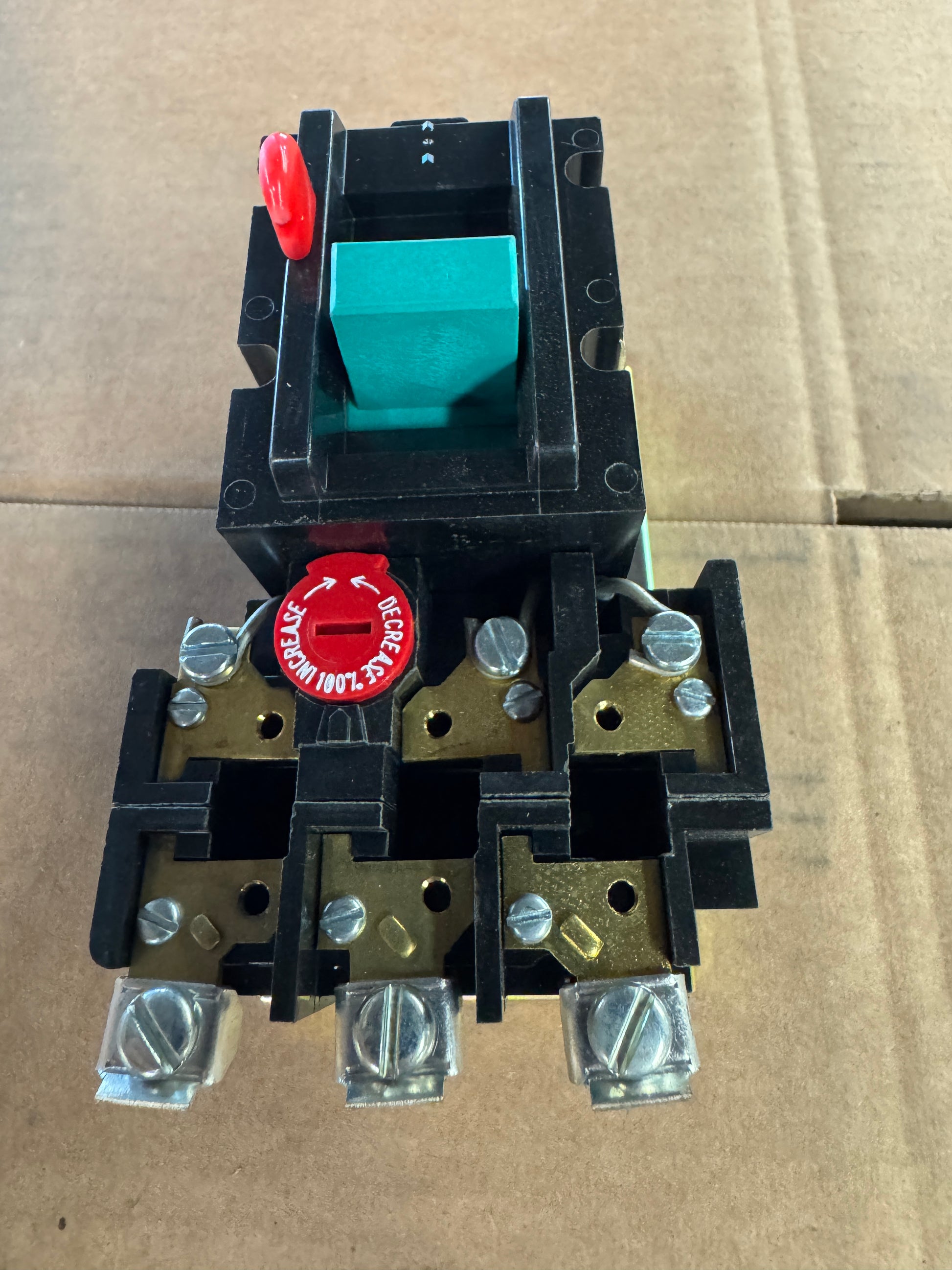

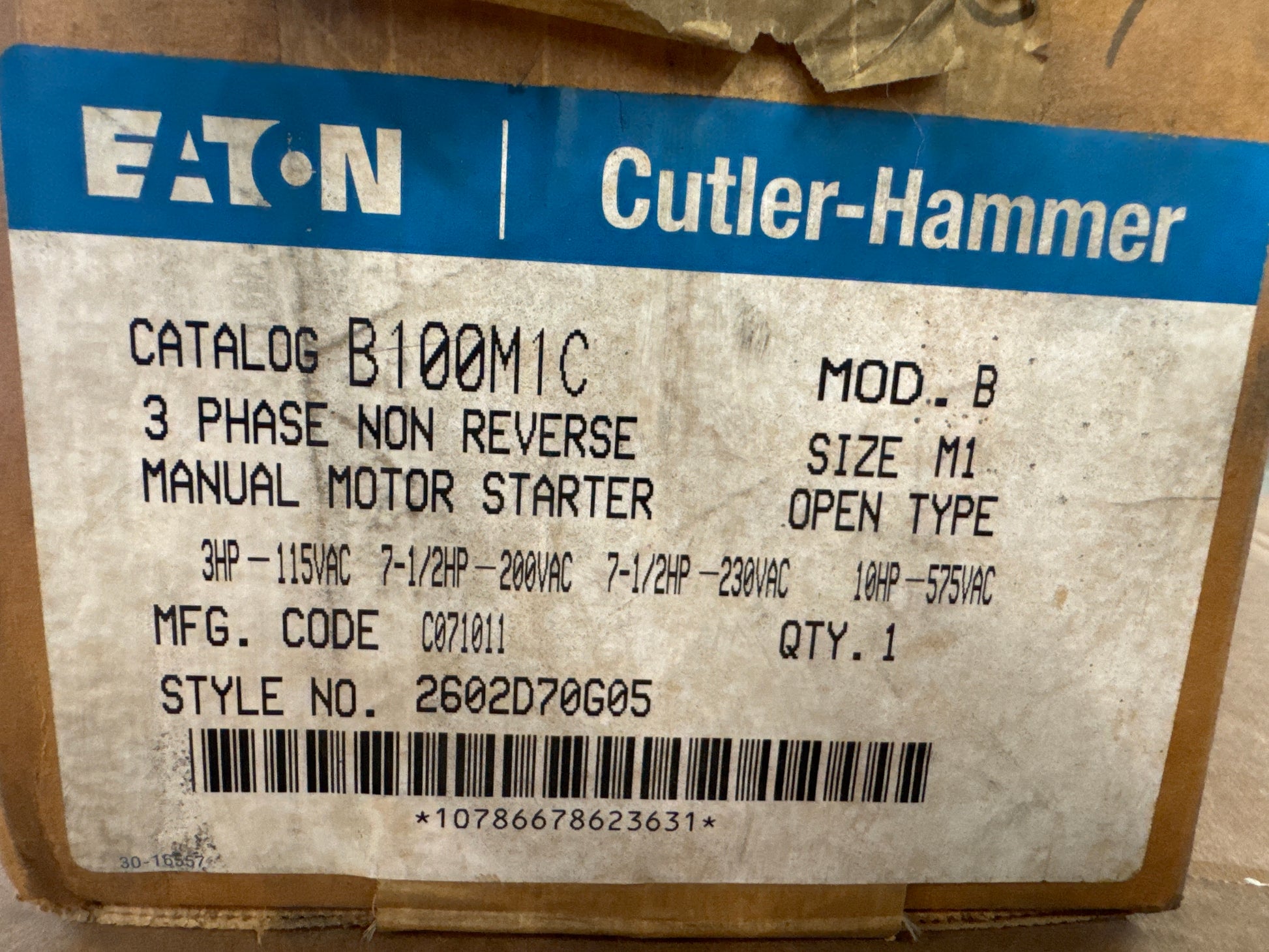

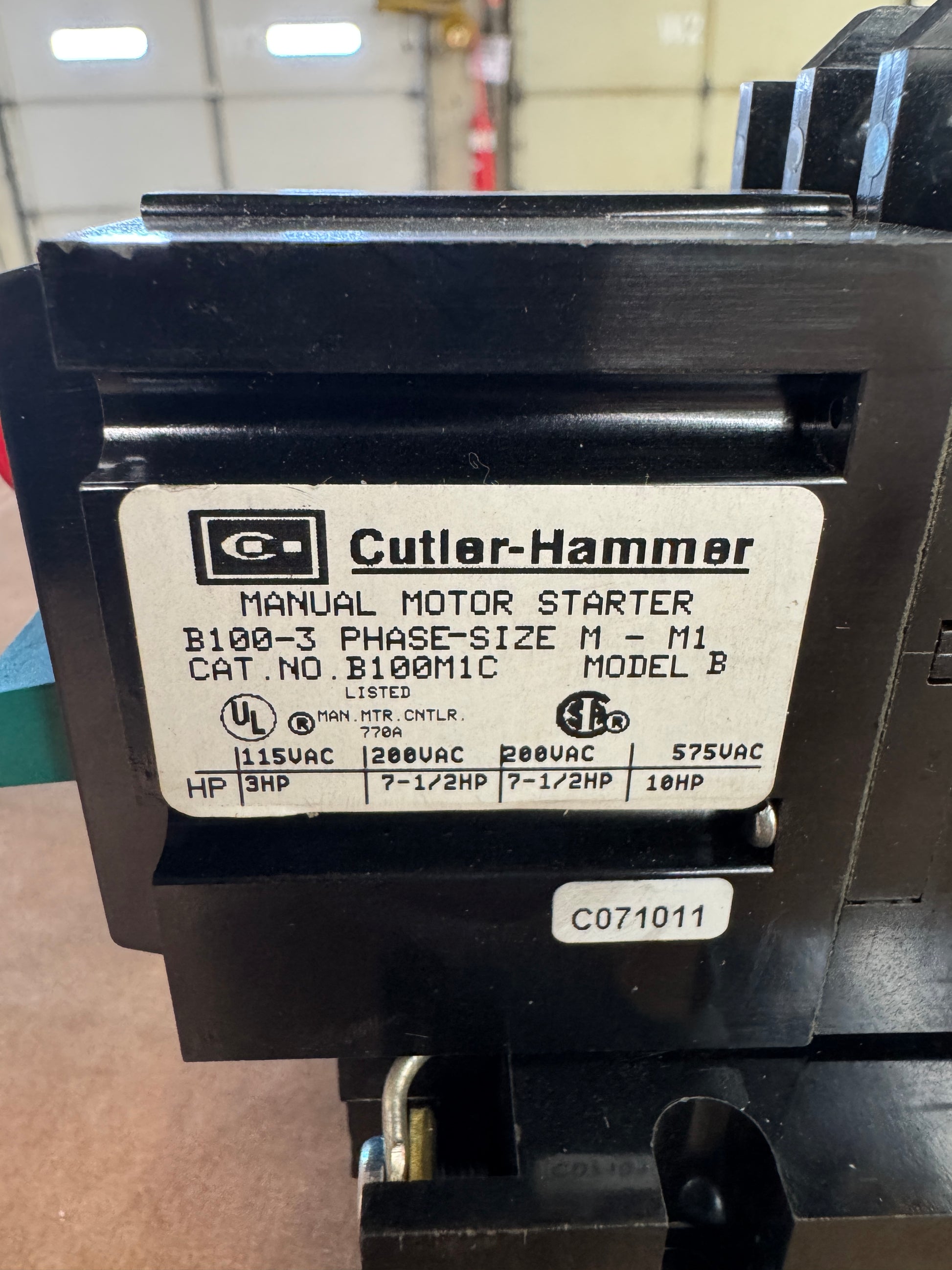

The Eaton Cutler-Hammer B100M1C is a three phase, non reversing manual motor starter from the B100 series, NEMA size M1, open type construction. Style number 2602D70G05, Model B, manufacturing code C071011. This three pole starter features a toggle operator with padlockable OFF position and integral bi-metallic three pole overload relay with adjustable trip setting visible through the front decrease/increase dial. Horsepower ratings per the nameplate are 3 HP at 115 VAC, 7-1/2 HP at 200 VAC, 7-1/2 HP at 230 VAC, and 10 HP at 575 VAC. Maximum voltage rating is 600 VAC. The unit is UL Listed as a Manual Motor Controller (770A) and CSA certified. Compact 45 mm design supports both DIN rail snap on mounting and panel mounting via the included metal back bracket. Front accessible fingerproof terminals with screwdriver guide holes simplify field wiring, and the plug in heater element is keyed for proper positioning. Visible OFF/TRIPPED indicator window confirms operating state at a glance. Applications include manual control and overload protection of single phase and three phase motors in pumps, conveyors, fans, machine tools, and general industrial equipment. The B100M1C is commonly used as a direct replacement for legacy Westinghouse B100 series starters and is functionally interchangeable with catalog numbers B100M1CA and B100M1CX of the same NEMA M1 size. Heater element selection determines the final motor full load amp range for the specific application.

Stock # 0526-02327
