Eaton FAZ-C10/3-NA Circuit Breaker 480Y/277V Untested Surplus
Eaton FAZ-C10/3-NA Circuit Breaker 480Y/277V Untested Surplus
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition: Surplus - Untested
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
MPN: FAZ-C10/3-NA
Stock #: Stock # 0626-01830
Product Specifications
- Manufacturer: Eaton
- MPN / Model: FAZ-C10/3-NA
- Product Type: Miniature Circuit Breaker, DIN Rail Mount
- Poles: 3 Pole
- Voltage: 480Y/277 VAC, 440V AC (IEC 60947 2)
- Amperage: 10A
- Frequency: 50/60 Hz
- Trip Curve: C Curve
- Interrupting Rating: 10kA at 480Y/277 VAC
- Mounting Type: DIN Rail
- Product Series: xEffect FAZ NA
Product Description
This Eaton FAZ C10/3-NA is a 3 pole miniature circuit breaker rated 10A, identified by the exact catalog number printed on the unit nameplate. The breaker is UL 489 listed and rated 480Y/277 VAC with a C trip curve and a 10kA interrupting rating at 480Y/277 VAC, and it is built for DIN rail mounting in machine control and distribution panels.

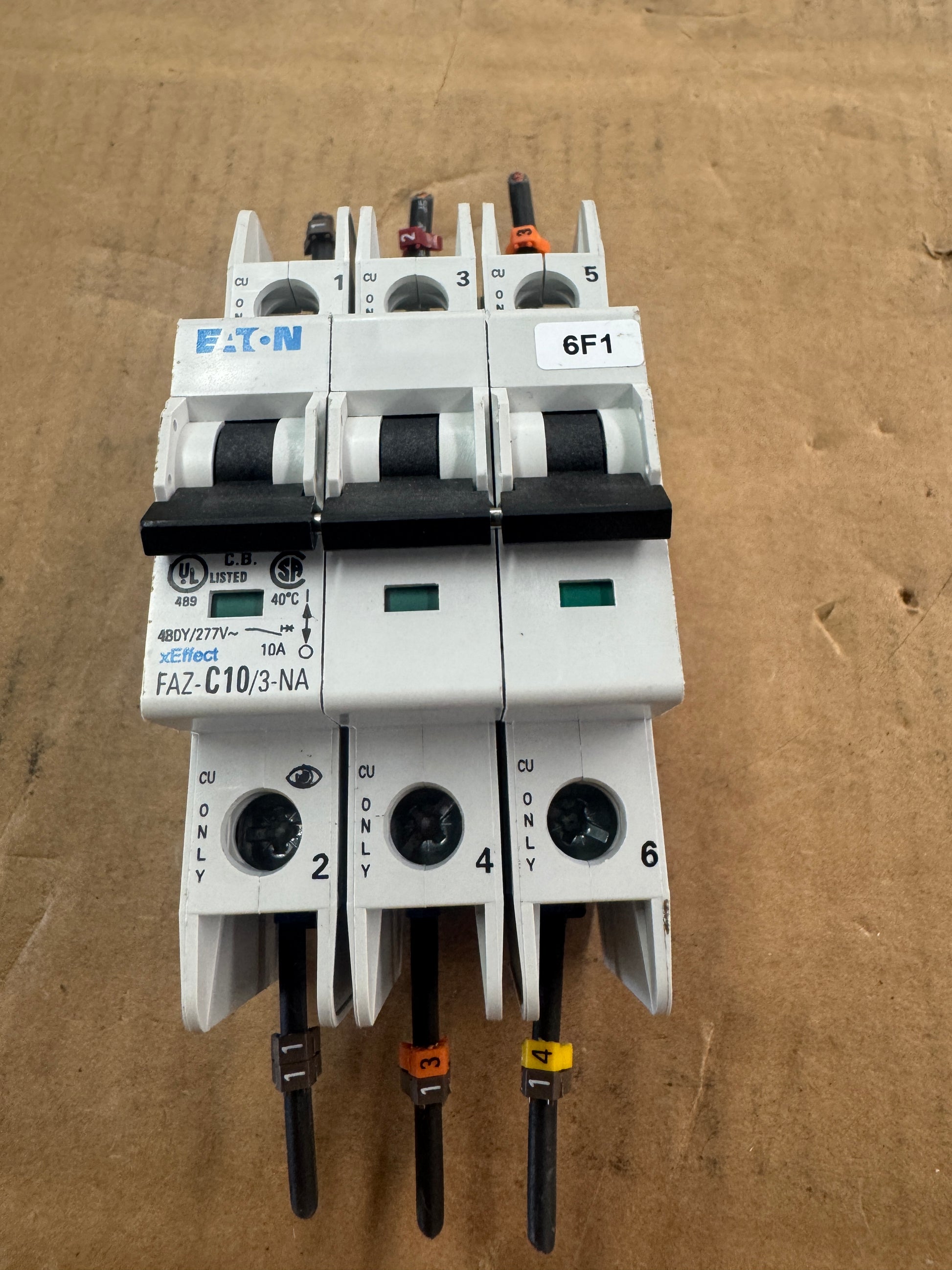

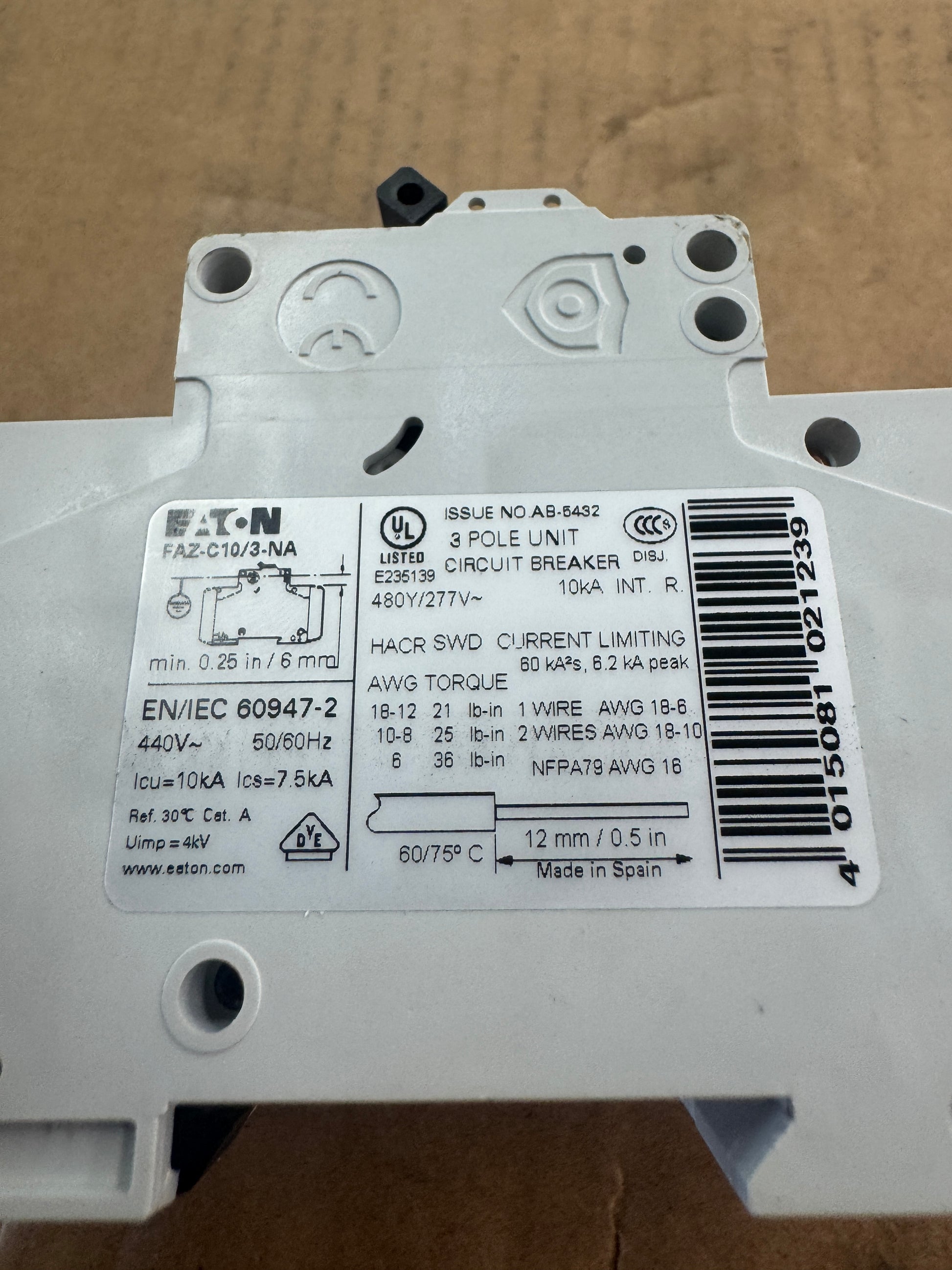

The nameplate also lists 440V AC per IEC 60947 2 and a 50/60 Hz frequency rating, consistent with the xEffect FAZ NA product line. The unit shows cut lead wires and handling marks from prior panel removal, and it is listed as Surplus Untested, meaning it has not been function tested since removal. Buyers matching an exact Eaton FAZ C10/3-NA catalog number for panel repair or spare inventory can use the confirmed pole count, voltage, amperage, and trip curve shown here to compare against their existing equipment.
