Eaton FW3063JVL Industrial Circuit Breaker 690 VAC Untested Surplus
Eaton FW3063JVL Industrial Circuit Breaker 690 VAC Untested Surplus
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition: Open Box - Unused
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
MPN: FW3063JVL
Stock #: 0626-01484
Product Specifications
- Manufacturer: Eaton
- MPN / Model: FW3063JVL
- Product Type: Industrial Circuit Breaker
- Series: Series C / FW 40k
- Style: FW3063JVL
- Amperage: 63 A
- Voltage: 690 VAC
- Poles: 3 Pole
- Interrupting Capacity: 40,000 A IC at 415 VAC
- Trip Type: Thermal Magnetic
- Temperature Rating: 50°C
- Thermal Adjustment Range: 50 to 63 A
- Magnetic Adjustment Range: 6x to 12x In
- Standard: IEC 60947-2
- Frequency: 50/60 Hz
- Country of Assembly: Dominican Republic
Product Description

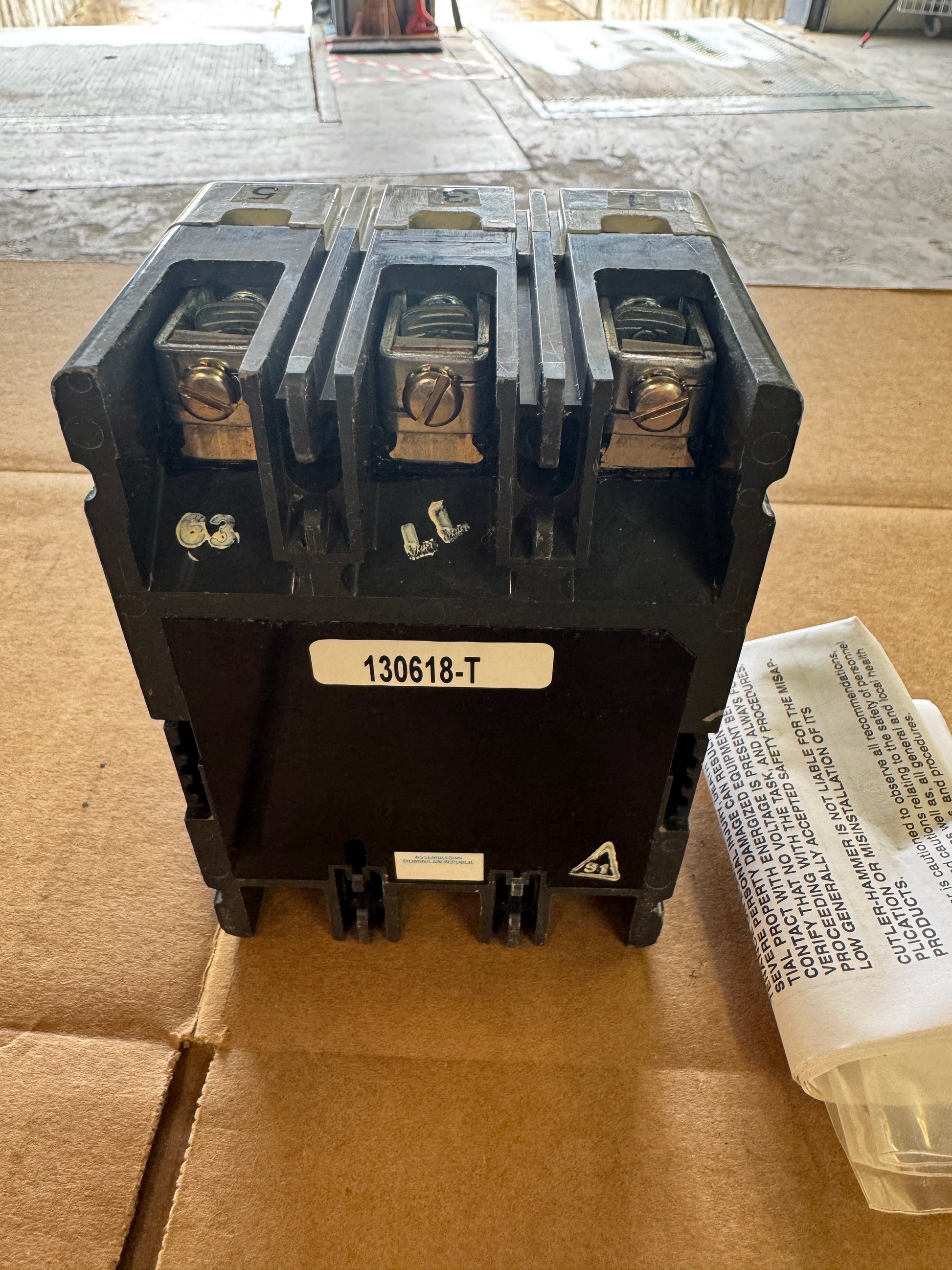

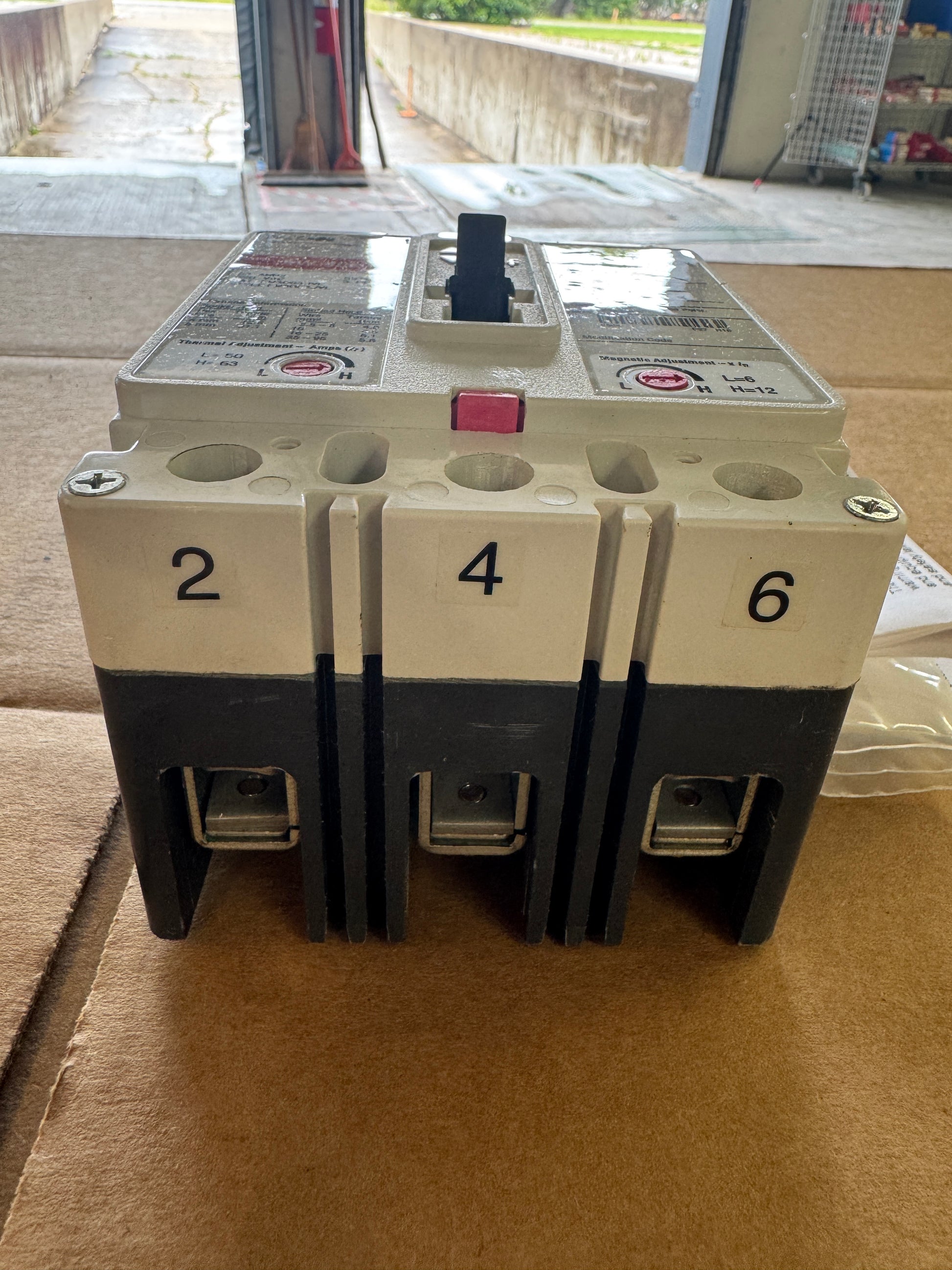

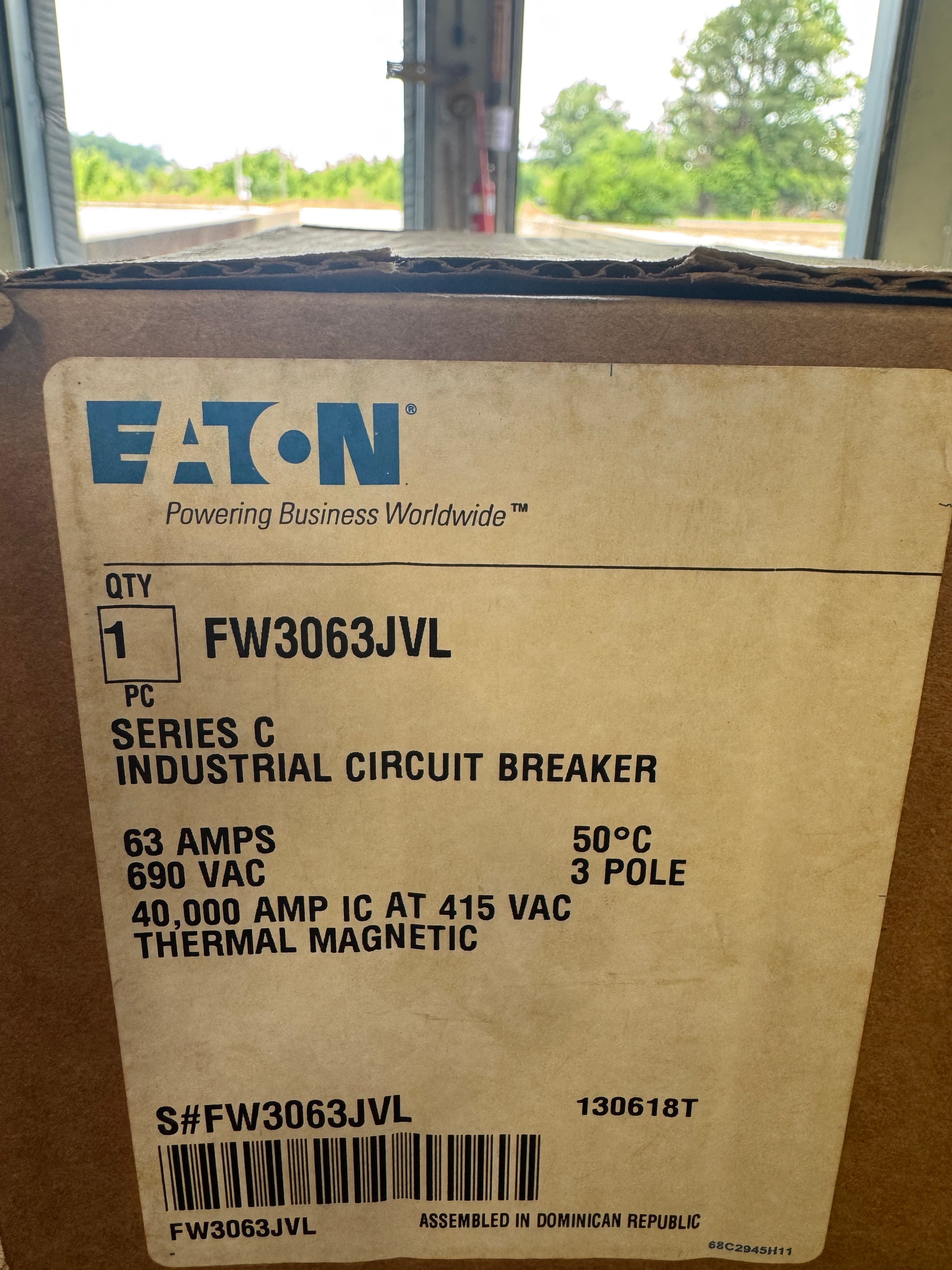

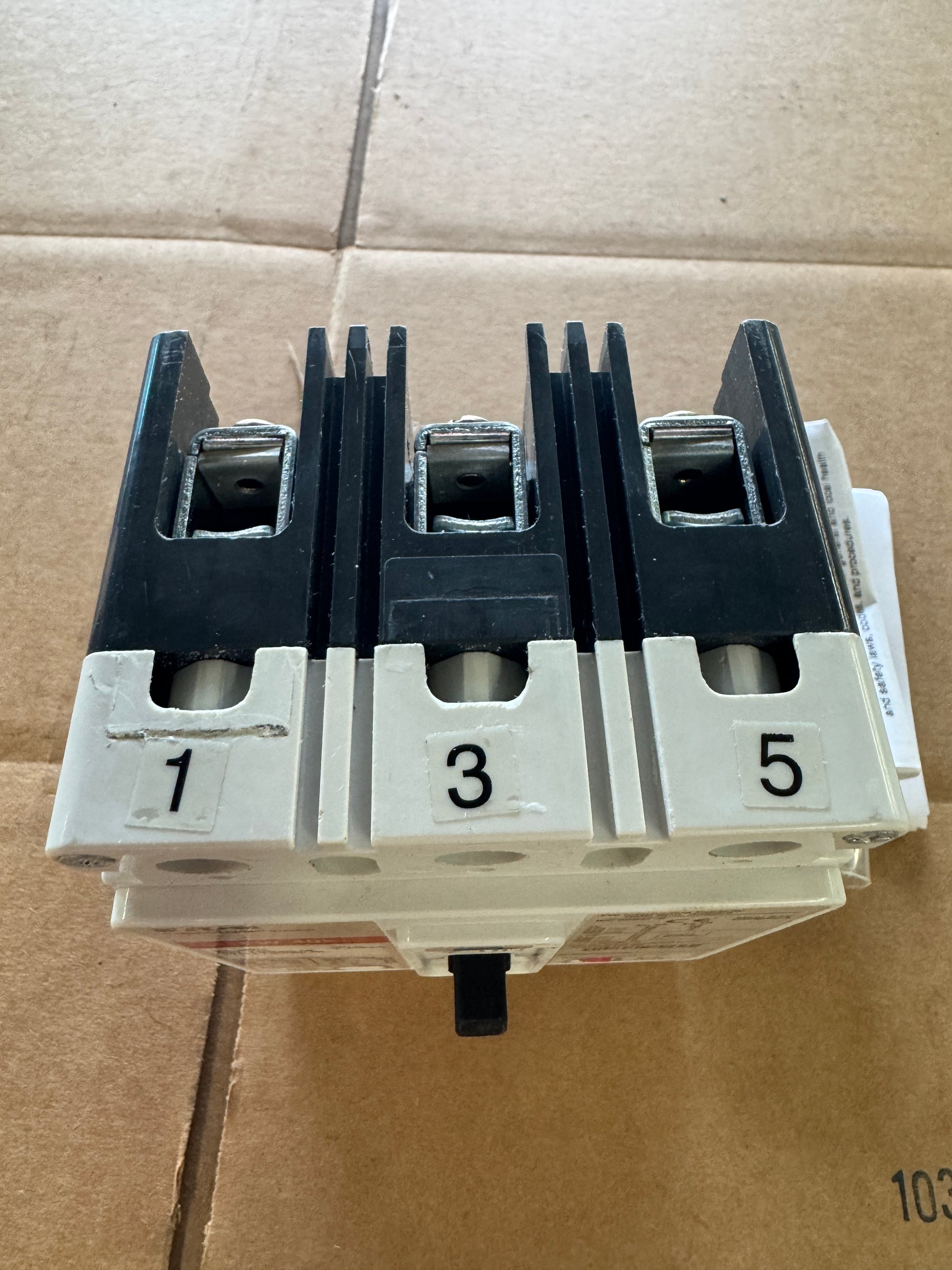

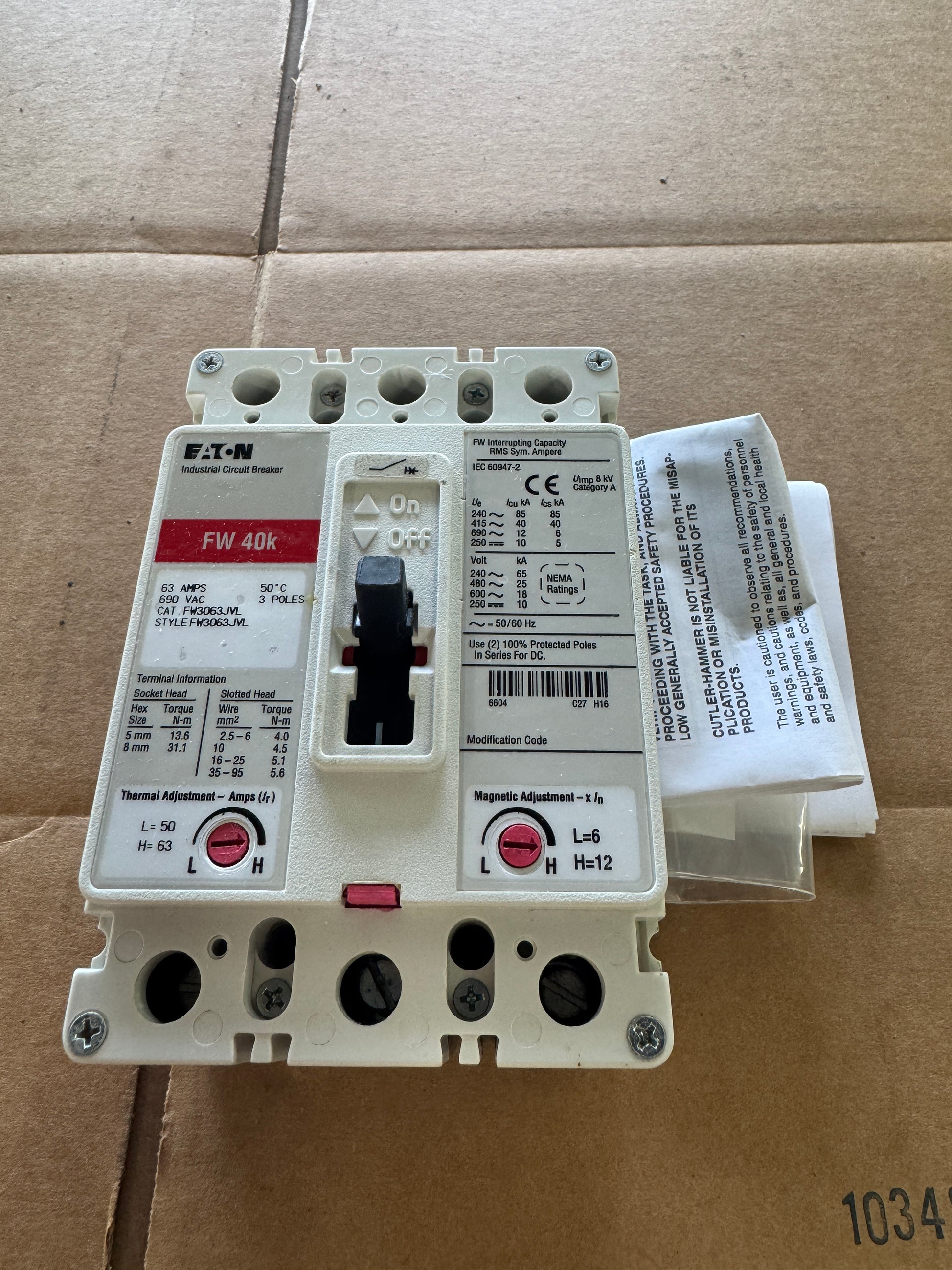

Catalog number FW3063JVL identifies this Eaton 3-pole, 63-amp Industrial Circuit Breaker from the FW Series C lineup, rated at 690 VAC with a 40,000-amp interrupting capacity at 415 VAC. The trip mechanism is thermal magnetic, conforming to IEC 60947-2. Thermal adjustment spans 50 to 63 amps and magnetic adjustment covers 6x to 12x rated current, both adjustable via the dials visible on the front face. A CE mark and NEMA ratings table are also visible on the nameplate. The unit carries the Eaton brand on the housing; warning labels on the unit also reference the Cutler-Hammer name, consistent with the FW series lineage under both brand identifiers. The original Eaton box label confirms catalog and style number FW3063JVL with a 130618T reference code. Buyers searching under either Eaton FW3063JVL or Cutler-Hammer FW3063JVL will find this catalog number applicable to both designations.
