Eaton HFWMP3100JL Motor Circuit Protector 690V Untested Surplus
Eaton HFWMP3100JL Motor Circuit Protector 690V Untested Surplus
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition: Open Box - Unused
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
MPN: HFWMP3100JL
Stock #: 0626-01488
Product Specifications
- Manufacturer: Eaton
- MPN / Model: HFWMP3100JL
- Product Type: Solid State Motor Circuit Protector
- Poles: 3
- Current Rating: 100 Amps
- Voltage: 690 VAC
- Frequency: 50/60 Hz
- Trip Class: Adjustable (5, 10, 15, 20)
- Current Setting (FLA): A=80, C=90, E=100
- Magnetic Trip: 15X Ie
- Phase Unbalance Protection: Yes
- Standard: IEC 60947-2, IEC 60947-4
- Interrupting Capacity: 100 kA at 240V, 70 kA at 415V, 40 kA at 500V, 7 kA at 690V
- Series: HFWMP

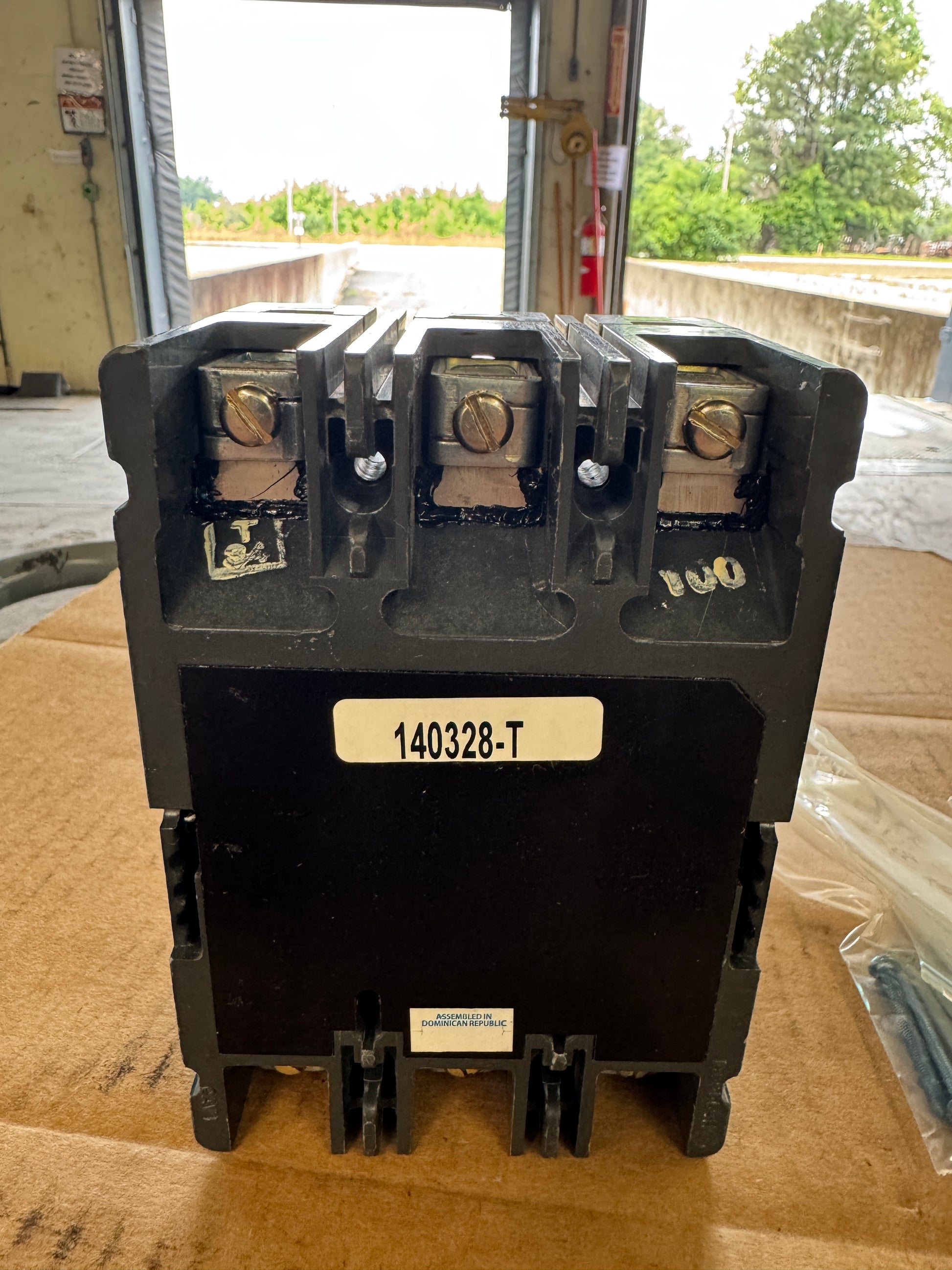

- Country of Assembly: Dominican Republic
Product Description

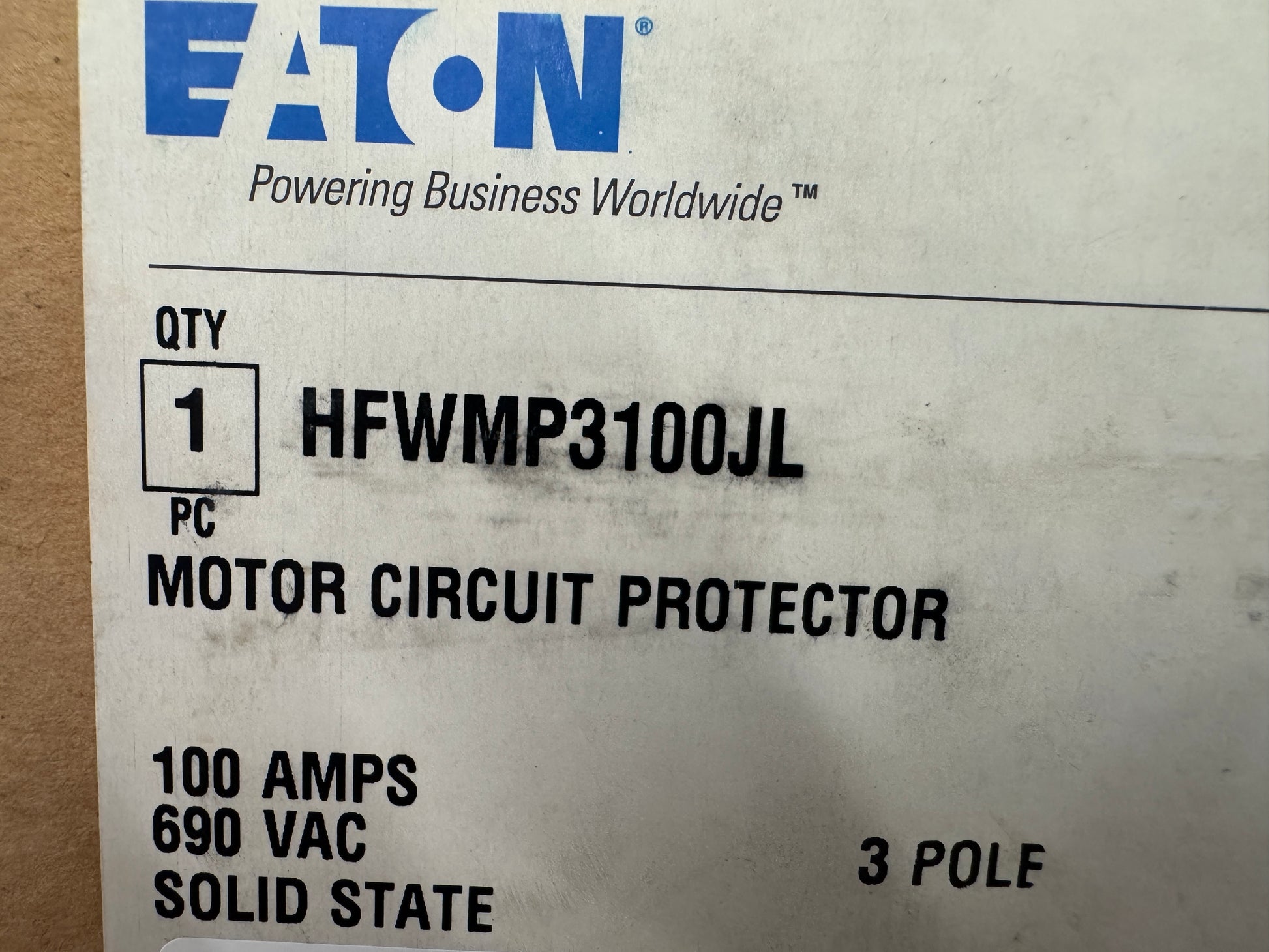

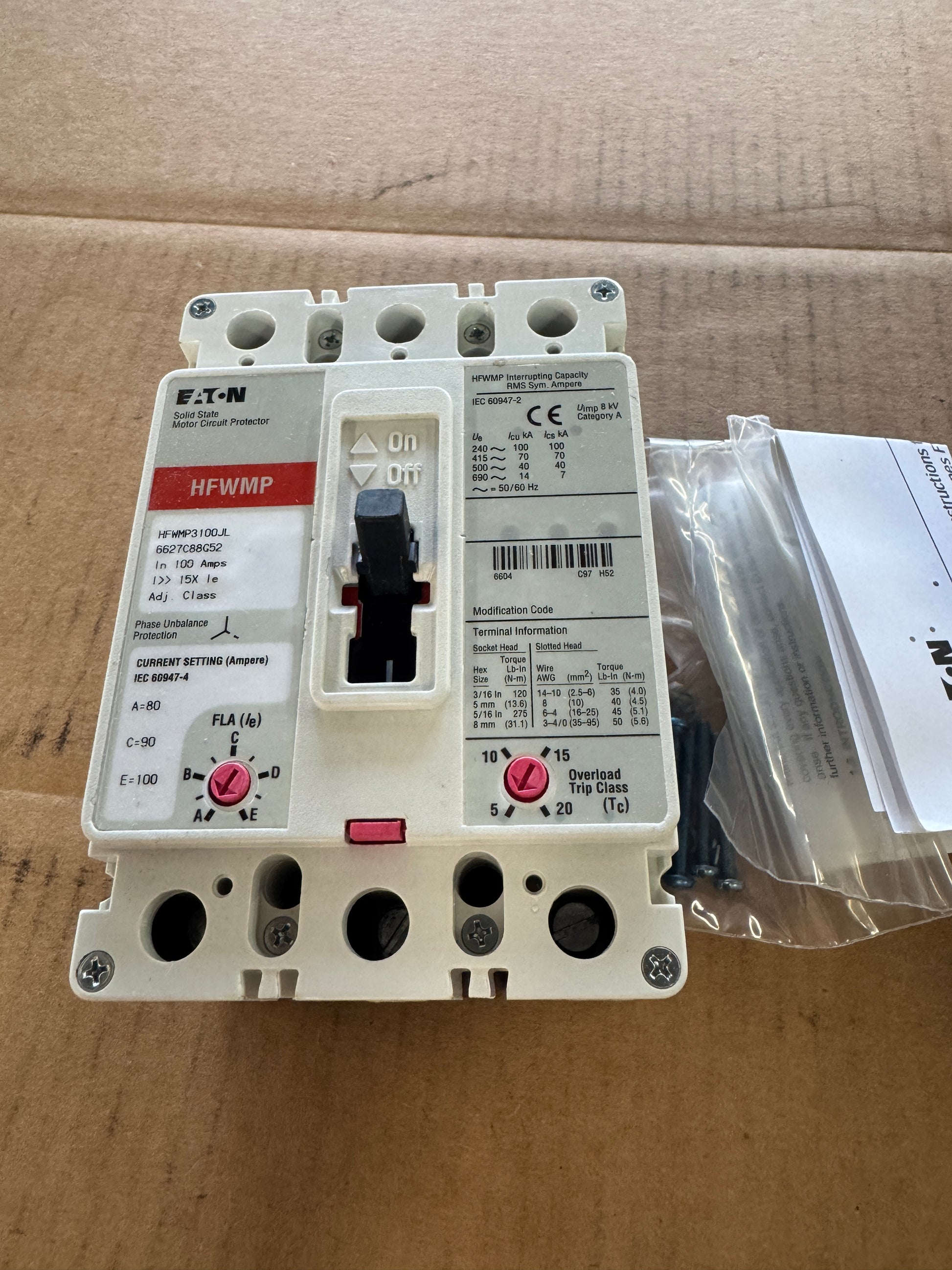

The Eaton HFWMP3100JL is a 3-pole solid state motor circuit protector rated at 100 amps and 690 VAC. It is part of the Eaton HFWMP series and carries catalog number HFWMP3100JL as confirmed on both the unit nameplate and original box label. The unit features a solid state electronic trip unit with adjustable overload trip class (5, 10, 15, or 20), a magnetic instantaneous trip set at 15X Ie, and phase unbalance protection. FLA current settings are selectable at 80A, 90A, or 100A. Interrupting capacity is rated to IEC 60947-2 at 100 kA at 240V, 70 kA at 415V, 40 kA at 500V, and 7 kA at 690V. The device meets IEC 60947-4 requirements for motor protection applications. Assembled in the Dominican Republic. Listed condition is Surplus / Untested.
