Eaton Molded Case Circuit Breaker RGH320039EC 600V AC
Eaton Molded Case Circuit Breaker RGH320039EC 600V AC
The shipping fee at checkout covers handling and loading only.
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition: Surplus - Untested
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
MPN: RGH320039EC
Stock #: 0526-01412
Product Specifications
- Manufacturer: Eaton
- MPN / Model: RGH320039EC
- Product Type: Electronic Molded Case Circuit Breaker
- Frame: RG Frame, Type HDGA
- Style Number: 1486D08G10
- Poles: 3
- Amperage: 2,000A
- Voltage Rating: 690V AC
- Current Rating: 100% Rated (EC Designation)
- Trip Unit: Digitrip RQ310+, Catalog Number RT320039
- Trip Protection: ALSIG with Maintenance Mode
- Interrupting Capacity: 125kA at 240V AC, 65kA at 480V AC, 50kA at 600V AC
- Accessories: Shunt Trip Installed
- Certifications: CE
- Country of Origin: United States
- Stock Number: 0526-01412
Product Description

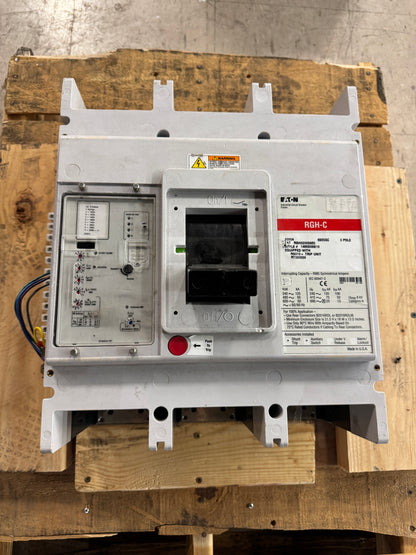

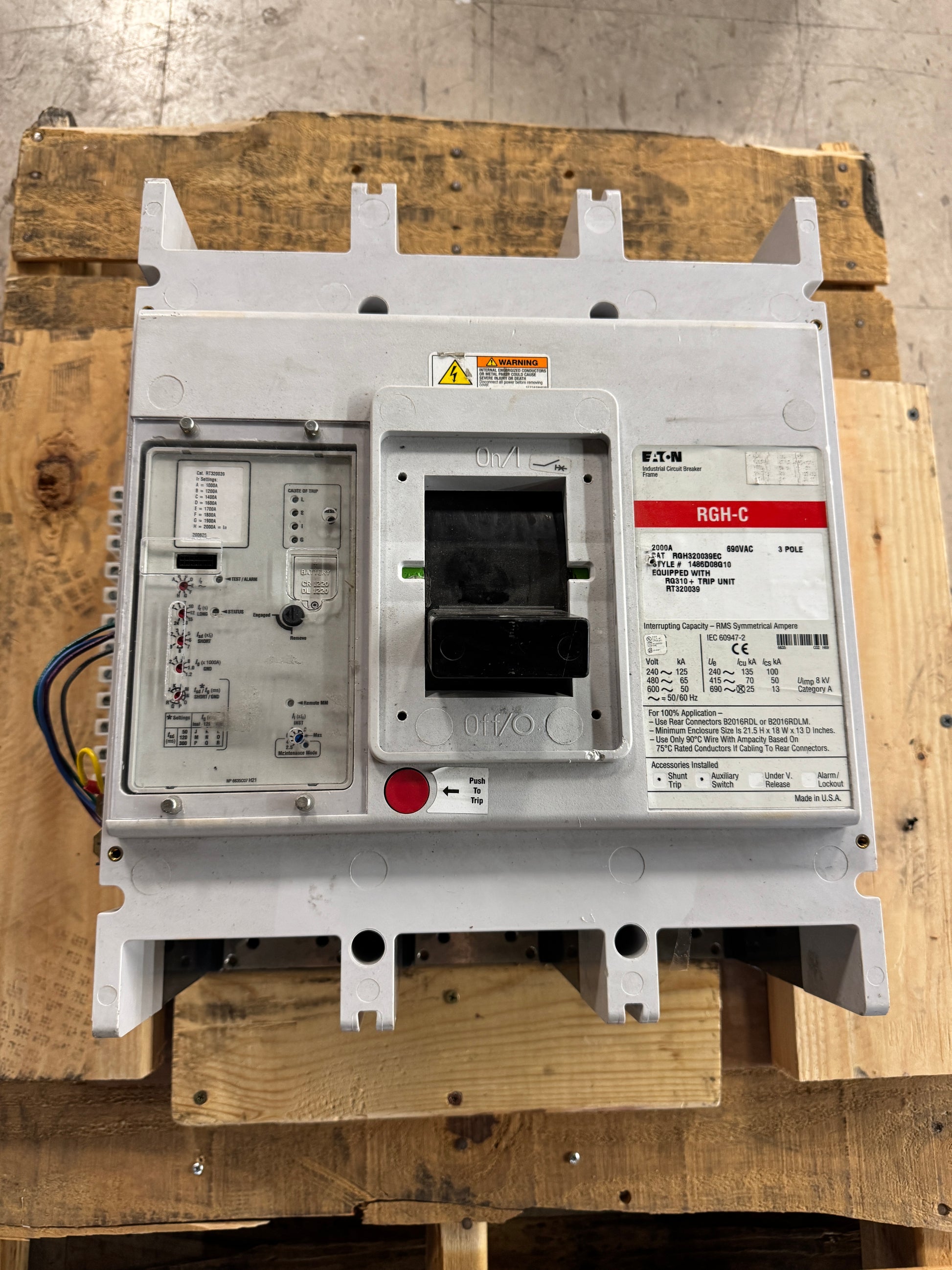

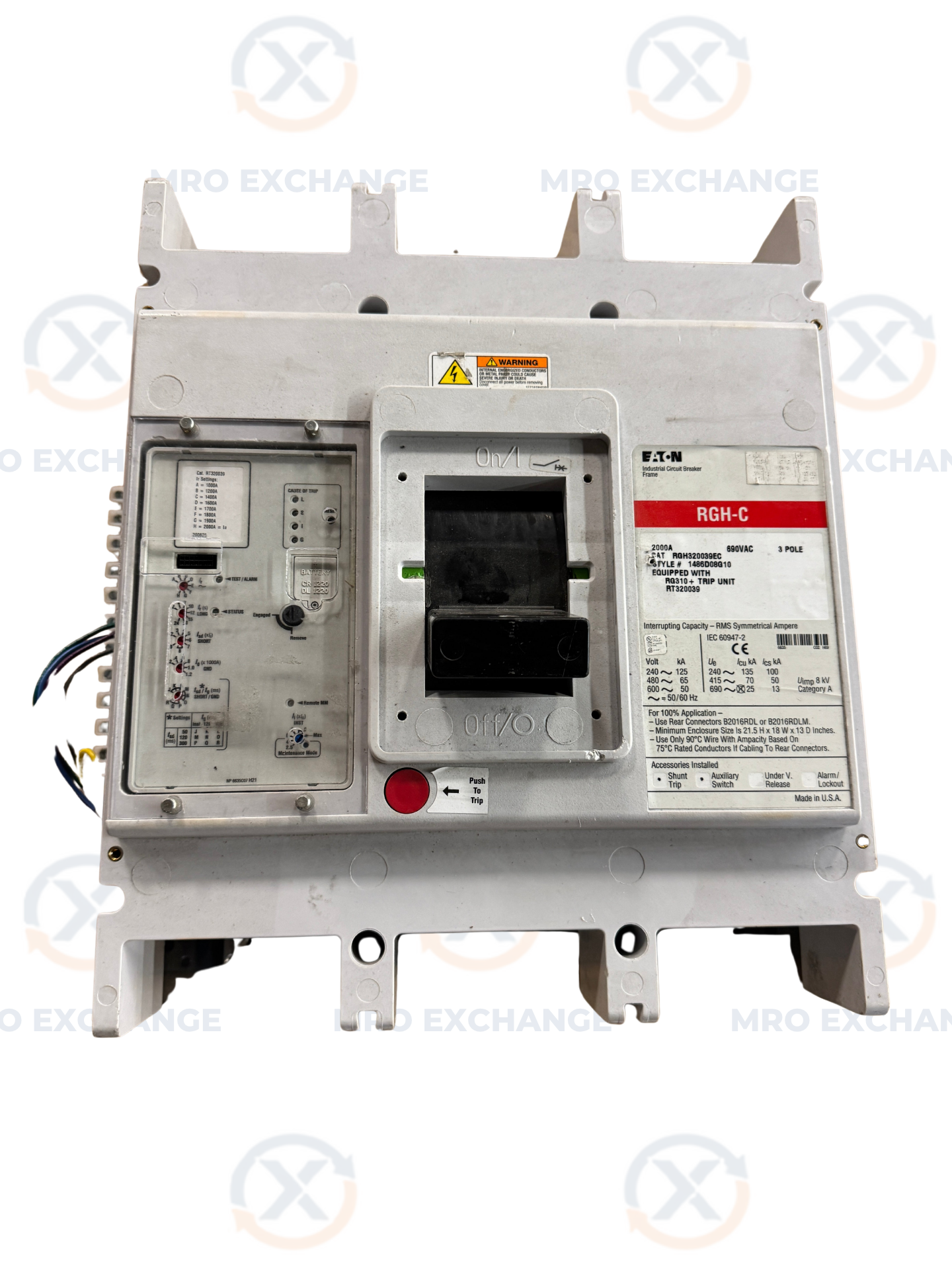

The Eaton RGH320039EC is a Series G electronic molded case circuit breaker in the RG frame, rated at 2,000A and 690V AC with 3-pole configuration. It is equipped with a Digitrip RQ310+ RMS trip unit, catalog number RT320039, providing electronic ALSIG protection with maintenance mode trip functionality. The unit is 100% rated per the nameplate designation EC, distinguishing it from the standard 80% rated RGH320039E variant.

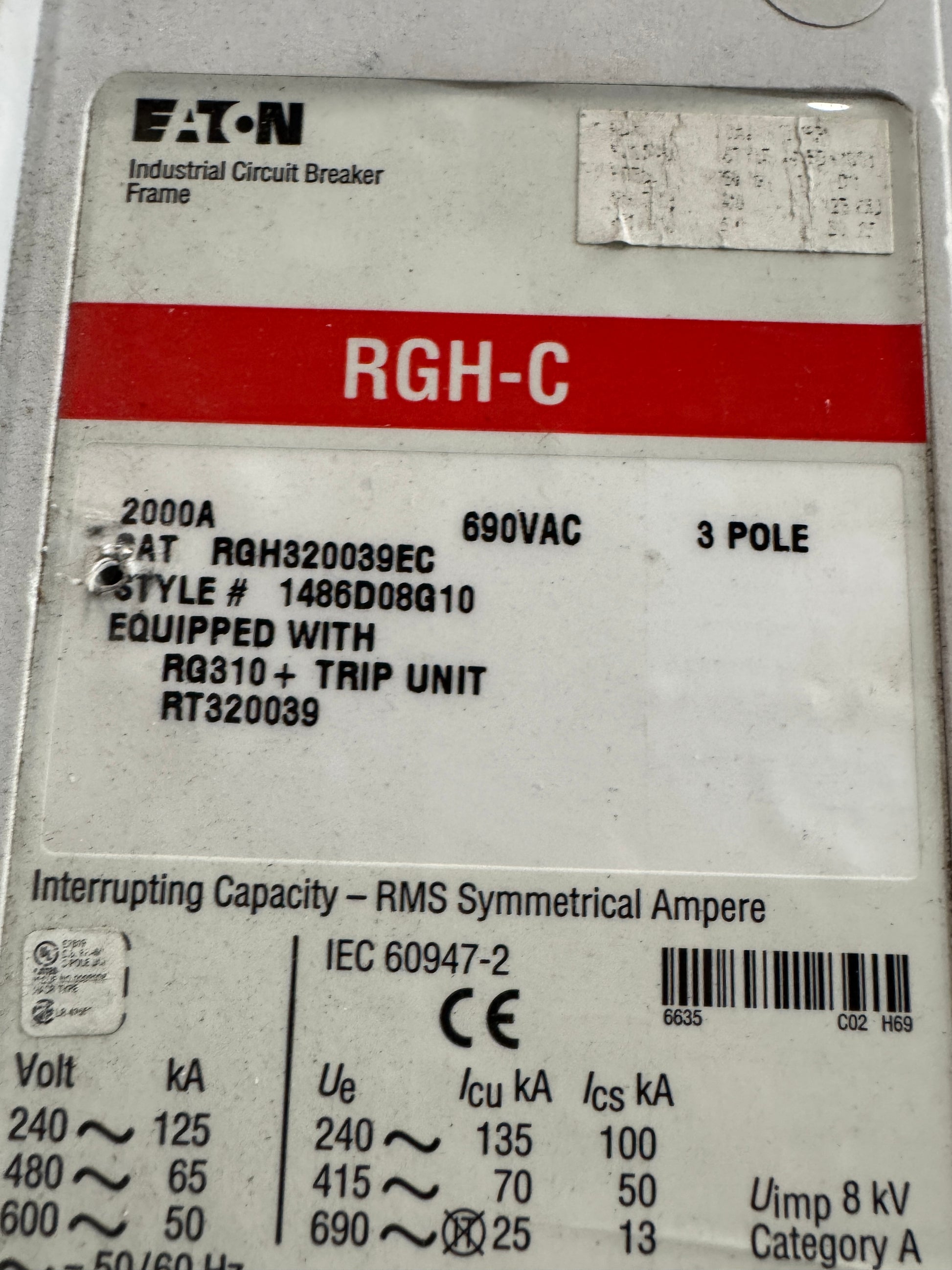

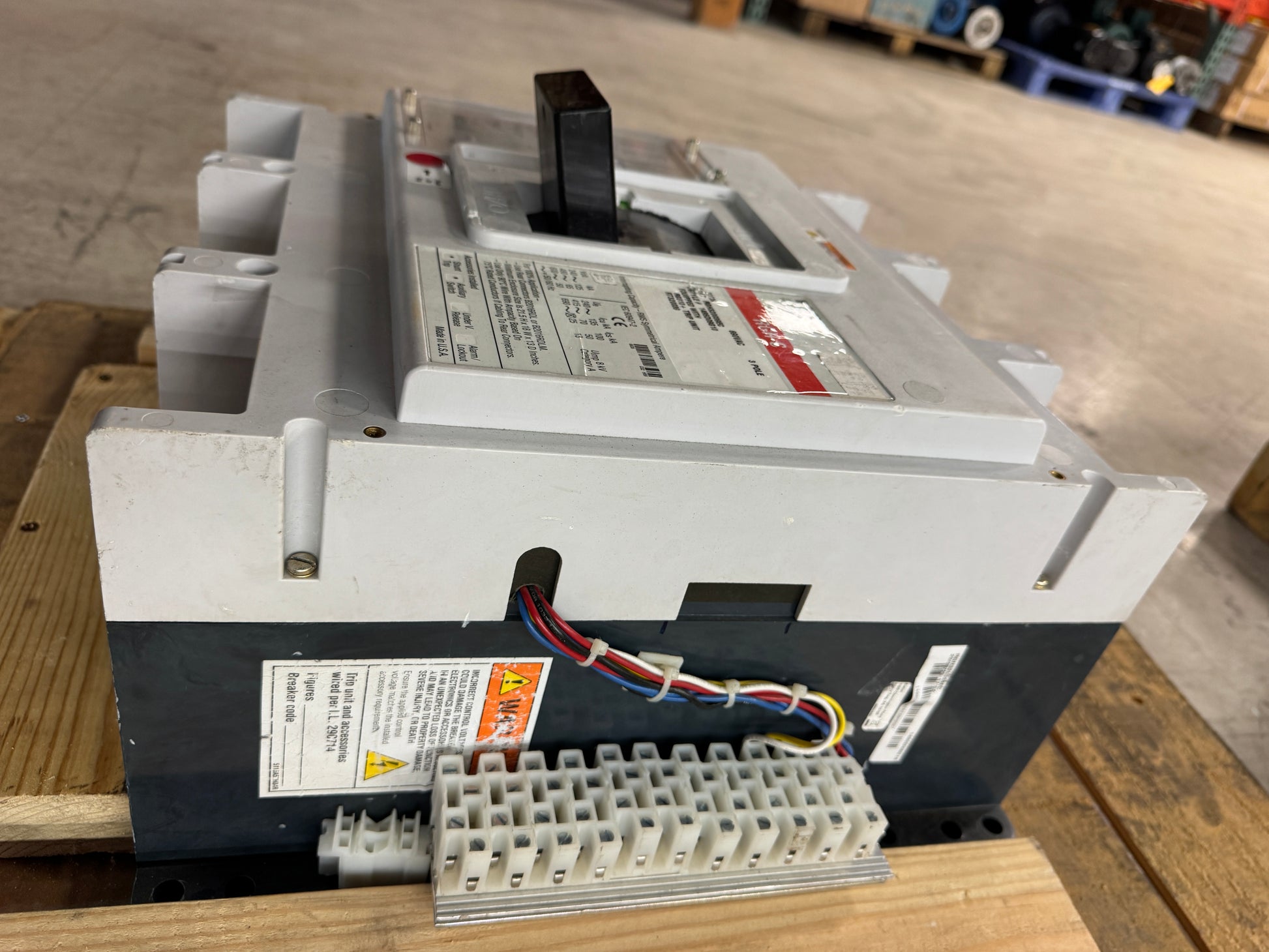

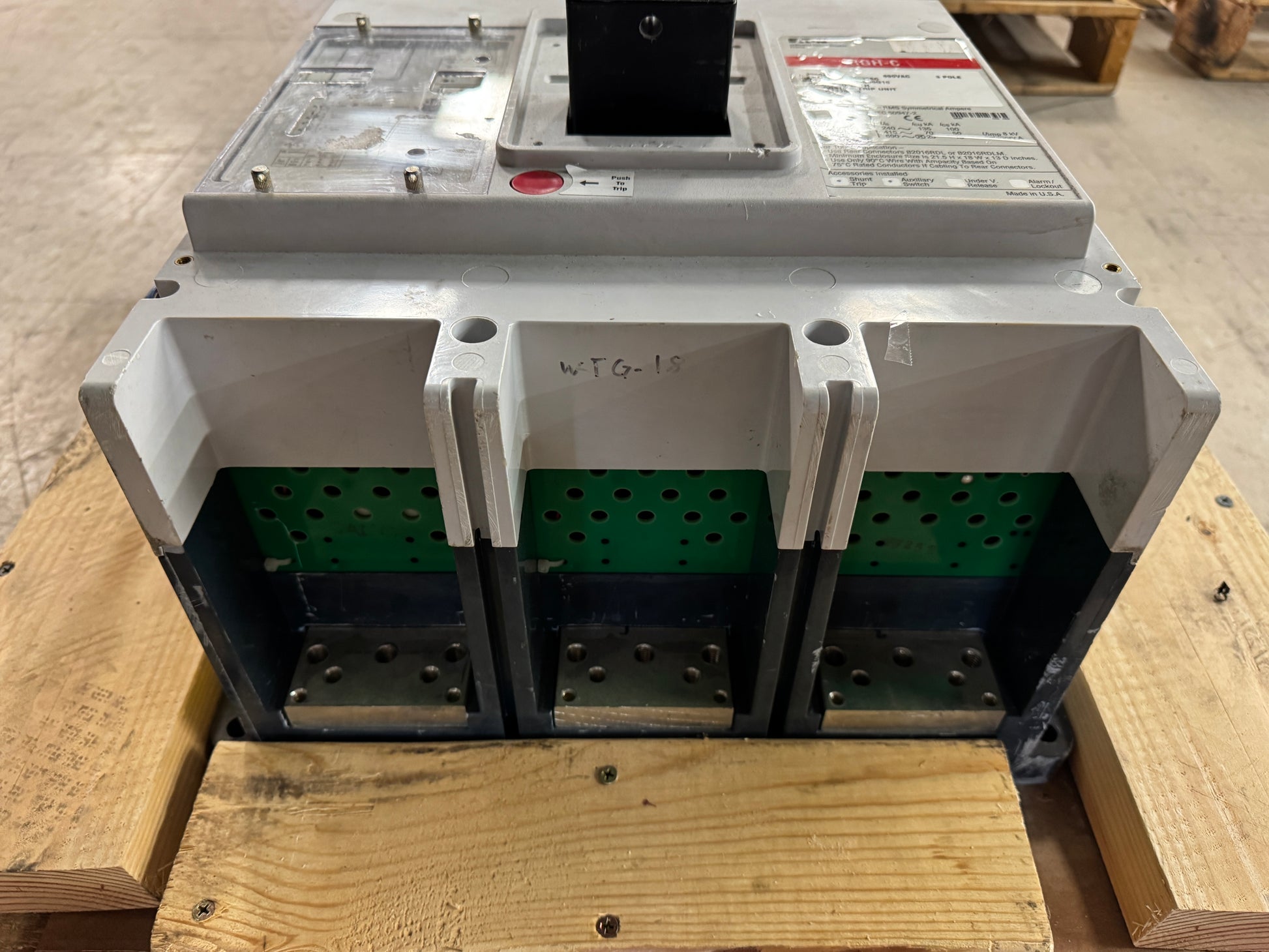

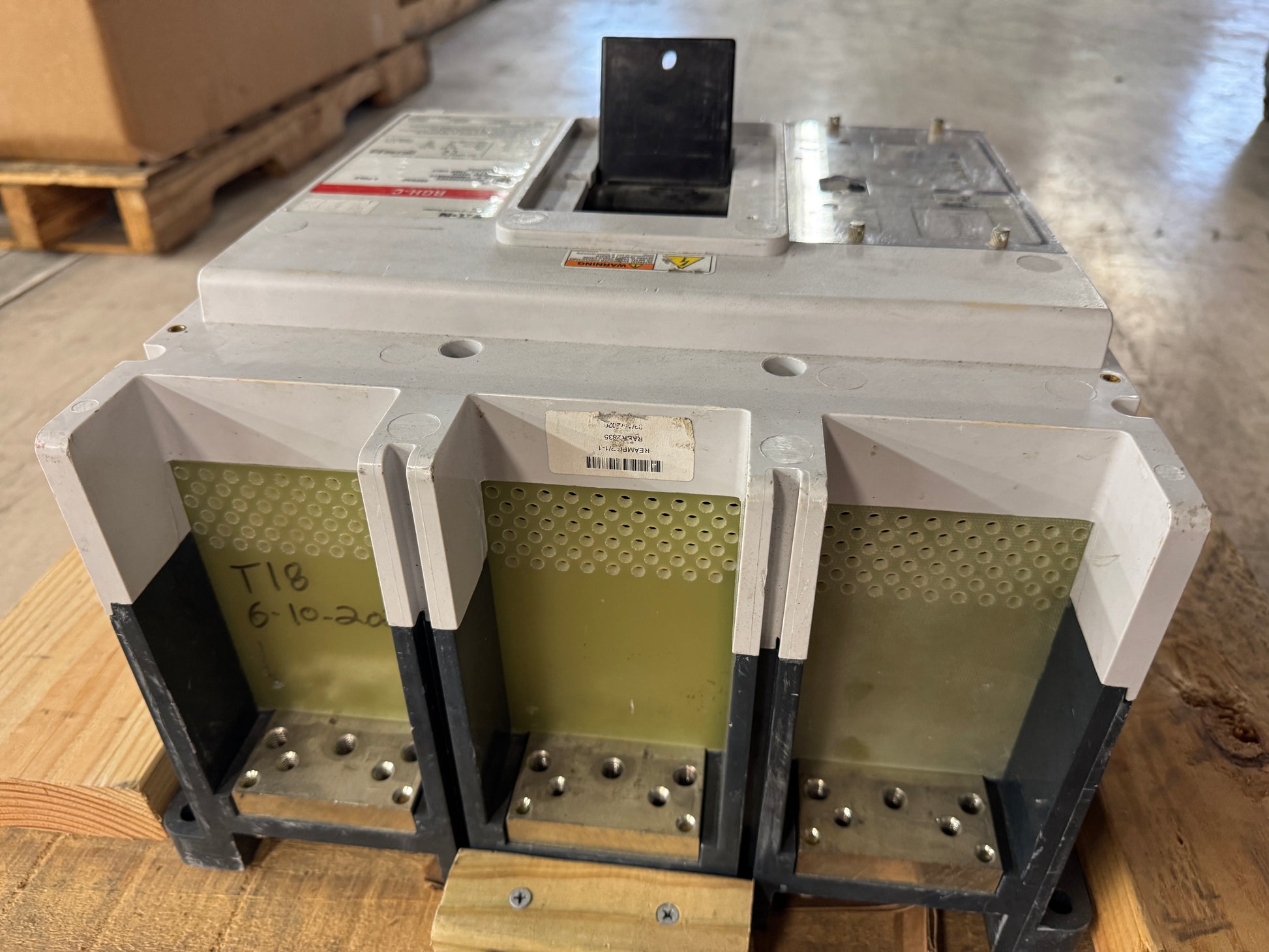

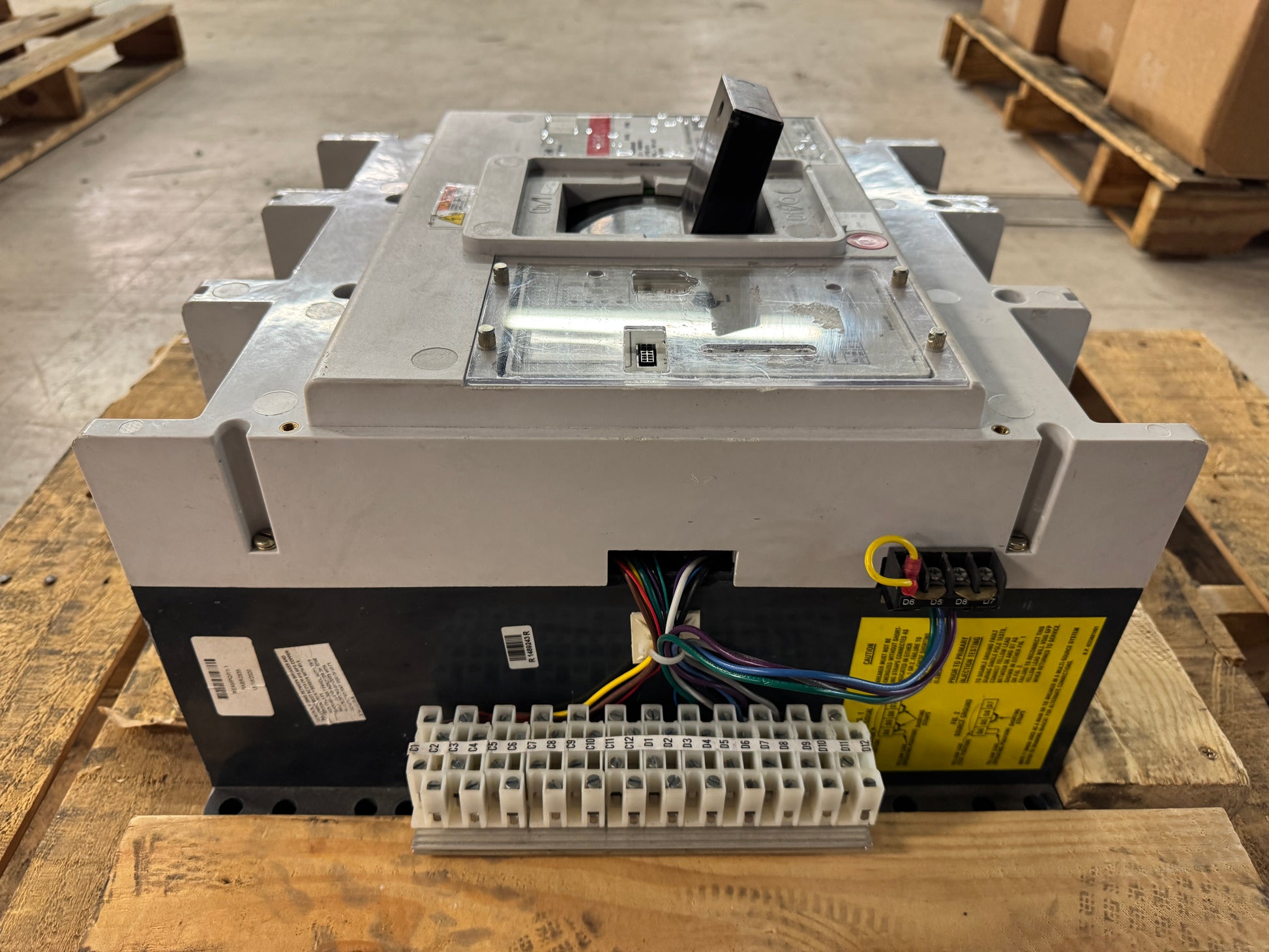

Interrupting capacity per nameplate and IEC 60947-2: 125kA at 240V AC, 65kA at 480V AC, and 50kA at 600V AC. The breaker is manufactured in the USA and carries CE certification. Style number is 1486D08G10. A shunt trip accessory is installed. The unit is visible with installed control wiring and a terminal block assembly on the rear face. Field markings visible on the unit include WTG-15 on the line-side terminal covers and T18 6-10-20 on the load-side terminal area.
