Eaton Motor Circuit Protector HMCP400R5 600V AC / 250V DC
Eaton Motor Circuit Protector HMCP400R5 600V AC / 250V DC
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
Stock #:
The Eaton Cutler Hammer HMCP400R5 is a 3-pole, 400-ampere motor circuit protector rated for 600 VAC and 250 VDC operation. Catalog number HMCP400R5, Style 1493095620, this unit belongs to Eaton's HMCP K-frame family, featuring a magnetic-only, instantaneous-trip mechanism designed specifically for motor branch circuit protection in combination motor control centers. The magnetic-only trip design provides short-circuit protection without thermal overload, making it suitable for pairing with separate motor overload devices.

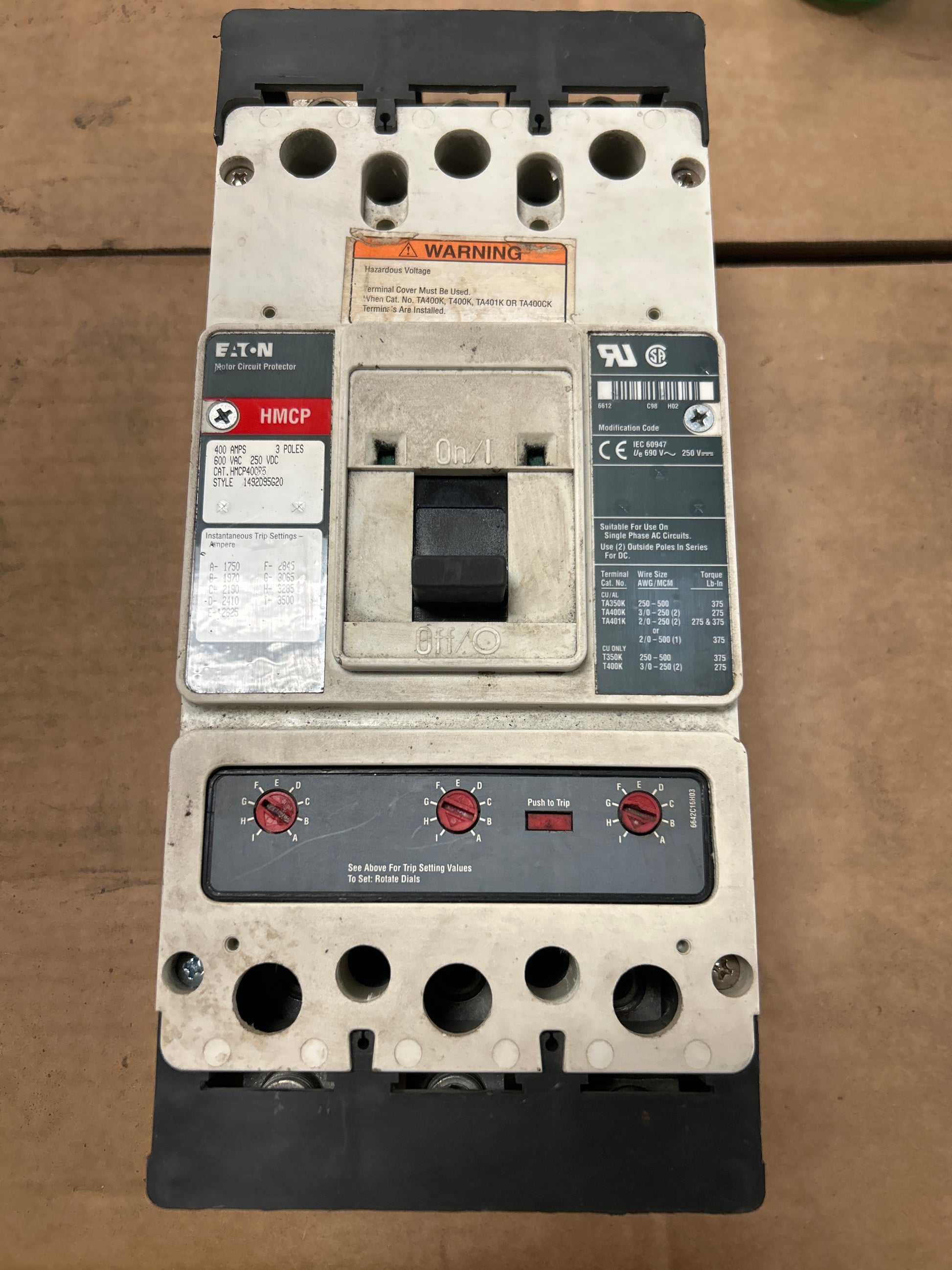

The unit is a 3-pole configuration consistent with three-phase motor circuits and carries UL and CSE certifications visible on the nameplate. The IEC 60947 rating is confirmed, along with a 690V AC IEC voltage rating. Instantaneous trip dials are present on the front face, allowing adjustable trip settings via rotatable dials as labeled on the front panel. A push-to-trip test button is also present.
Nameplate data confirms: 400 AMPS, 3 POLES, 600 VAC, 250 VDC. The modification code, Catalog number, and Style number are all visible and legible. Serial number not confirmed from available photos. Country of origin not confirmed. No original packaging present. Item shows surface soiling and cosmetic marks consistent with removed-from-service equipment.
Stock # 0526-02458
