E+I Engineering IMPB-T-V2-2.A.30A.2P-2.C Busway Tap Off Unit 208/120V Untested Surplus

$499.00 USD

Sale Sold out

U.S. shipping, securely packaged. Ships in 1-2 Days
Questions? Real support team available before purchase
Secure checkout with trusted payment methods

Condition: Surplus - Untested
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.

MPN: IMPB-T-V2-2.A.30A.2P-2.C
Stock #: Stock # 0626-01751

Product Specifications

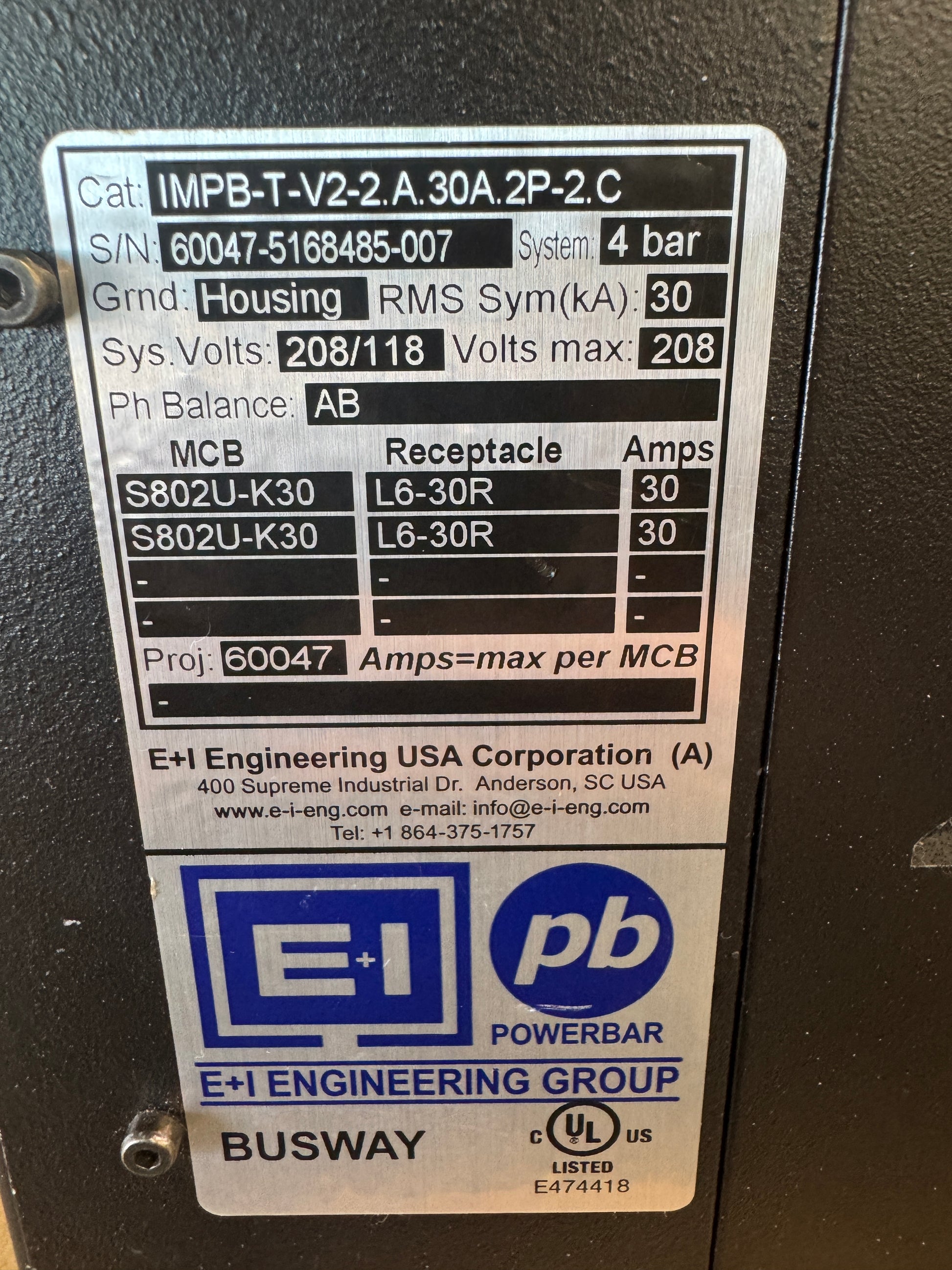

Manufacturer: E+I Engineering
MPN / Model: IMPB-T-V2-2.A.30A.2P-2.C
Product Type: iMPB Busway Tap Off Unit (Busplug)
Serial Number: 60047-5168485-007
System: 4 bar
System Voltage: 208/118
Max Voltage: 208
Ground: Housing
RMS Sym (kA): 30
Phase Balance: AB

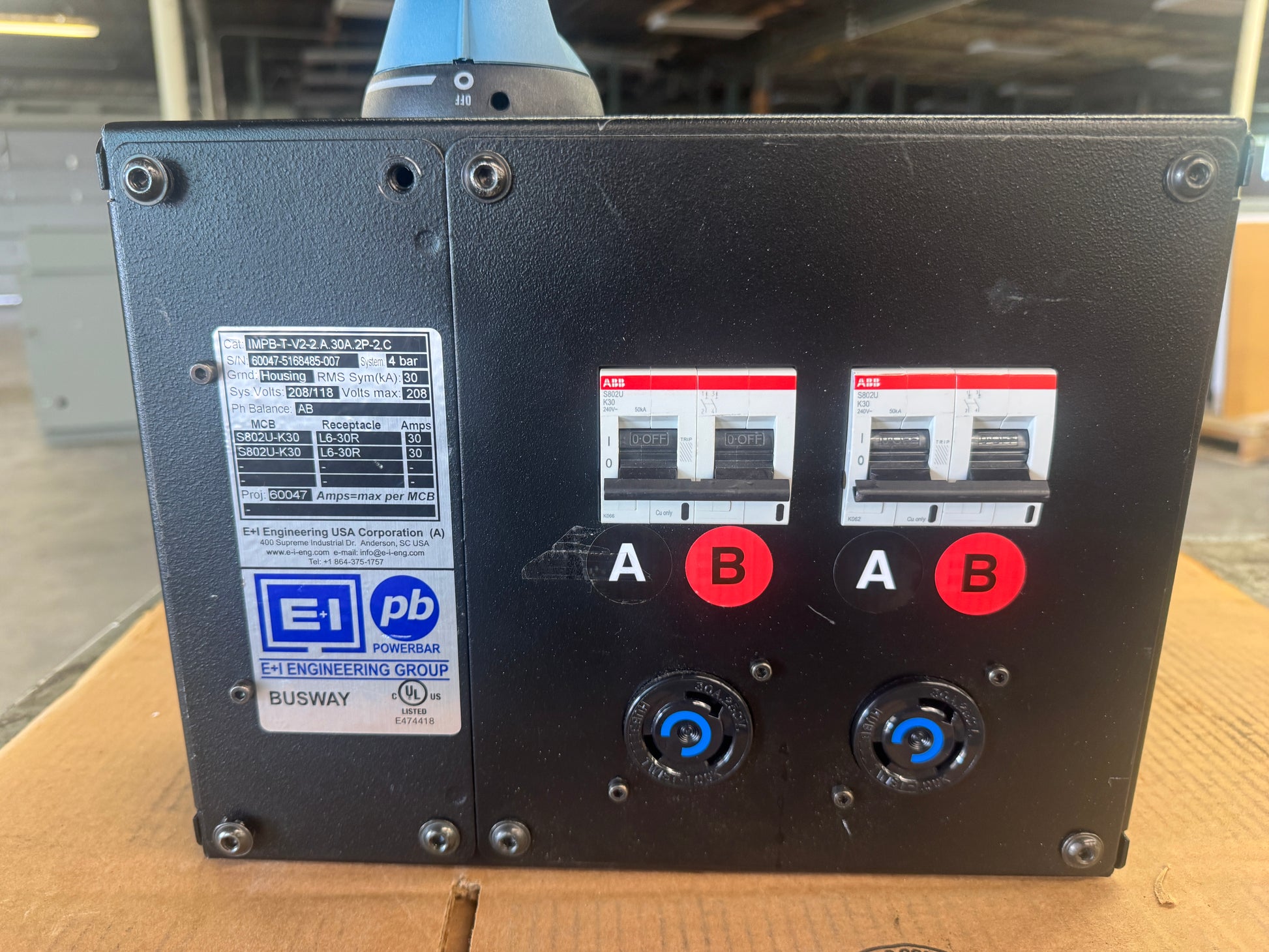

MCB: Two ABB S802U-K30, 30A each
Receptacle: Two L6-30R, 30A
Poles: 2P
Project Number: 60047
Certification: cULus Listed E474418

Product Description

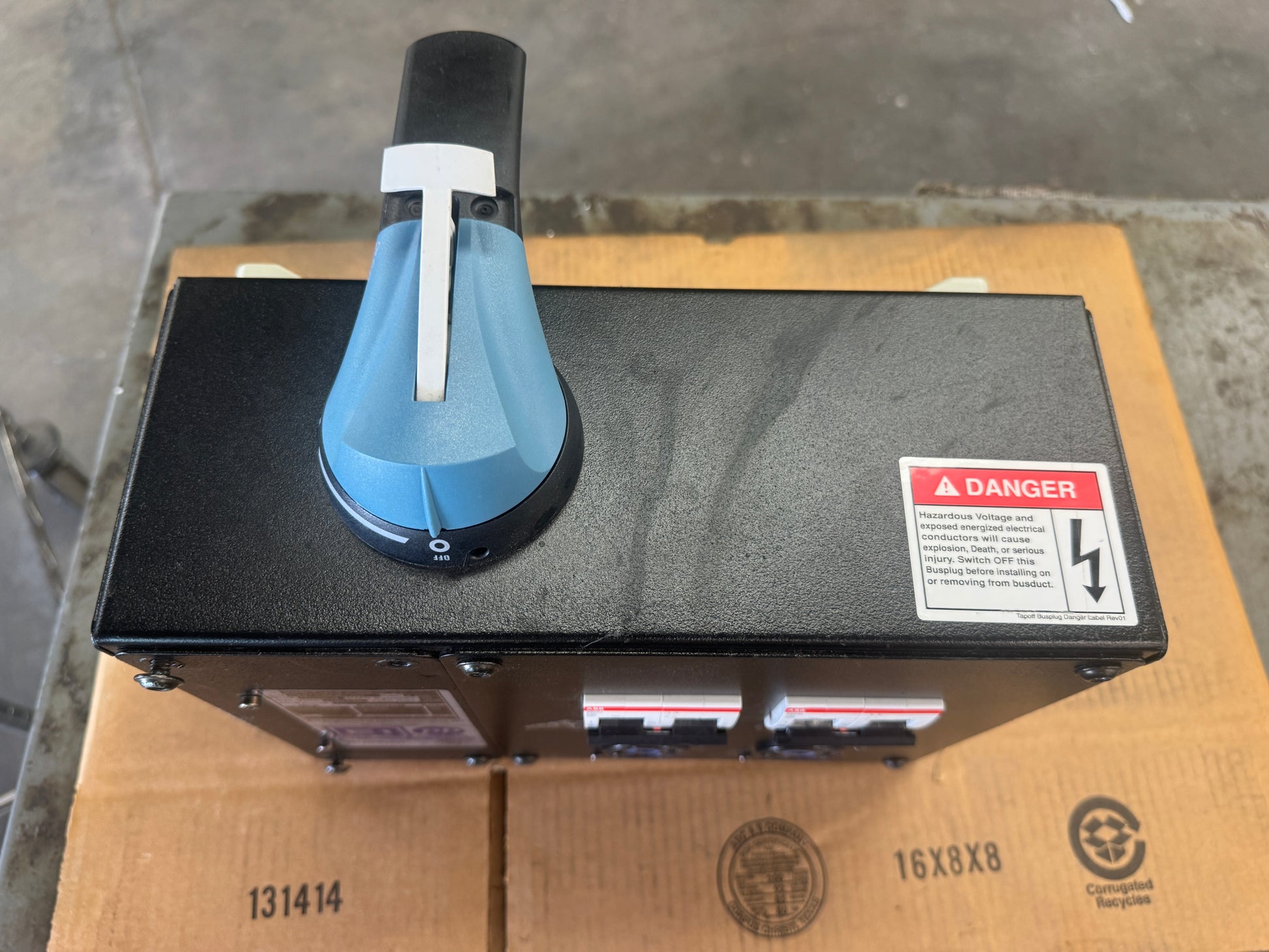

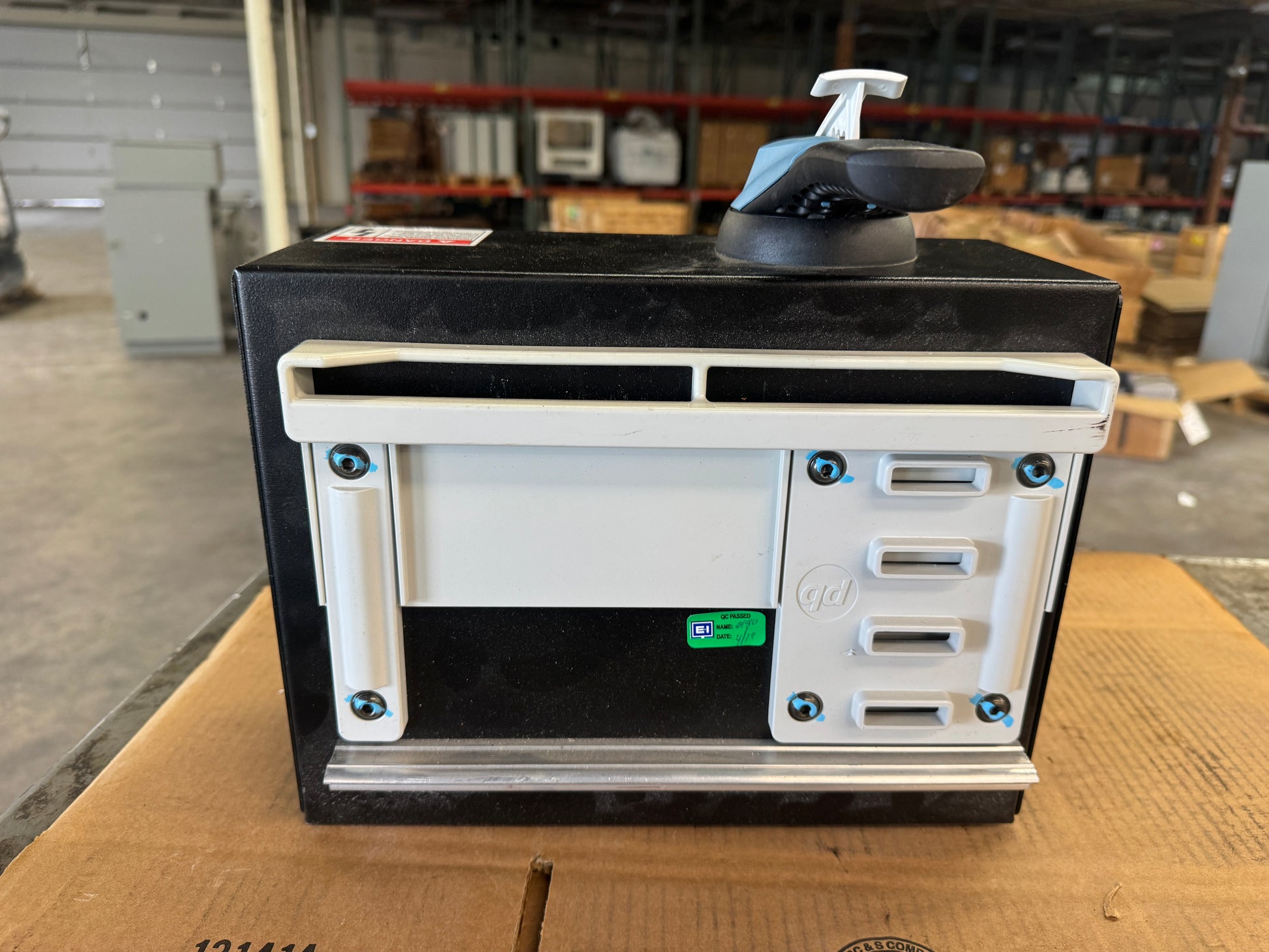

E+I Engineering iMPB busway tap off unit, identified by catalog number IMPB-T-V2-2.A.30A.2P-2.C and serial number 60047-5168485-007. This is a Powerbar busway tapoff (busplug) configured for a 4 bar system at 208/118 system voltage, 208 volts maximum, with a 30 kA RMS symmetrical rating and AB phase balance. The unit carries two ABB S802U-K30 miniature circuit breakers rated 30A each, feeding two L6-30R twist lock receptacles. Ground is through the housing. The plate references E+I Engineering project 60047, and the assembly is cULus listed under E474418. Because this is a project configured, built to order tapoff, the exact catalog number identifies the specific MCB, receptacle, amperage, pole, and voltage configuration. Buyers matching an existing E+I Engineering busway run should compare the full catalog string, serial, and the visible breaker and receptacle layout to confirm fit.
