Euchner CET1-AR-CRA-CH-50F-SG-110241 Safety Switch with Guard Locking 24 VDC Untested Surplus
Euchner CET1-AR-CRA-CH-50F-SG-110241 Safety Switch with Guard Locking 24 VDC Untested Surplus
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition: Open Box - Unused

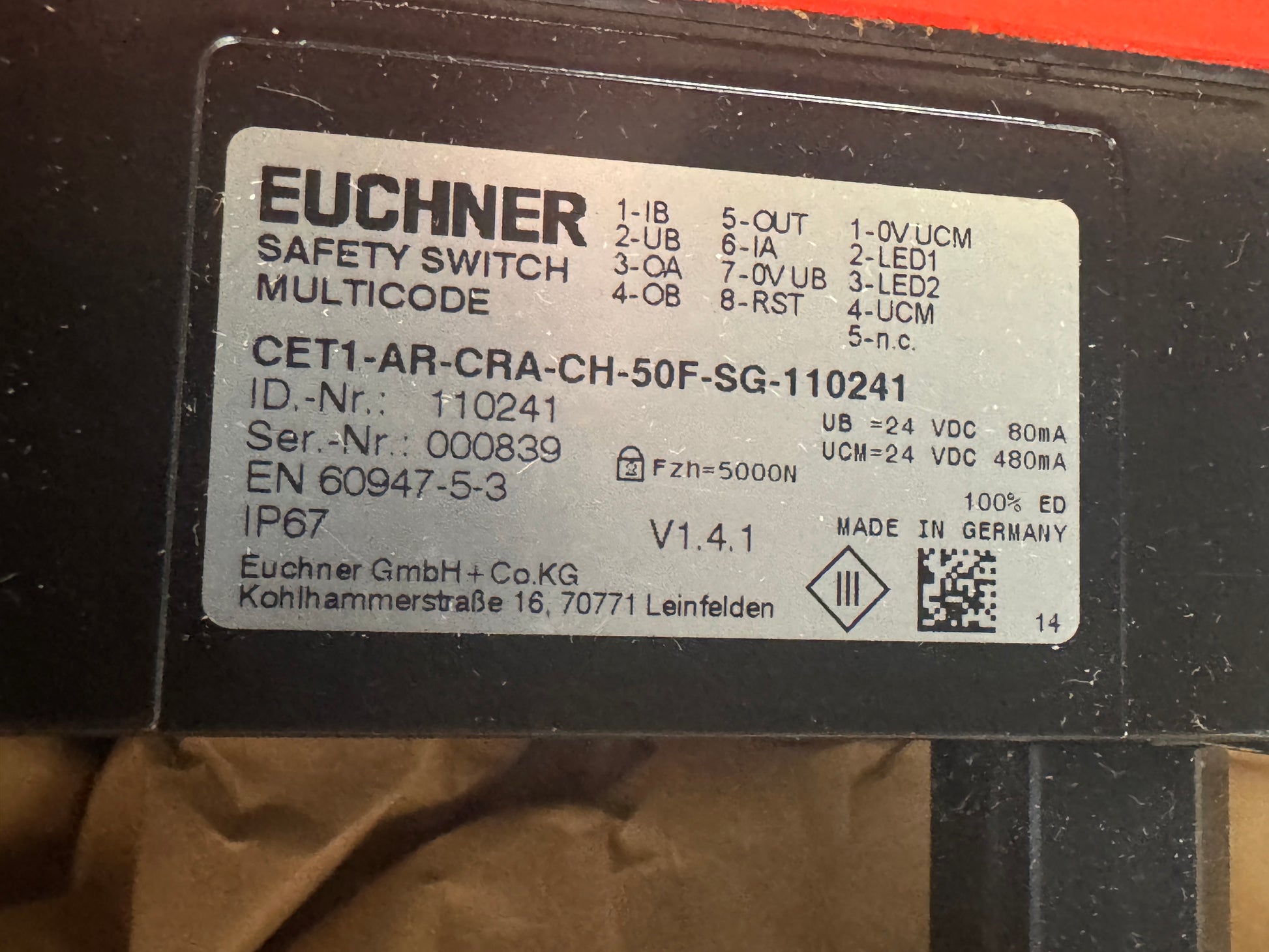

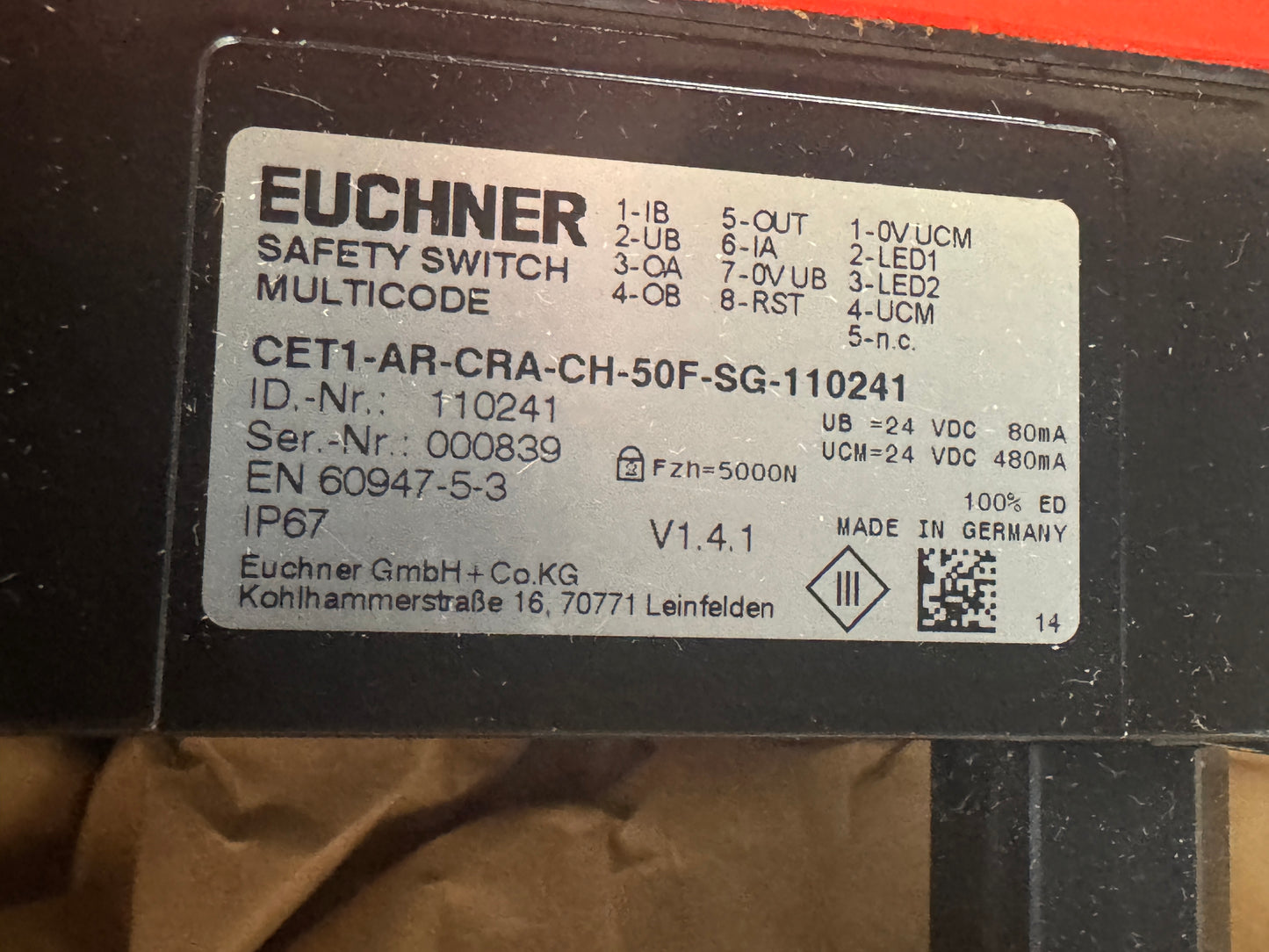

Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
MPN: CET1-AR-CRA-CH-50F-SG-110241
Stock #: 0626-01517
Product Specifications
- Manufacturer: Euchner
- MPN / Model: CET1-AR-CRA-CH-50F-SG-110241
- Order Number: 110241
- Product Type: Transponder-Coded Safety Switch with Guard Locking and Escape Release
- Series: CET-AR (Multicode)
- Supply Voltage (UB): 24 VDC, 80 mA
- Guard Locking Voltage (UCM): 24 VDC, 480 mA
- Connector Type: M12, 8-pin plug (2x M12)
- Locking Force (Fzh): 5000 N
- Enclosure Rating: IP67
- Standard: EN 60947-5-3
- Firmware Version: V1.4.1
- Serial Number: 000839
- Country of Origin: Germany
- RoHS Compliant: Yes
- Condition: New in Original Packaging
Product Description
The Euchner CET1-AR-CRA-CH-50F-SG-110241 is a transponder-coded non-contact safety switch with guard locking and integrated evaluation electronics, identified by order number 110241 and serial number 000839. This CET-AR series Multicode unit features escape release, dual M12 8-pin plug connectors, and a 5000 N rated locking force. Supply voltage is 24 VDC at 80 mA (UB), with a guard locking control circuit (UCM) rated at 24 VDC, 480 mA. The switch carries IP67 enclosure protection, meets EN 60947-5-3, and is rated 100% ED. Firmware is marked V1.4.1. The unit is listed New in Original Packaging and was manufactured in Germany by Euchner GmbH + Co. KG. Buyers sourcing this exact catalog number for safety gate, guard door, or machine access control applications should confirm compatibility using the full MPN and order number as shown on the nameplate. Note: this switch requires a separately ordered CET-A actuator for operation.
