FAG 22207-E1-C3 Spherical Roller Bearing – 35mm ID x 72mm OD x 23mm Width – New m00174
FAG 22207-E1-C3 Spherical Roller Bearing – 35mm ID x 72mm OD x 23mm Width – New m00174
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
MPN: 22207-E1-C3
Stock #: 0226-00174

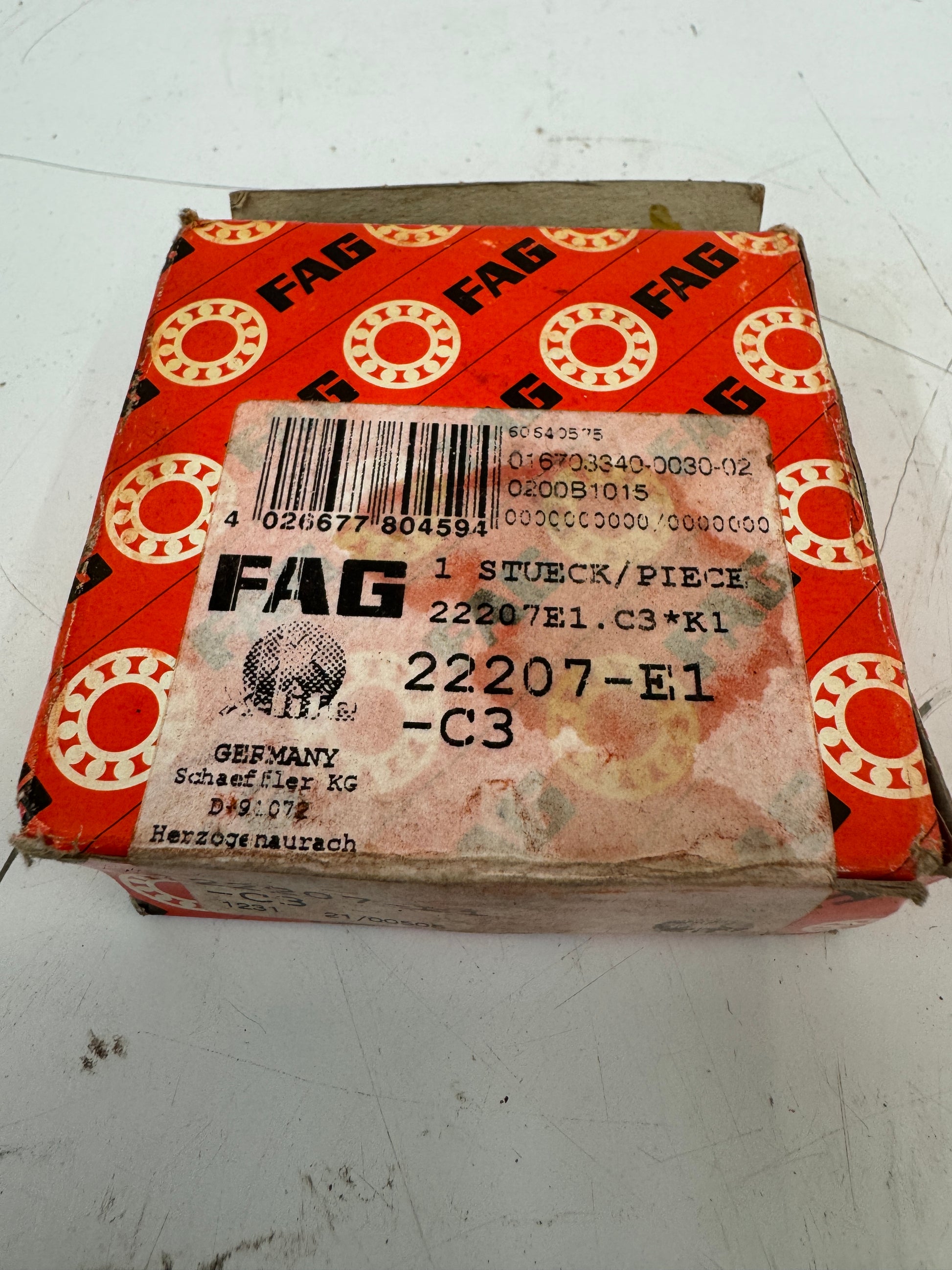

The FAG 22207-E1-C3 is a double row spherical roller bearing manufactured by Schaeffler in Germany. Bore diameter measures 35 mm, outside diameter 72 mm, and width 23 mm. The C3 suffix designates internal radial clearance greater than the standard CN class, suitable for applications involving thermal expansion, interference fits, or elevated operating temperatures. The E1 designation reflects the optimized internal geometry that increases dynamic load capacity over earlier 22200 series designs. Carton labeling identifies the unit as MPN 22207E1.C3*K1, supplied in original FAG packaging printed at Herzogenaurach, Germany.

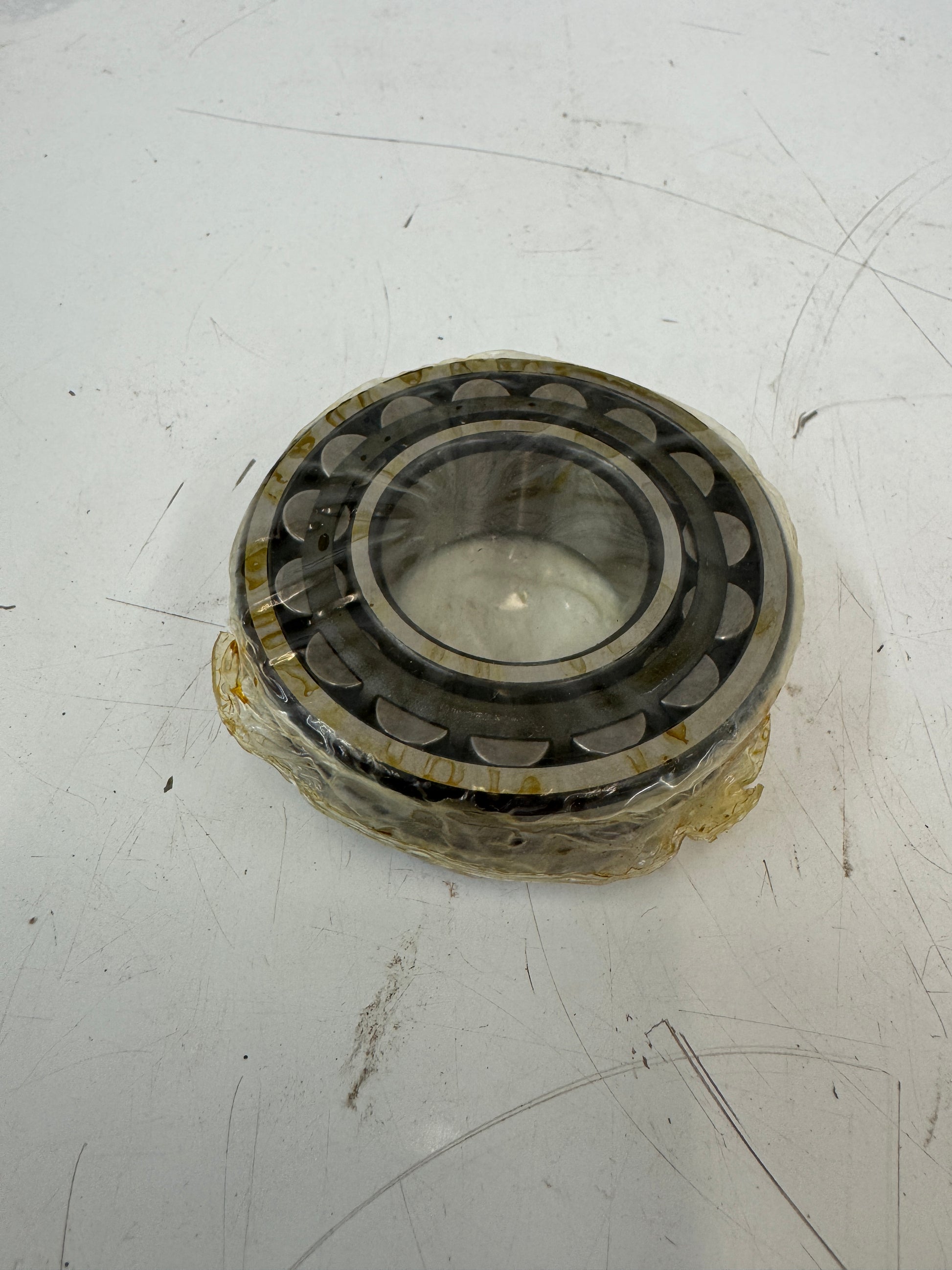

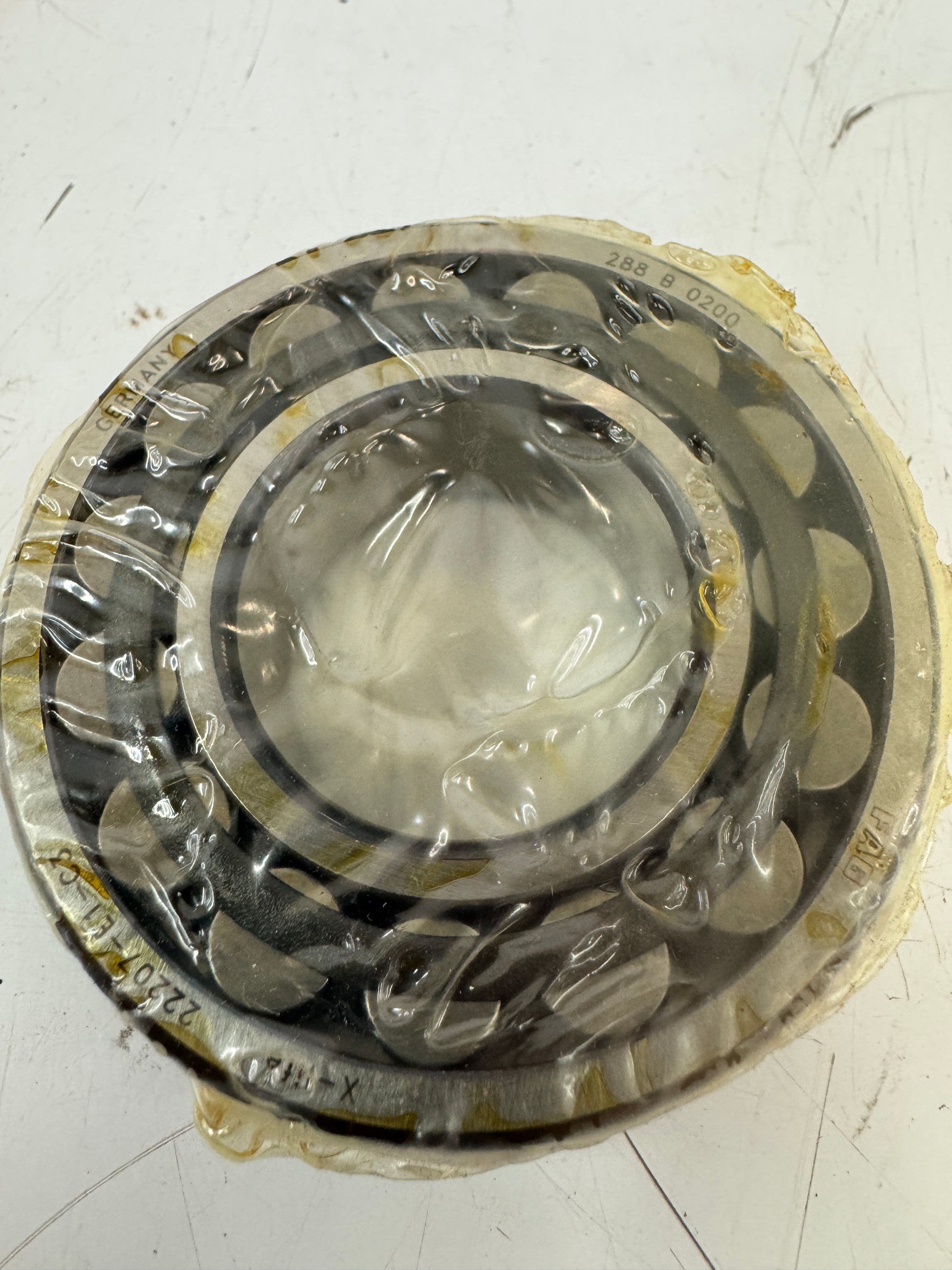

The bearing features a cylindrical bore, sheet steel cage, and open (non sealed) construction. Two rows of symmetrical rollers run on a concave spherical raceway in the outer ring, allowing the assembly to accommodate static and dynamic shaft misalignment while supporting heavy radial loads and axial loads in both directions. Typical installation environments include gearboxes, fans, conveyors, vibrating screens, paper machinery, mining equipment, and general industrial drive trains where shaft deflection or housing misalignment is expected.
Manufacturer published reference data for the 22207-E1 series lists a basic dynamic load rating of approximately 89 kN, an operating temperature range from negative 30 to 200 degrees C, and a reference speed in the range of 10,700 rpm. Cross reference equivalents include SKF 22207 E/C3 and NSK 22207 C/C3. Confirm clearance class, cage material, and shaft fit requirements against the original application specification before installation.
Stock # 0226-174
