FAG 22212-E1A-XL-M Spherical Roller Bearing – 60mm ID x 110mm OD x 28mm Width – New
FAG 22212-E1A-XL-M Spherical Roller Bearing – 60mm ID x 110mm OD x 28mm Width – New
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
MPN: 22212-E1A-XL-M
Stock #: 0226-00172

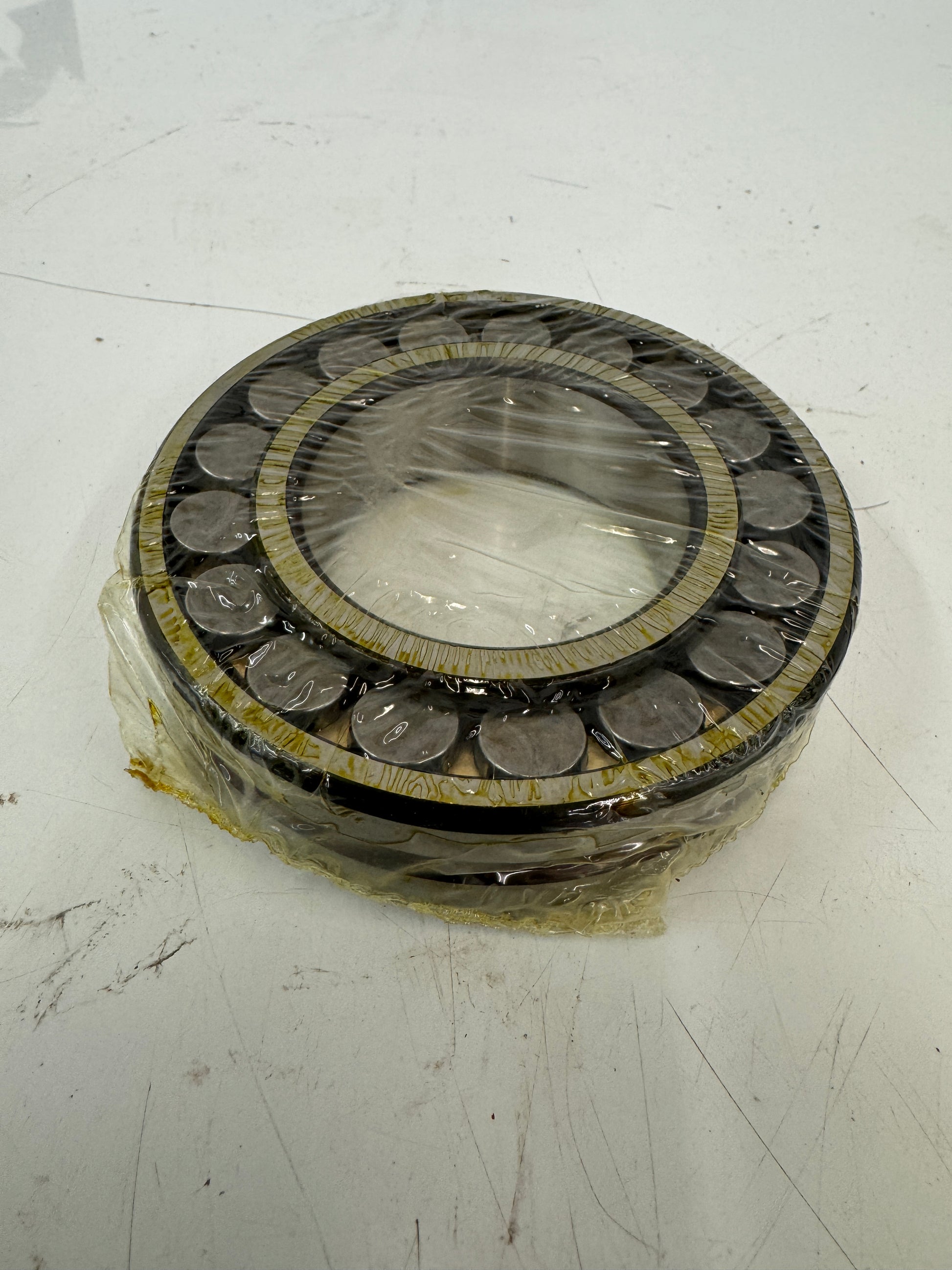

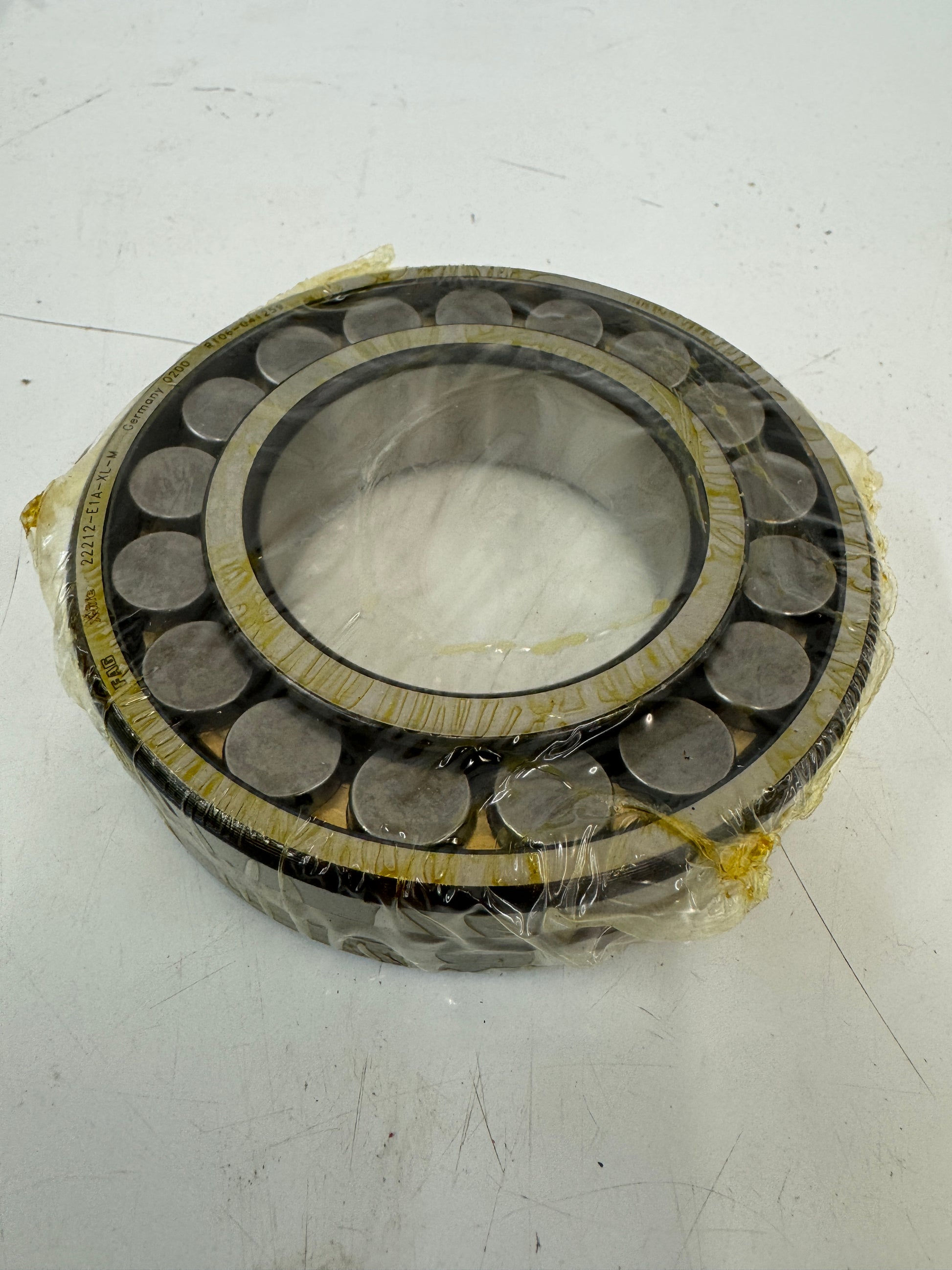

The FAG 22212-E1A-XL-M is a double row spherical roller bearing manufactured by Schaeffler Group in Germany, identified by EAN 4026677807755. This X-life series unit measures 60 mm bore, 110 mm outside diameter, and 28 mm width, with a cylindrical (straight) bore designation. The E1A internal geometry represents an optimized design with increased roller and raceway contact area, while the M suffix indicates a one piece machined brass cage guided on the inner ring. The XL marking denotes Schaeffler's X-life premium designation, reflecting upgraded steel grade, surface finish, and dimensional tolerances over standard catalog spherical roller bearings.
Spherical roller bearings of this configuration accommodate heavy radial loads and axial loads in both directions, and the inherent self aligning capability compensates for shaft deflection and mounting misalignment between the bore and housing. Two rows of symmetrical barrel rollers operate against a common concave outer raceway, allowing the inner ring to articulate within the outer ring under load.
Typical applications include gearbox shafts, fan and blower assemblies, conveyor pulleys, crusher shafts, paper machinery, vibrating screens, and general heavy duty industrial drive trains. The X-life specification supports higher dynamic load ratings and extended service intervals compared to standard 22212 series units.

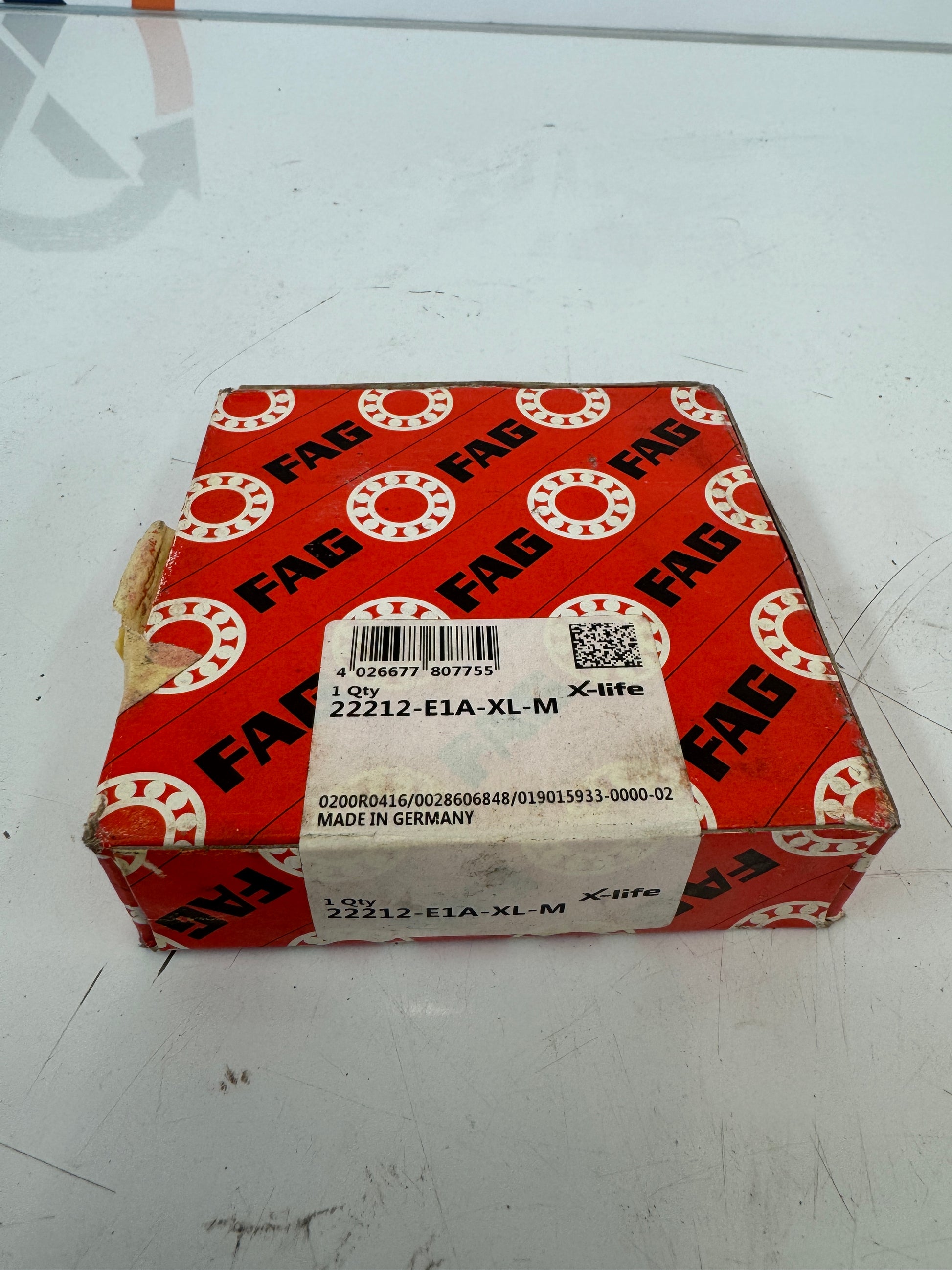

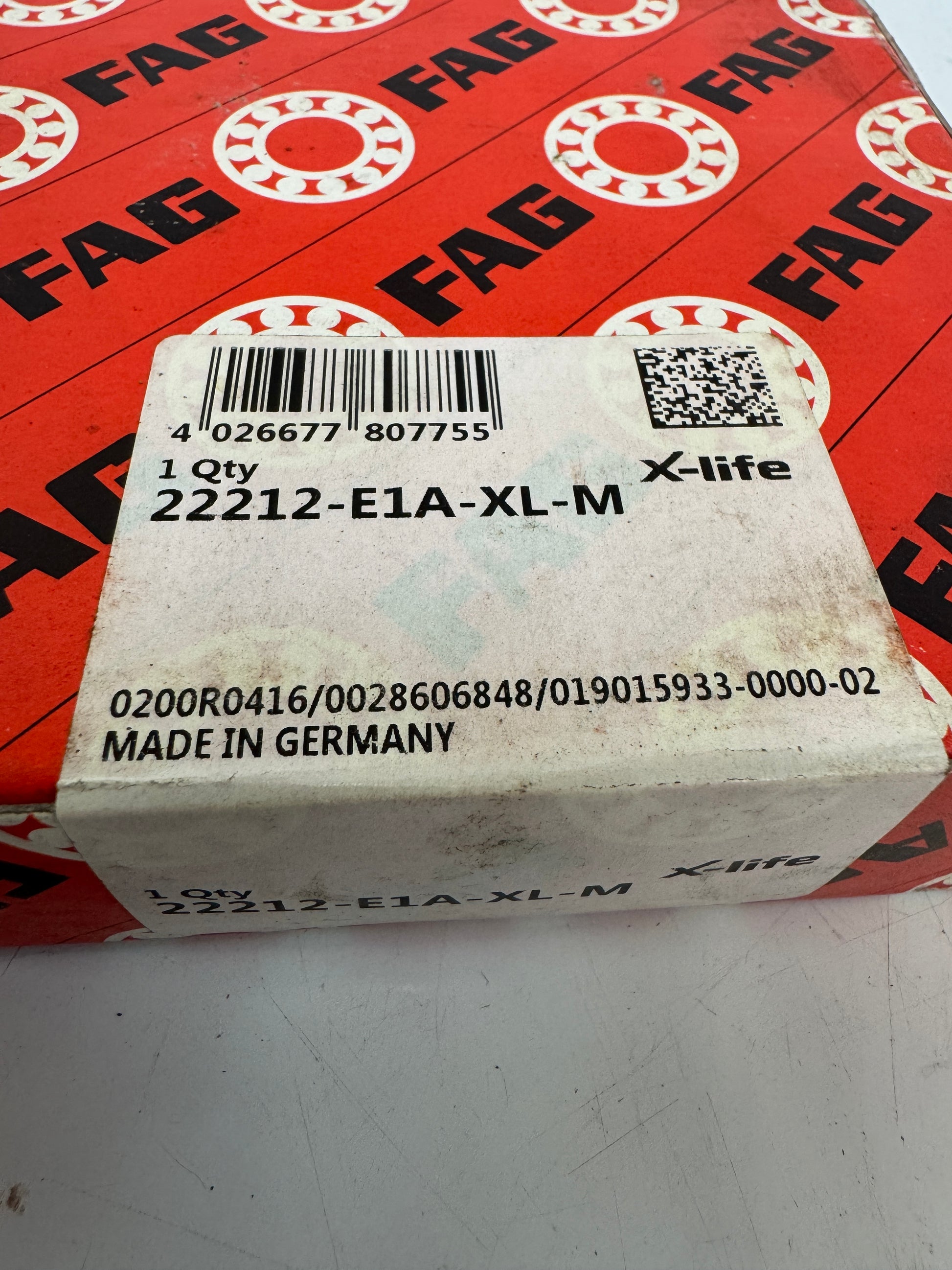

Package markings include traceability codes 0200R0416 / 0028606848 / 019015933 0000 02. The unit is supplied in original FAG factory packaging. MPN: 22212-E1A-XL-M. Country of origin: Germany.
Stock # 0226-172
