Fanair AG Axial Fan with Motor ML 300/2 264/460V 3 Phase

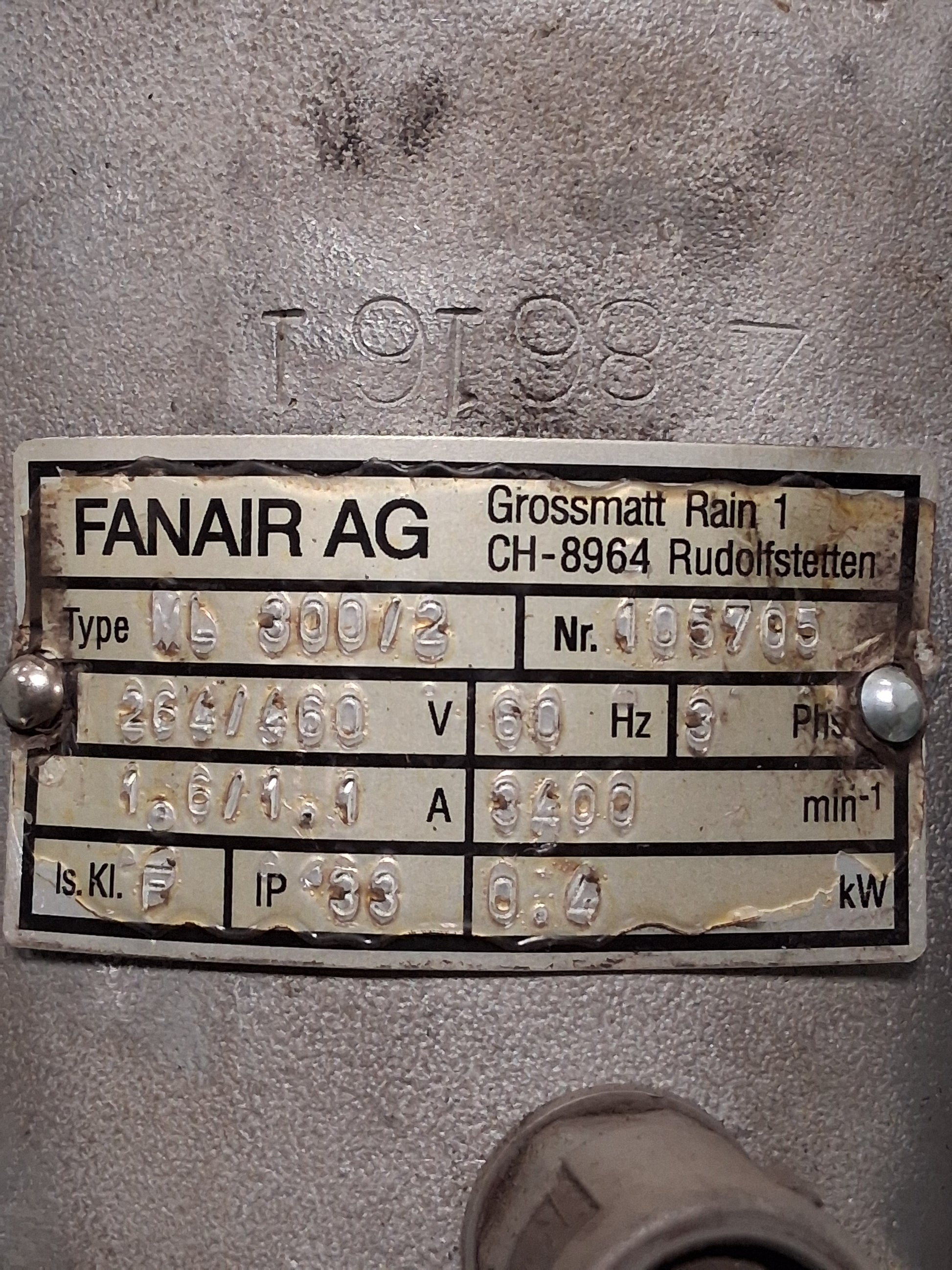

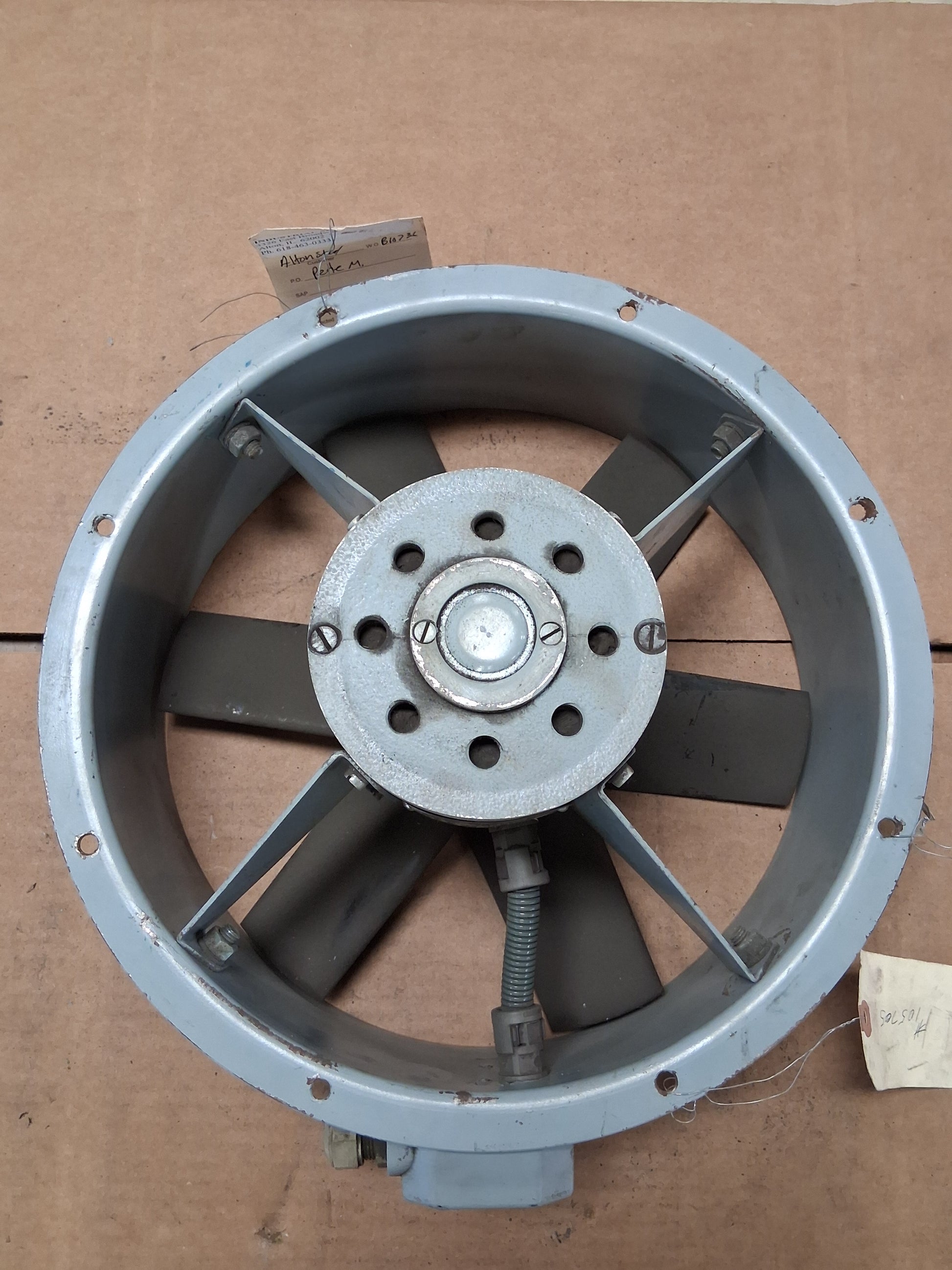

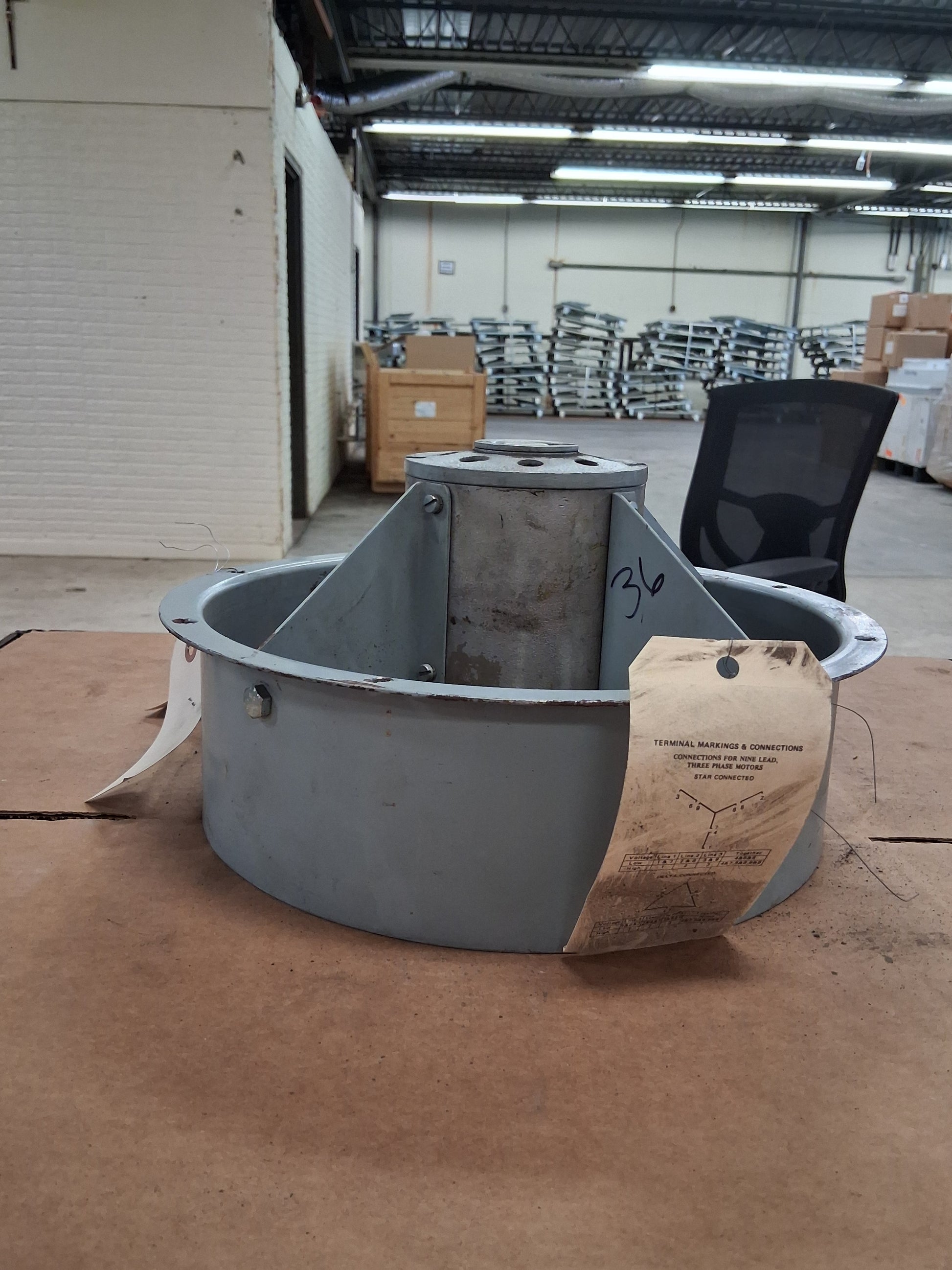

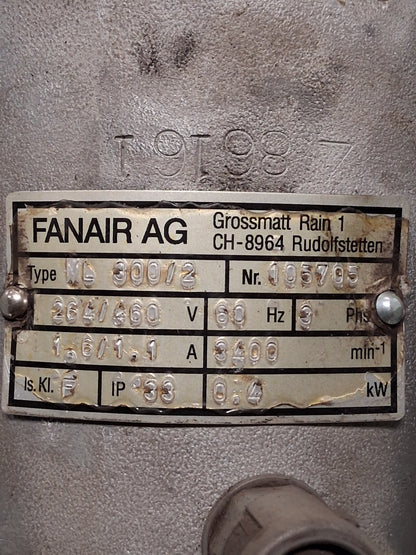

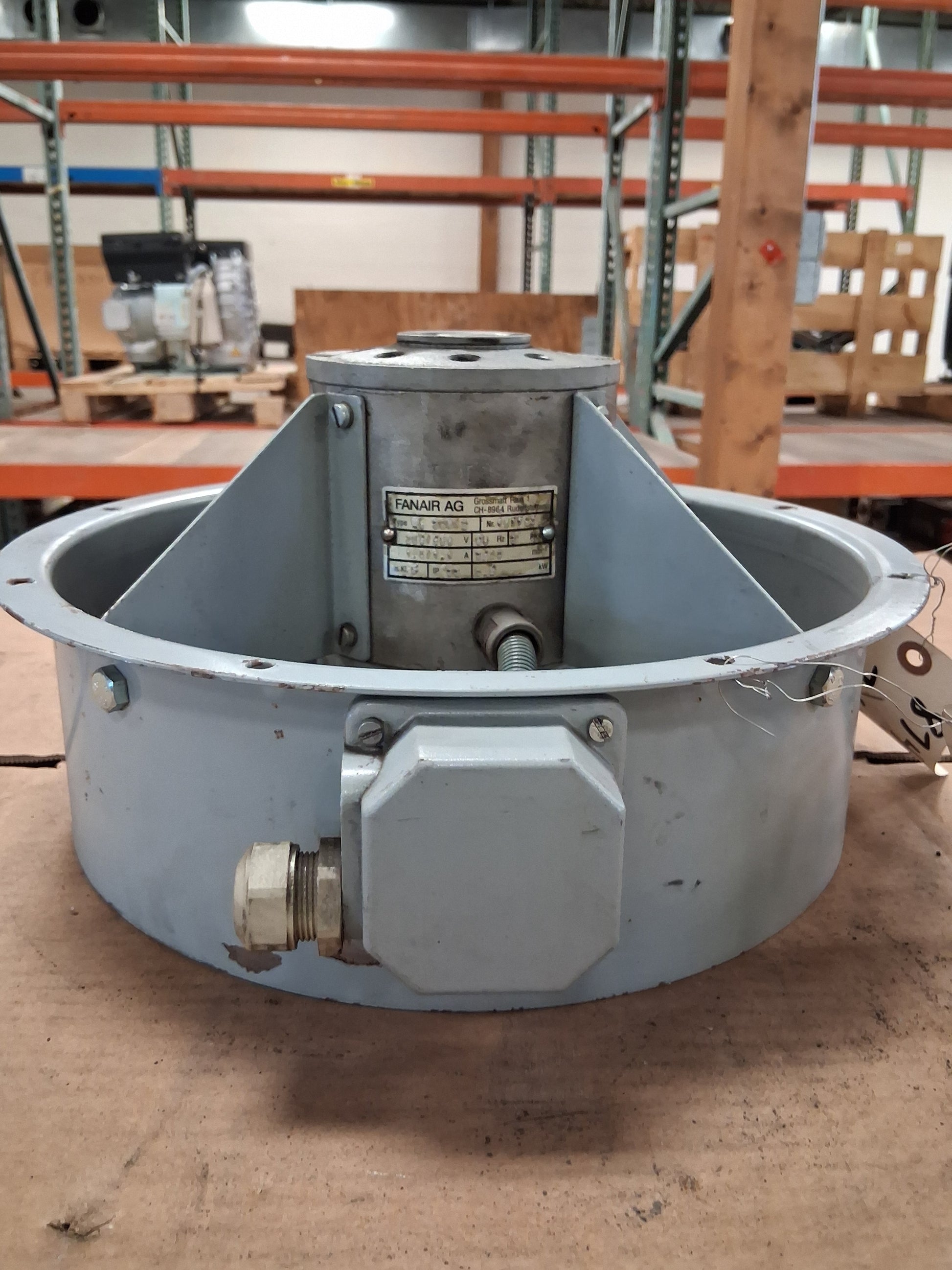

A 300mm (12 inch) industrial axial fan assembly from Fanair AG, a Swiss ventilation equipment supplier based in Rudolfstetten, Switzerland. The unit carries Type ML 300/2 and serial number 105705 on the manufacturer nameplate. The integrated three phase motor is rated at 264/460V, 60 Hz, with full load current of 1.6/1.0 A, rated speed of 3400 min-1, and 0.4 kW output. The motor is built to insulation class F with IP 33 ingress protection per the nameplate. Construction consists of a powder coated steel tubular housing with mounting flange, a center mounted motor supported by integral airfoil shaped struts, a multi blade axial impeller, and a cast junction box on the housing exterior with threaded conduit entry. A wiring connection diagram label on the unit shows star and delta connection options for the nine lead three phase motor. The fan operates as a direct drive axial unit, drawing air parallel to the shaft axis. Applications for this configuration include machinery cooling, enclosure ventilation, process air movement, and general industrial exhaust or supply duty where compact, flanged tube axial form factor is required. Country of origin: Switzerland. Condition is used surplus, with cosmetic wear consistent with prior service. Sold as pictured with no testing, no accessories, and no warranty.

Stock # 0526-02452
