FANUC A06B-0269-B200#0100 AC Servo Motor 8 HP 3000 RPM
FANUC A06B-0269-B200#0100 AC Servo Motor 8 HP 3000 RPM
The shipping fee at checkout covers handling and loading only.
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
Stock #:

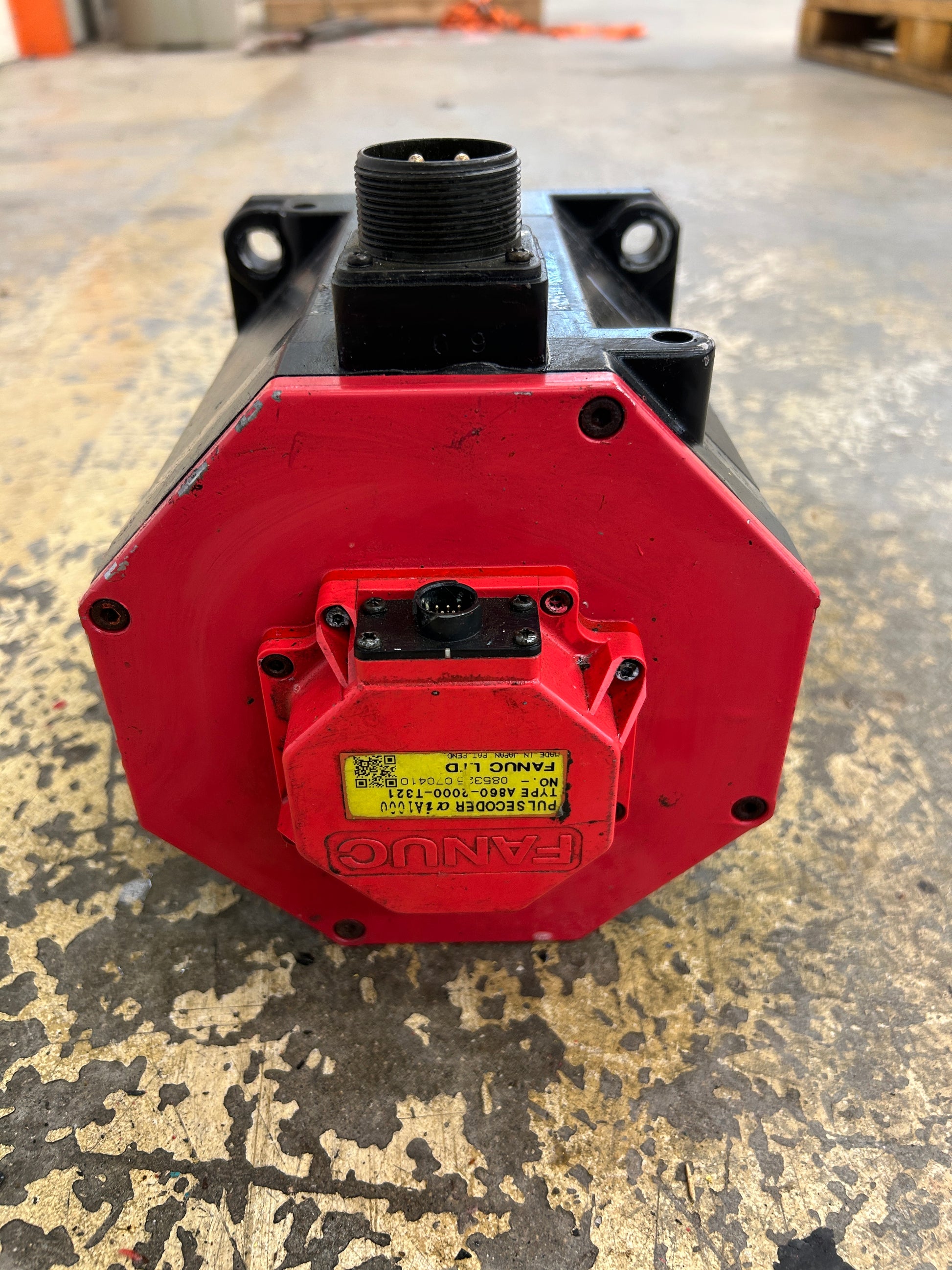

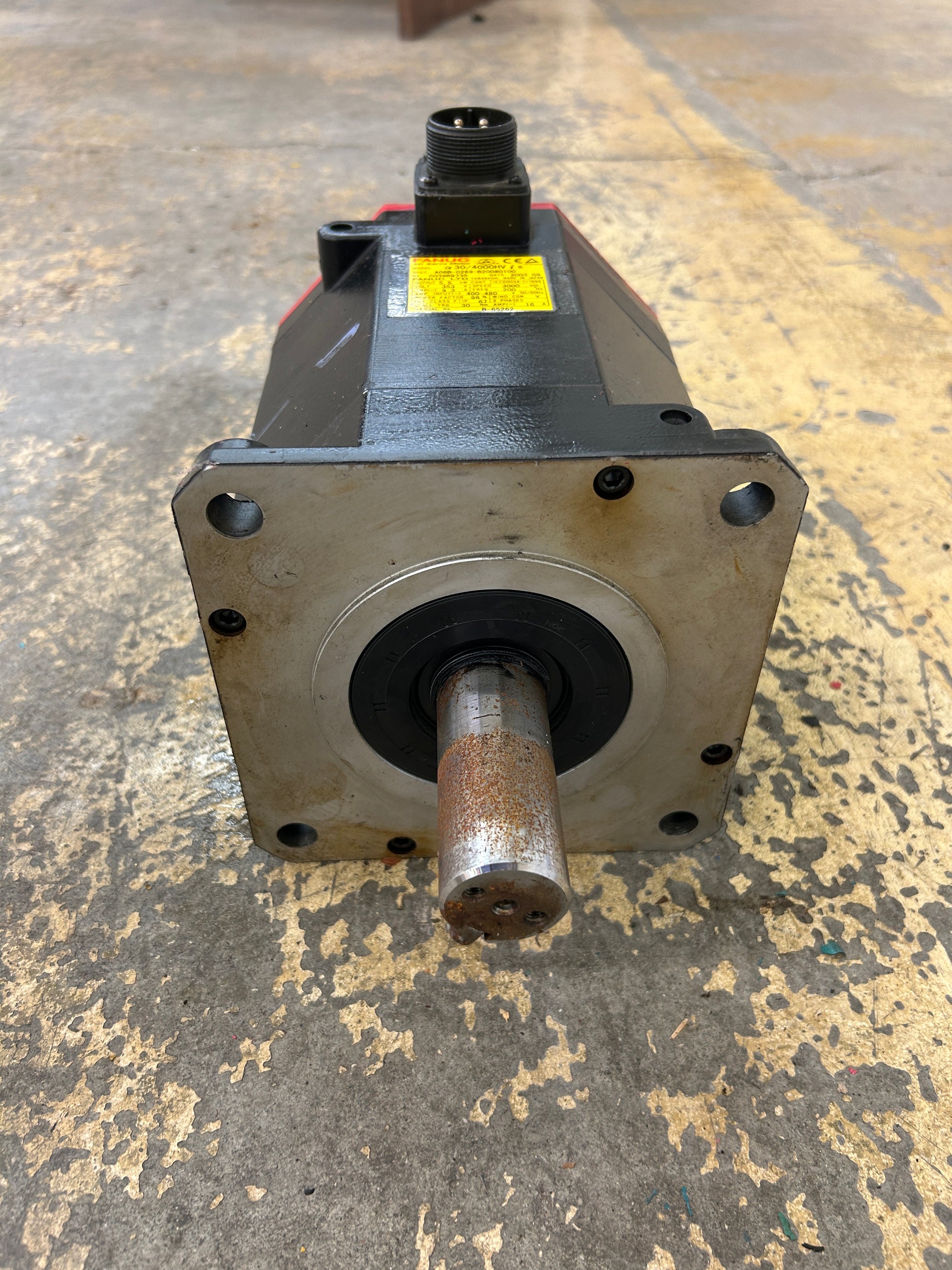

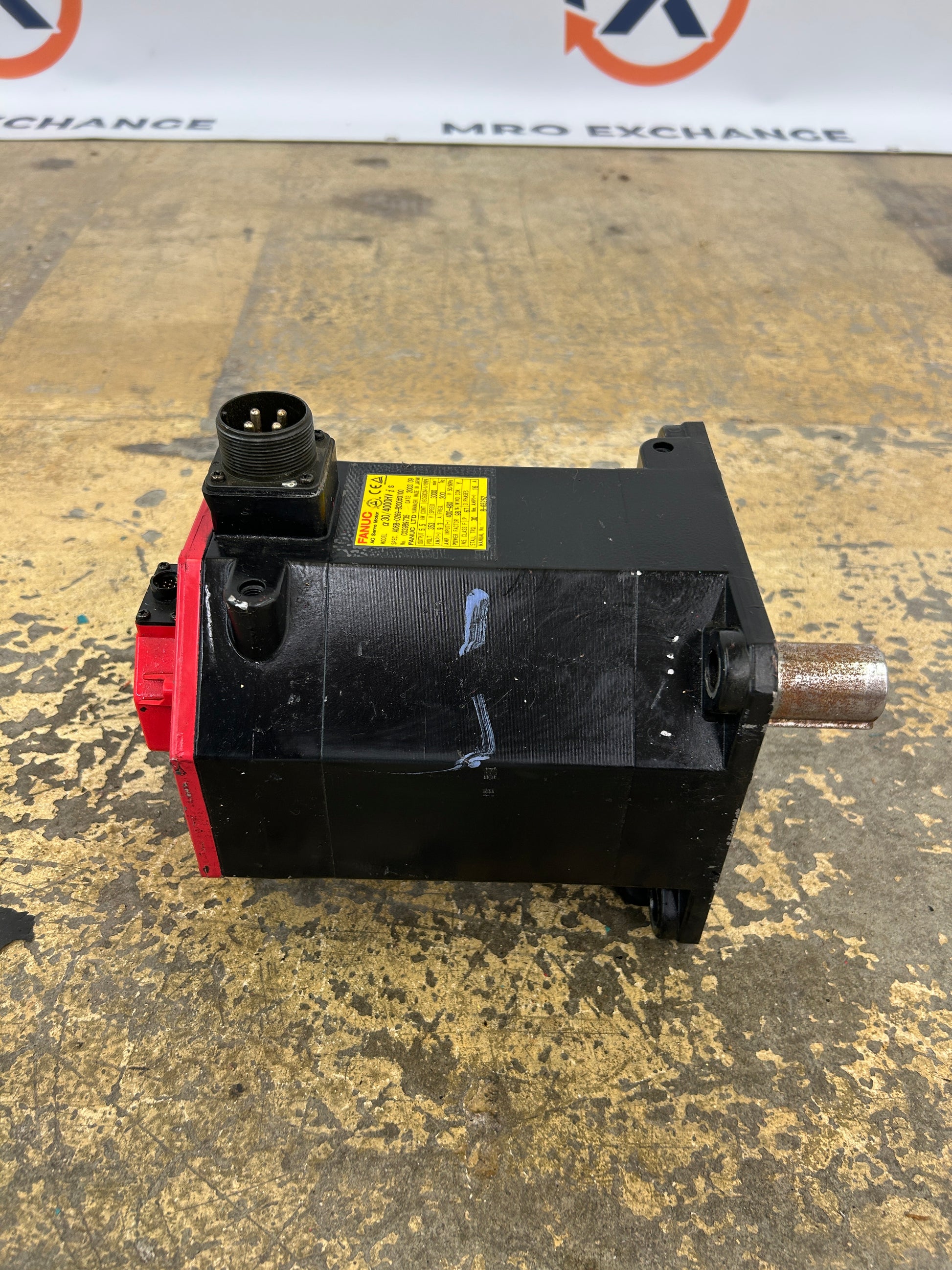

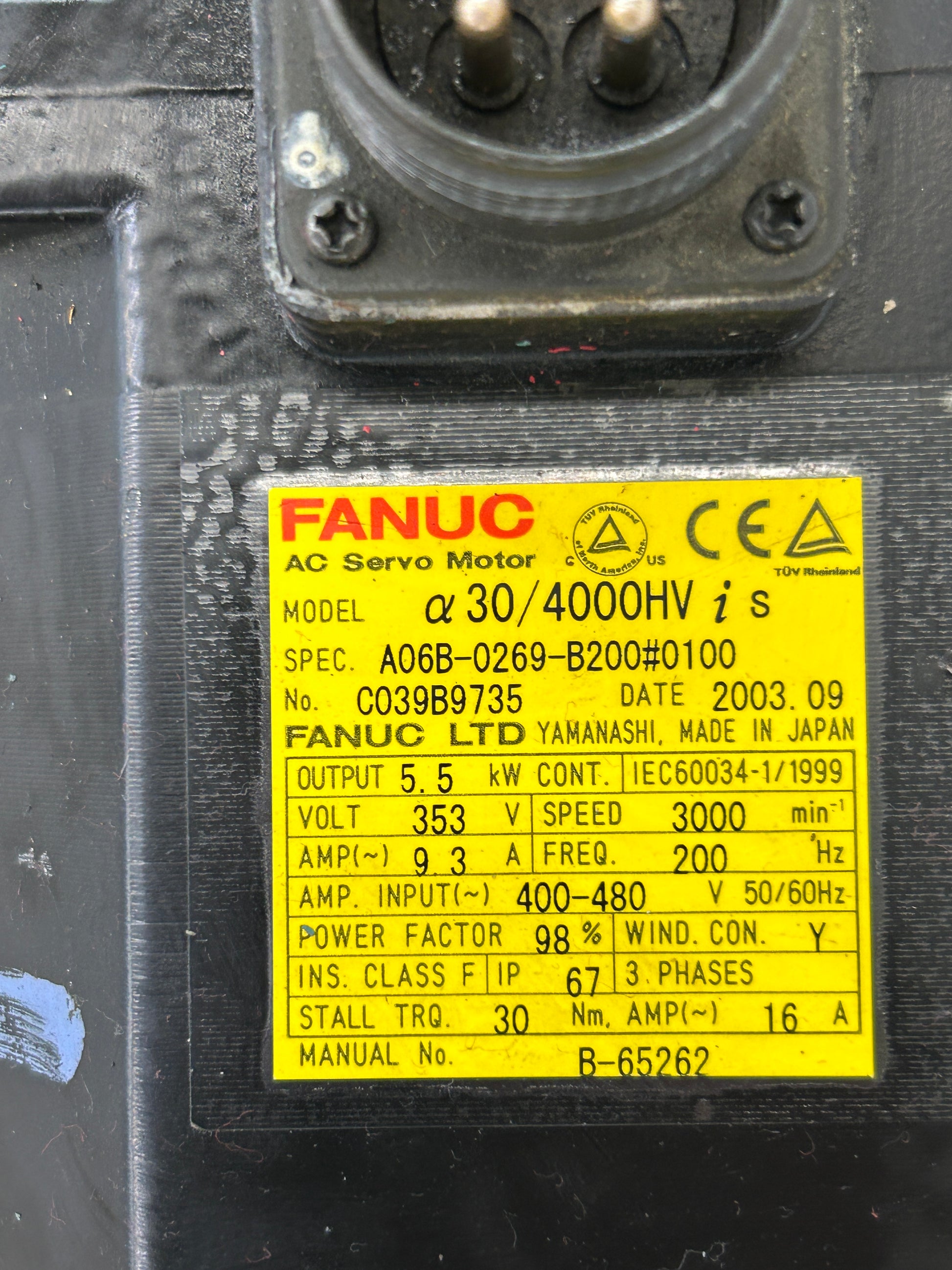

The Fanuc A06B-0269-B200#0100 is an Alpha iS series AC servo motor manufactured by Fanuc Ltd. in Yamanashi, Japan. This unit is identified as model Alpha iS 30/4000HV, a high voltage variant within the Fanuc Alpha iS servo motor family used extensively in CNC machine tool feed axes and high performance industrial motion control applications. Nameplate data confirms a continuous output rating of 5.5 kW, rated voltage of 353 V, rated current of 9.3 A, rated speed of 3000 min¹, frequency of 200 Hz, and three phase power input rated for 400 to 480 V at 50/60 Hz. Power factor is 98 percent with a Y connected winding configuration. Stall torque is rated at 30 Nm with stall current of 16 A. The motor carries an IP67 enclosure rating and insulation class F. Serial number C039B9735 is visible on the rating plate along with a manufacturing date of 2003.09. The unit complies with IEC 60034 1/1999 and carries CE and TUV Rheinland markings. Specification A06B-0269-B200#0100 corresponds to the straight shaft keyed configuration with integrated absolute serial pulse encoder. Reference manual number B-65262 covers the Fanuc Alpha iS series descriptions. Compatible with Fanuc Alpha i series servo amplifiers and used as a replacement or spare for CNC milling machines, machining centers, and high voltage servo drive applications.
Stock # 0226-094
