Fanuc A06B-6079-H106 Servo Amplifier Module Untested Surplus 01468
Fanuc A06B-6079-H106 Servo Amplifier Module Untested Surplus 01468
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition: Surplus - Untested
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
MPN: A06B-6079-H106
Stock #: 0626-01468
Product Specifications
- Manufacturer: Fanuc
- MPN / Model: A06B-6079-H106
- Product Type: Servo Amplifier Module
- Series: Alpha Series SVM1-130
- Rated DC Input: 283 to 325V at 9.1 kW
- Maximum Output Voltage: 230V AC
- Rated Output Current (L Axis): 52.2A
- Interface: PWM
- Front Panel Connectors: JX5, JX1A, JX1B, PWM11/JV1B, PWM21/JS1B, ENC1/JF1, CX2A, CX2B
- Serial Number: EA9707235
- Manual Reference: B-65162
- Standards Compliance: DIN VDE 0160
- Certifications: CE, TUV Rheinland
- Country of Origin: Japan
Product Description

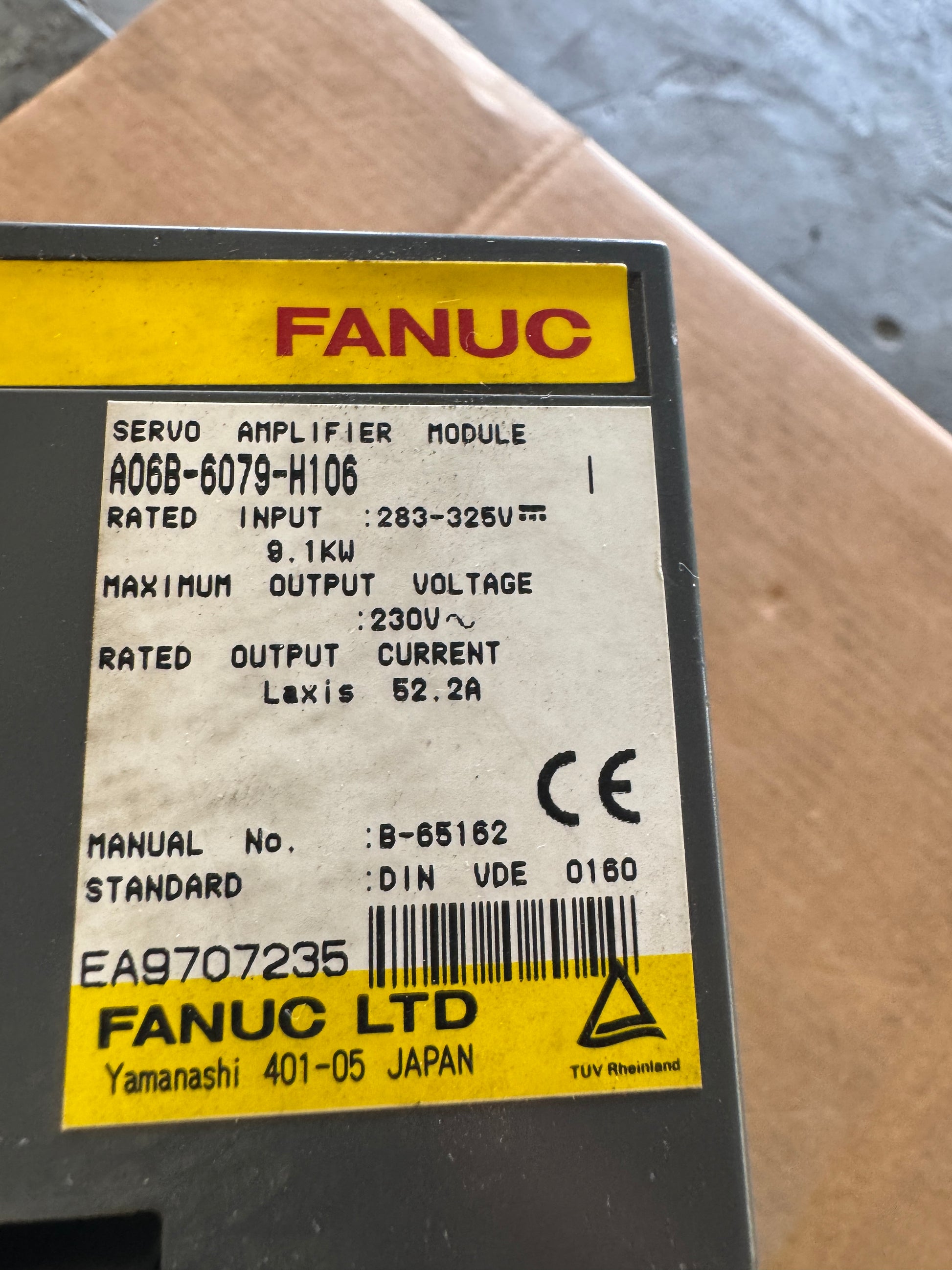

The Fanuc A06B-6079-H106 is a single-axis Servo Amplifier Module from Fanuc's Alpha Series SVM1-130 line, designed for use in CNC machining centers and industrial automation systems utilizing the Alpha PSU and Alpha Spindle drive architecture. The nameplate identifies a rated DC input of 283 to 325V at 9.1 kW, a maximum output voltage of 230V AC, and a rated output current of 52.2A on the L axis. Serial number EA9707235 and manual reference B-65162 are confirmed on the nameplate label. Standards compliance is listed as DIN VDE 0160, with CE marking and TUV Rheinland certification visible. Manufactured by Fanuc Ltd in Yamanashi, Japan.

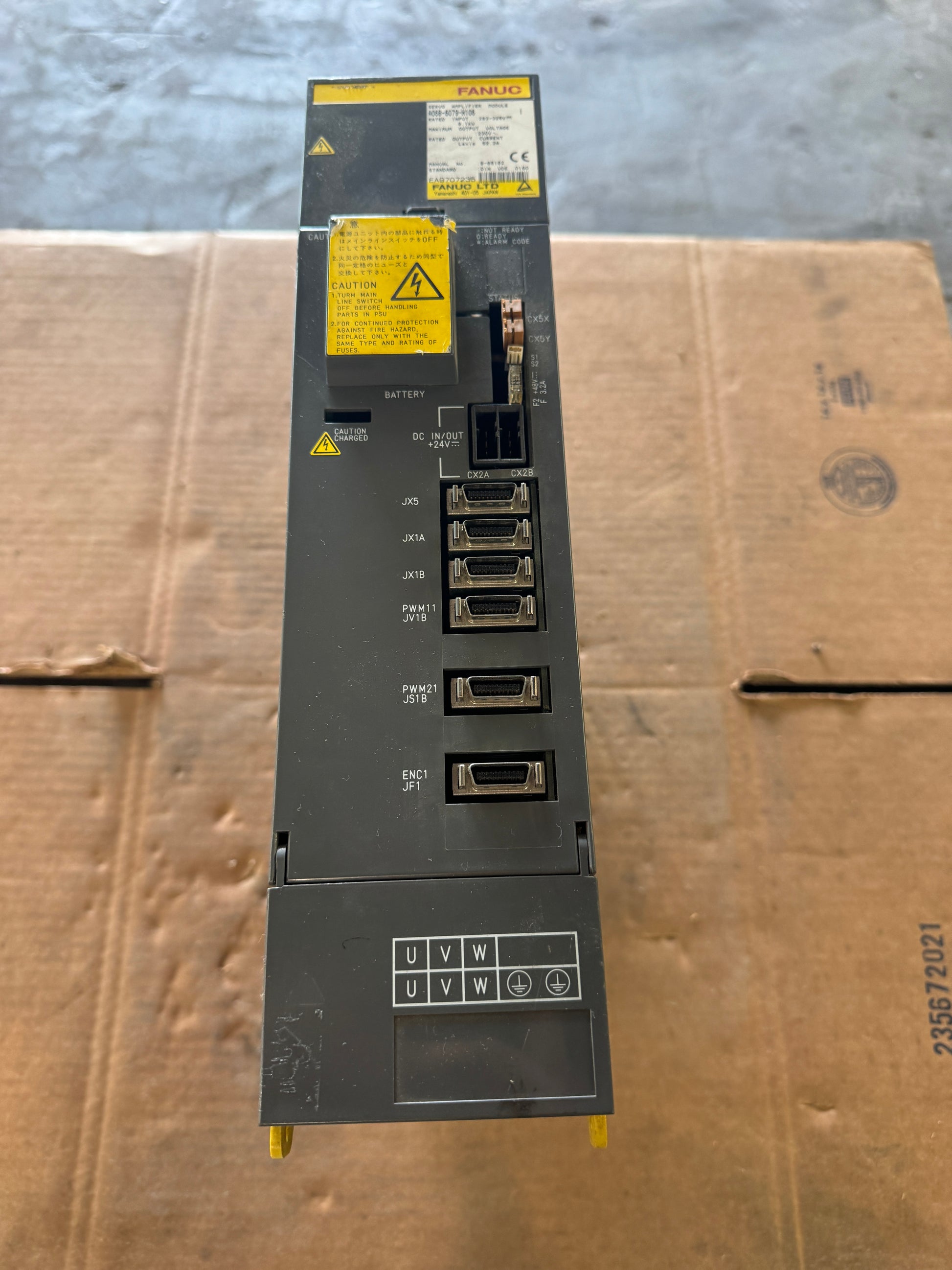

Connector ports visible on the front panel include JX5, JX1A, JX1B, PWM11/JV1B, PWM21/JS1B, and ENC1/JF1, along with CX2A and CX2B DC in/out connections and a battery interface. Output power terminals are labeled U, V, W for both input and motor output connections. This unit uses a PWM interface and is part of the standard Alpha series drive configuration. This part number has been discontinued by the original manufacturer, making serviceable surplus units a common replacement source for machine tool maintenance.
