Fanuc A06B-6080-H301 Servo Amplifier Module 283 to 325V Untested Surplus

$1,299.00 USD

Sale Sold out

U.S. shipping, securely packaged. Ships in 1-2 Days
Questions? Real support team available before purchase
Secure checkout with trusted payment methods

Condition: Surplus - Untested
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.

MPN: A06B-6080-H301
Stock #: 0626-01553

Product Specifications

Manufacturer: Fanuc
MPN / Model: A06B-6080-H301
Product Type: Servo Amplifier Module
Series: Alpha Series (SVM3-12/12/12)
Axes: 3-Axis
Input Voltage: 283 to 325V
Power Rating: 1.85 kW
Output Current: 3.0A per axis (L, M, N)
Interface Type: PWM (Type B)
Condition: Surplus / Untested

Product Description

The Fanuc A06B-6080-H301 is a 3-axis Alpha Series servo amplifier module, model designation SVM3-12/12/12, with an input voltage range of 283 to 325V, a power rating of 1.85 kW, and a rated output current of 3.0A on each of the L, M, and N axes. The module uses a PWM Type B interface and is part of Fanuc's Alpha Series servo drive line used in CNC machine tool applications.

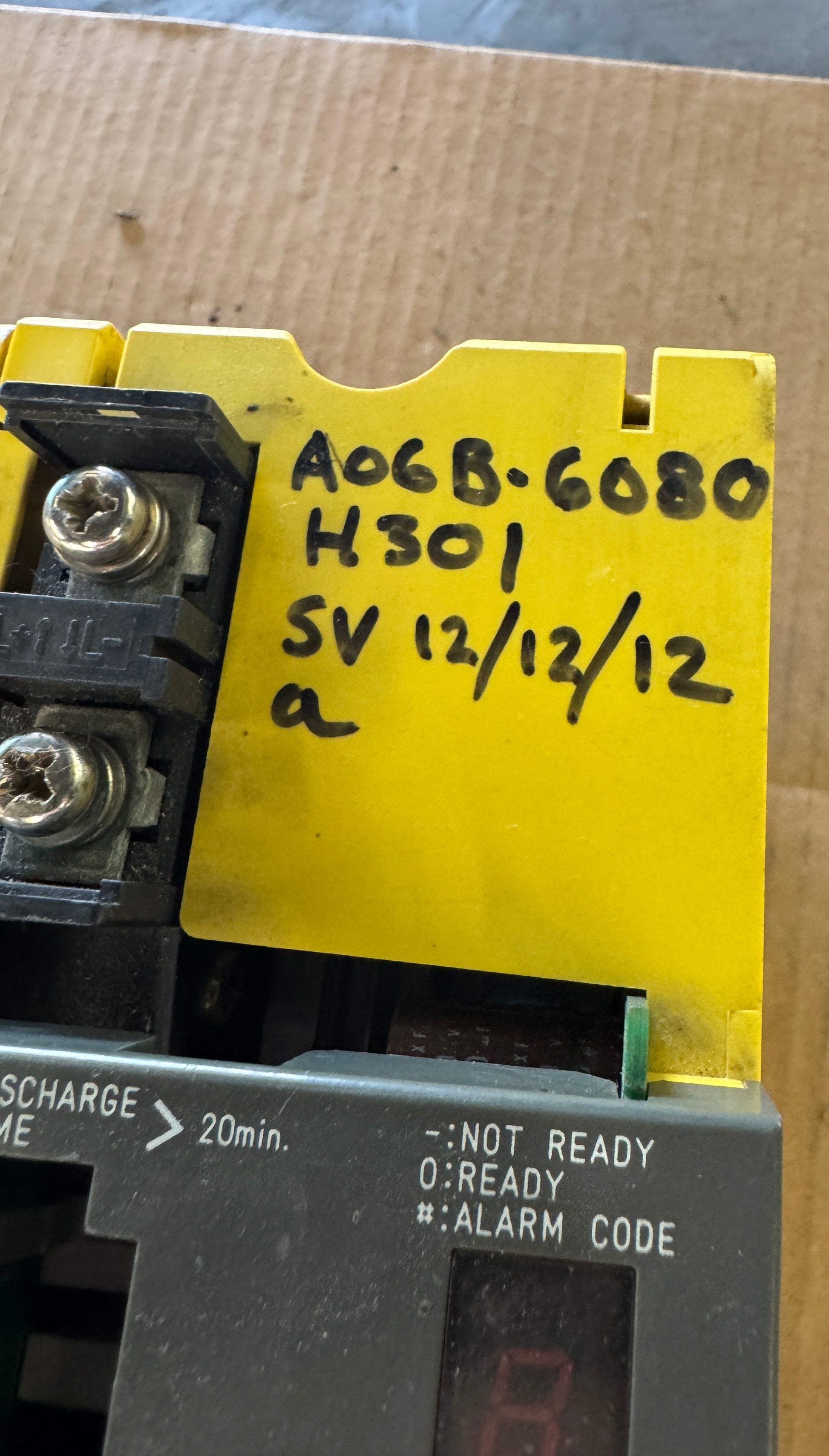

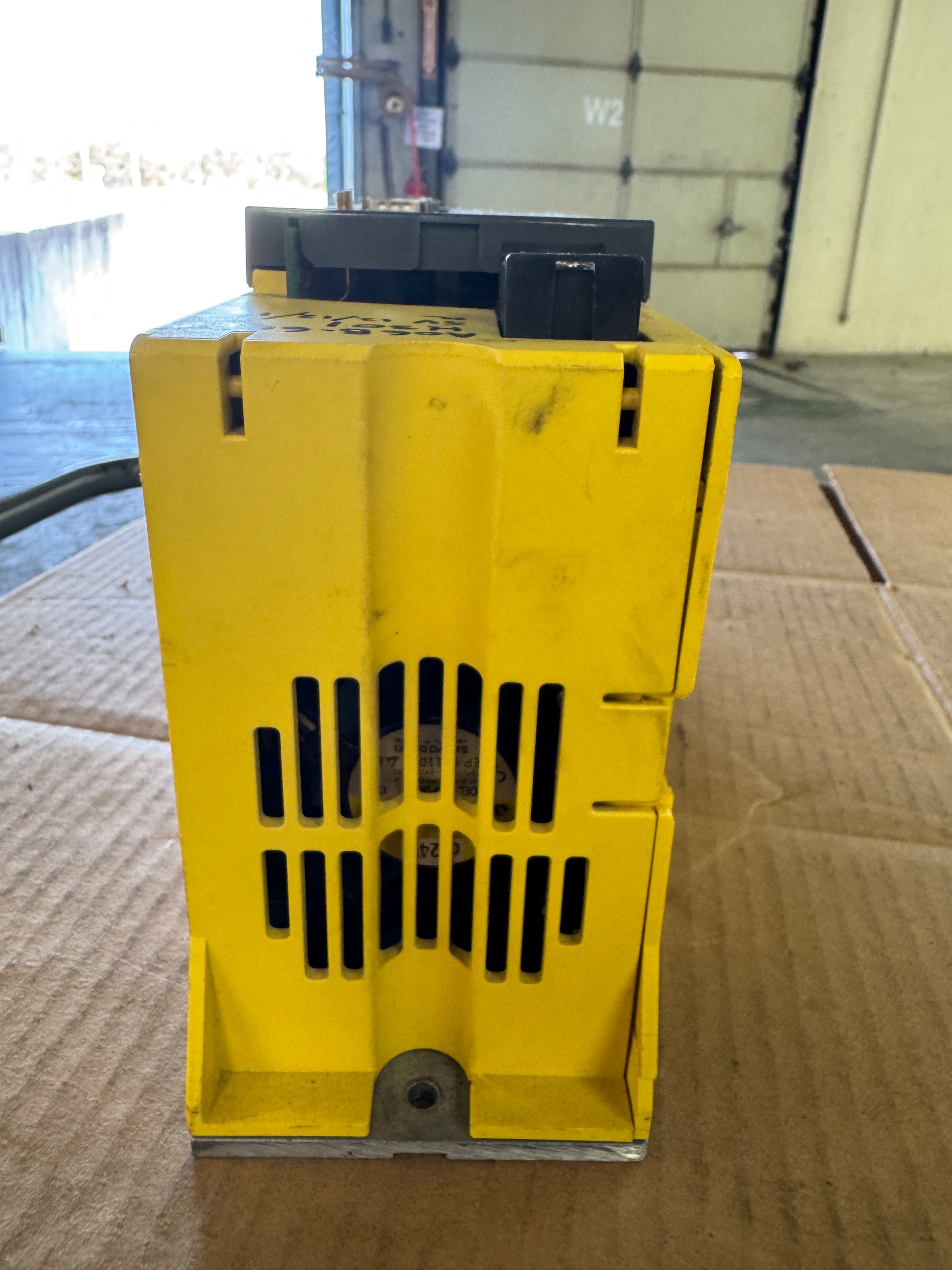

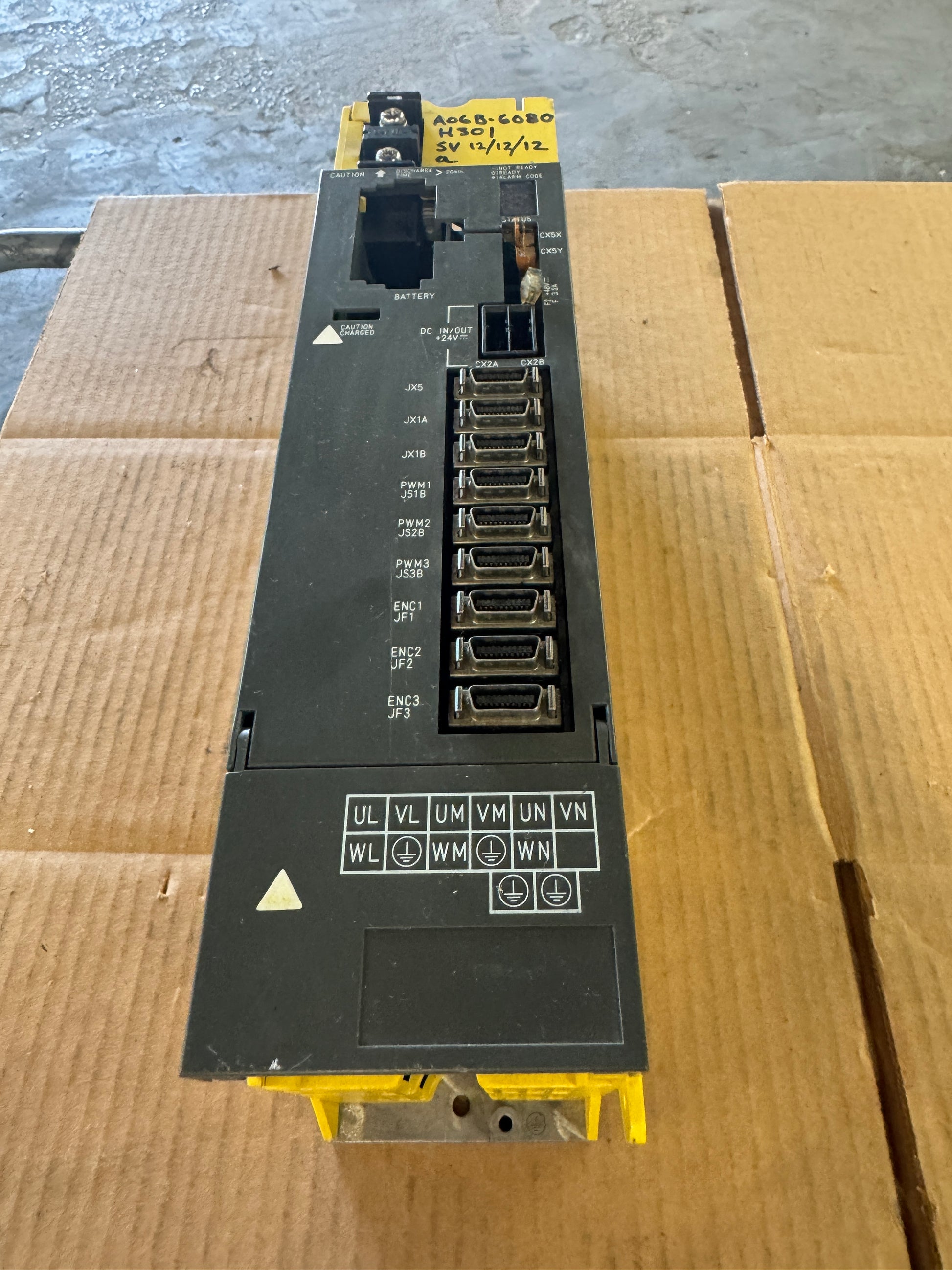

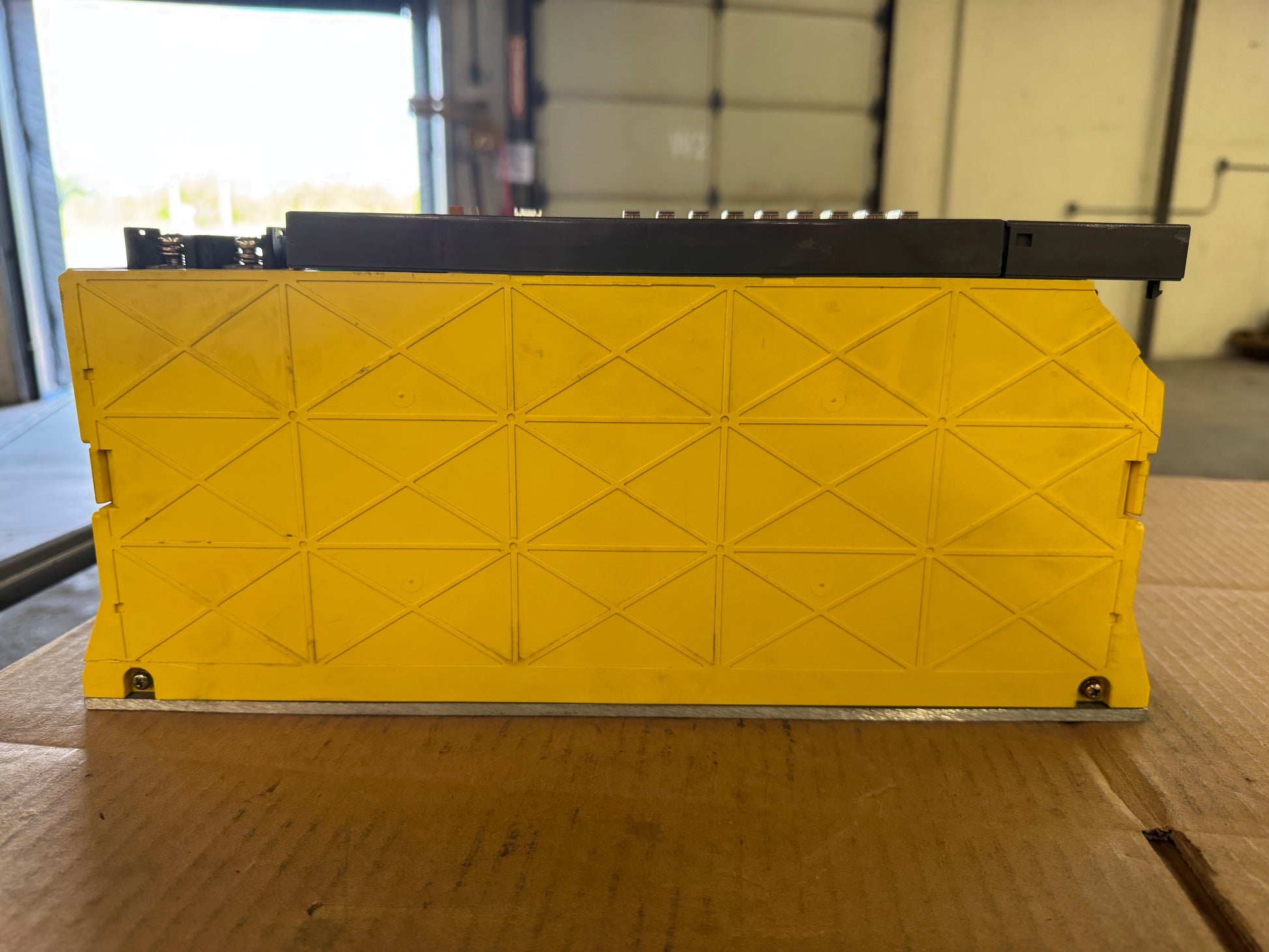

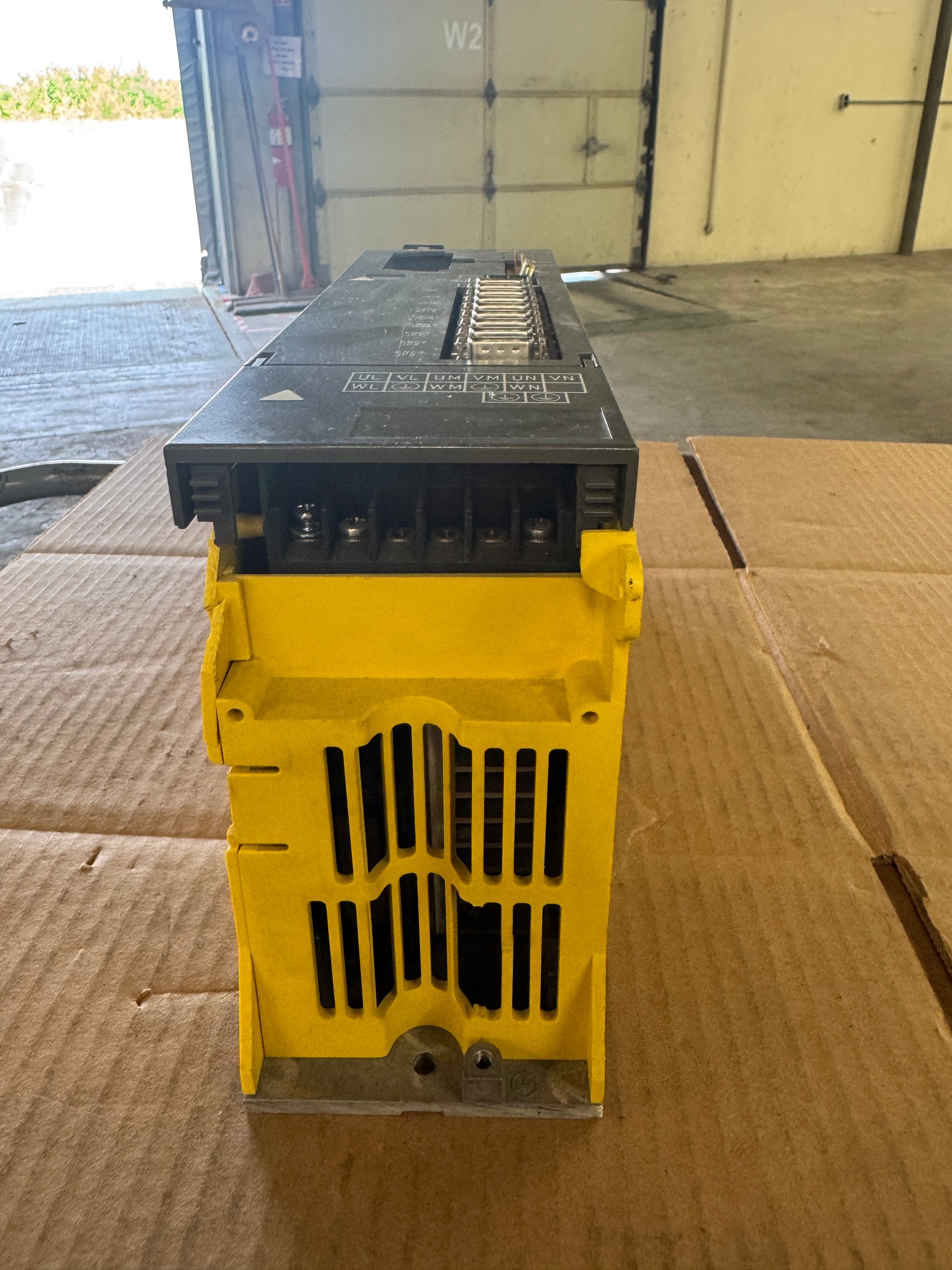

This unit is listed as Surplus / Untested. The front panel shows status indicator markings (NOT READY, READY, ALARM CODE), battery connector, DC IN/OUT port, and connector rows labeled JX5, JX1A, JX1B, PWM1 JS1B through PWM3 JS3B, and ENC1 JF1 through ENC3 JF3. Motor output terminals UL, VL, UM, VM, UN, VN, WL, WM, WN are accessible at the top. The yellow housing shows visible field wear and scuffing consistent with removed-from-service condition. A handwritten label on the unit reads A06B-6080-H301, SV 12/12/12. Buyers sourcing a replacement for this exact Fanuc catalog number should confirm the MPN, interface type, and series designation against their existing system requirements.
