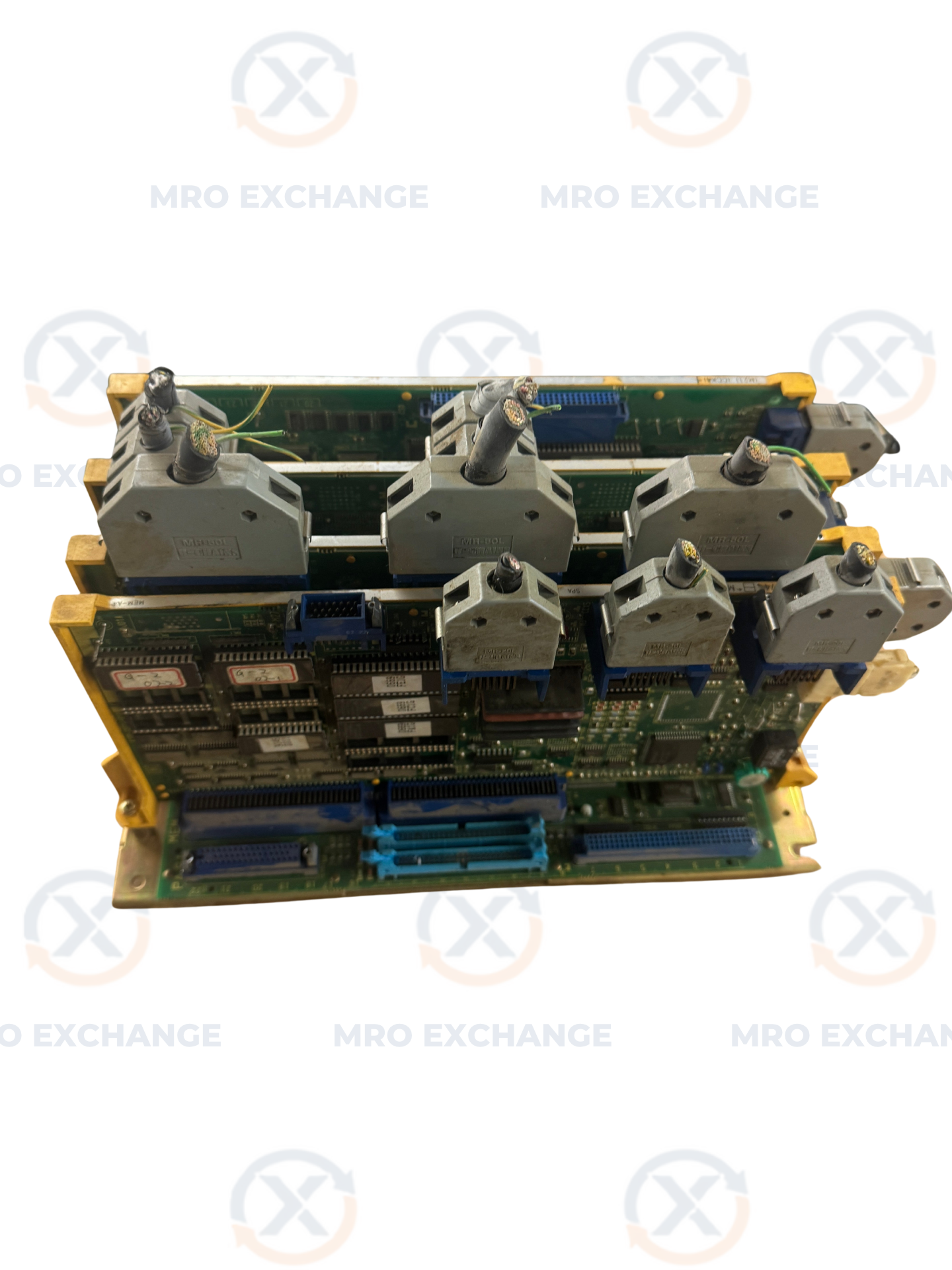

Fanuc CNC Control Board Assembly A16B-2200-0350

$229.00 USD

Sale Sold out

U.S. shipping, securely packaged. Ships in 1-2 Days
Questions? Real support team available before purchase
Secure checkout with trusted payment methods

Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.

Stock #:

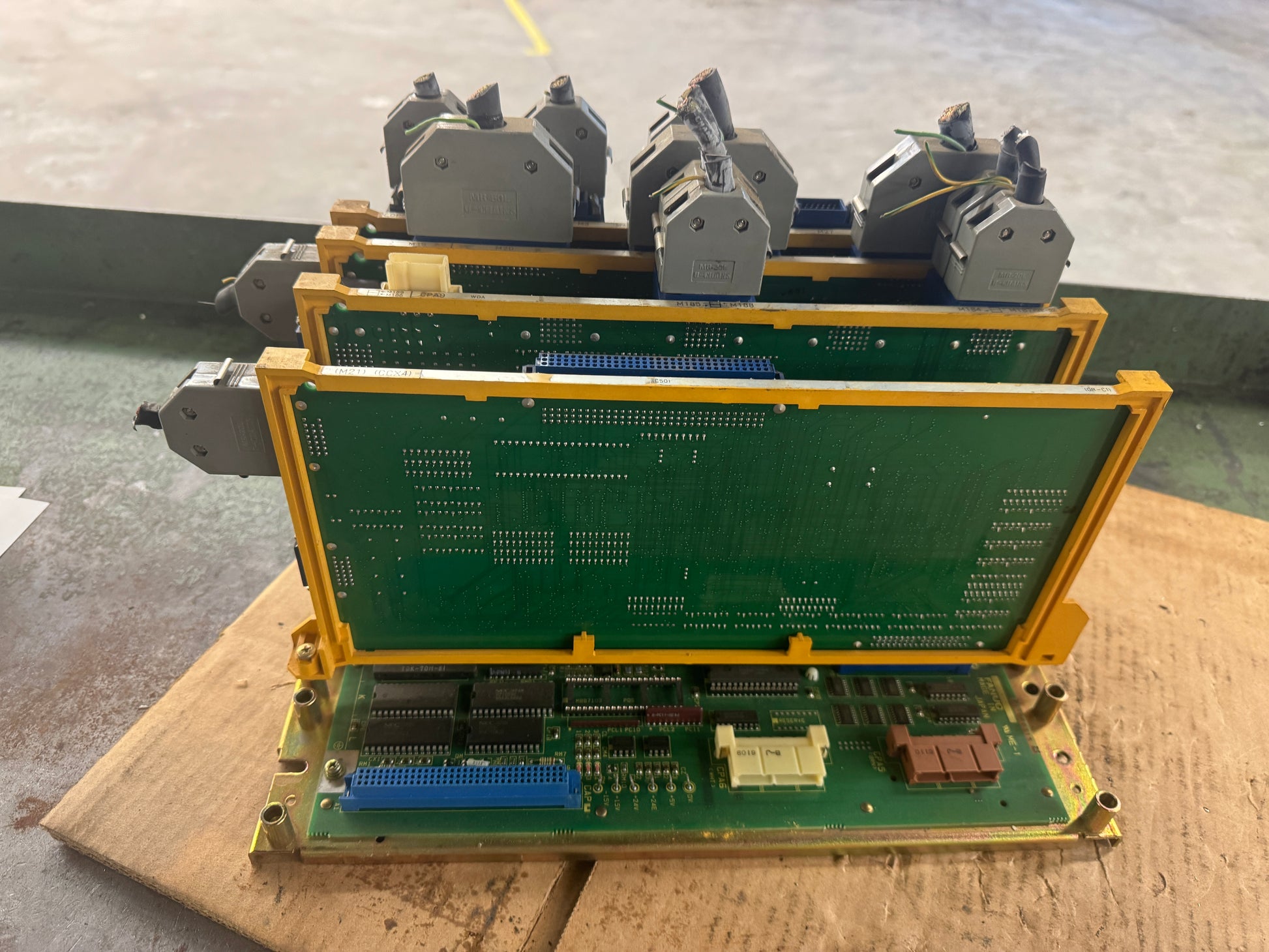

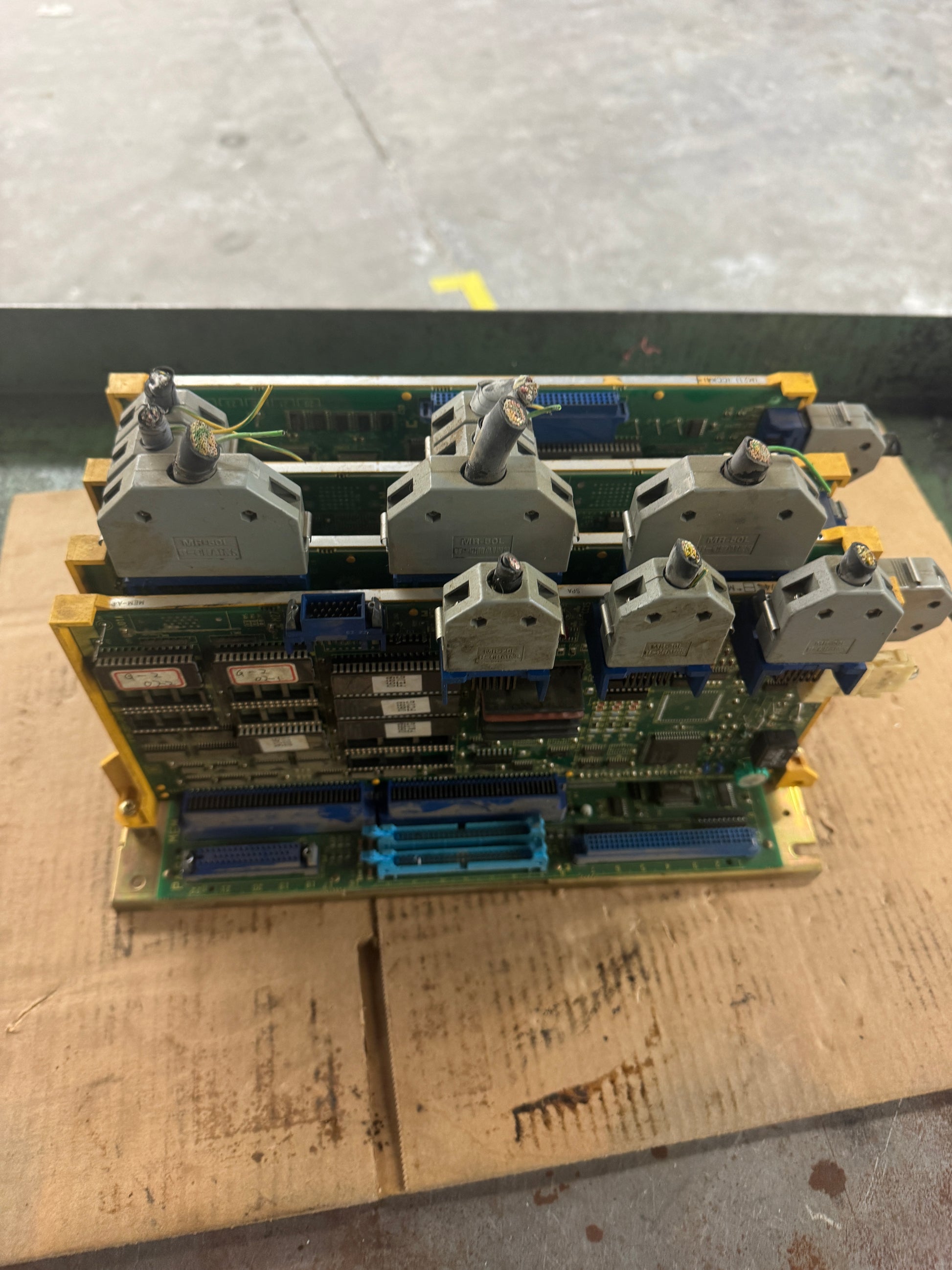

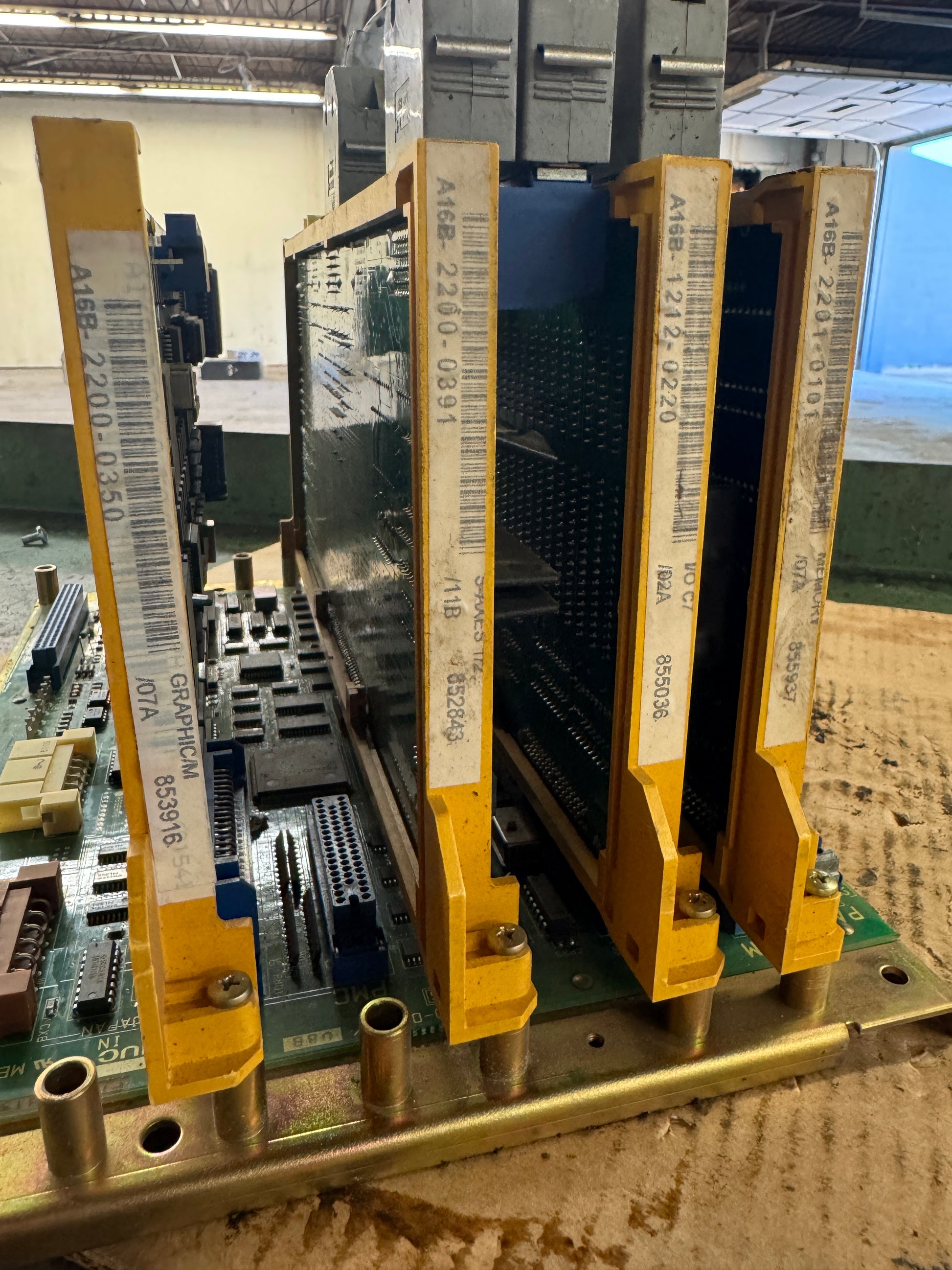

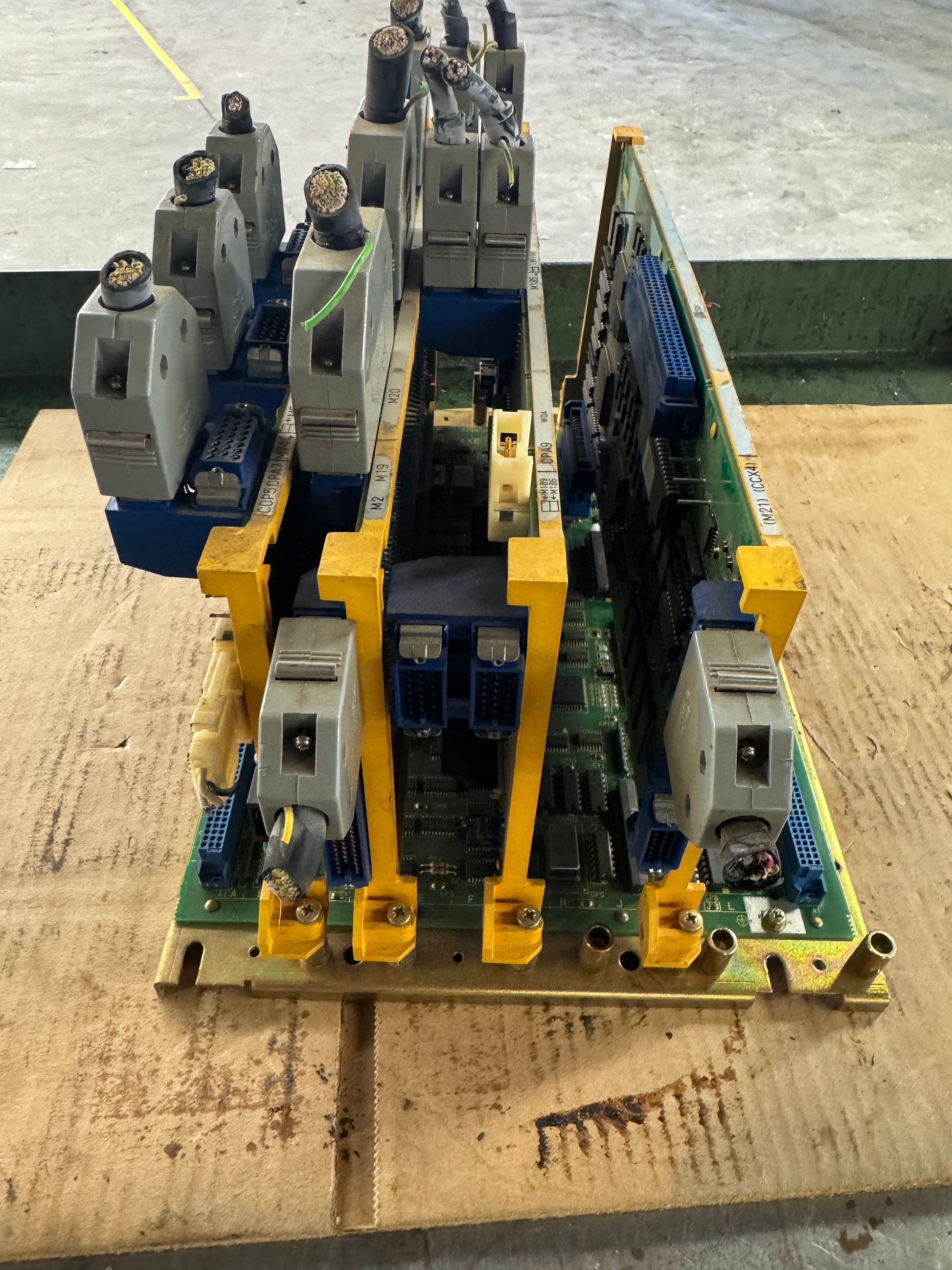

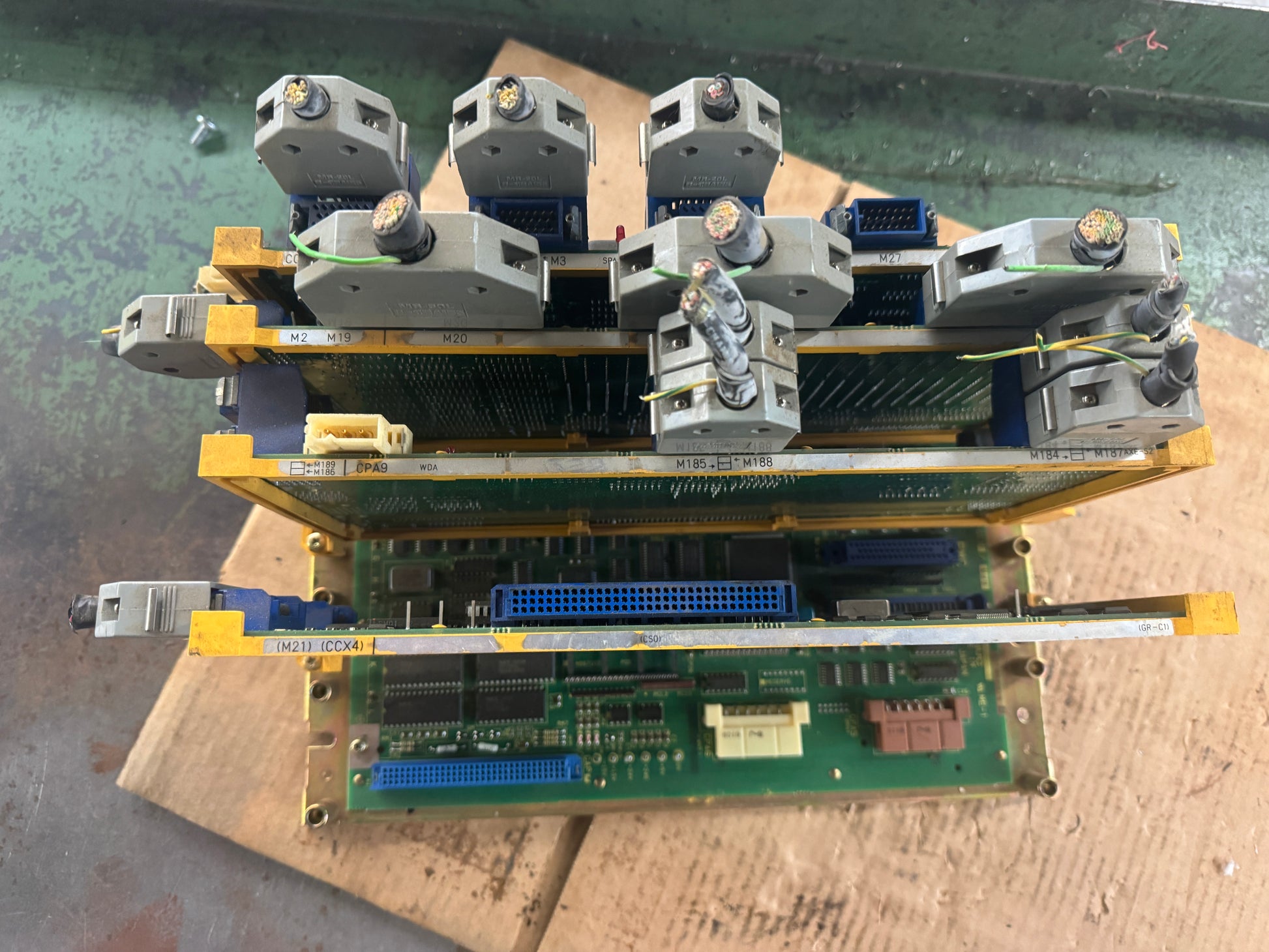

A CNC control board assembly from Fanuc, built around the A16B-2200-0350 Graphics and MPG board for the Fanuc 0-C series control system. The assembly consists of four boards mounted on a shared yellow aluminum carrier backplane: the A16B-2200-0350 Graphics/MPG board (revision /07A, serial 853916), the A16B-2260-0891 board (revision /11B, serial 852843), the A16B-1212-0220 I/O board (revision /02A, serial 855036), and the A16B-2201-0101 Memory board (revision /07A, serial 855937). The assembly also includes multiple gray D-sub and multi-pin connectors mounted to the tops of the boards with attached wire leads.

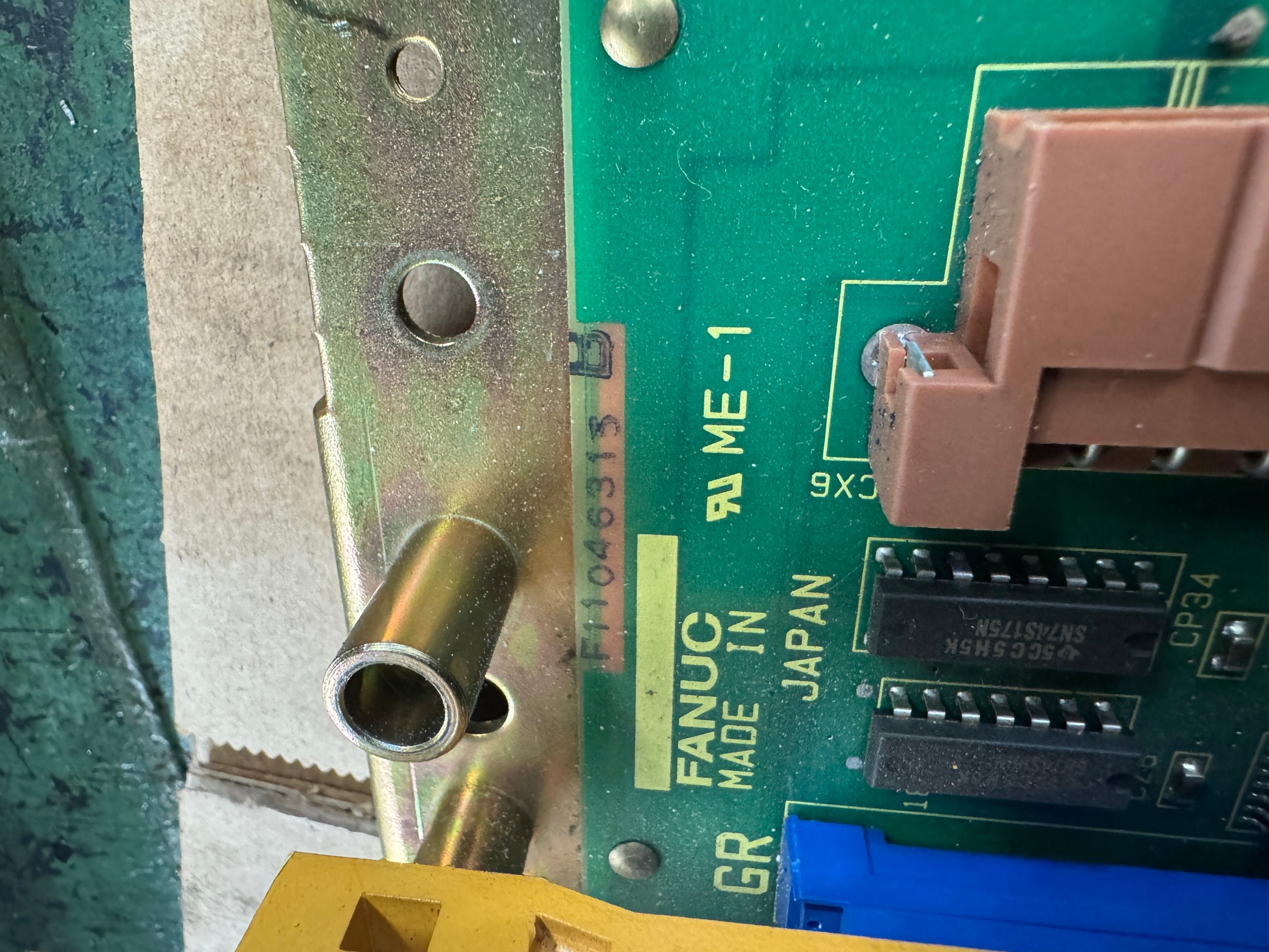

The A16B-2200-0350 is the second-generation hi-resolution graphics board for the Fanuc Zero Model C control, compatible with both 9-inch and 14-inch CRT displays in color or monochrome configurations. It is designed for use with serial and digital type-A and type-B servo and spindle interfaces. PCB silkscreen confirms manufacture by Fanuc, made in Japan. The carrier chassis includes brass standoffs and mounting hardware. All four boards are installed and intact as photographed. Compatible control systems include Fanuc 0-MC, 0-TC, 0-MD, and 0-TD configurations. Internal reference number F11046315 visible on one board edge

Stock # 0426-02047
