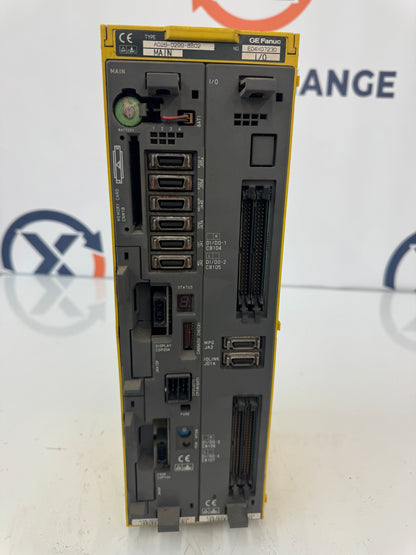

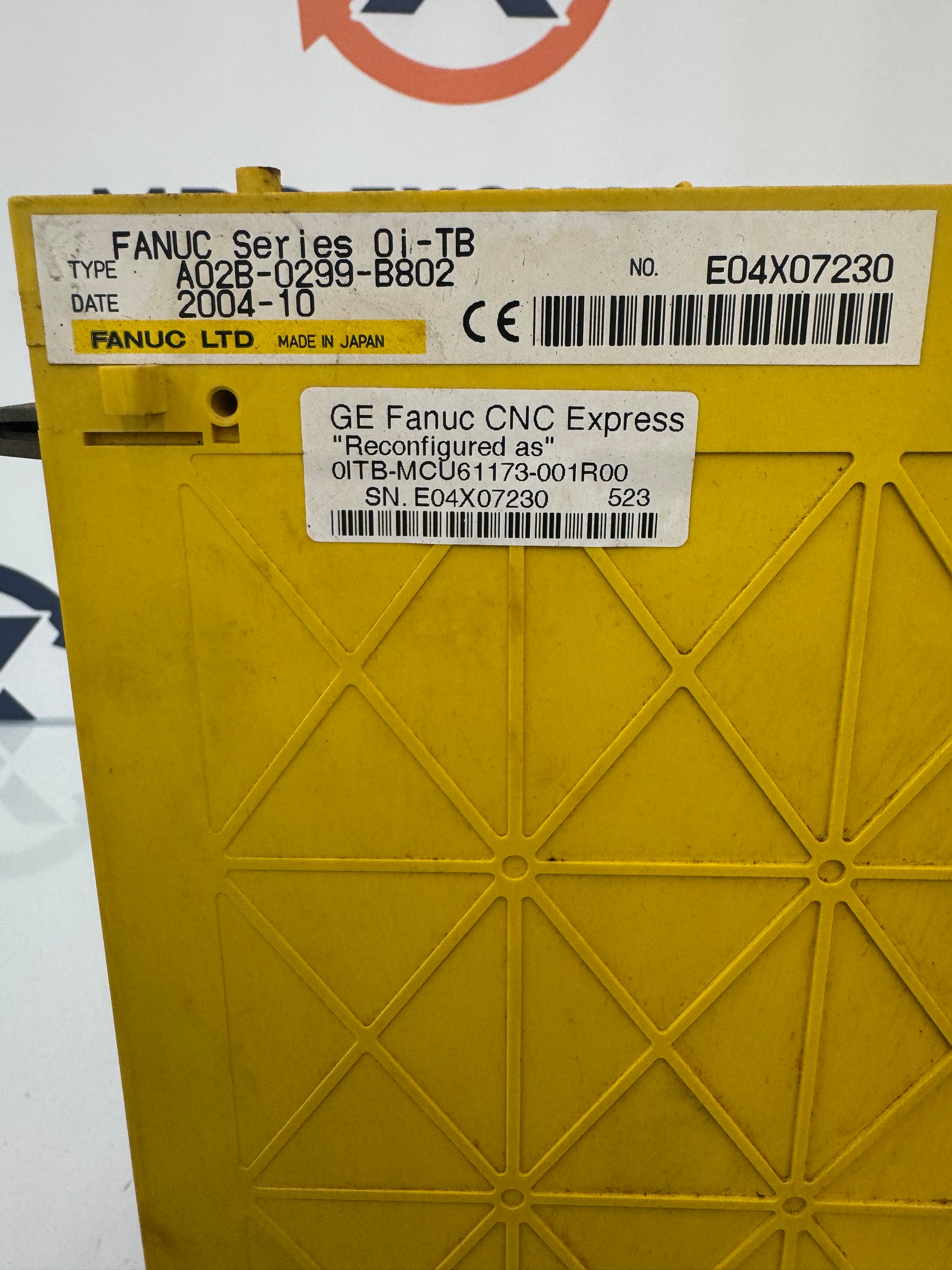

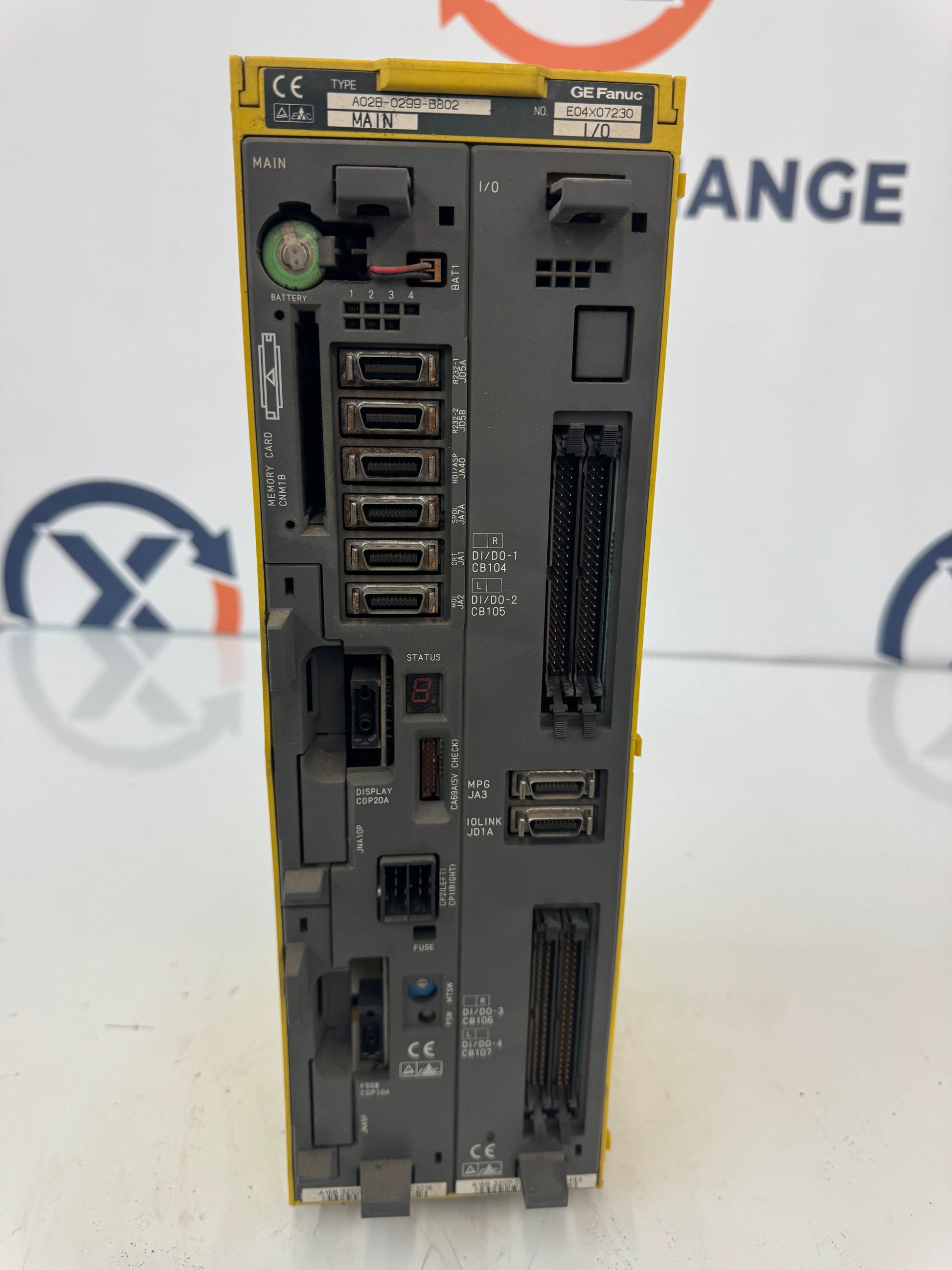

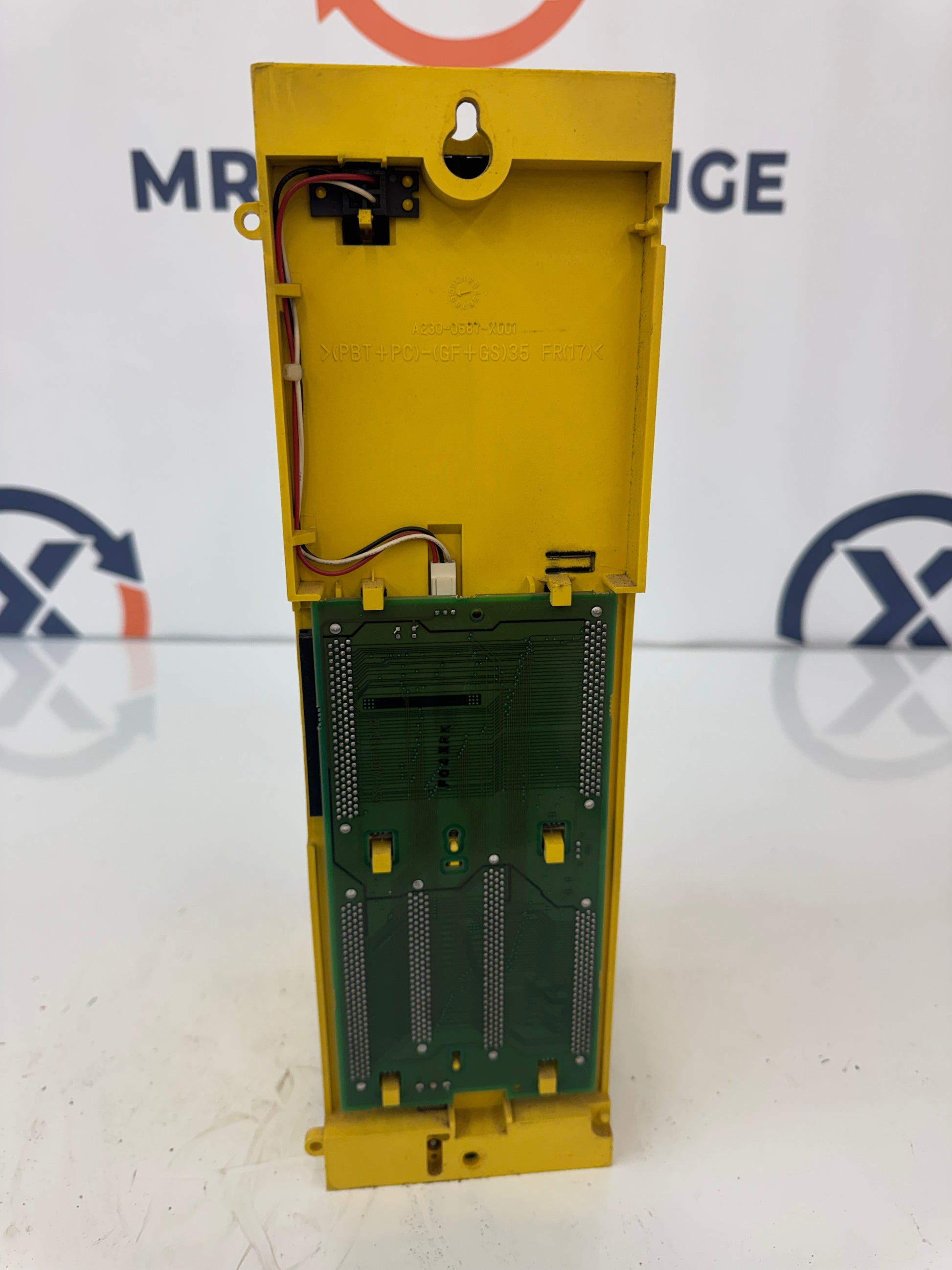

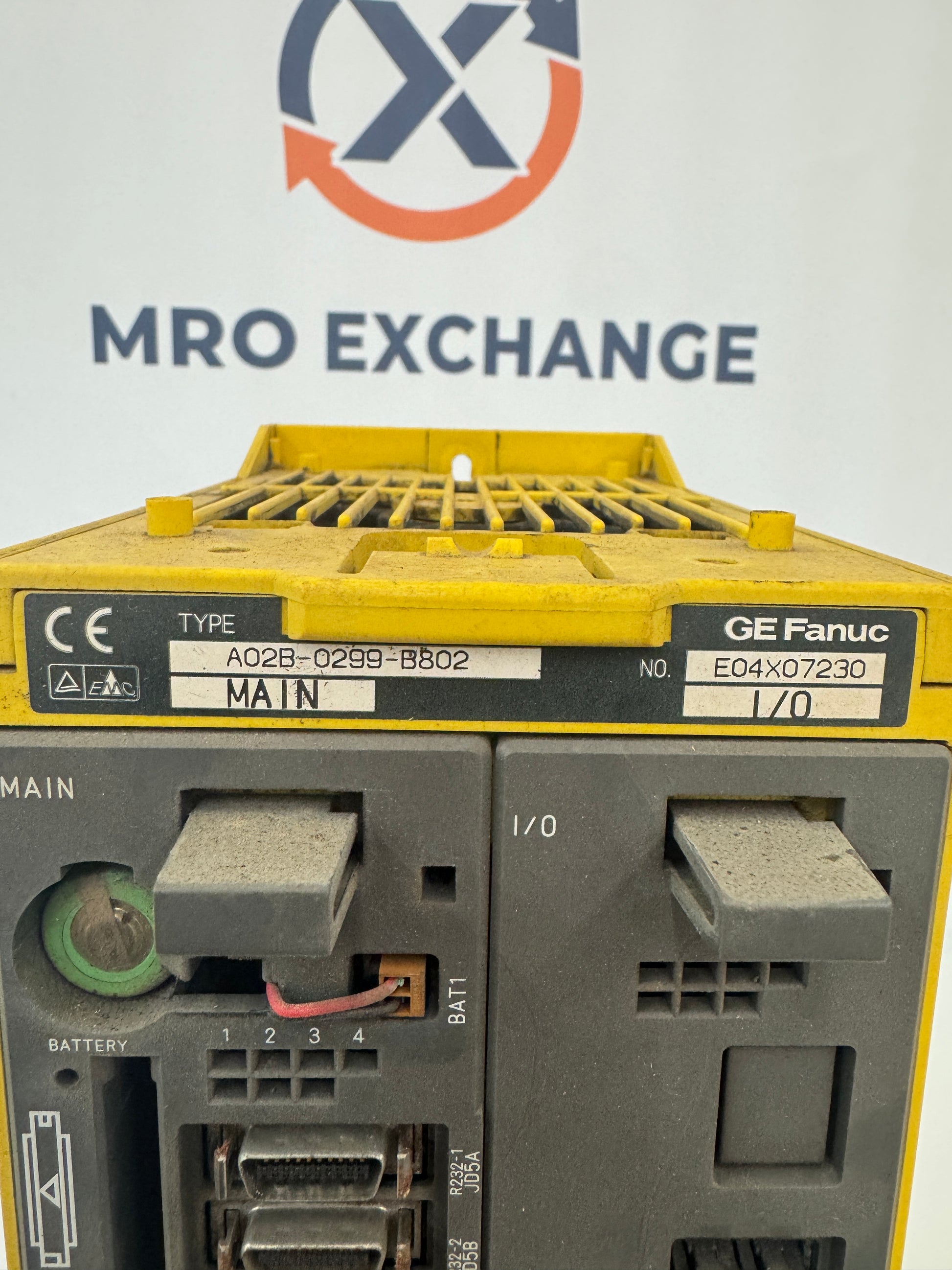

The GE Fanuc A02B-0299-B802 is a Series 0i-TB CNC control basic unit, manufactured by Fanuc Ltd in Japan and dated 2004-10 per the rating plate. The nameplate identifies serial number E04X07230 and notes the unit was reconfigured as GE Fanuc CNC Express configuration 0ITB-MCU61173-001R00. This is the 2 slot basic chassis used as the foundation of the Fanuc Series 0i Model B platform, originally deployed in lathe applications under the 0i-TB designation. The housing carries two installed module positions labeled MAIN and I/O, with the front panel exposing the standard 0i-B connector array including memory card slot, MDI, RS-232 serial, axis and spindle FSSB interfaces, and the DI/DO connectors CB104 and CB106. A battery holder is provided for SRAM backup. The basic unit serves as the host enclosure for plug in PCB assemblies that define the system configuration, including the main CPU card, axis card, I/O card, and any optional graphics, PMC, or RAM/ROM cards specified by the original machine tool builder. Operates on 24V DC control input typical of the Fanuc 0i-B series. The A02B-0299-B802 is part number A02B-0299-B802 and was supplied in OEM configurations for Fanuc 0i-MB and 0i-TB control packages. Compatible with the Fanuc Series 0i Model A, B, C, and D platforms when correctly populated with matching plug in cards and software. Discontinued by the manufacturer and now sourced through the industrial surplus channel for CNC retrofit, repair, and spare inventory programs supporting legacy Fanuc 0i-B installations.
Stock # 0226-140
