Fanuc CNC Control Unit A02B-0319-B502 24V DC, 3.1A Max

$1,899.00 USD

Sale Sold out

U.S. shipping, securely packaged. Ships in 1-2 Days
Questions? Real support team available before purchase
Secure checkout with trusted payment methods

Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.

Stock #:

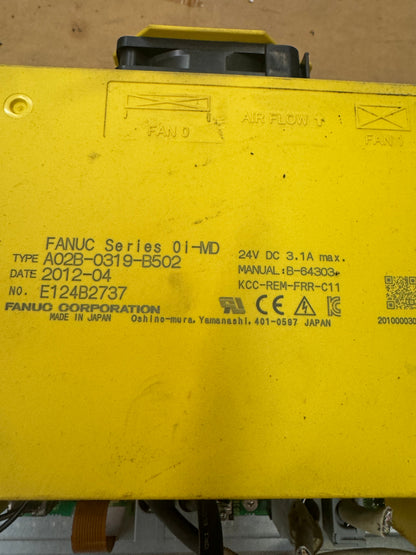

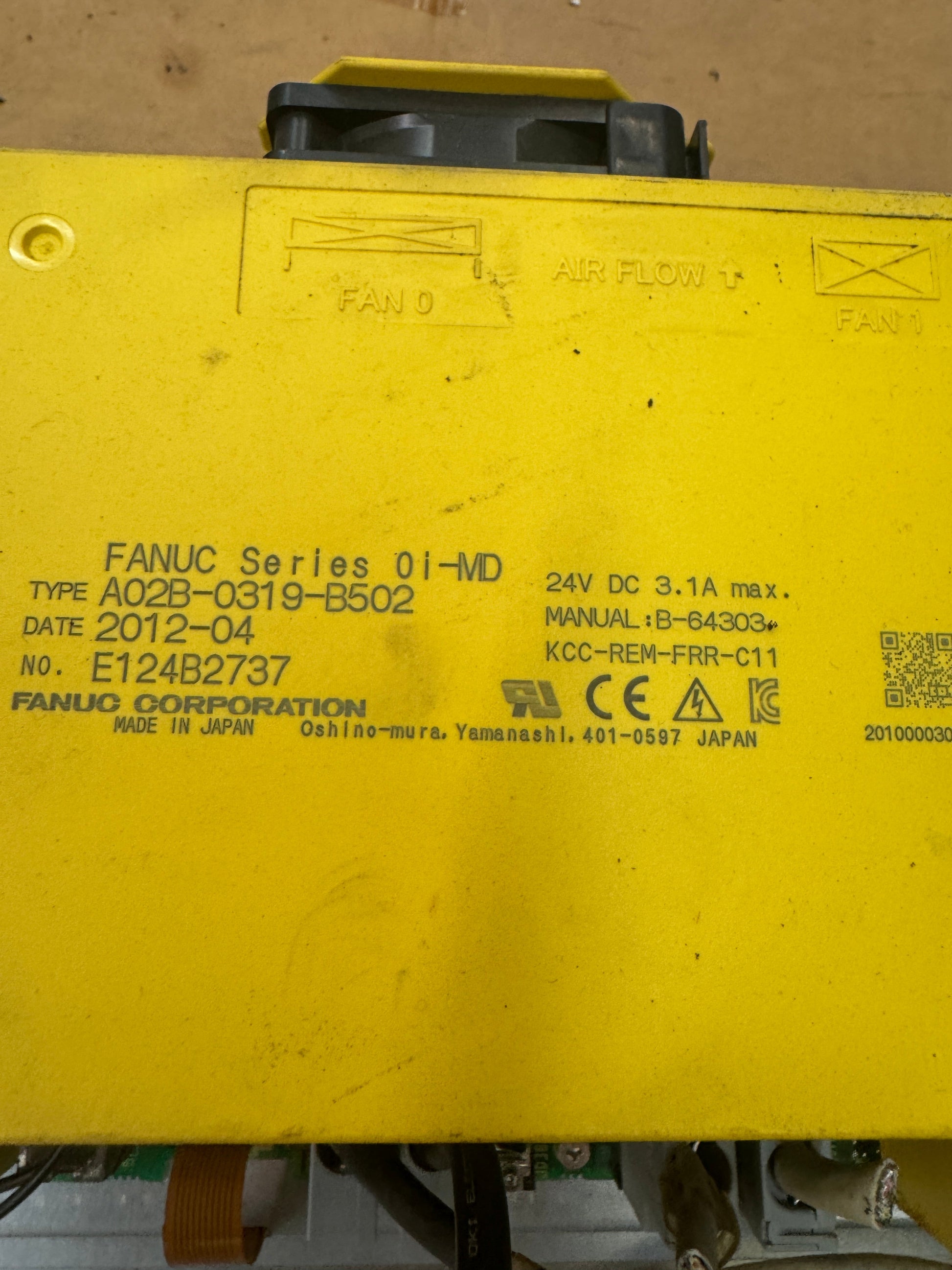

Used in CNC machining centers and milling applications, the Fanuc Series 0i-MD is a compact, LCD-mounted CNC control system designed for multi-axis machining environments. This unit carries type number A02B-0319-B502 and was manufactured by Fanuc Corporation in Oshino-mura, Yamanashi, Japan. The nameplate confirms a 24V DC supply at 3.1A maximum, with a manufacture date of April 2012 and serial number E124B2737.

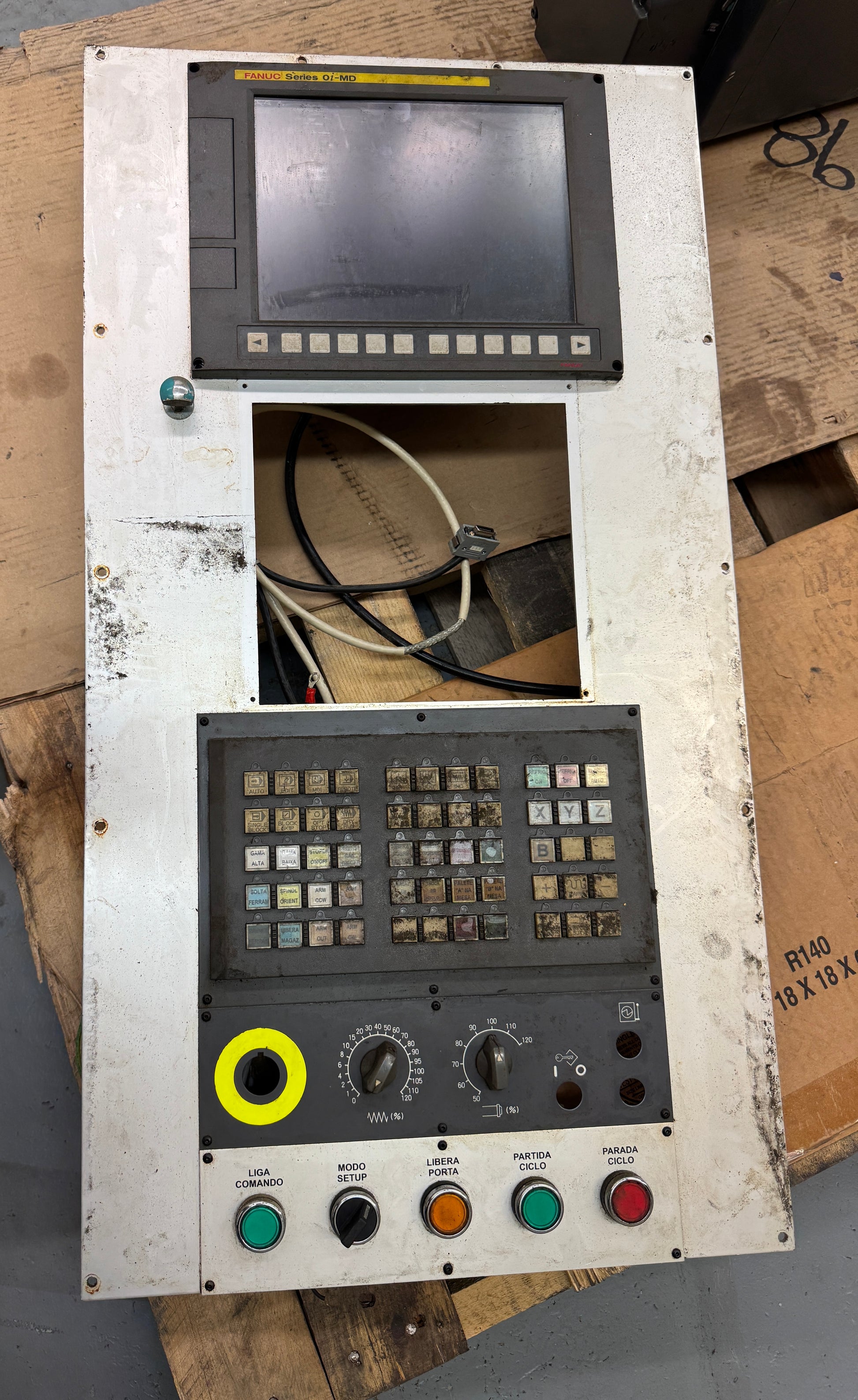

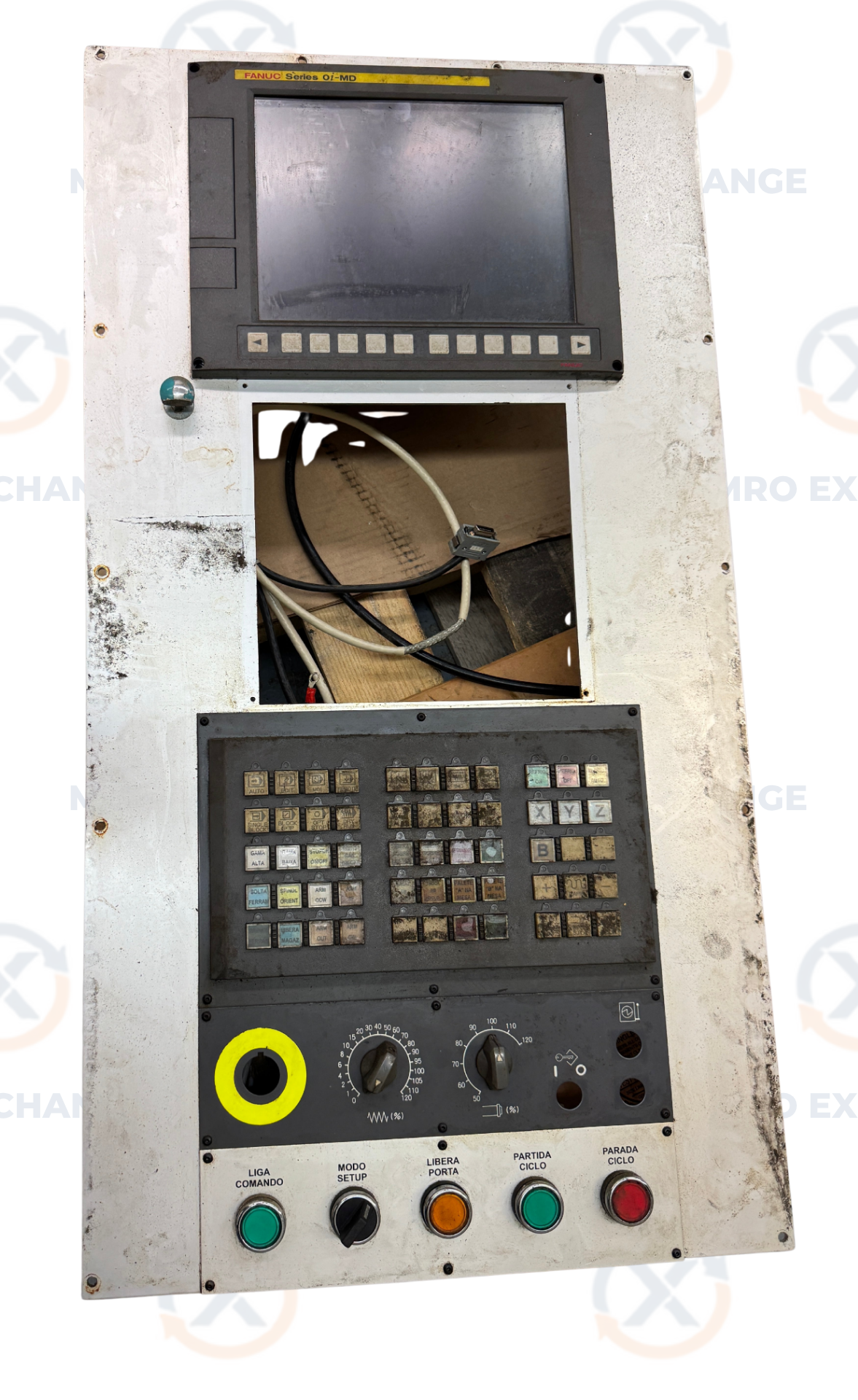

The 0i-MD platform supports up to 5 controlled axes with up to 4 axes capable of simultaneous interpolation. The unit features an 8.4-inch color LCD display integrated directly with the CNC hardware, which extends approximately 70mm behind the screen for a compact installation profile. The system was designed to operate with Fanuc Alpha and Beta iSV servo drives and Beta iSVPM spindle amplifier modules via optical fiber interface.

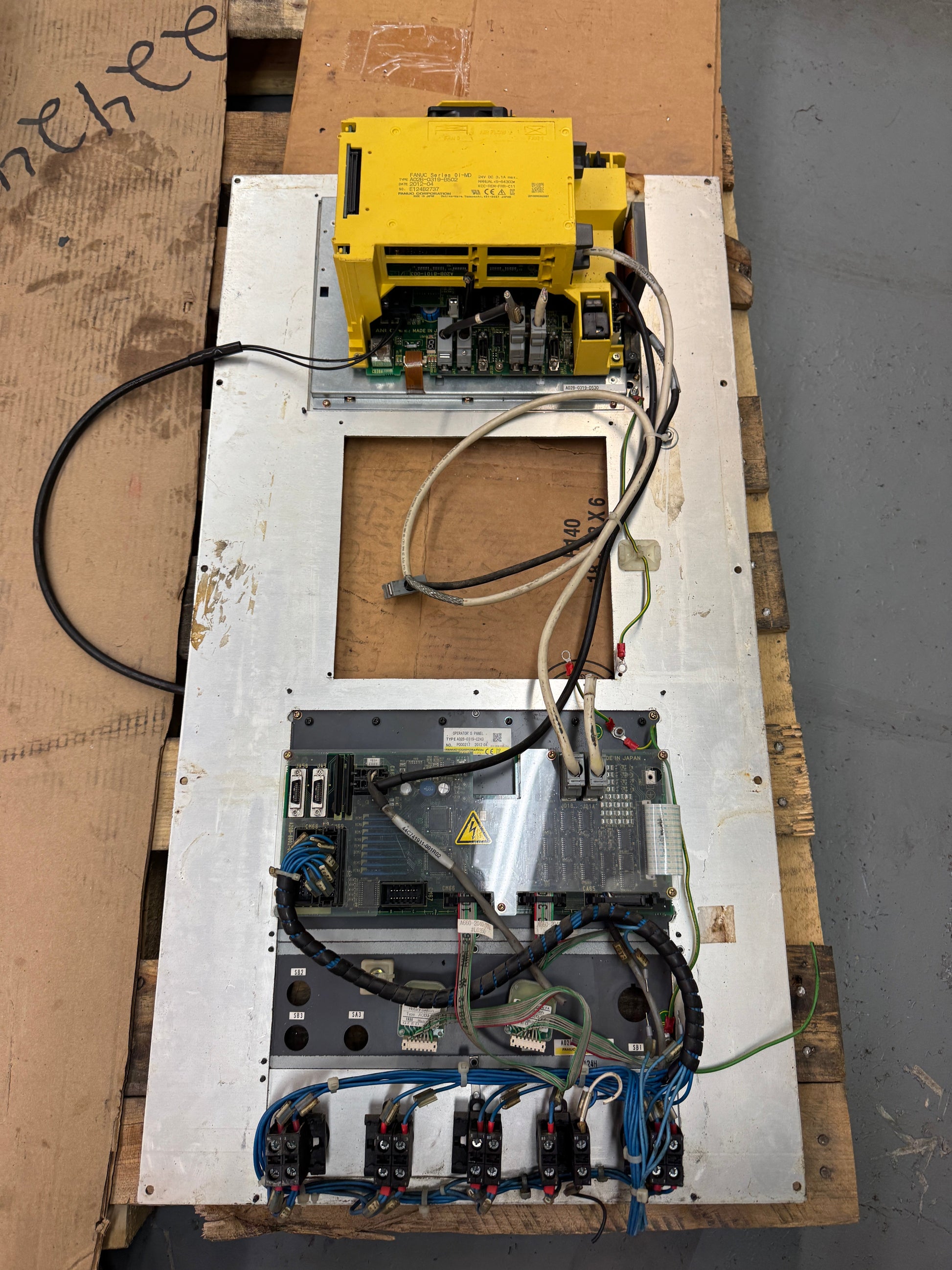

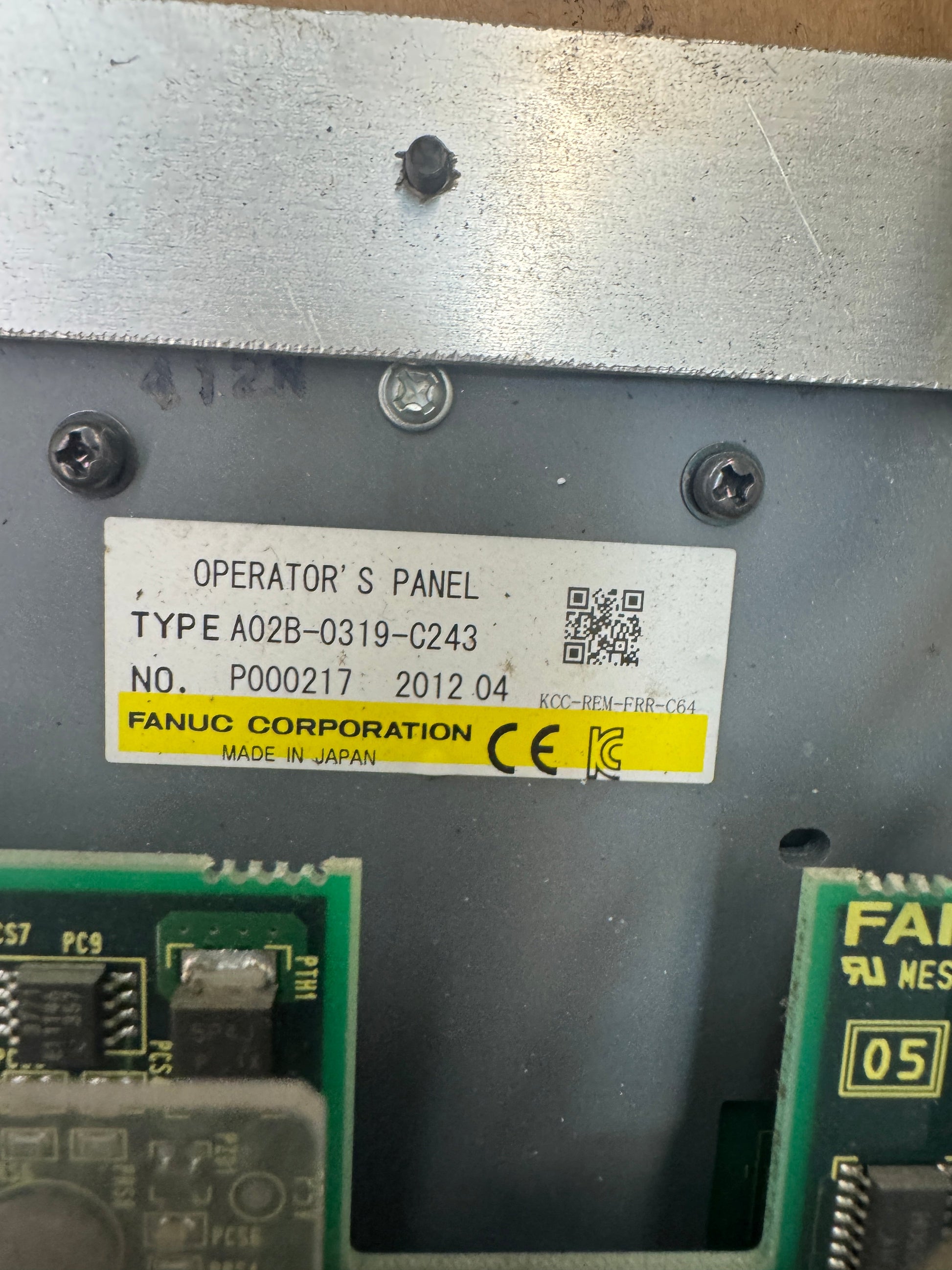

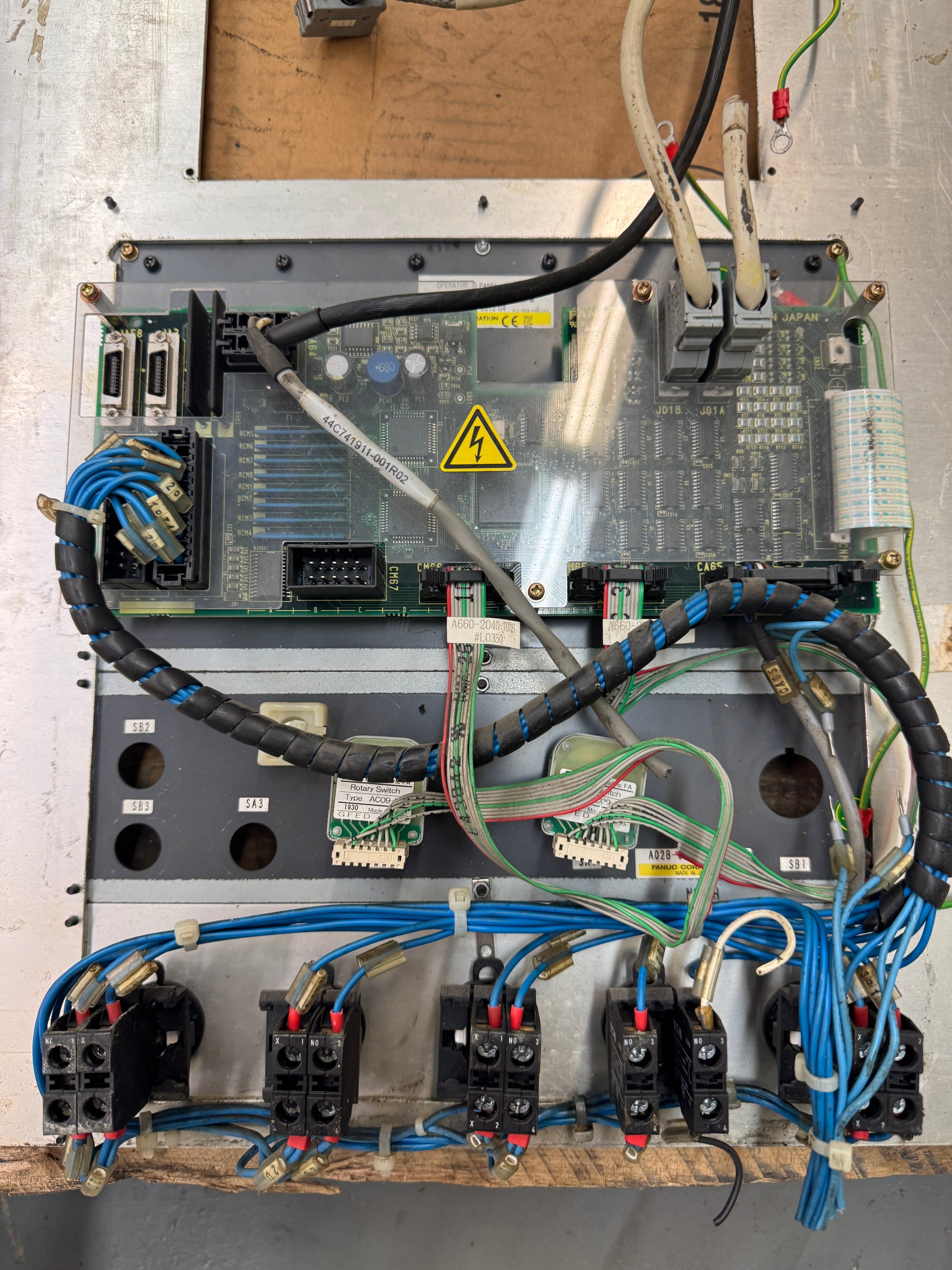

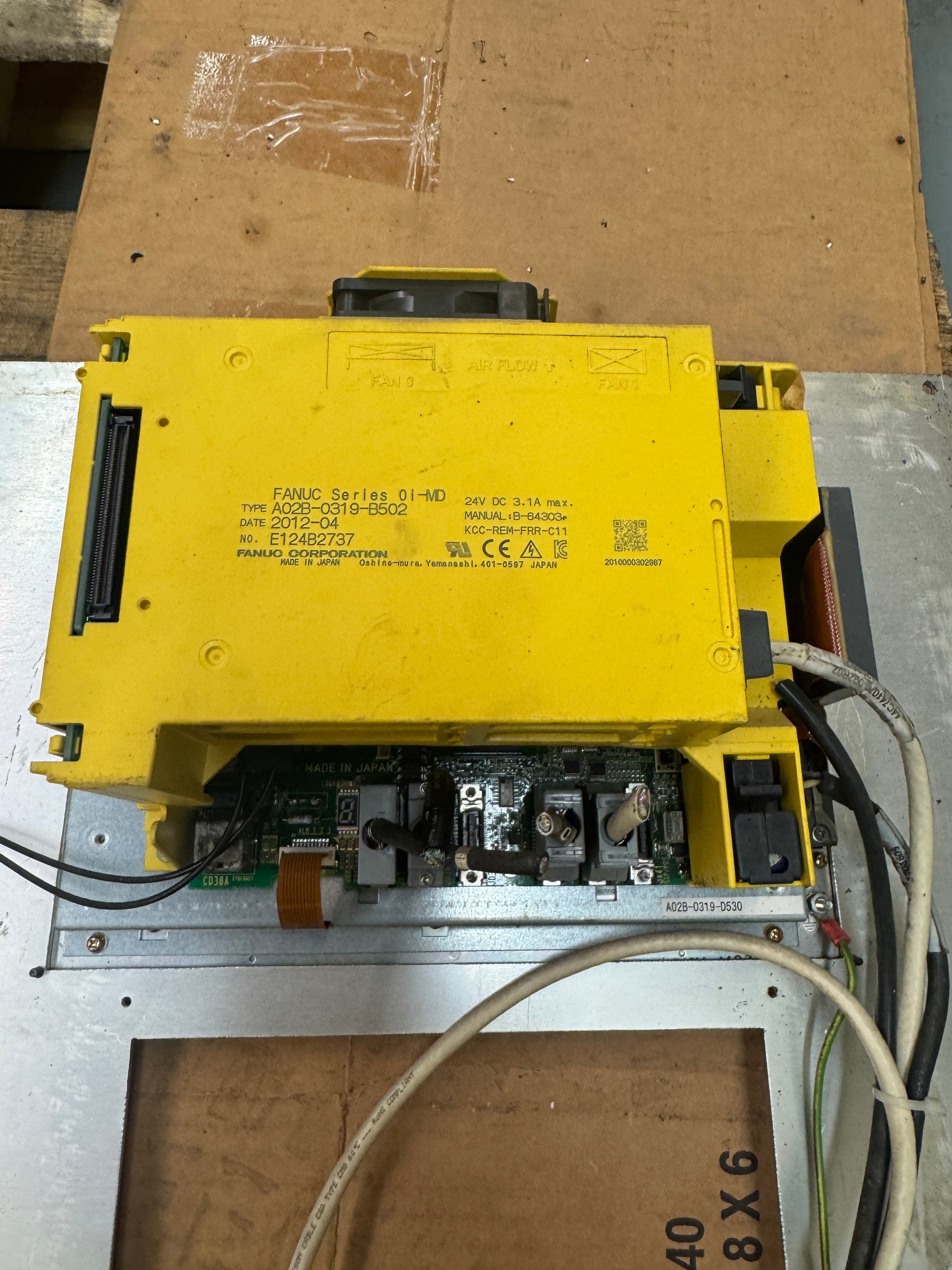

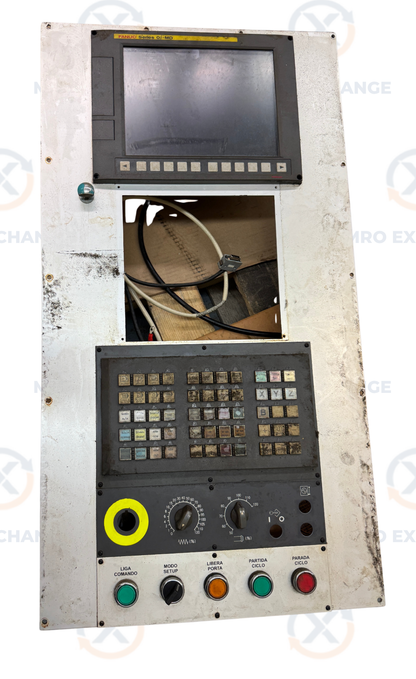

This listing includes the A02B-0319-B502 control unit along with the associated A02B-0319-C243 operator panel (serial number P000217, dated April 2012) and the complete machine panel mounting assembly with I/O wiring, contactors, and relay board as shown in the photos. The operator panel label identifies it as an Operator's Panel, type A02B-0319-C243, also manufactured by Fanuc Corporation. The assembly also shows a visible PCB labeled A02B-0319-D530 mounted below the main control unit.

Manual reference B-64303 is noted on the nameplate. This is a surplus removal and is sold as shown.

Stock # 0326-833
