Fanuc CNC I/O Connection Unit A20B-1003-0240
Fanuc CNC I/O Connection Unit A20B-1003-0240
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
Stock #:

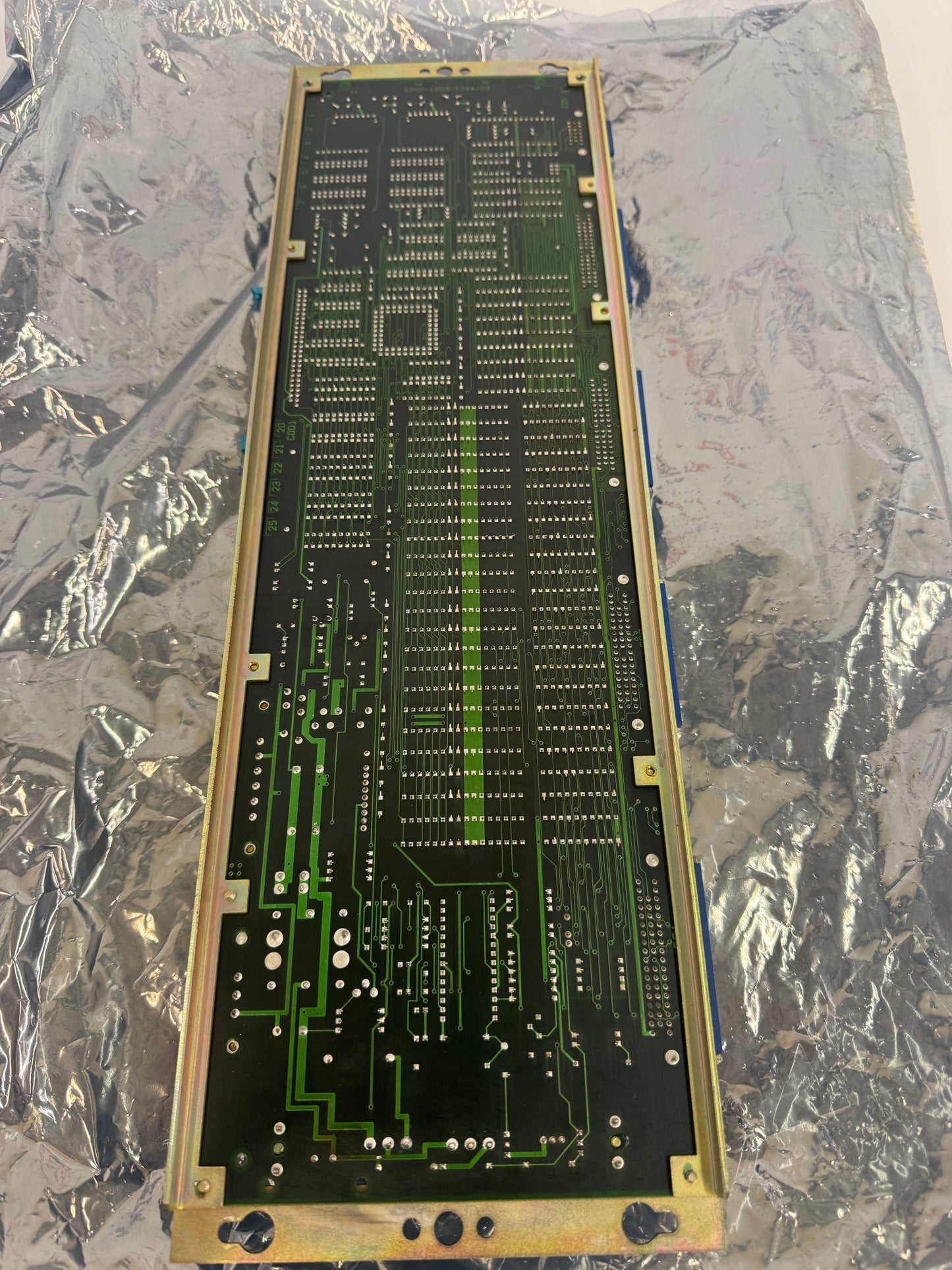

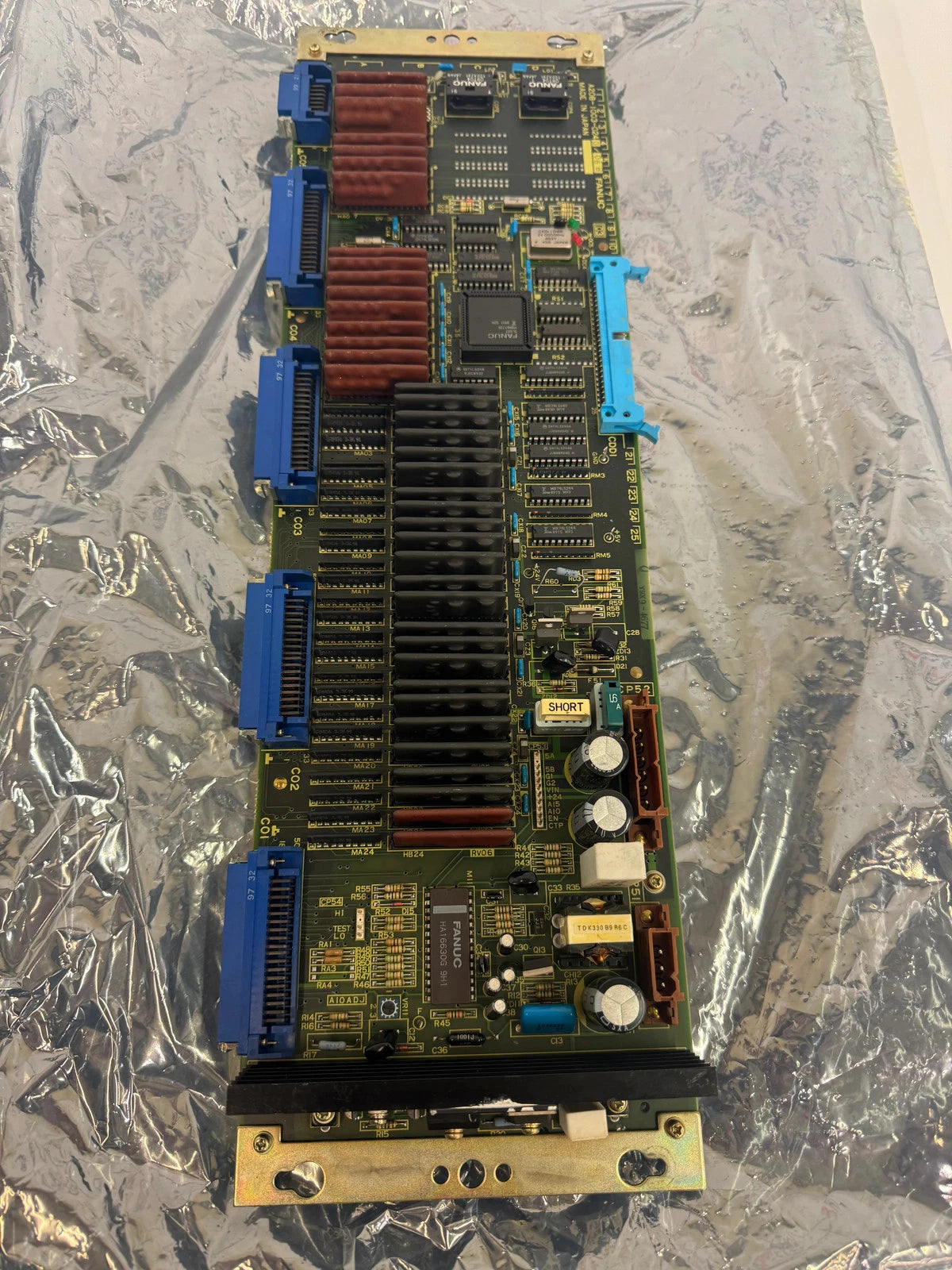

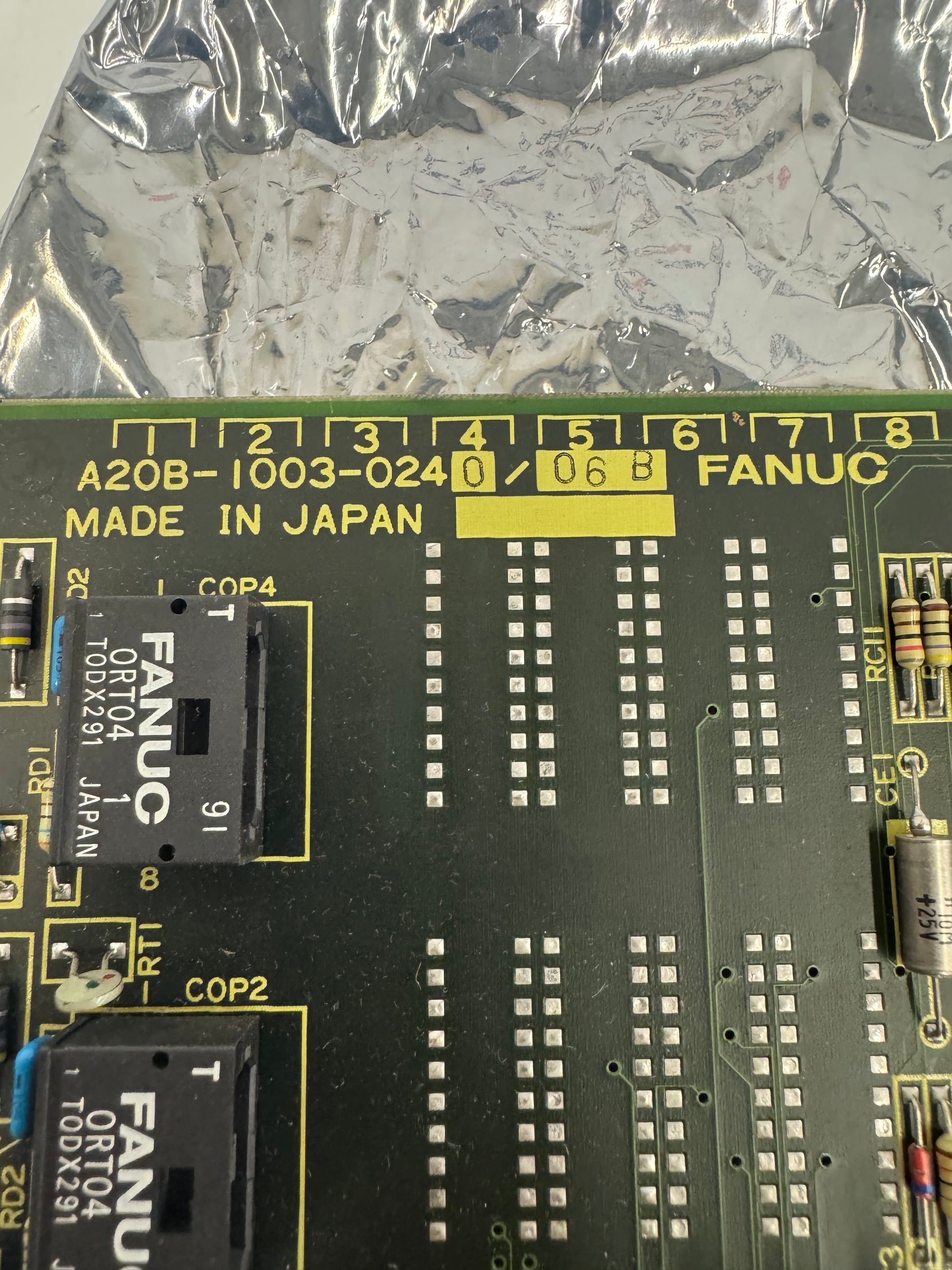

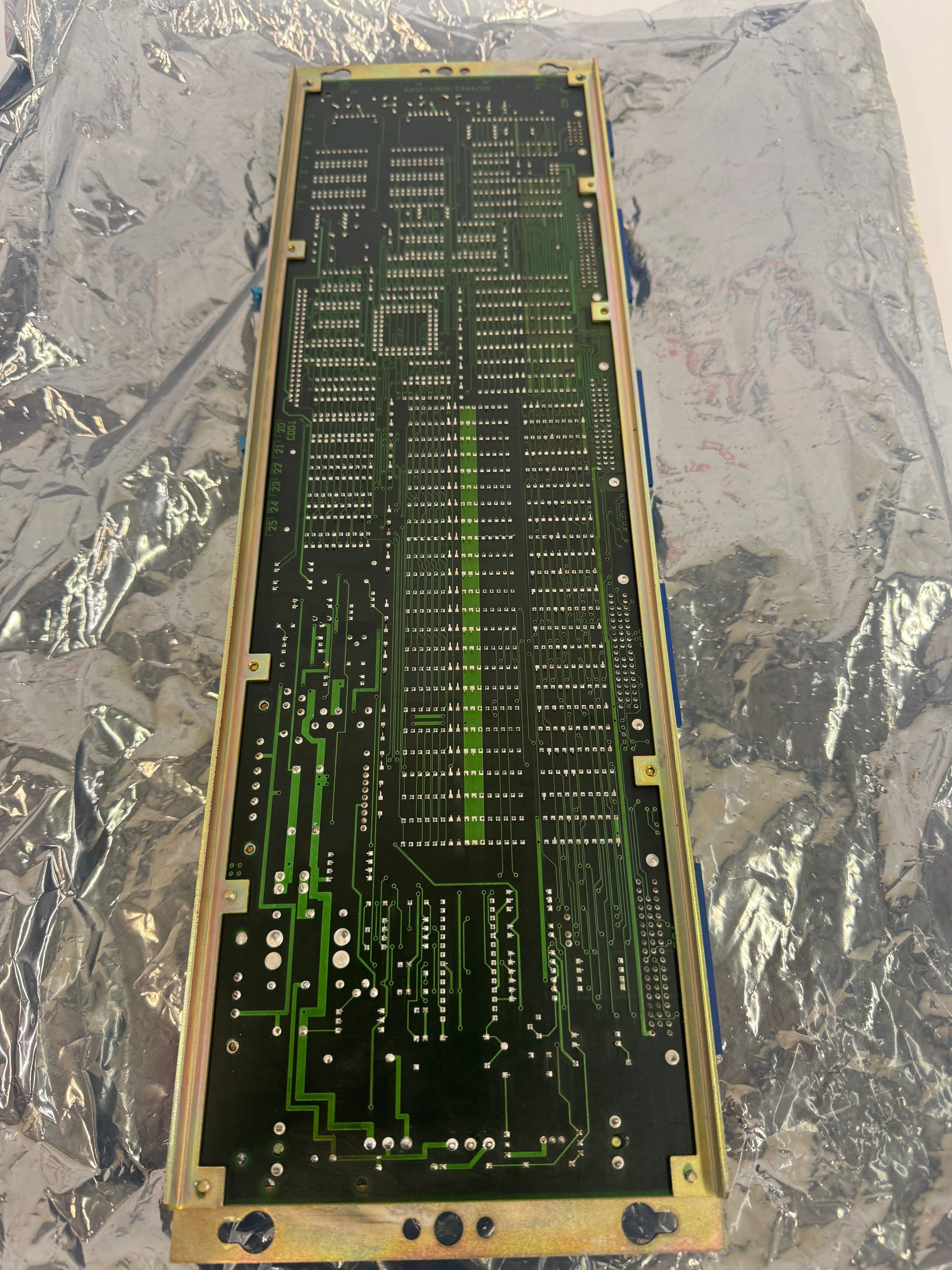

The Fanuc A20B-1003-0240 is a CNC I/O connection unit PCB designed for use in Fanuc System 15A CNC control systems. This board, revision /06B, functions as an I/O interface module with 96 inputs and 64 outputs, providing connectivity between the CNC controller and peripheral machine devices. The board is made in Japan and carries Fanuc part number A20B-1003-0240, also referenced in the market as A20B10030240. The PCB features Fanuc ORT04 fiber optic connectors at positions COP2 and COP4, consistent with the high-speed serial I/O link architecture used in Fanuc 15-series CNC systems. The board is mounted with a gold-chromate finished metal card frame visible on the reverse side, typical of Fanuc rack-mount PCB assemblies. Connection points along the board edge suggest rack or backplane installation within a Fanuc 15A control cabinet. This part is commonly sought as a replacement or spare for Fanuc 15A-series CNC machine tools including machining centers and lathes where the I/O connection unit requires service. Compatible with Fanuc System 15A CNC architectures. The visible revision level is /06B.
Stock # 0226-416
