Fanuc Discharge Resistor A06B-6089-H500 282 to 325 V DC m00752

$89.00 USD

Sale Sold out

U.S. shipping, securely packaged. Ships in 1-2 Days
Questions? Real support team available before purchase
Secure checkout with trusted payment methods

Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.

MPN: A06B-6089-H500
Stock #: 0226-00752

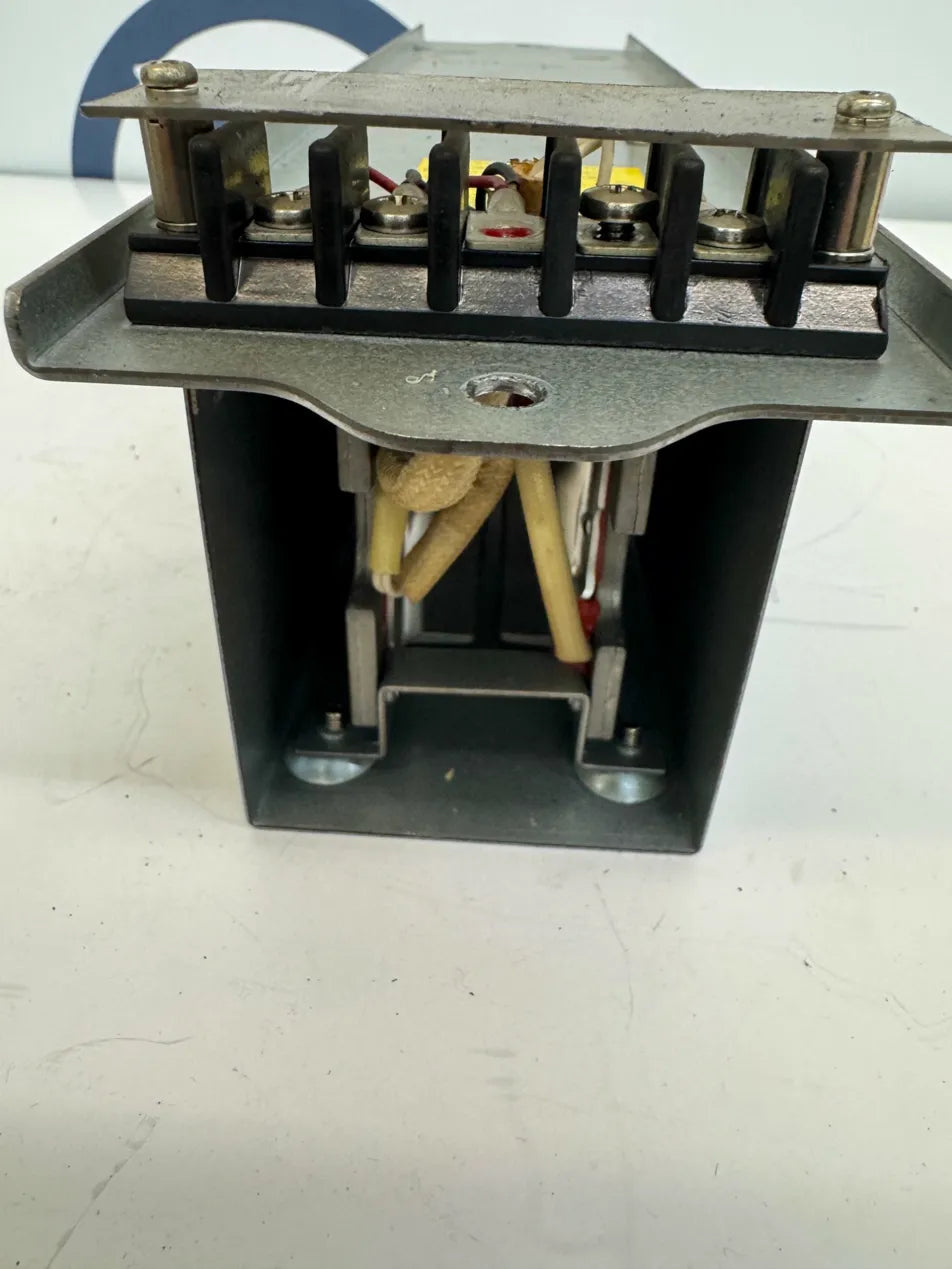

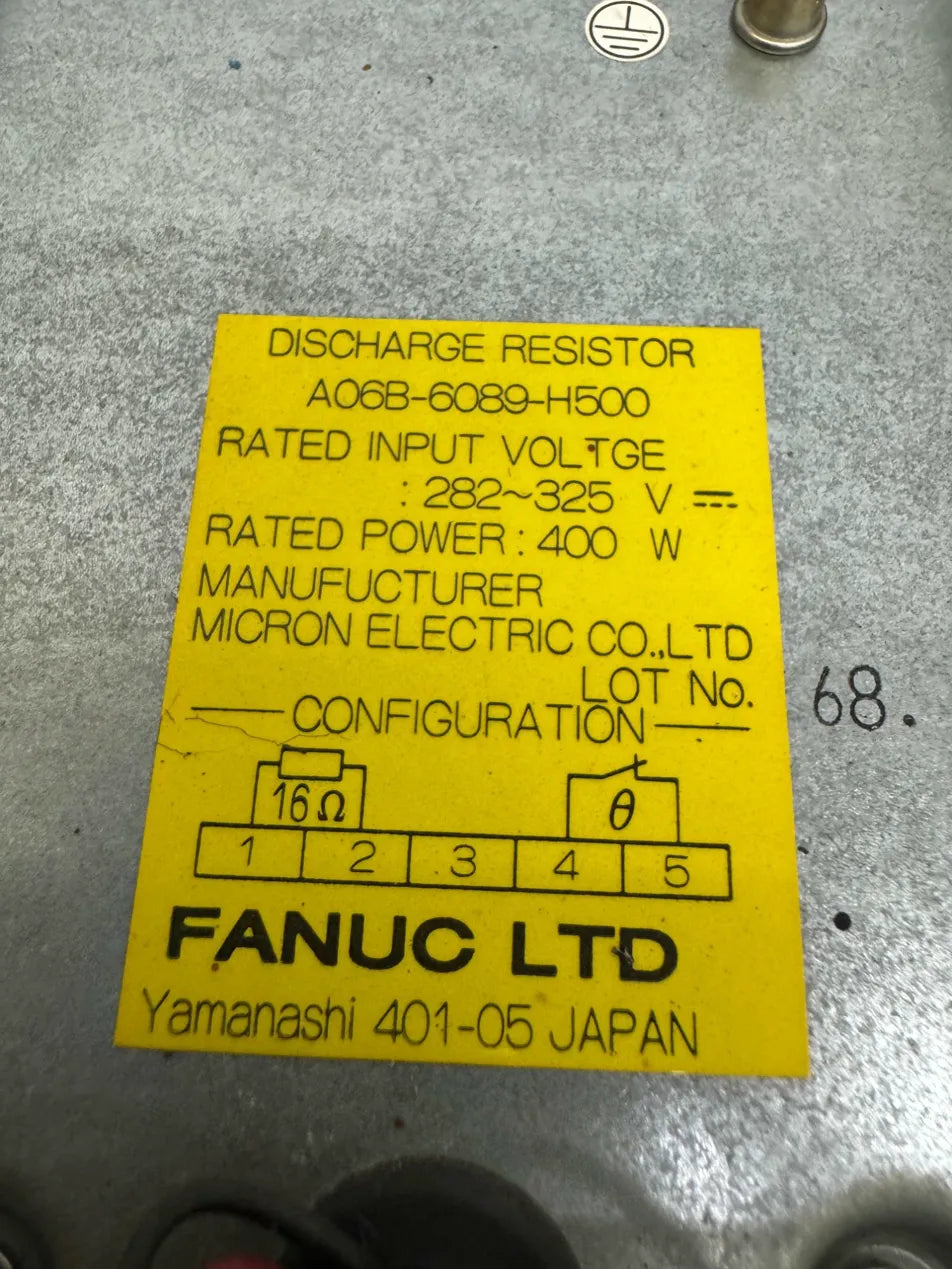

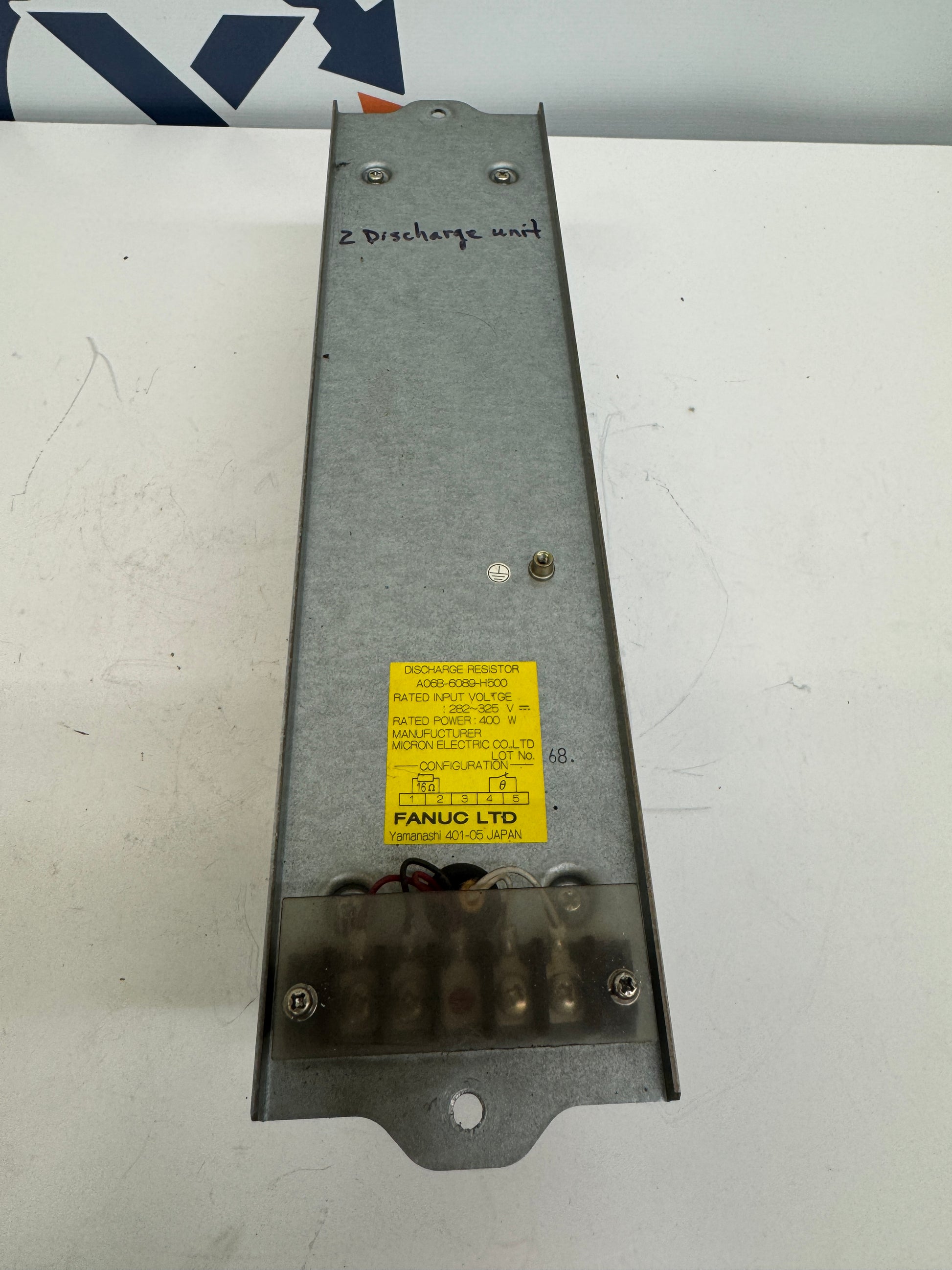

Used in Fanuc servo drive systems, the A06B-6089-H500 is a separate regenerative discharge resistor manufactured by Fanuc Ltd. in Yamanashi, Japan, with manufacturing handled by Micron Electric Co., Ltd. It is rated for an input voltage range of 282 to 325 V DC and a rated power of 400 W. The internal configuration includes a 16-ohm resistor element and a thermal cutout device, connected across a 5-terminal block as shown on the nameplate configuration diagram. This unit is compatible with Fanuc servo drive systems requiring an external regenerative discharge path, including the A06B-6058-Hxx series and PSM-R compatible drives. The part number A06B-6089-H500 is the OEM designation consistently used in active US industrial surplus and MRO markets for this assembly. Physical construction consists of a sheet metal enclosure housing wound resistor elements and thermal protection components, with a terminal strip mounted at one end for field wiring connections. The unit mounts within a CNC cabinet enclosure and provides a means of dissipating regenerative energy produced during motor deceleration.

Stock # 0226-752
