Fanuc Discharge Resistor A06B-6089-H500 282 to 325 V DC

$89.00 USD

Sale Sold out

U.S. shipping, securely packaged. Ships in 1-2 Days
Questions? Real support team available before purchase
Secure checkout with trusted payment methods

Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.

MPN: A06B-6089-H500
Stock #: 0226-00753

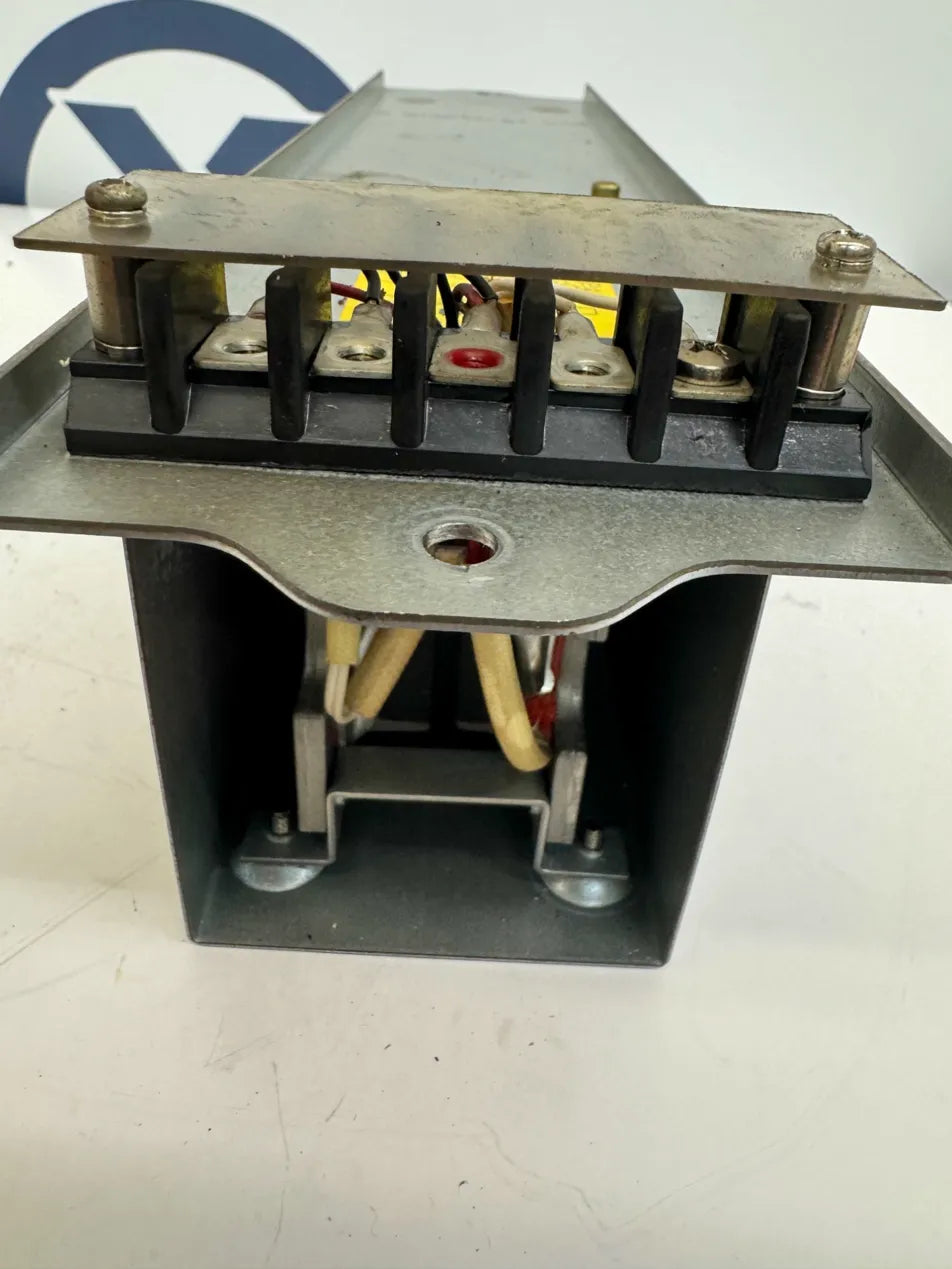

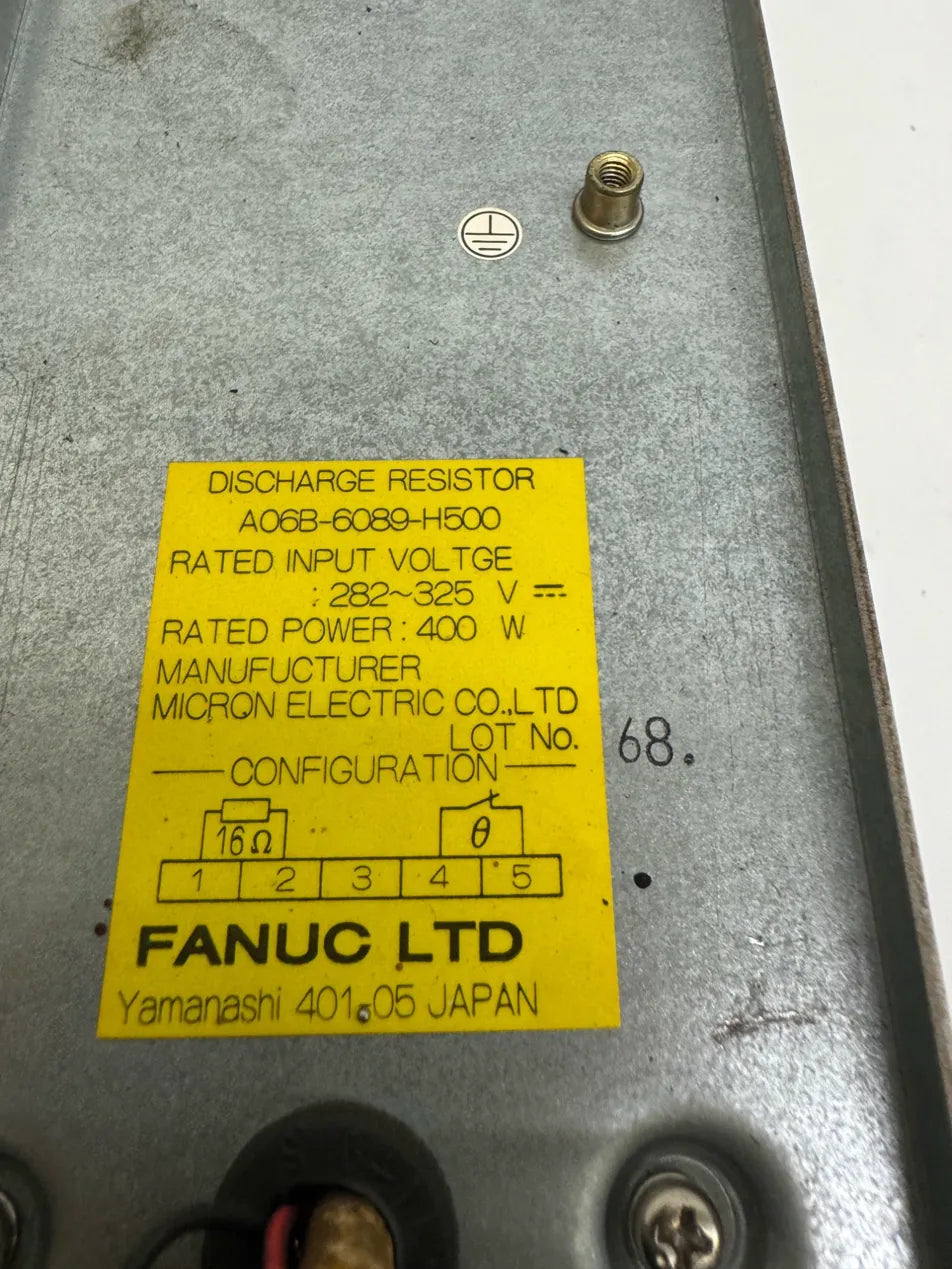

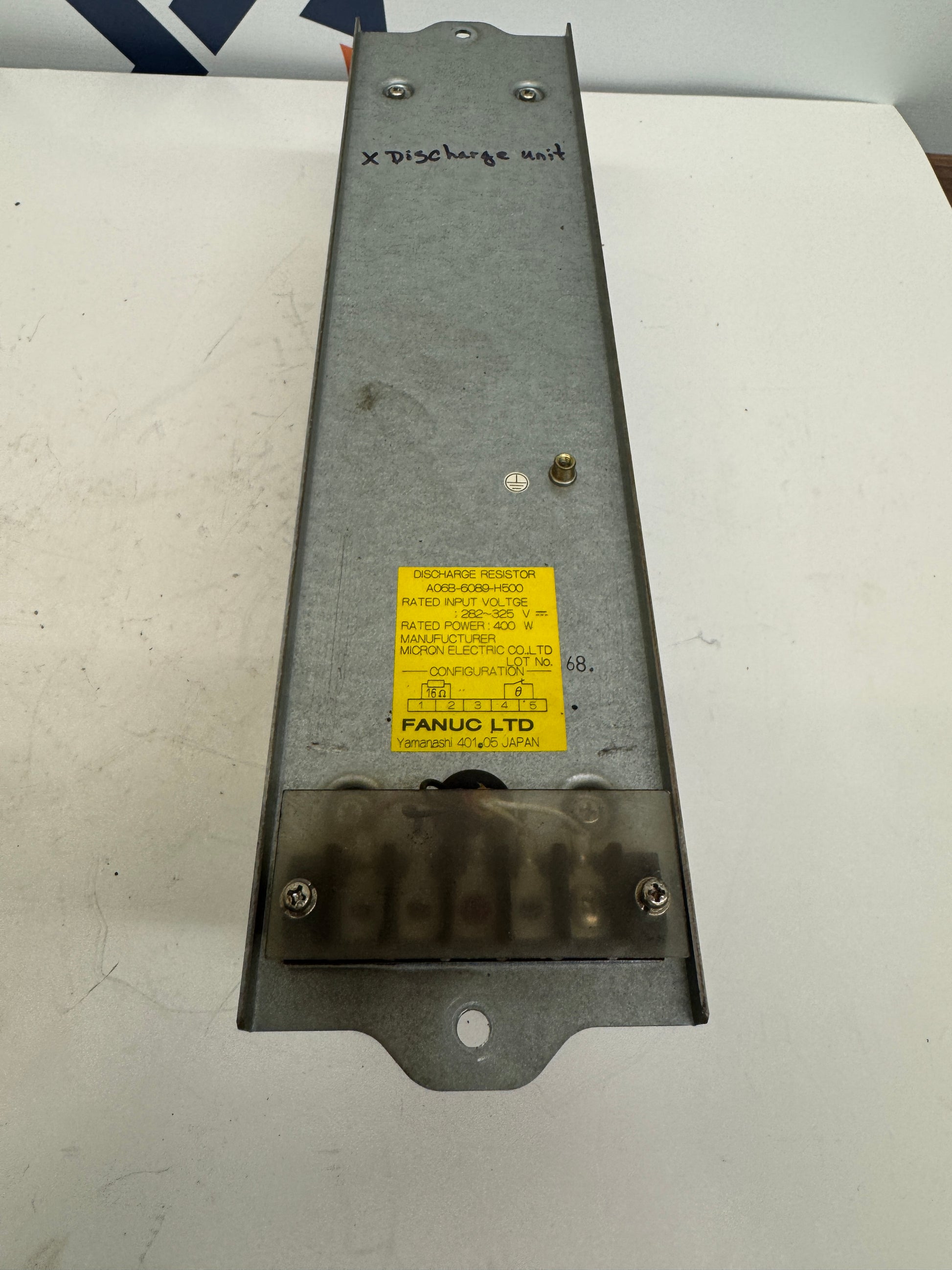

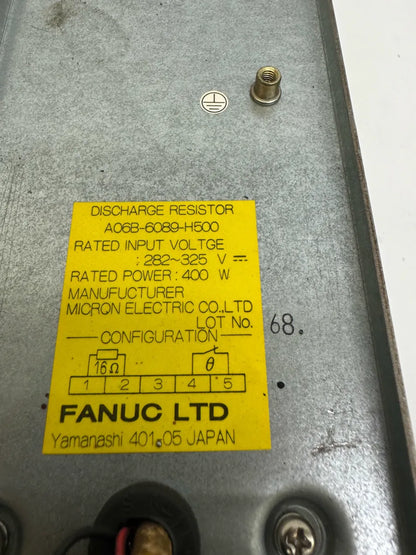

Used in Fanuc CNC servo drive systems, the A06B-6089-H500 is a discharge resistor unit manufactured by Fanuc Ltd in Yamanashi, Japan. The component carries a rated input voltage of 282 to 325 V DC and a rated power of 400 W. The internal configuration includes a 16 ohm resistor element along with a thermal cutout device, as shown on the nameplate configuration diagram. The unit is manufactured by Micron Electric Co., Ltd under the Fanuc brand and is assigned part number A06B-6089-H500. It is commonly associated with the Fanuc A06B-6058 series servo drive units and Fanuc PSM-R power supply modules, functioning as a separate regenerative discharge unit to dissipate braking energy from servo axes. The assembly is housed in a sheet metal enclosure with an open terminal block at one end providing five numbered connection points, consistent with the nameplate wiring diagram. The terminal block is accessible from the top and accommodates connections for the resistor element and thermal protection circuit. This unit is a direct Fanuc OEM part and is recognized in the US industrial surplus market under the MPN A06B-6089-H500.

Stock # 0226-753
