Fanuc Machine Operator Panel A02B-0236-C243
Fanuc Machine Operator Panel A02B-0236-C243
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
Stock #:

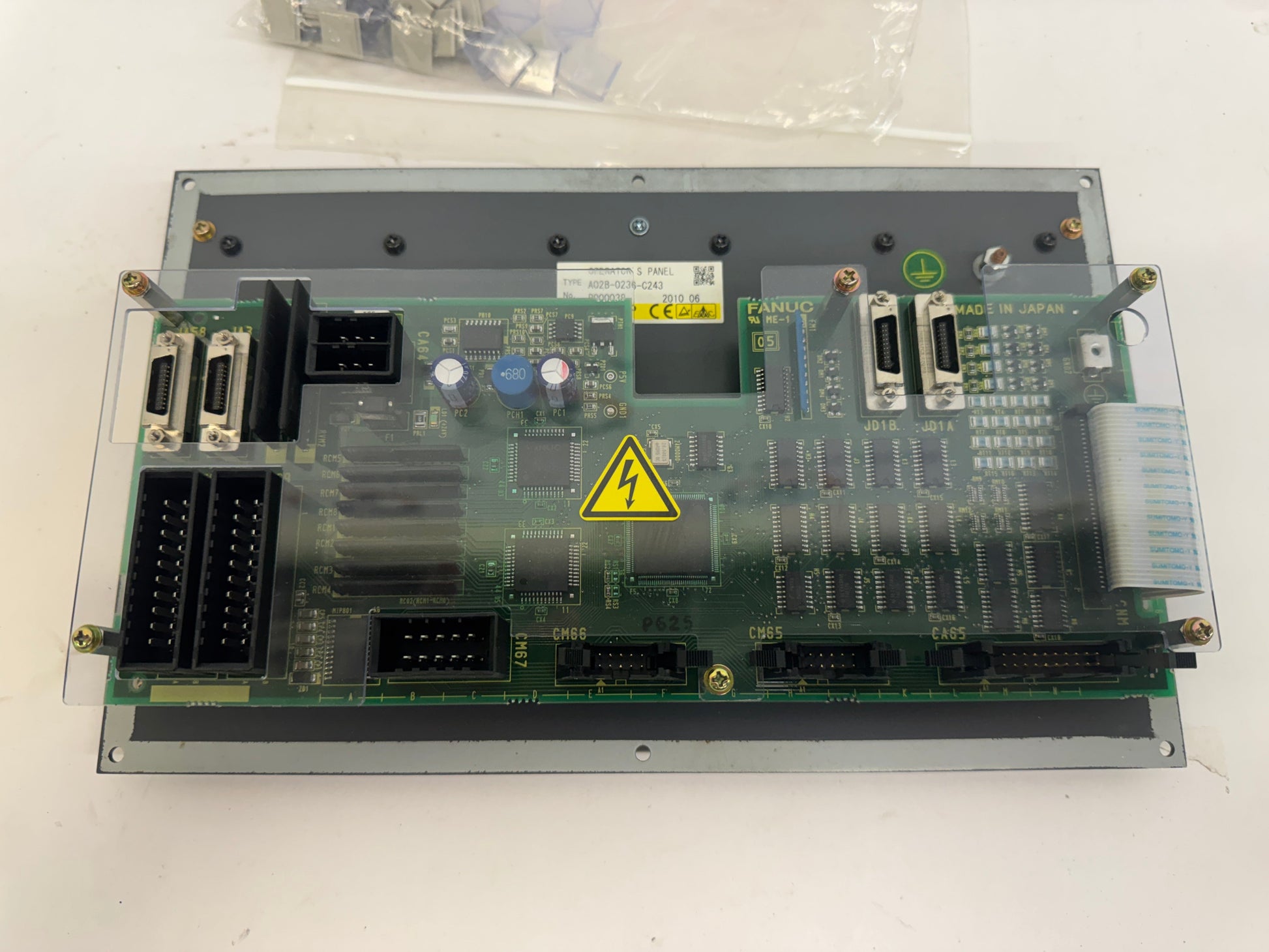

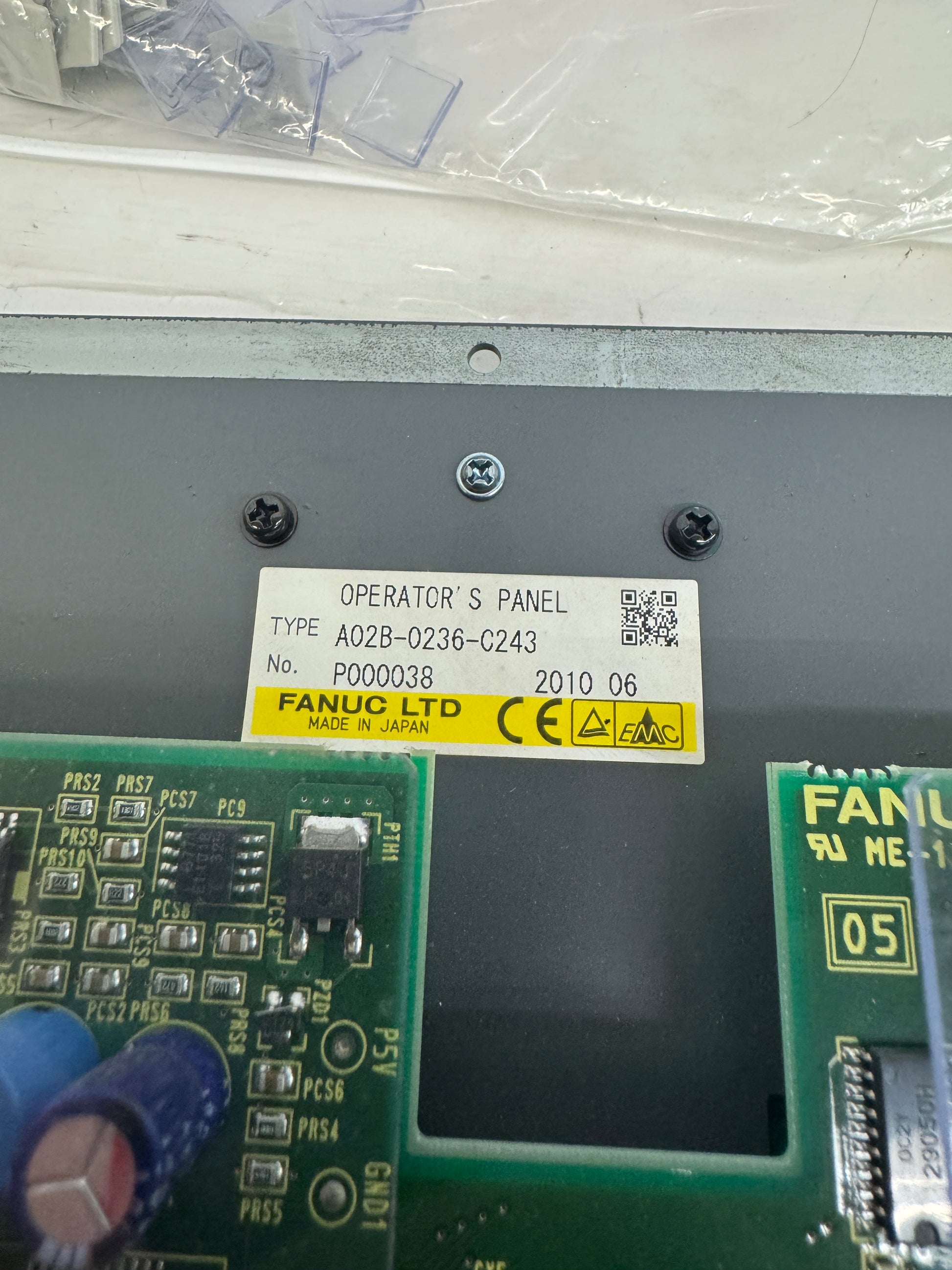

Used in Fanuc i Series CNC machining centers and turning centers, the Fanuc A02B-0236-C243 is the Main Panel B machine operator panel designed to serve as the primary operator interface on Fanuc 16i, 18i, and 21i series CNC controls. The panel carries part number A02B-0236-C243 as confirmed on the nameplate label and integrates the A20B-8002-0020 PCB board assembly on the reverse side. Manufactured by Fanuc Ltd in Japan, this unit carries a manufacture date of June 2010 and serial number P000038 as shown on the nameplate.

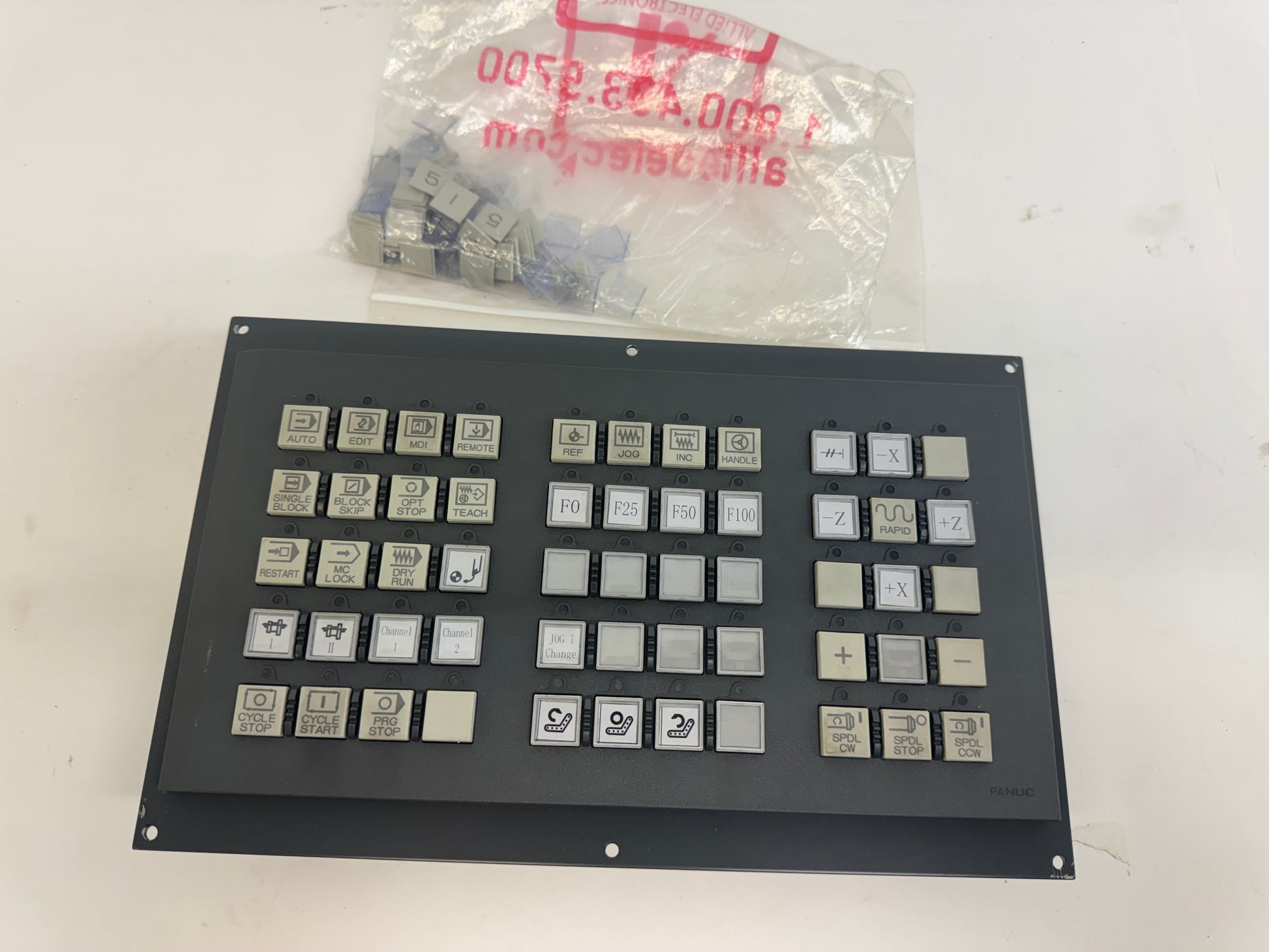

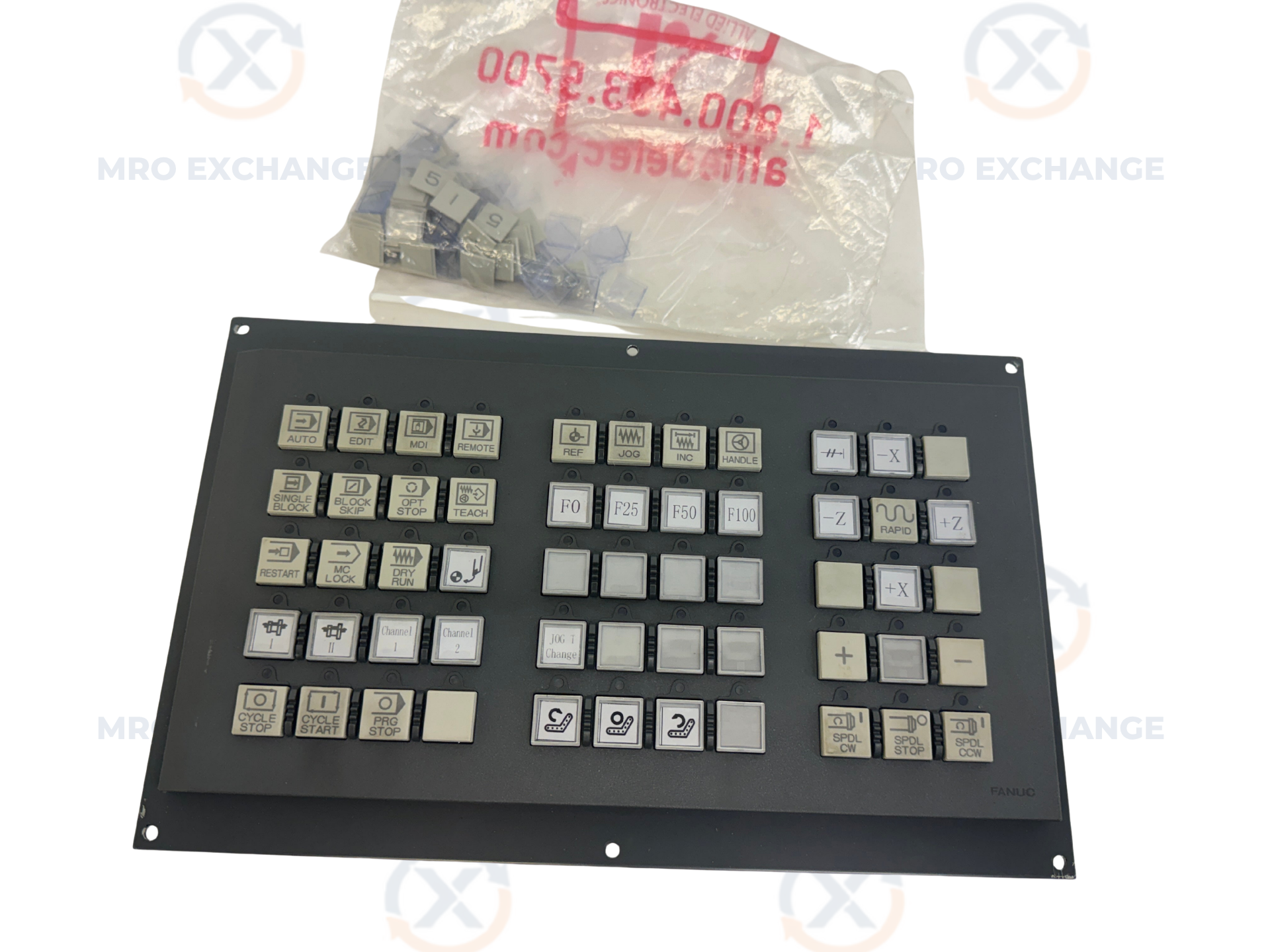

The operator panel includes a full array of labeled function keys covering machine modes such as AUTO, EDIT, MDI, and REMOTE; feed rate override selections including F0, F25, F50, and F100; axis jog controls for X and Z with rapid traverse; spindle controls including SPDL CW, SPDL STOP, and SPDL CCW; and cycle controls including CYCLE START, CYCLE STOP, and PRG STOP. Additional keys include SINGLE BLOCK, BLOCK SKIP, OPT STOP, TEACH, RESTART, MC LOCK, DRY RUN, and JOG Change, as well as Channel 1 and Channel 2 selector keys. The unit mounts to a CNC control cabinet via a standard panel-mount configuration with mounting holes at the corners and center top edge. A bag of spare key caps is included as visible in the photos.
The A02B-0236-C243 is compatible with Fanuc i Series controls and supports 3-keystroke input with keys carrying both symbol and English character labeling.
Stock # 0326-831
