Used in CNC machining centers and turning centers running FANUC i-series controls, the A06B-6096-H208 is a dual-axis Alpha servo amplifier module from FANUC, part of the SVM2-80/80 series. This module is designed for use with FANUC Alpha servo motors and communicates via the FSSB (Fanuc Serial Servo Bus) fiber optic interface, distinguishing it from the earlier A06B-6079 series which uses a conventional interface.

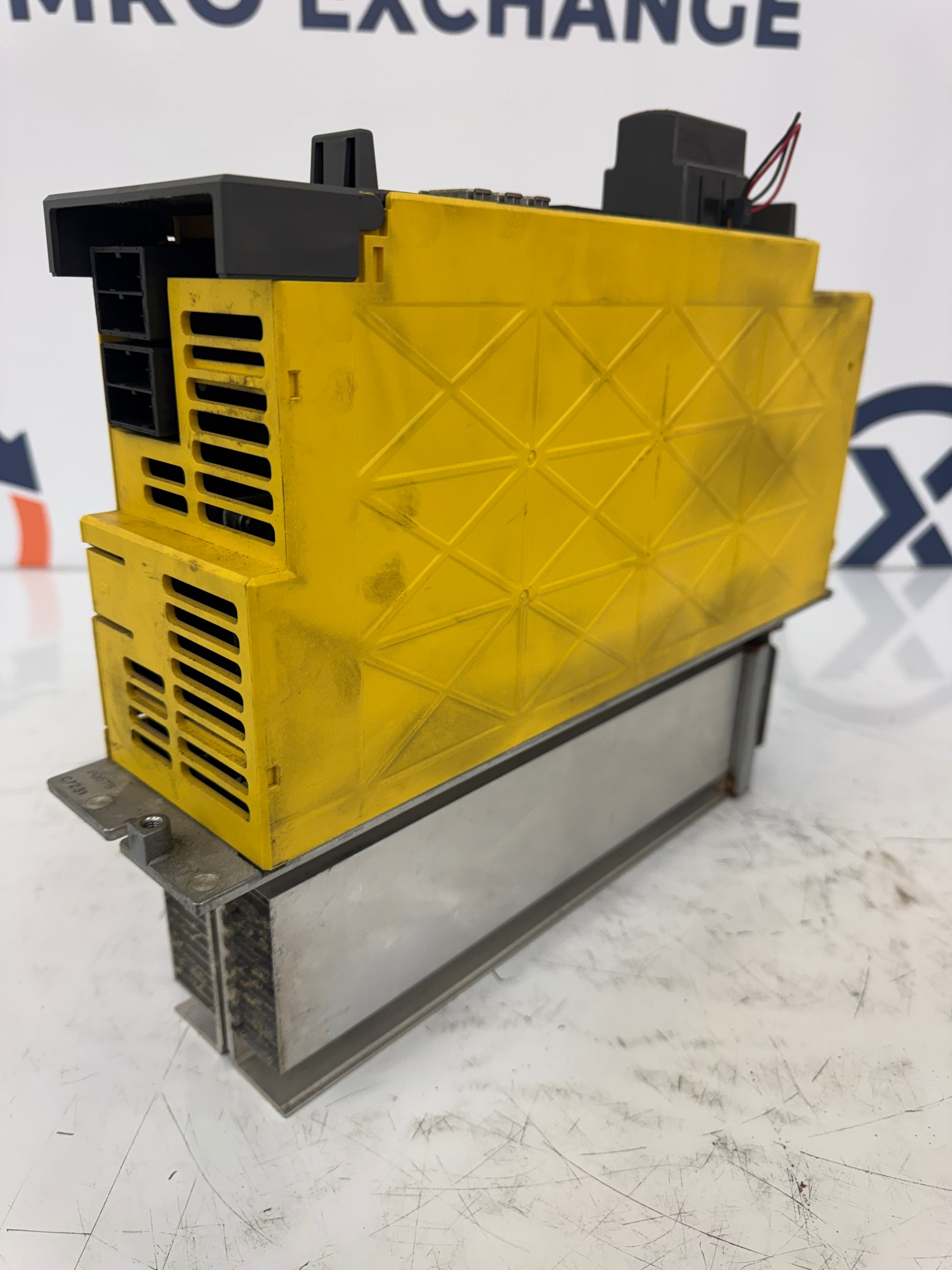

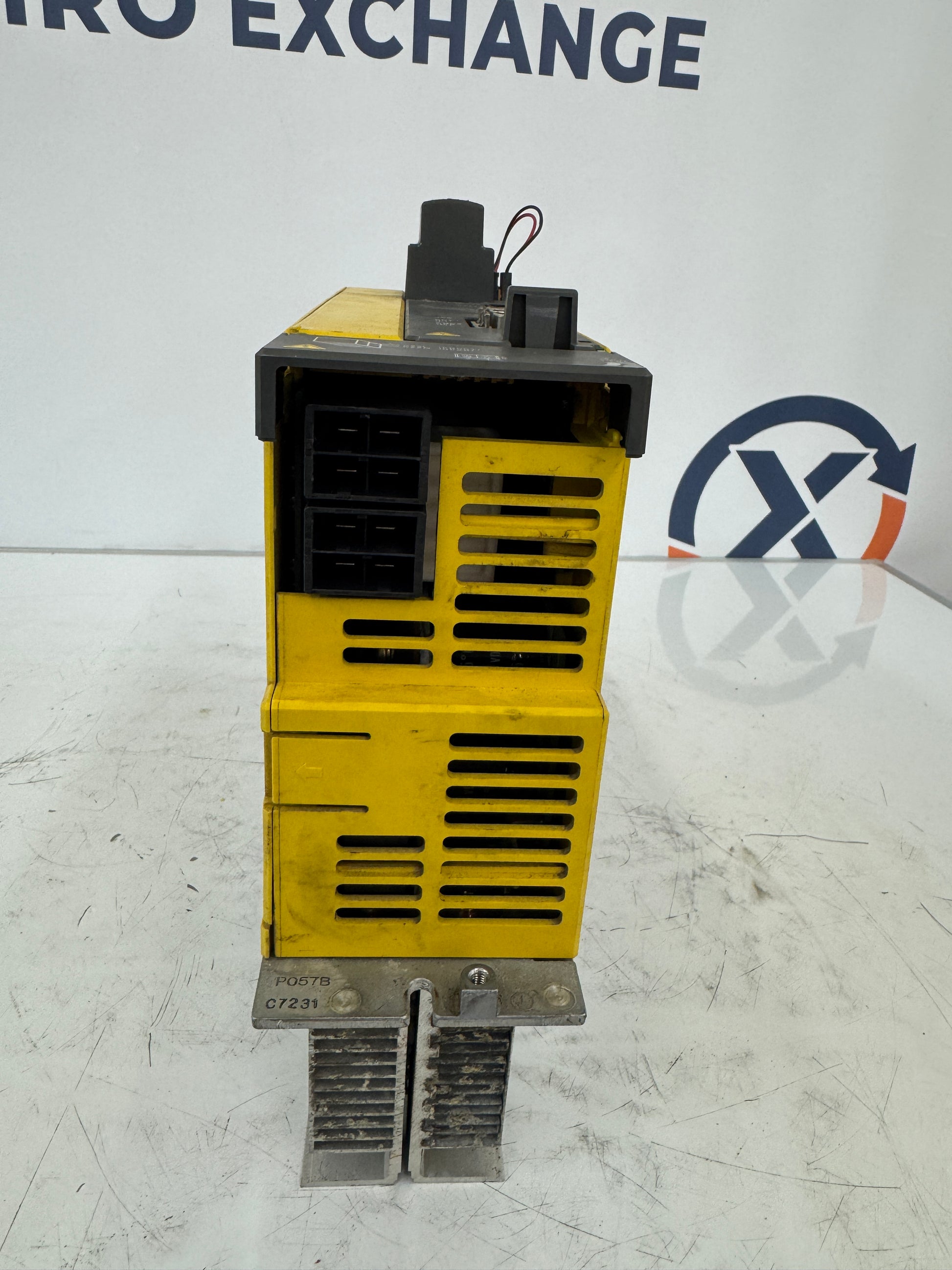

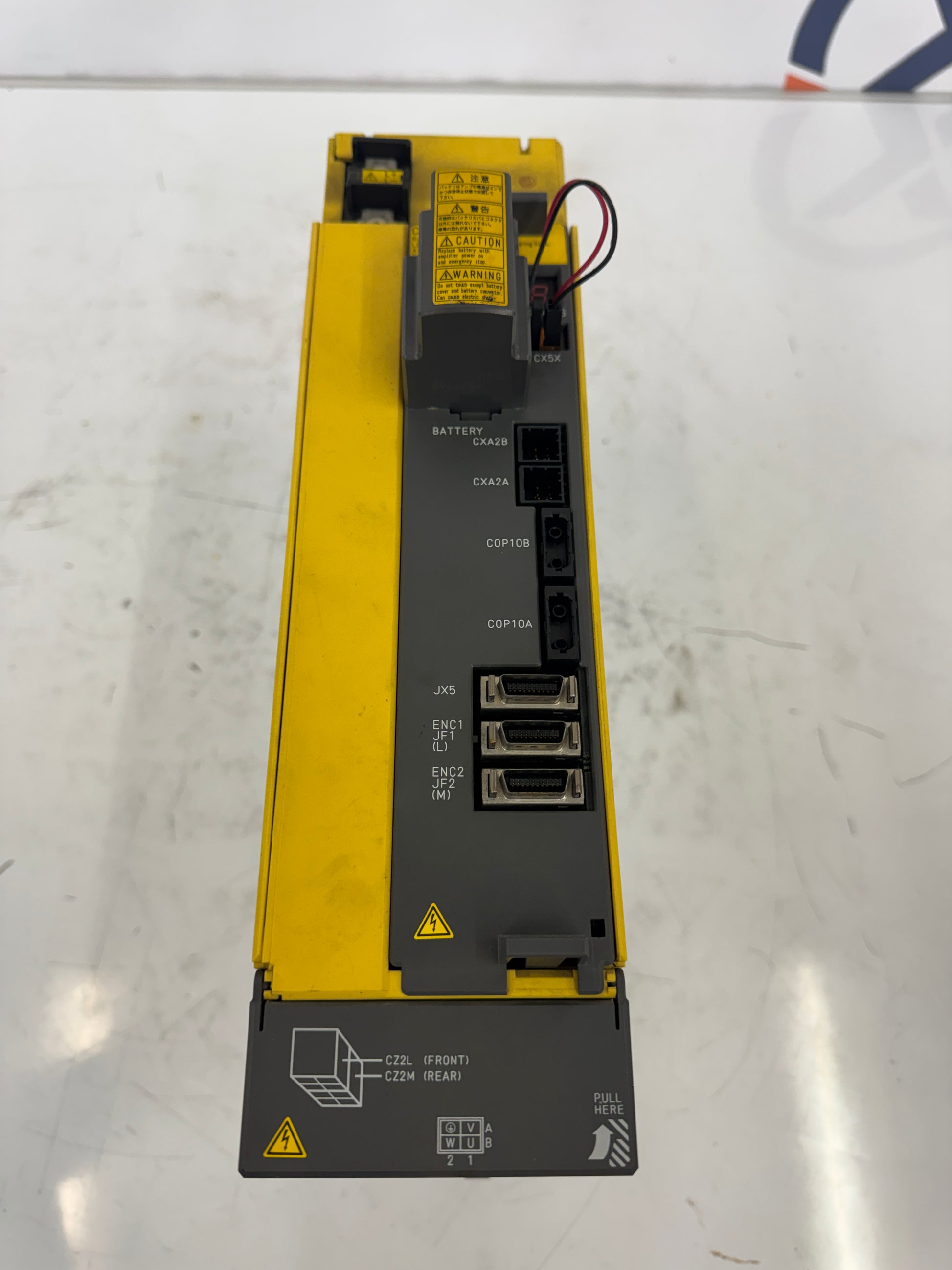

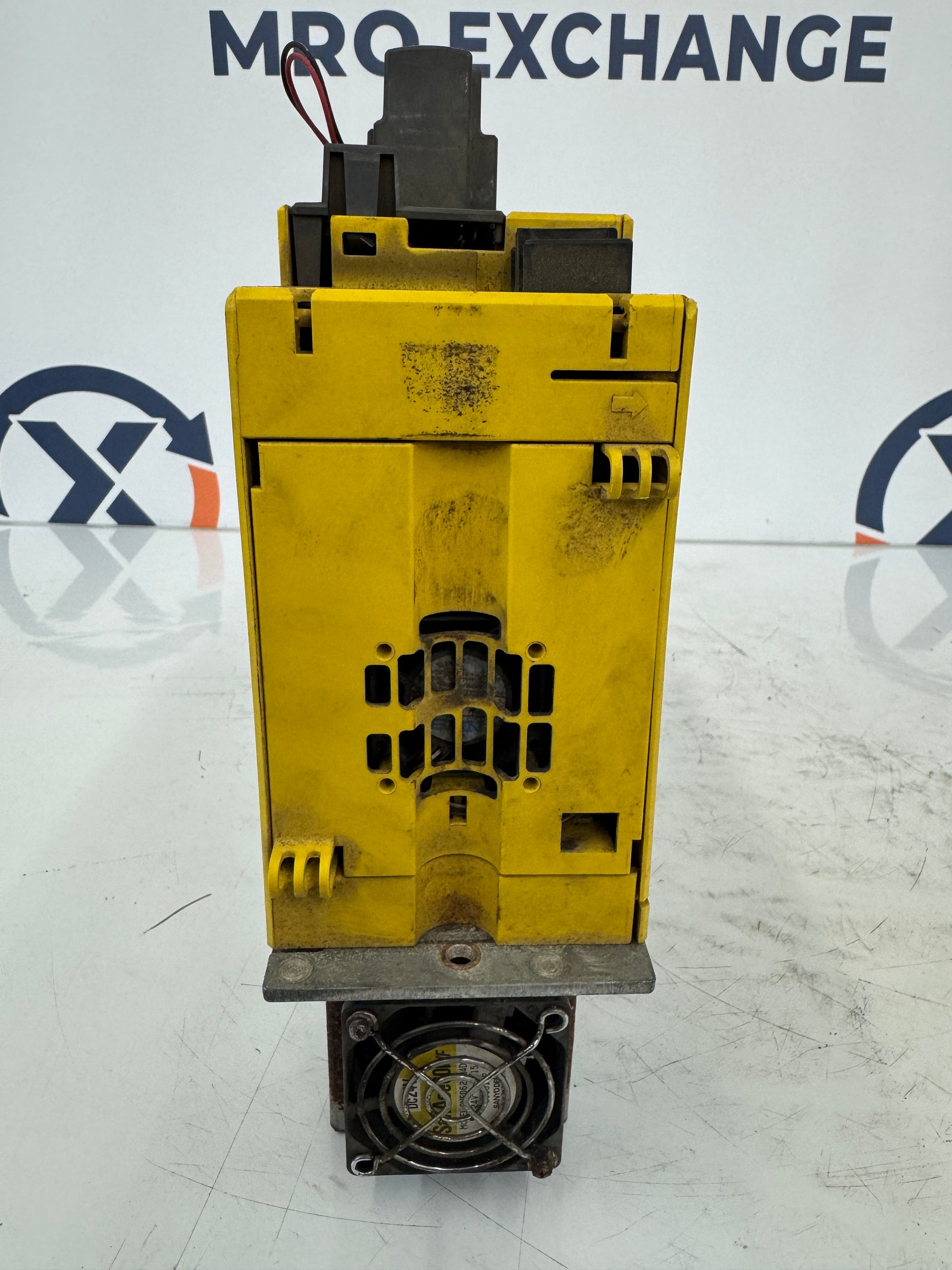

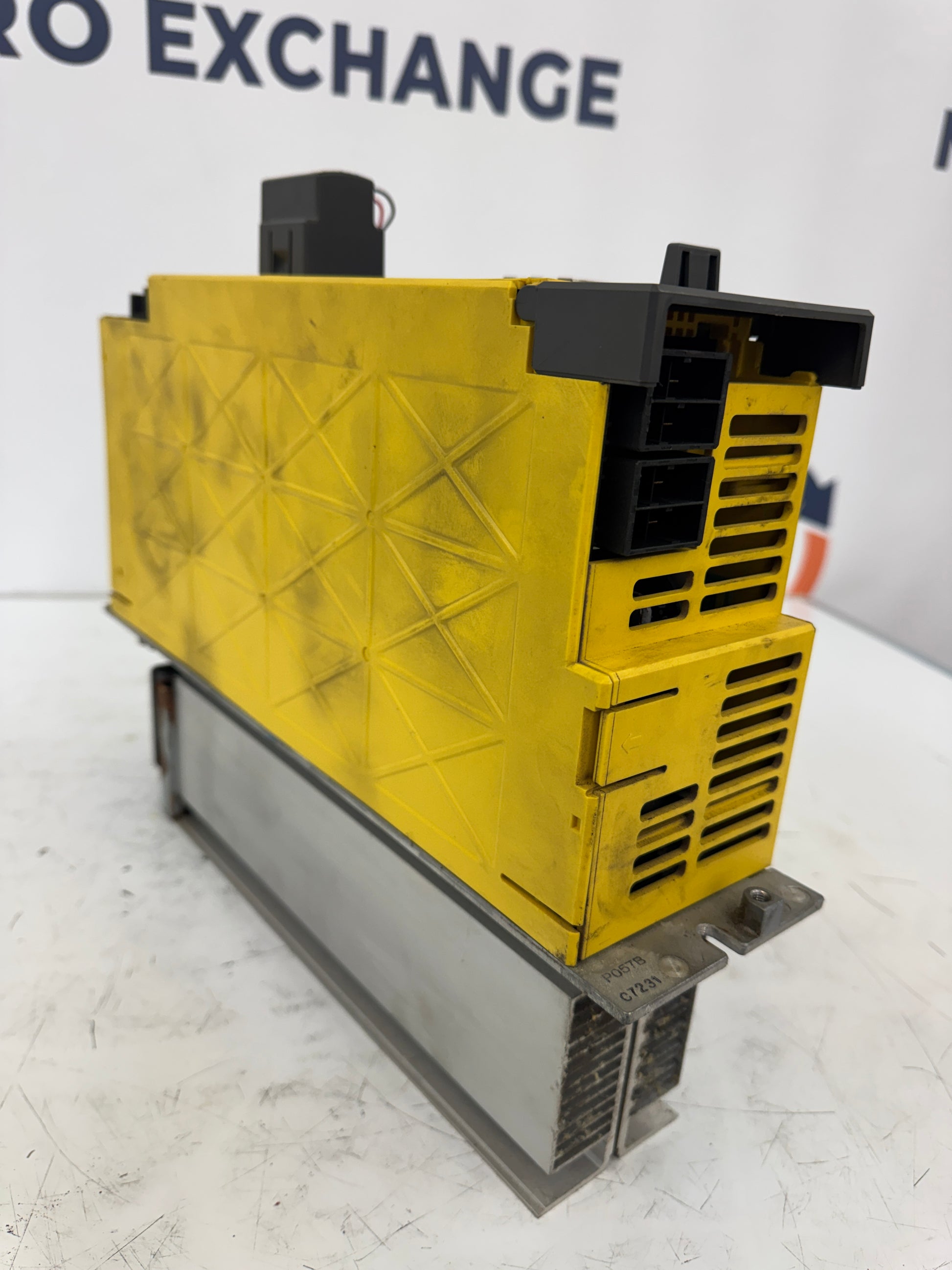

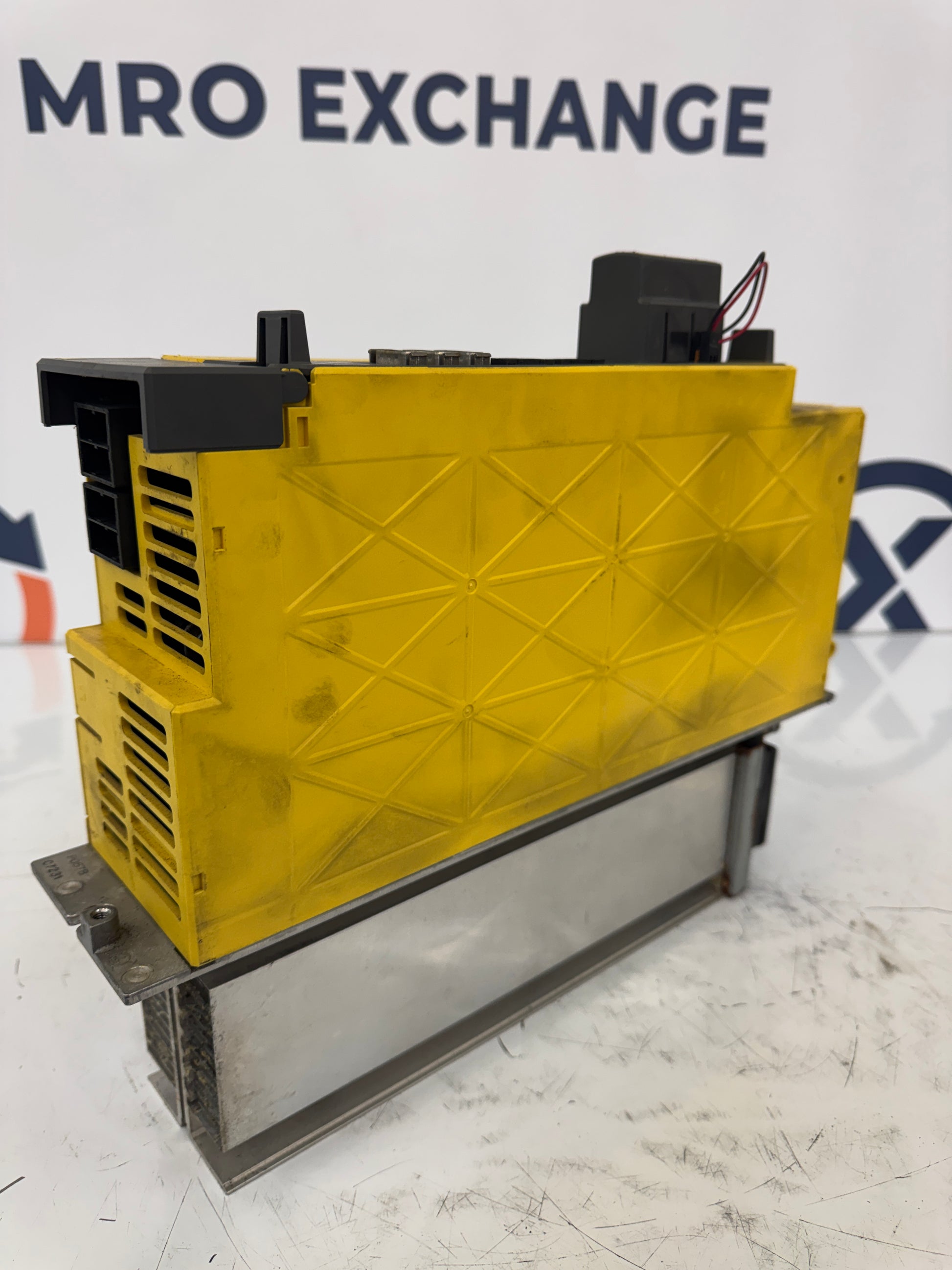

The A06B-6096-H208 accepts a DC bus input of 283 to 325V and delivers a nominal output of 230V AC with 18.7A per axis across both the L and M axes, supporting two axes of simultaneous servo control. Output power is rated at 9.5kW. Connector ports visible on this unit include CXA2A, CXA2B (battery backup connections), COP10A and COP10B (FSSB optical fiber ports), JX5, and dual encoder feedback connectors ENC1/JF1 and ENC2/JF2. The module mounts via a dedicated bracket with integrated heat sink fins for thermal management.
The A06B-6096 series is commonly found in FANUC 16i, 18i, and 21i control platforms and is a standard component in multi-axis CNC systems requiring FSSB-capable servo drives. Part number A06B-6096-H208 is the OEM market-recognized identifier for this configuration.
