Festo Pneumatic Pressure Switch Assembly PEV-1/4-A-SW27-B-OD / 175252 G 1/4 15 to 145 PSI
Festo Pneumatic Pressure Switch Assembly PEV-1/4-A-SW27-B-OD / 175252 G 1/4 15 to 145 PSI
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
Stock #:

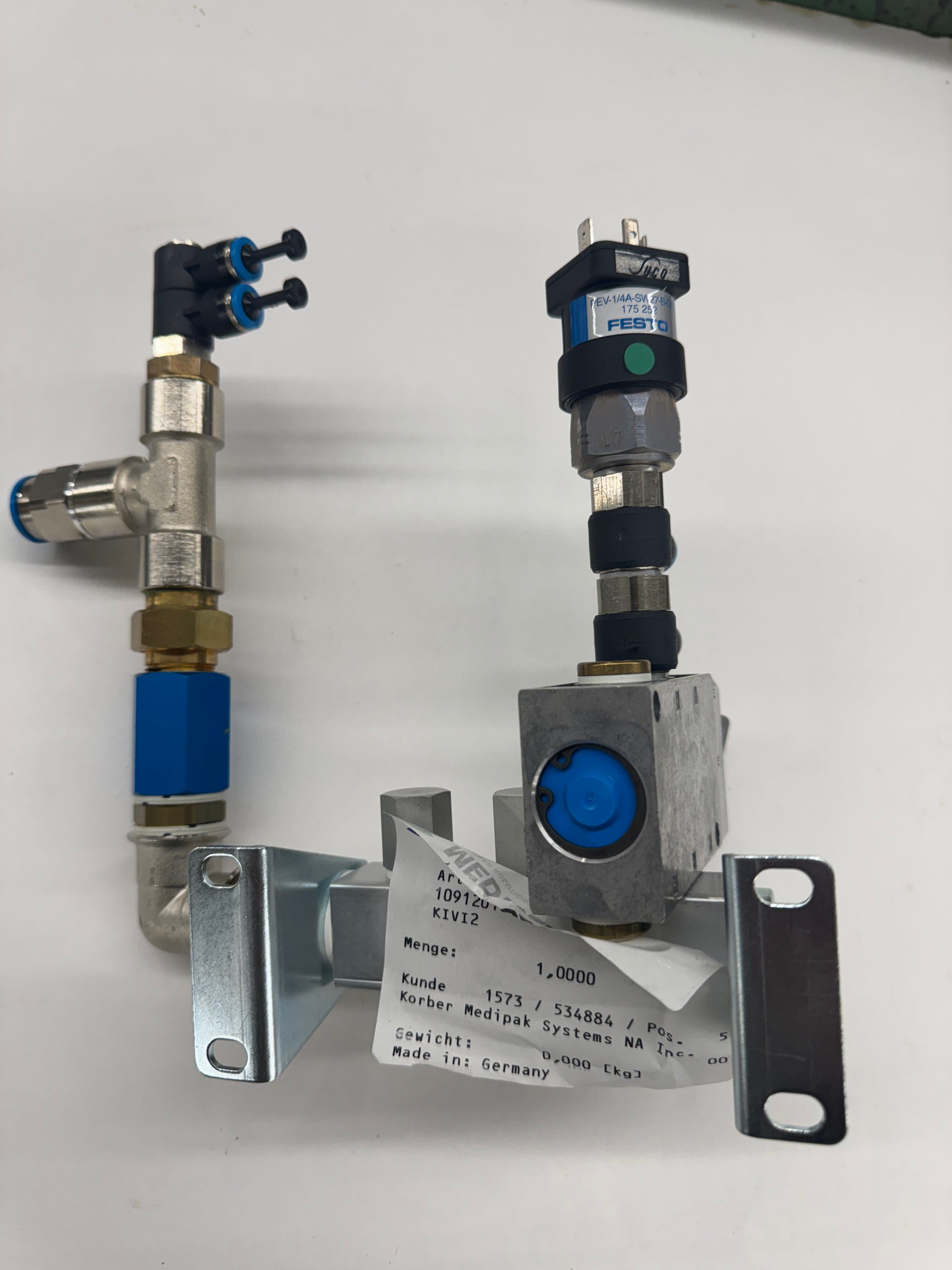

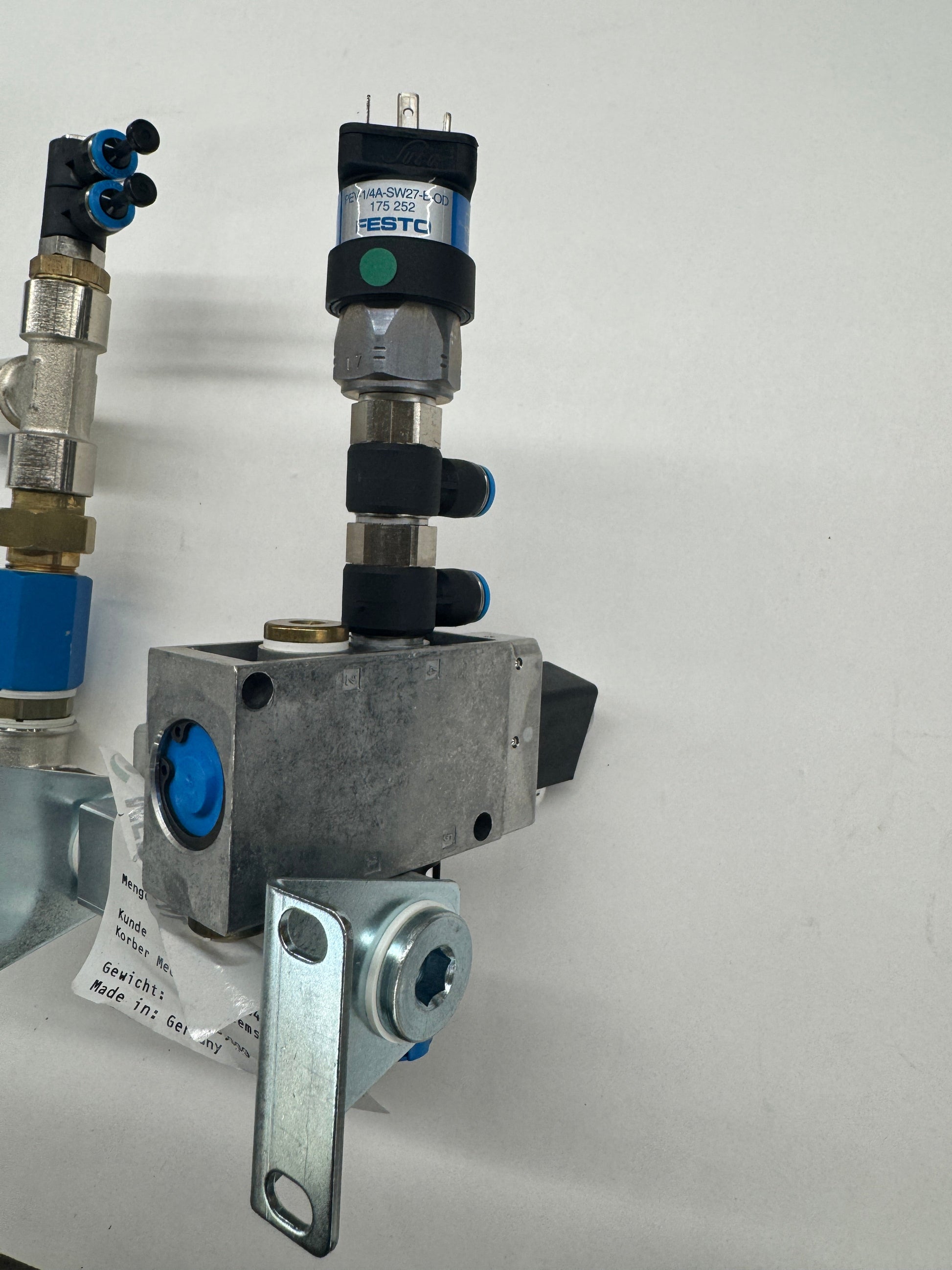

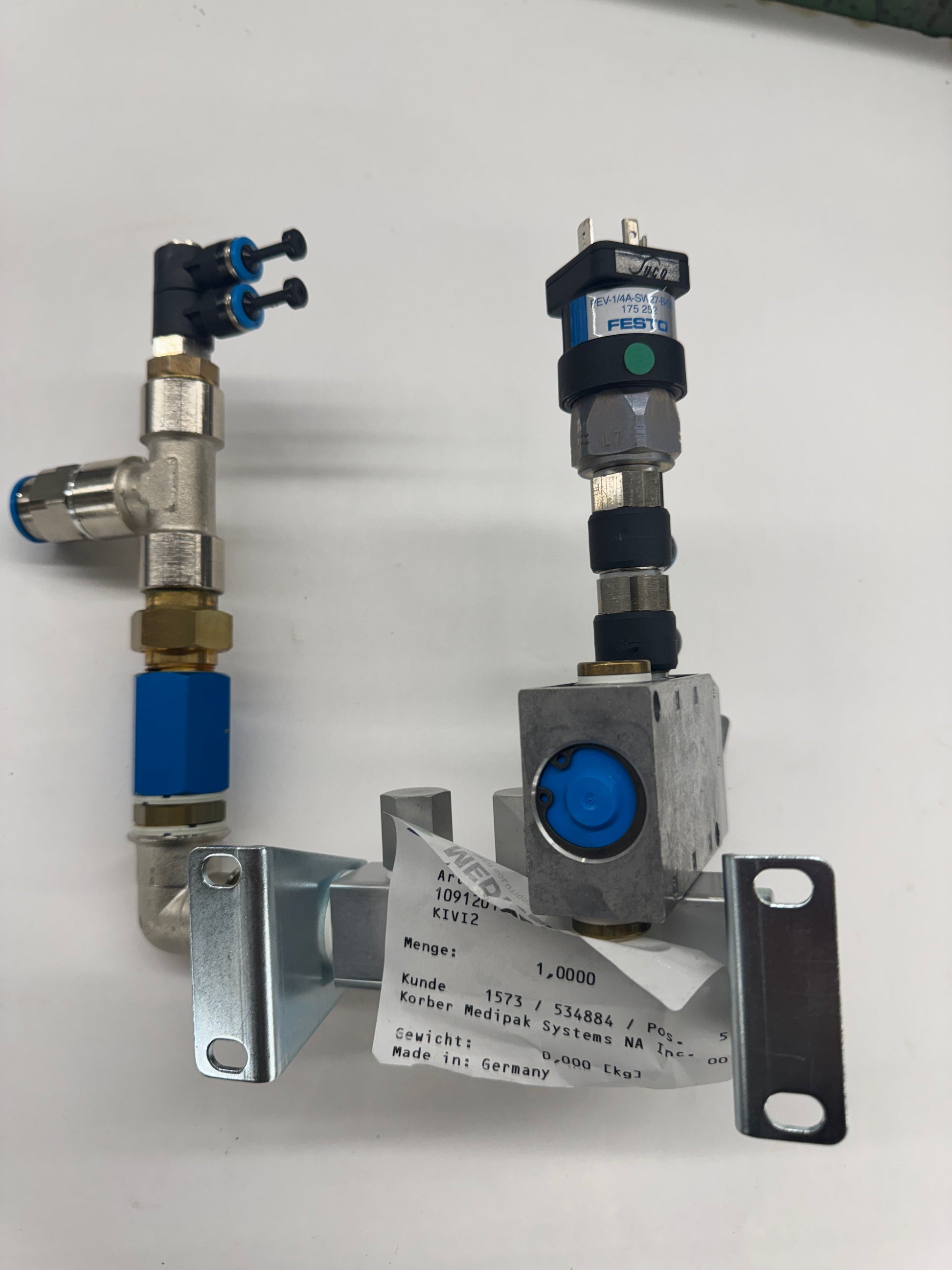

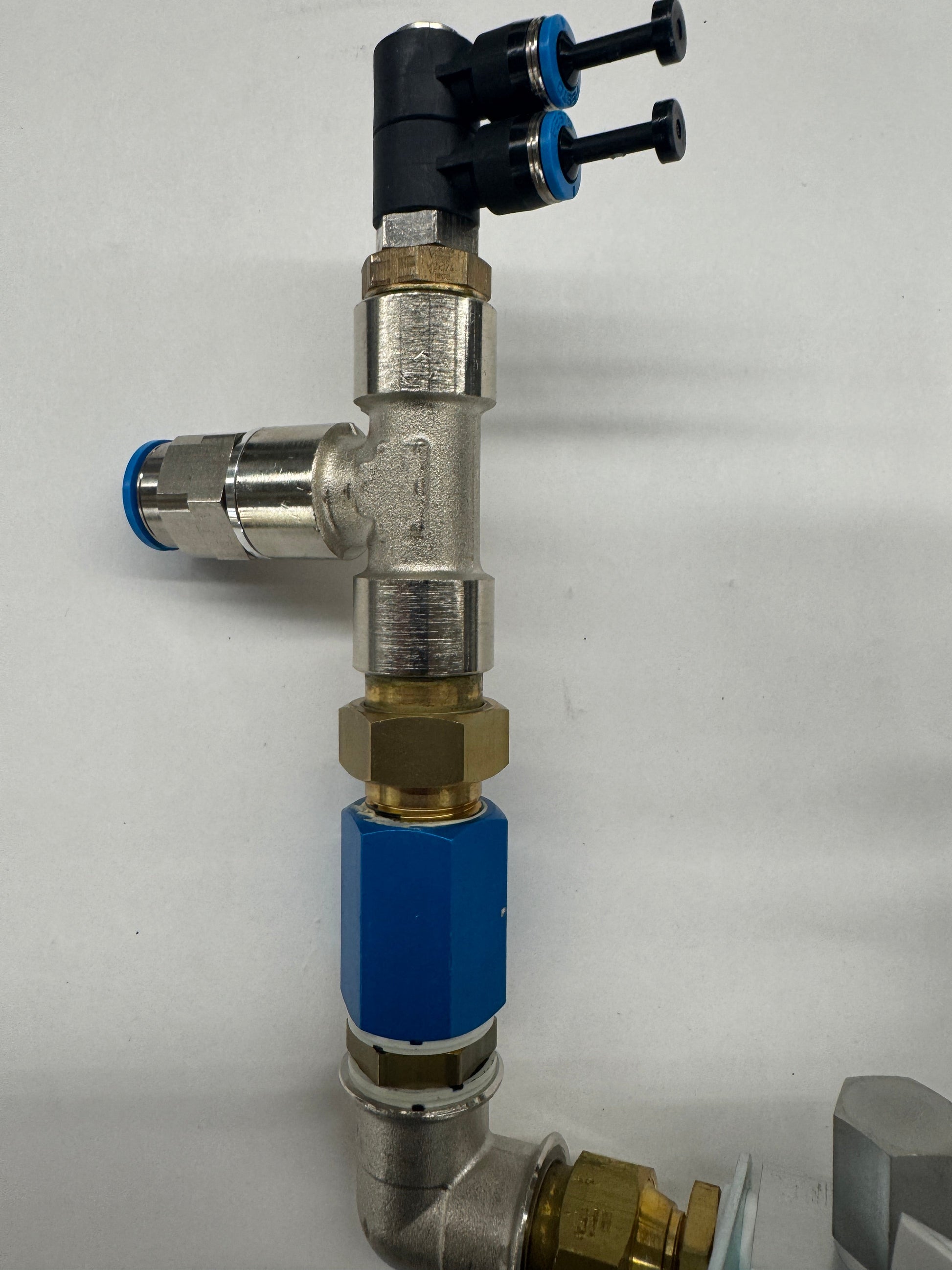

Used in automated packaging and industrial pneumatic control systems, this Festo pressure switch subassembly is built around a PEV-1/4-A-SW27-B-OD pressure switch (Festo part number 175252) mounted on a compact aluminum manifold block. The pressure switch carries an operating pressure range of 1 to 10 bar (approximately 15 to 145 PSI) and features a changeover switching element with a maximum switching output voltage of 250V AC and 250V DC, and a maximum output current of 4000 mA. The electrical connection is a 4-pin plug in square design to EN 175301-803. Pneumatic connection is G 1/4. The assembly also includes multiple Festo push-in pneumatic fittings, a compression-fitting ball valve with blue handle, and a steel mounting bracket with slotted mounting holes. The manifold block incorporates additional threaded ports with push-in fittings installed. The unit carries an OEM identification label referencing Korber Medipak Systems NA, article KIVI2, customer reference 1573, with a listed weight of 0.000 kg per the shipping label. Country of manufacture is Germany per label. The pressure switch operates on compressed air conforming to ISO 8573-1:2010 and carries CE marking per the EU Low Voltage Directive. The complete assembly is a ready-to-mount pneumatic sensing and distribution unit.
Stock # 0326-1093
