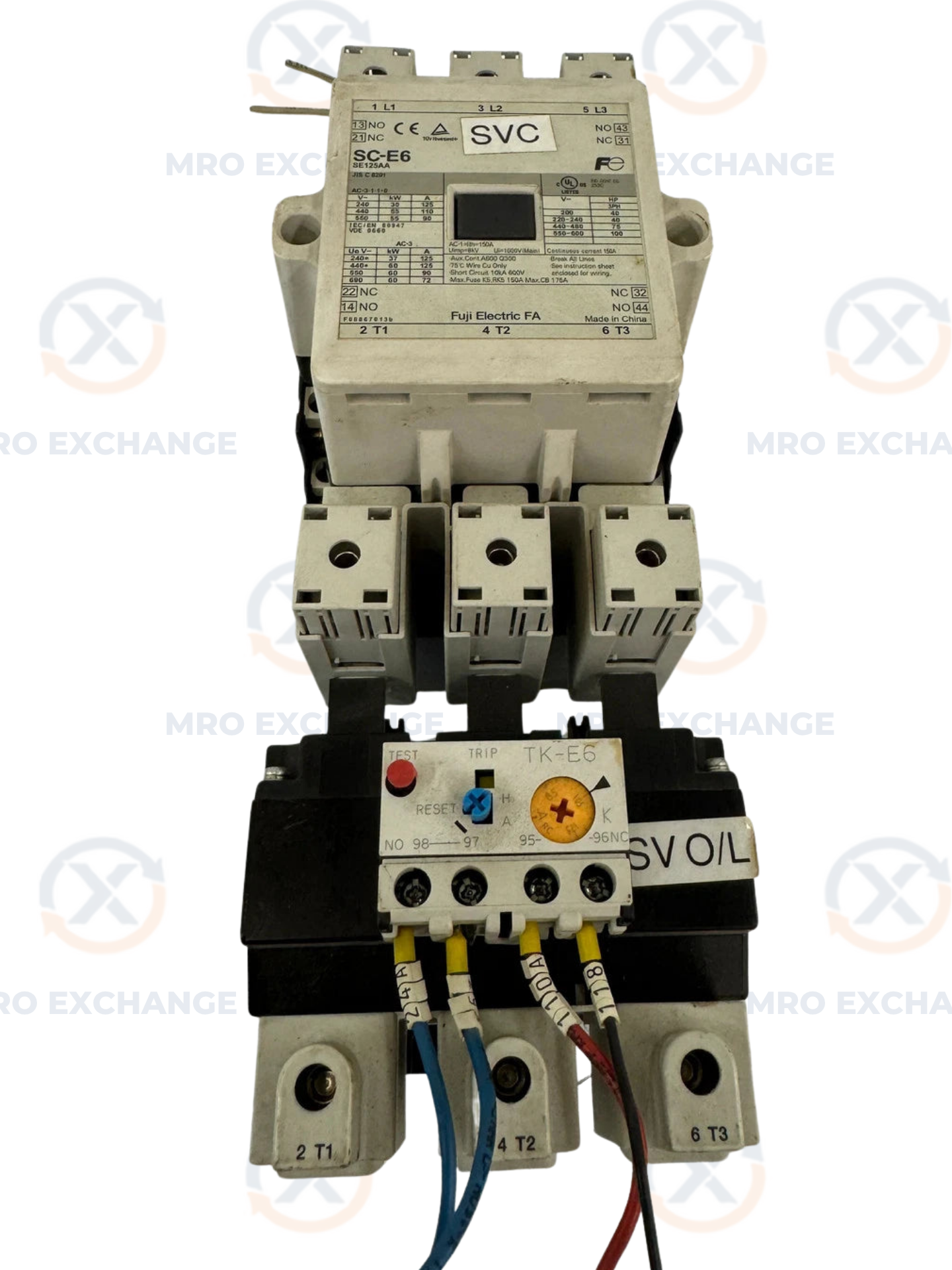

Fuji Electric FA Magnetic Contactor Assembly SE125AA SC-E6 with TK-E6 85-125A 600 VAC Thermal Overload Relay
Fuji Electric FA Magnetic Contactor Assembly SE125AA SC-E6 with TK-E6 85-125A 600 VAC Thermal Overload Relay
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
MPN: SE125AA
Stock #: 0226-00336

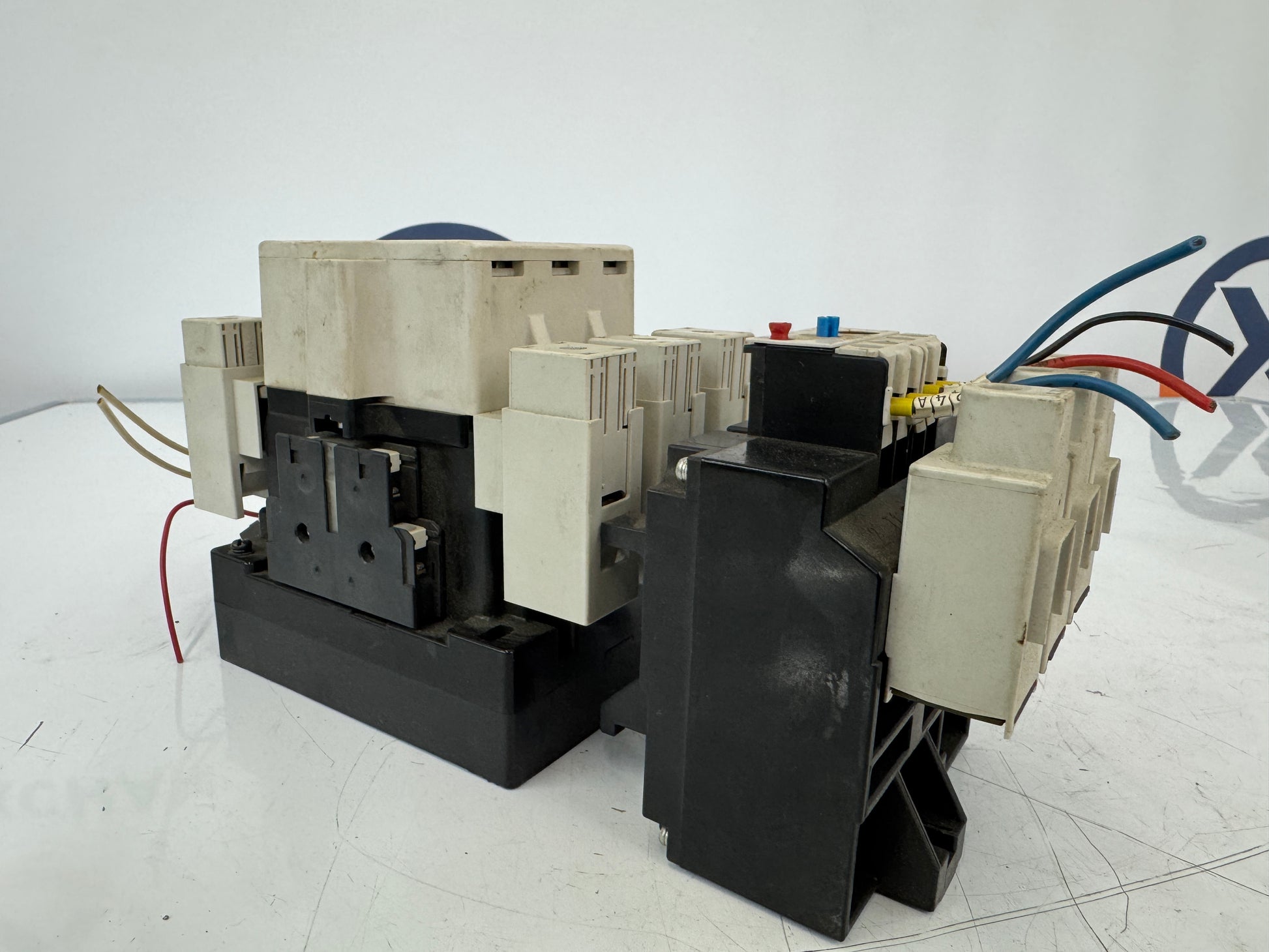

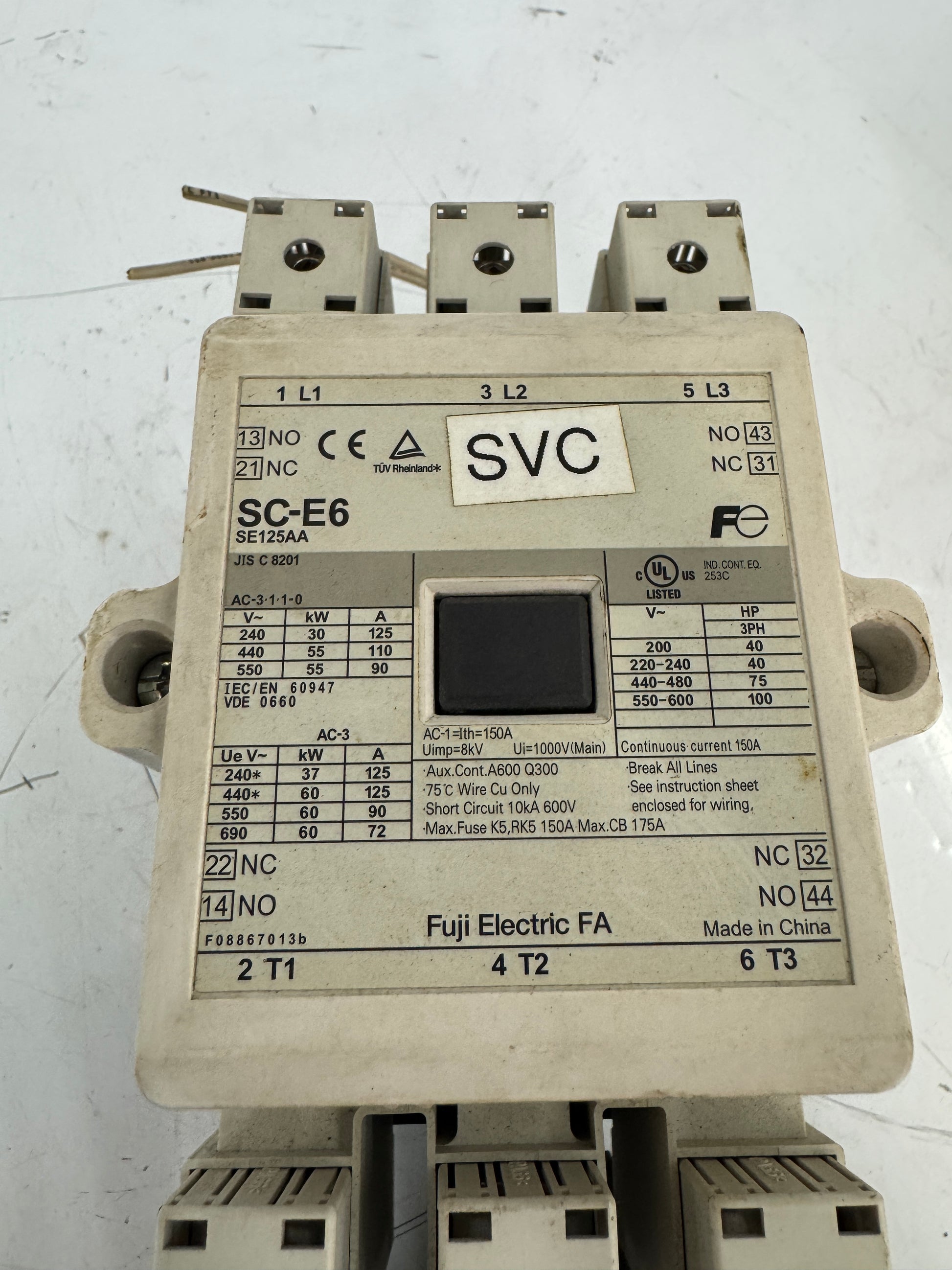

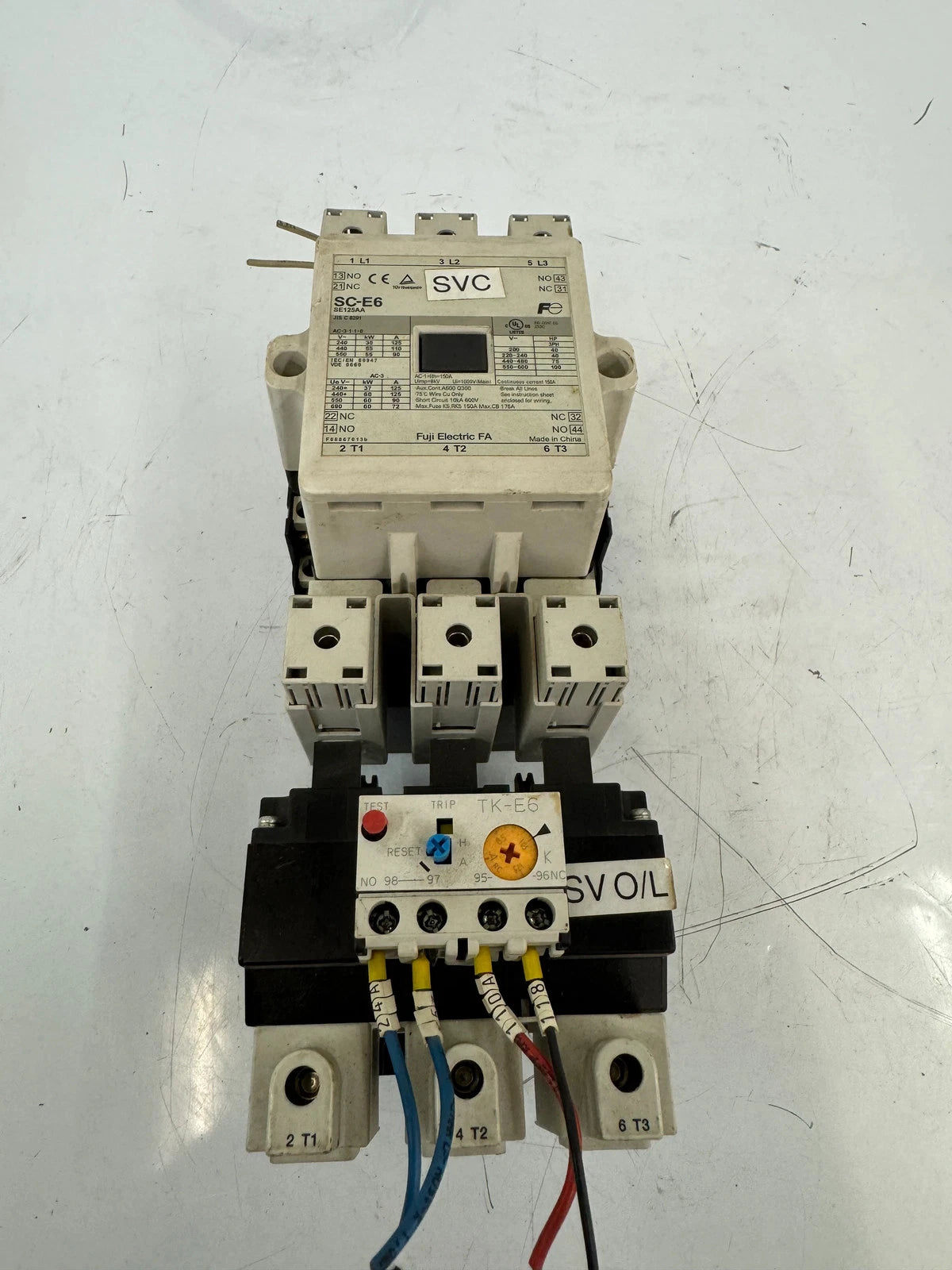

Fuji Electric FA magnetic contactor assembly marked SE125AA, SC-E6, with TK-E6 thermal overload relay adjustable 85–125A. The contactor is labeled SC-E6 with SE125AA designation and includes main terminals 1L1, 3L2, 5L3 (line) and 2T1, 4T2, 6T3 (load). Nameplate ratings show AC-1 Ith 150A, Ui 1000V, Uimp 8kV, and AC-3 motor ratings up to 125 HP at 240V, 110 HP at 440V, and 90 HP at 550V. Continuous current is marked 150A with short circuit rating 10kA at 600V.

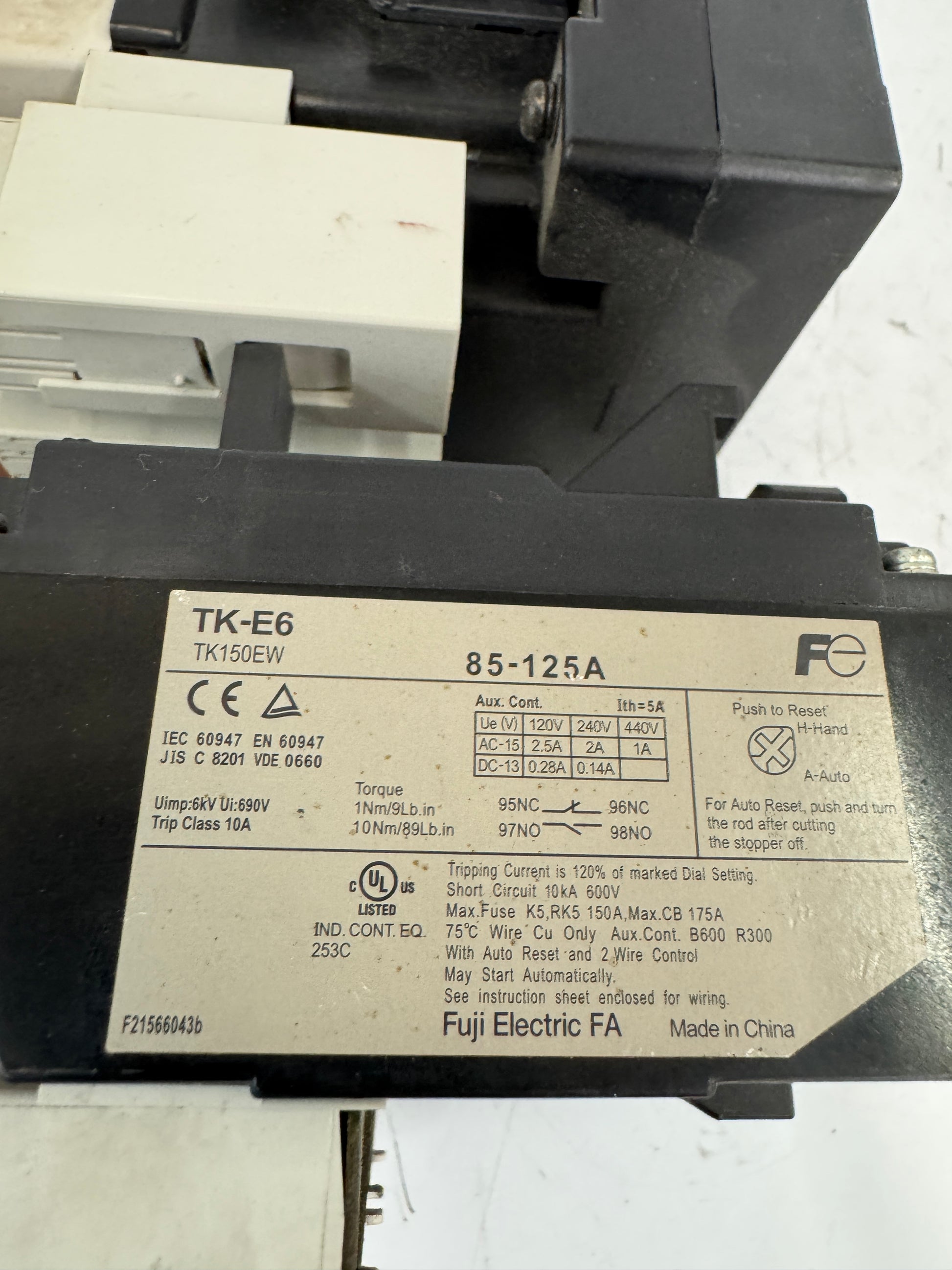

The overload relay is model TK-E6, type TK150EW, trip class 10A, adjustable from 85 to 125 amps. Auxiliary contact ratings are marked AC-15 2.5A at 240V and DC-13 0.2A at 600V. Markings reference IEC 60947, EN 60947, and JIS C 8201 standards.
Manufactured by Fuji Electric FA and labeled Made in China. This assembly is configured for three-phase motor control applications within the stated electrical ratings.
Stock # 0226-336
