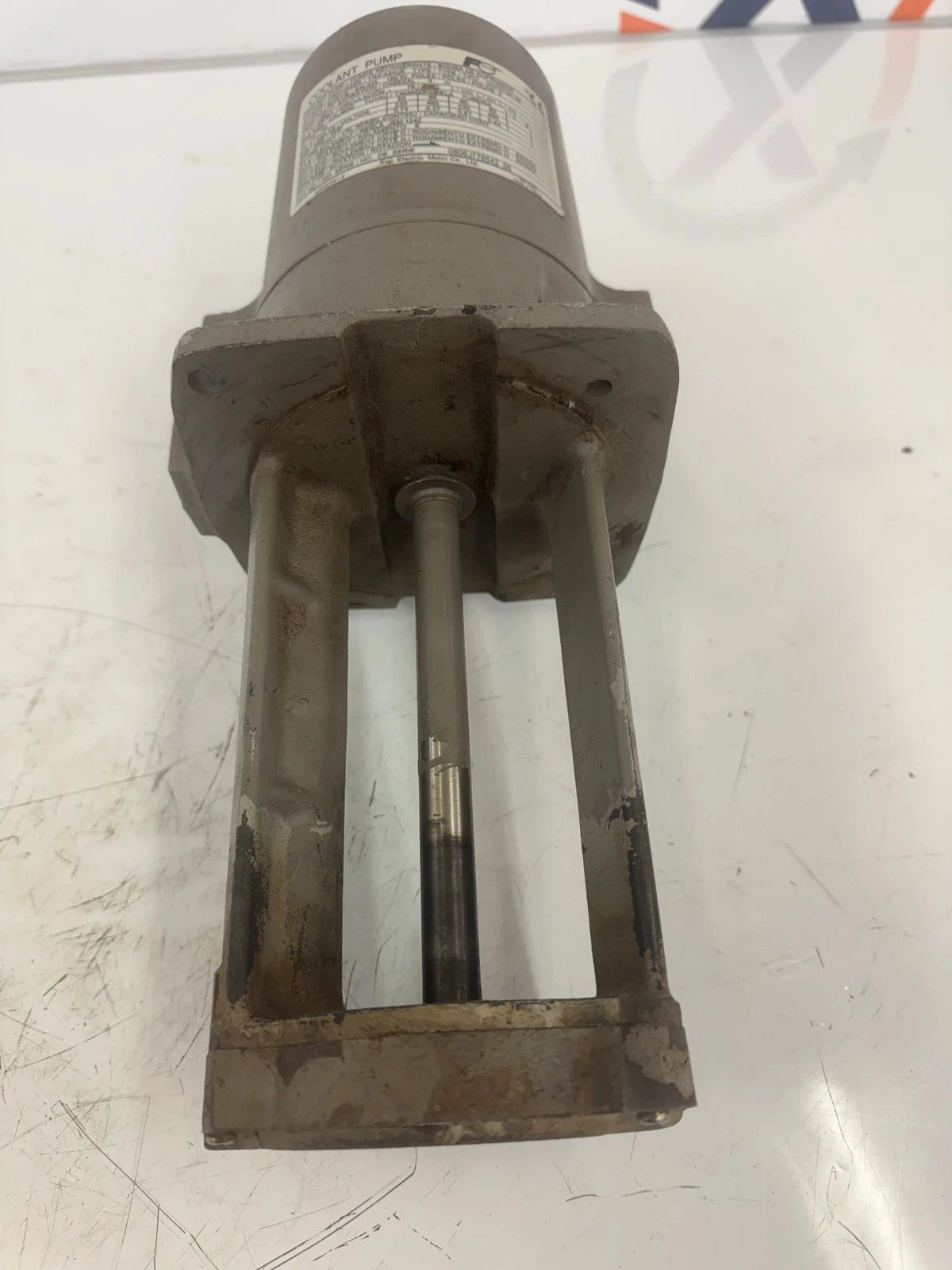

Fuji Electric VKP073A-4Z Three-Phase Immersion Coolant Pump
Fuji Electric VKP073A-4Z Three-Phase Immersion Coolant Pump
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
Stock #:

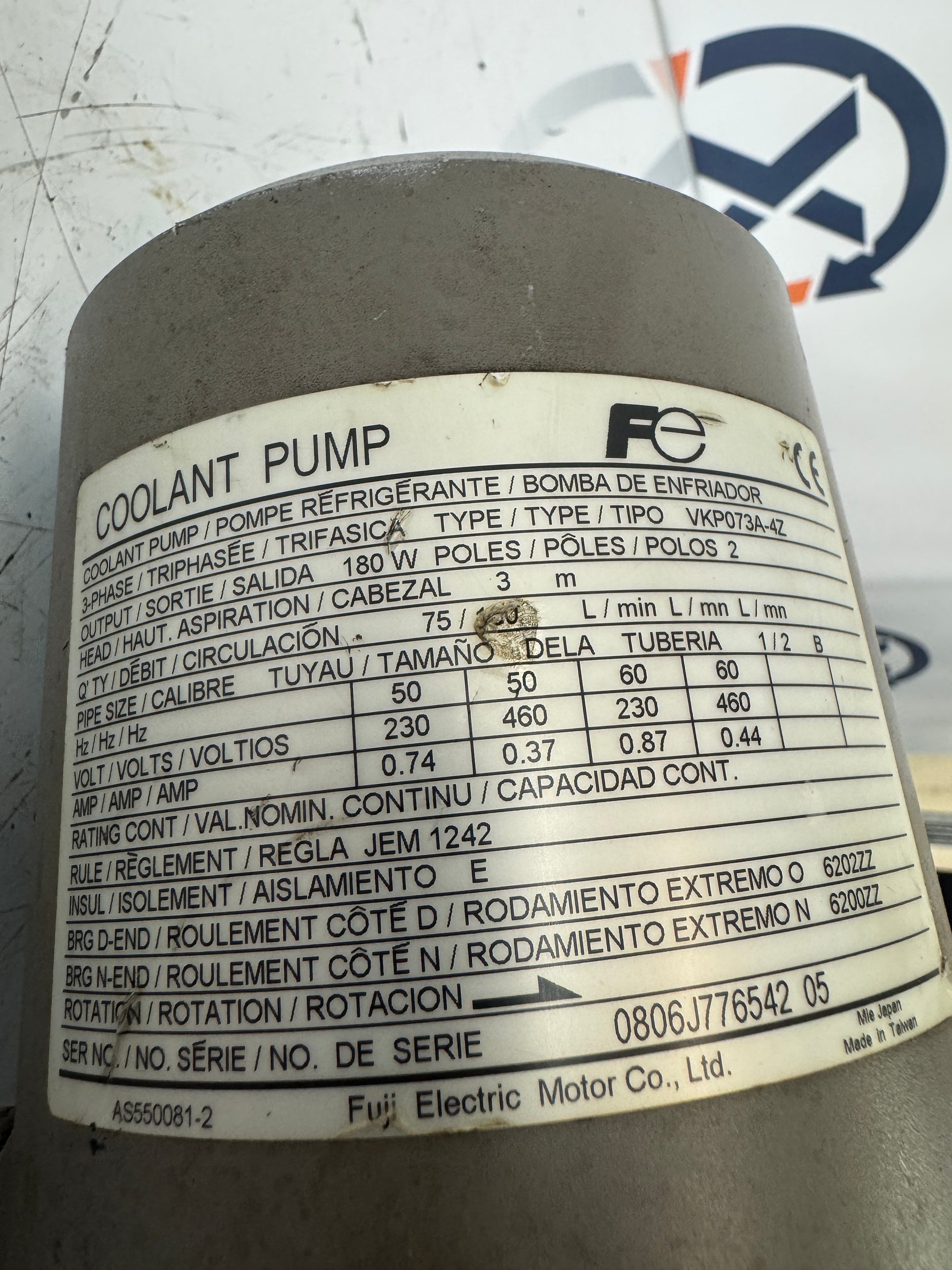

Fuji Electric VKP073A-4Z three-phase immersion coolant pump, rated 180W output (approximately 1/4 HP), 2-pole design, 230/460V, 50/60 Hz. Nameplate data confirms 3 m head, flow rate of 75 to 80 L/min, and 1/2 in. pipe size. Amperage draws per nameplate: 0.74A at 230V/50Hz, 0.37A at 460V/50Hz, 0.87A at 230V/60Hz, and 0.44A at 460V/60Hz. Insulation class E. Bearings listed on nameplate as 6202ZZ (D-end) and 6200ZZ (N-end). Serial number 0806J776542 05. Manufactured by Fuji Electric Motor Co., Ltd. in Taiwan. Complies with JEM 1242 standard and carries CE marking. The VKP series is an immersion-style pump without mechanical seals, suitable for circulation of coolant and spraying of cutting oil in machine tool applications including grinding machines. Compatible with non-flammable fluids within pump construction material limits. Maximum recommended viscosity is 1200 SSU at 50 Hz and 600 SSU at 60 Hz per manufacturer specifications. Impeller material is plastic per manufacturer data. This unit is a direct Fuji Electric OEM product commonly used as a replacement or spare in CNC and conventional machine tool coolant systems.
Stock # 0226-378
