Fujitsu Limited (manufactured for Fanuc; cross-reference Fanuc A86L-0001-0155#A) CNC MDI Keyboard N860-3161-T001 / A86L-0001-0155#A

$379.99 USD

Sale Sold out

U.S. shipping, securely packaged. Ships in 1-2 Days
Questions? Real support team available before purchase
Secure checkout with trusted payment methods

Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.

Stock #:

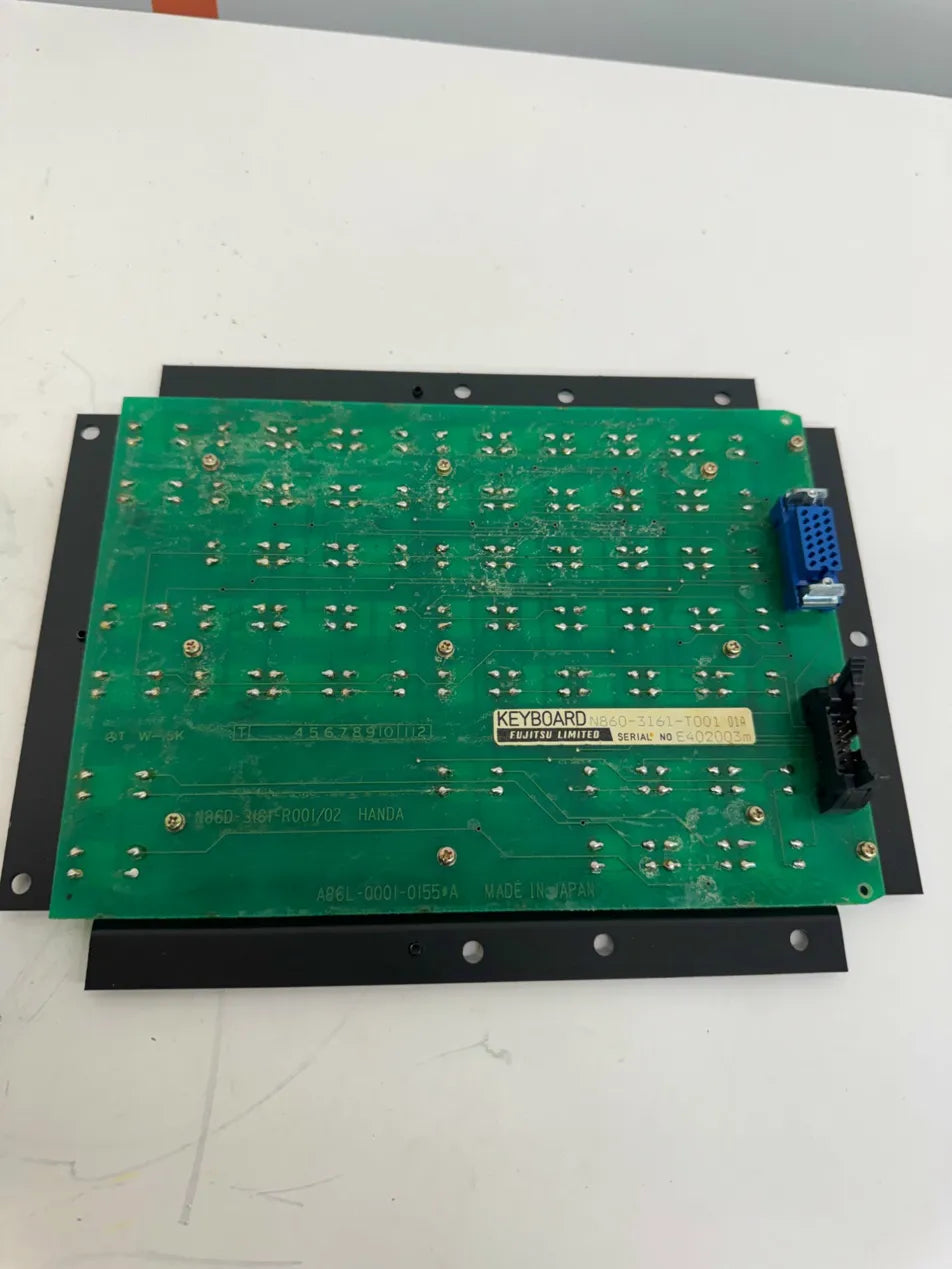

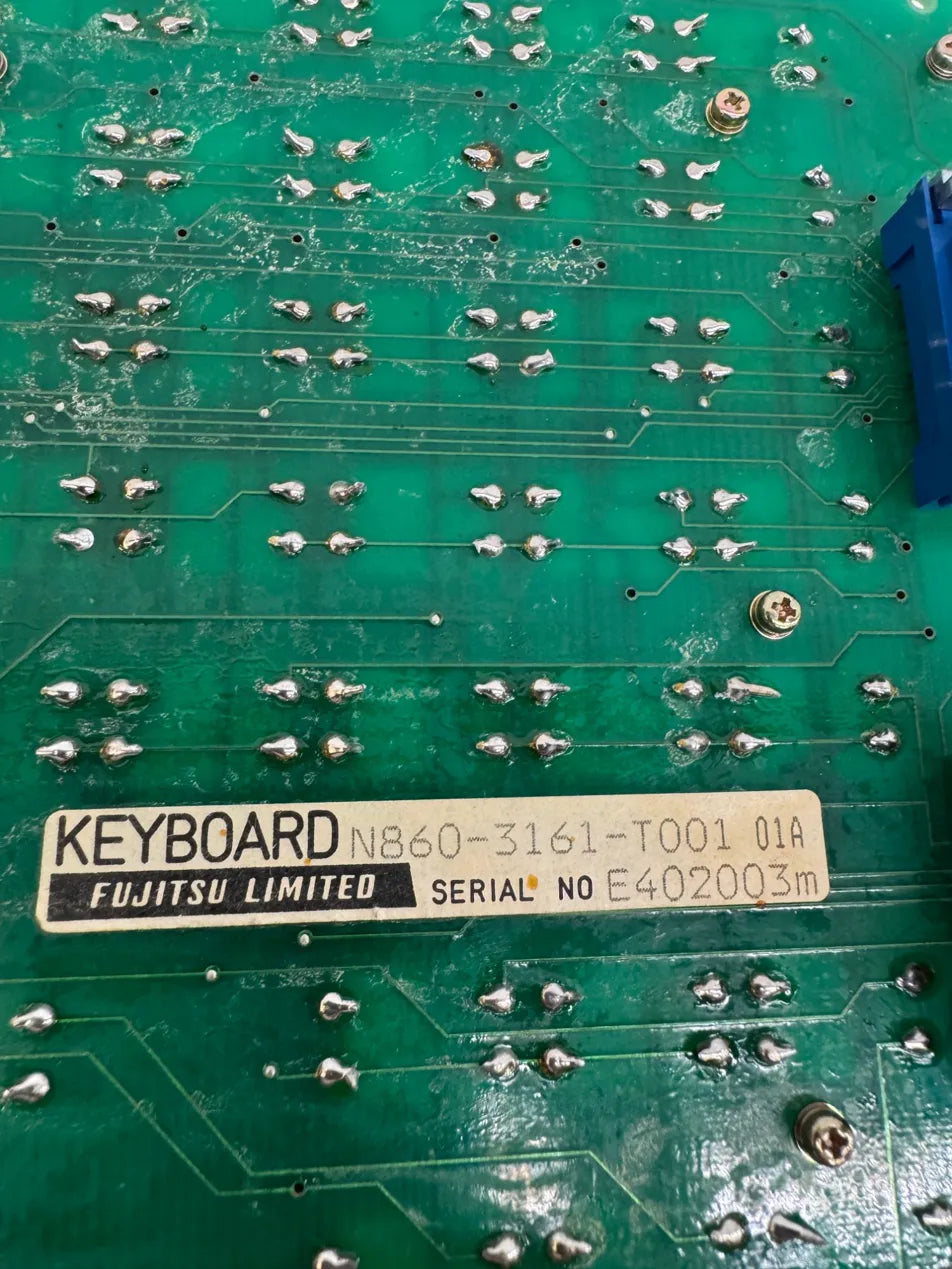

Used in Fanuc Series 15M and 15T CNC CRT/MDI operator panels, this Fujitsu MDI keyboard carries part number N860-3161-T001 and cross-references to Fanuc part number A86L-0001-0155#A. The PCB solder side is also marked N86D-3161-R001/02 and A86L-Q001-0155#A, and the board is stamped "Made in Japan." Serial number E402003m is visible on the nameplate label.

The keyboard assembly features a rectangular button matrix with square white keycaps arranged across a black metal front panel, consistent with the standard configuration for Fanuc 9-inch CRT/MDI units. The solder side PCB includes a blue multi-pin connector and a secondary ribbon connector, used for integration with the CRT/MDI panel assembly. The keyboard is designed to mount inside the CRT/MDI panel between the front faceplate and sheet metal backing, secured with M3 screws.

This keyboard is associated with Fanuc CRT/MDI monitor display A61L-0001-0092 and is applicable to machining center (15M) and turning center (15T) control configurations. The Fujitsu N860-3161-T001 is a discontinued OEM component, and active replacement supply in the US market comes primarily from surplus and refurbishment channels. It is not interchangeable with the A86L-0001-0155 variant (without the #A suffix).

Stock # 0226-749
