GE Fanuc AXP02 Axis Processor Board Assembly 44A719325-102
GE Fanuc AXP02 Axis Processor Board Assembly 44A719325-102
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
Stock #:

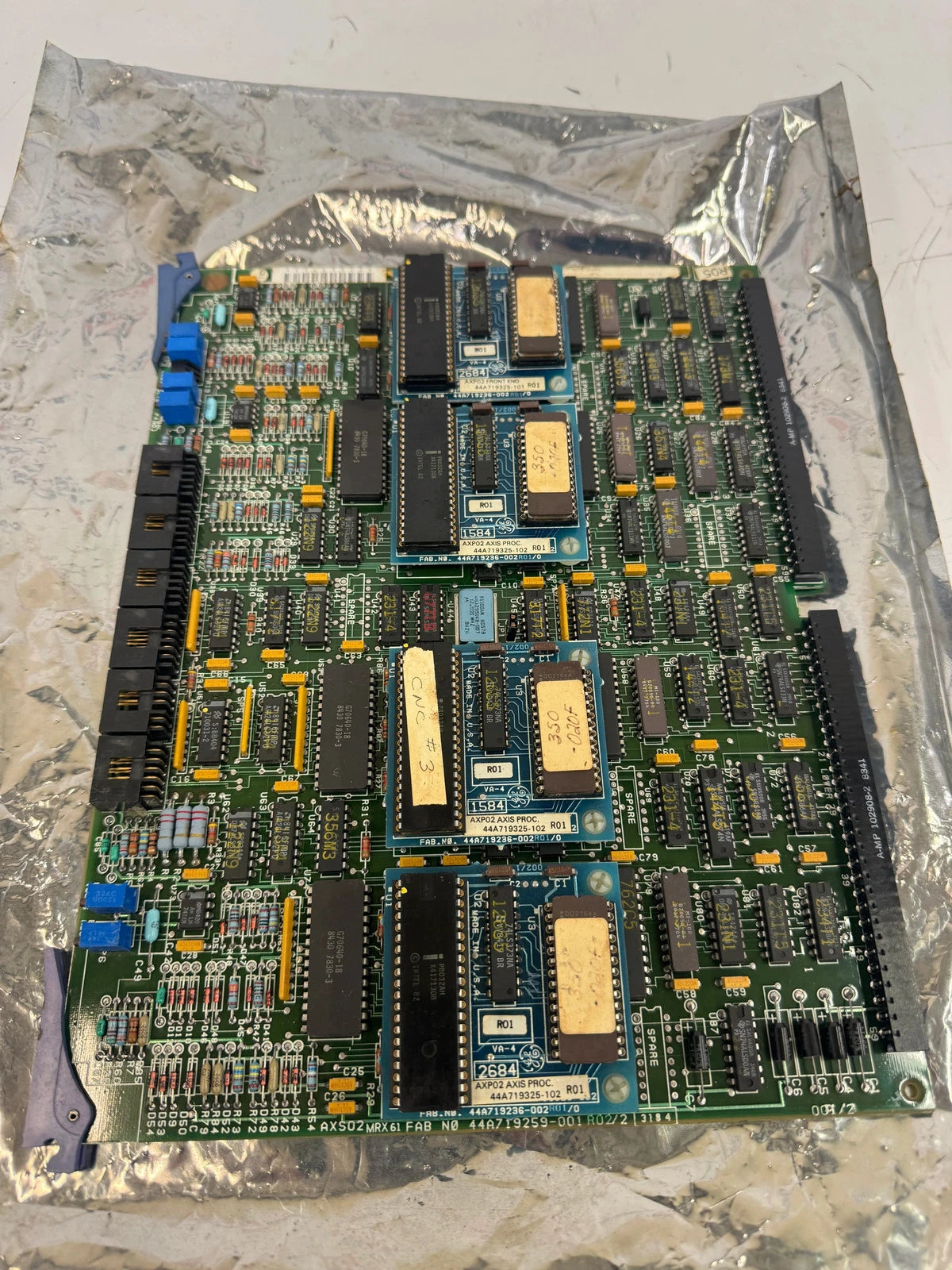

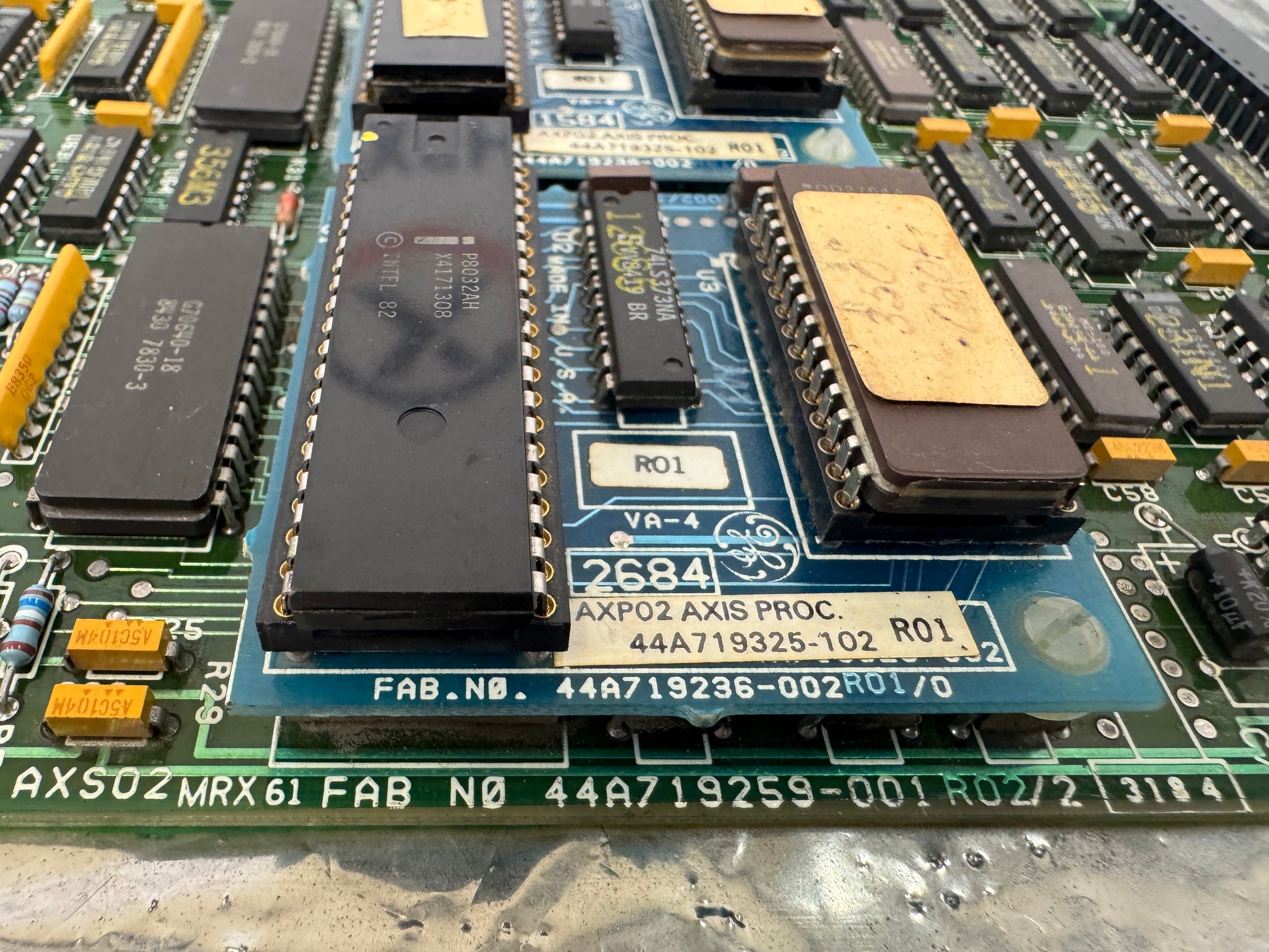

This listing is for a GE Fanuc AXP02 Axis Processor board assembly bearing part number 44A719325-102, Revision R01, fabrication number 44A719236-002. The main carrier board is silkscreened AXS02 MRX61 with fabrication number 44A719259-001, Revision R02/2, dated March 1984. Three AXP02 Axis Processor daughter cards are mounted on the main carrier board, each bearing the GE logo and VA-4 2684 designation. A separate AXP03 Front End daughter card labeled 44A719325-101 is also visible mounted on the assembly. A handwritten label reading CNC 3 is affixed to the carrier board.
Key onboard components include Intel P8032AH microcontrollers, Zilog Z80 series processors, 74LS373NA octal latch ICs made in the USA, C70540-18 gate array devices, and 356M3 labeled memory or logic devices. The assembly represents a multi-axis processor platform used within the GE Fanuc CNC control architecture for coordinating servo axis motion and interpolation functions.
This assembly is suited for use as a replacement or spare in compatible GE Fanuc CNC control systems utilizing the AXS02 MRX61 axis controller platform. Compatibility should be verified against OEM documentation and the specific machine control configuration prior to installation. Unit is offered as removed and has not been tested or recertified.
Stock # 0226-428
