General Electric Circuit Breaker TED134070 480 VAC
General Electric Circuit Breaker TED134070 480 VAC
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
Stock #:

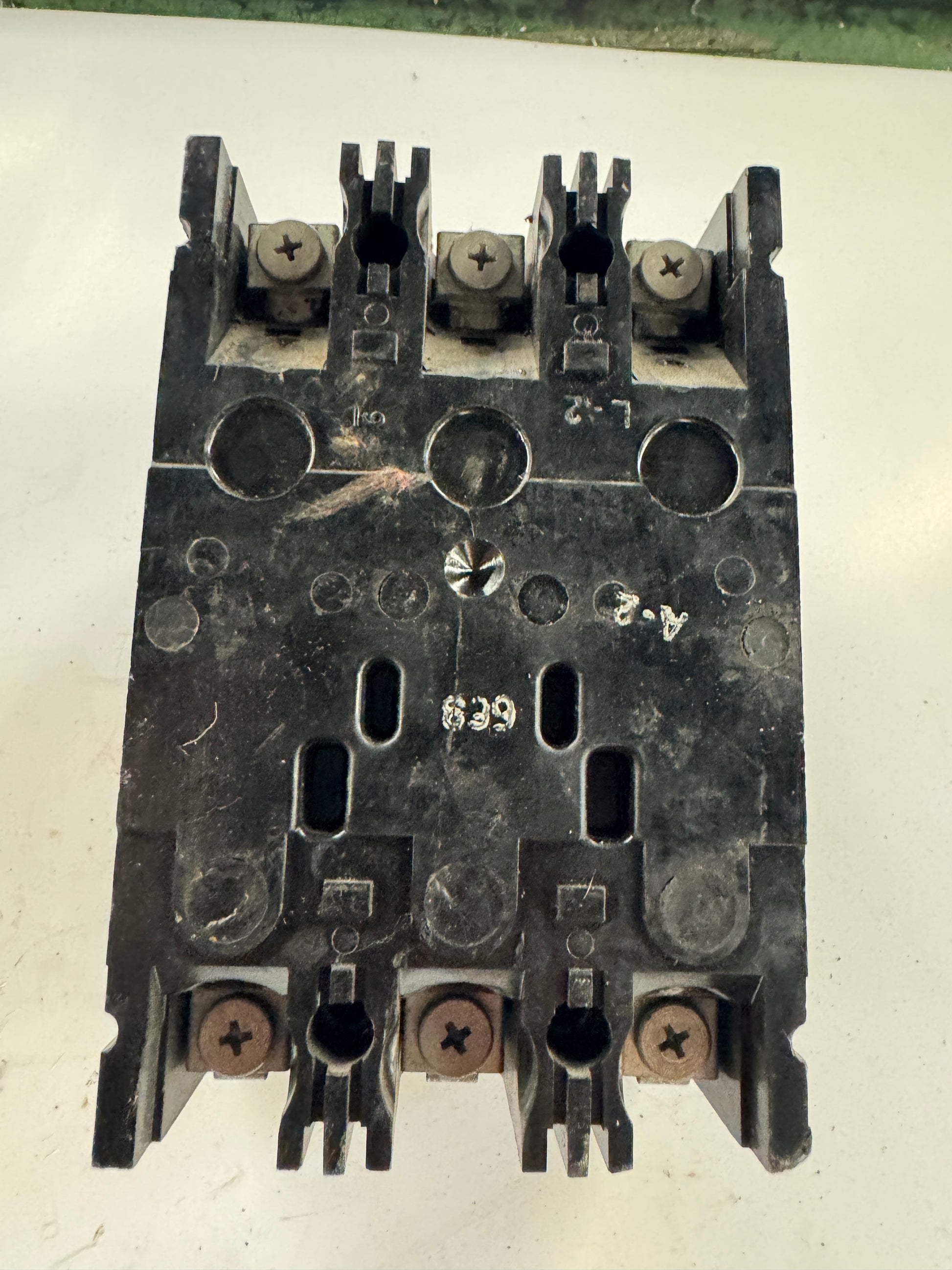

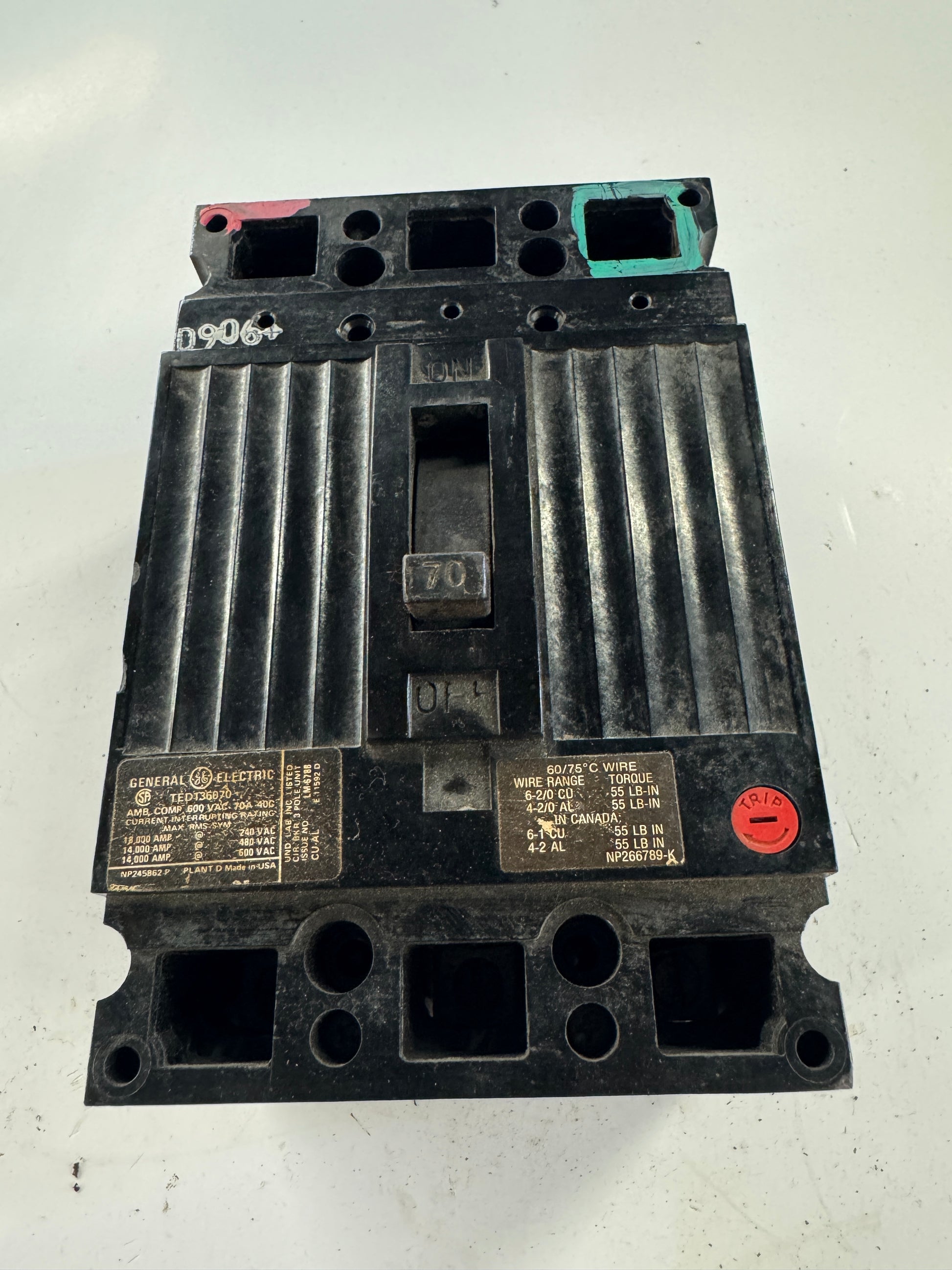

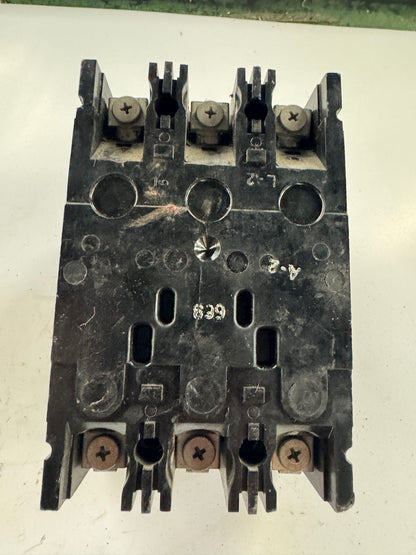

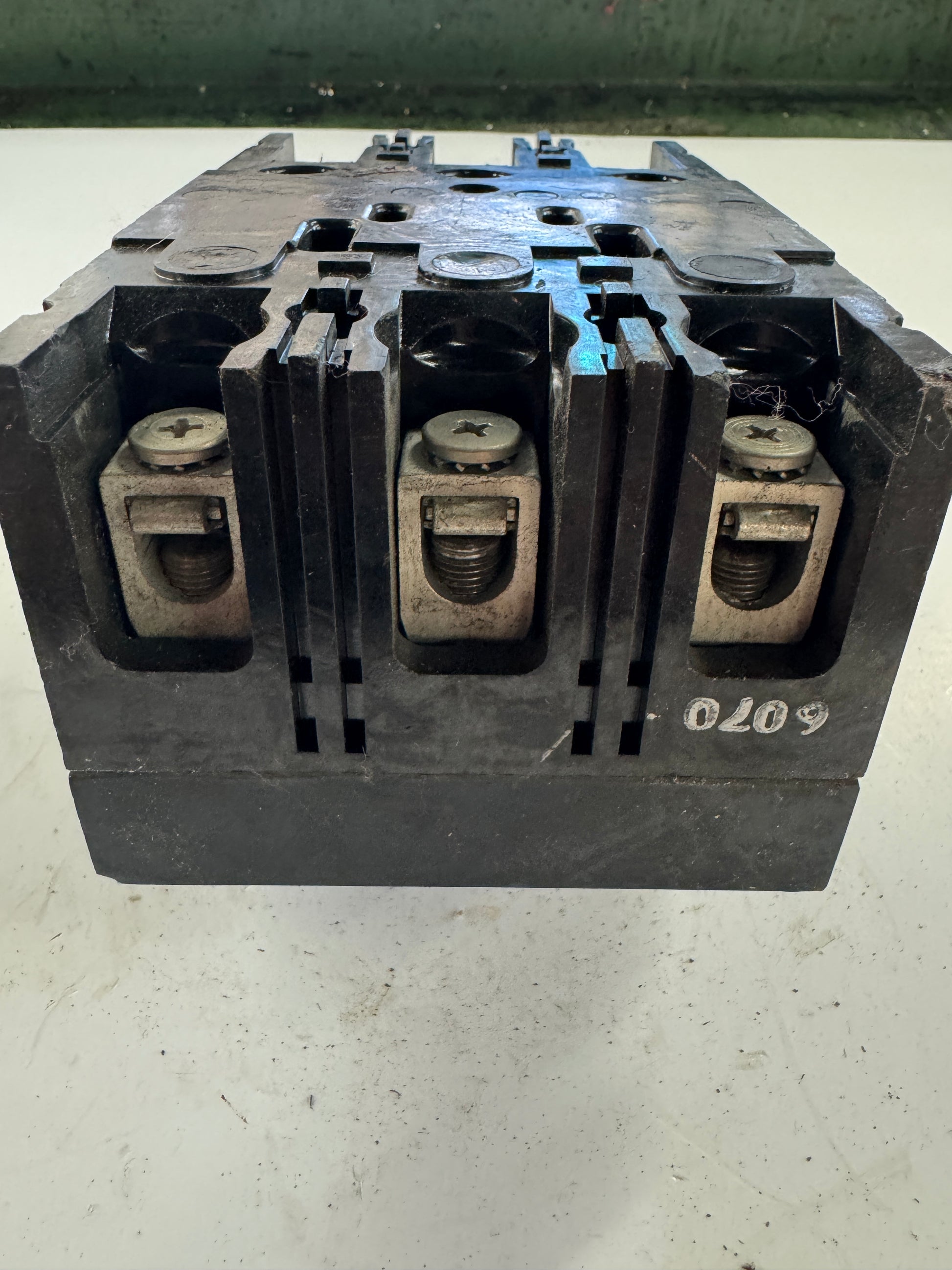

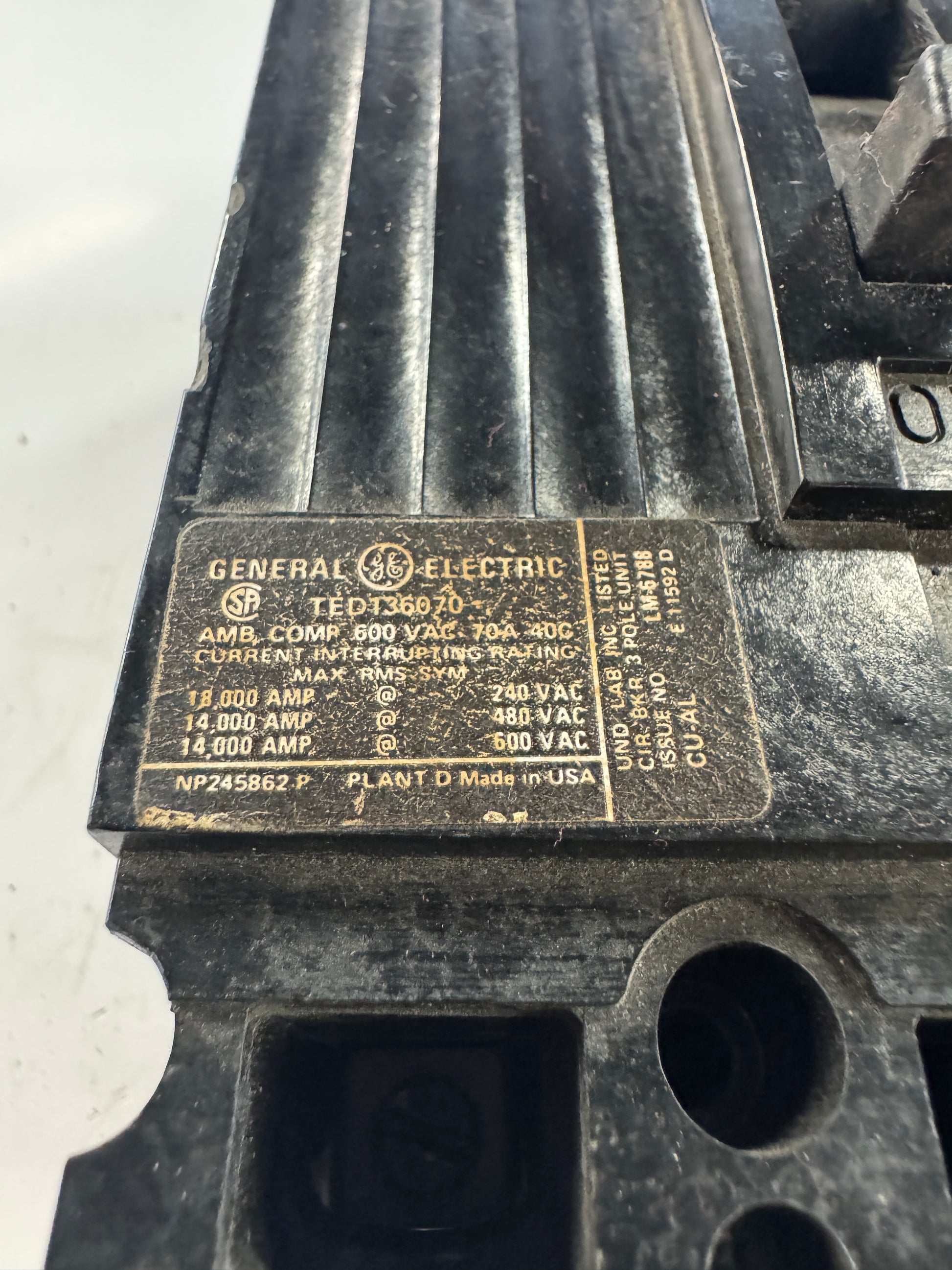

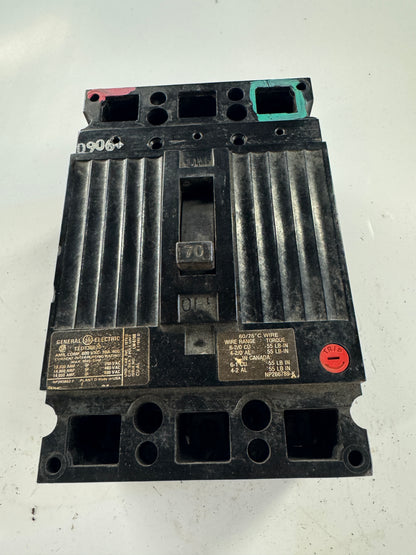

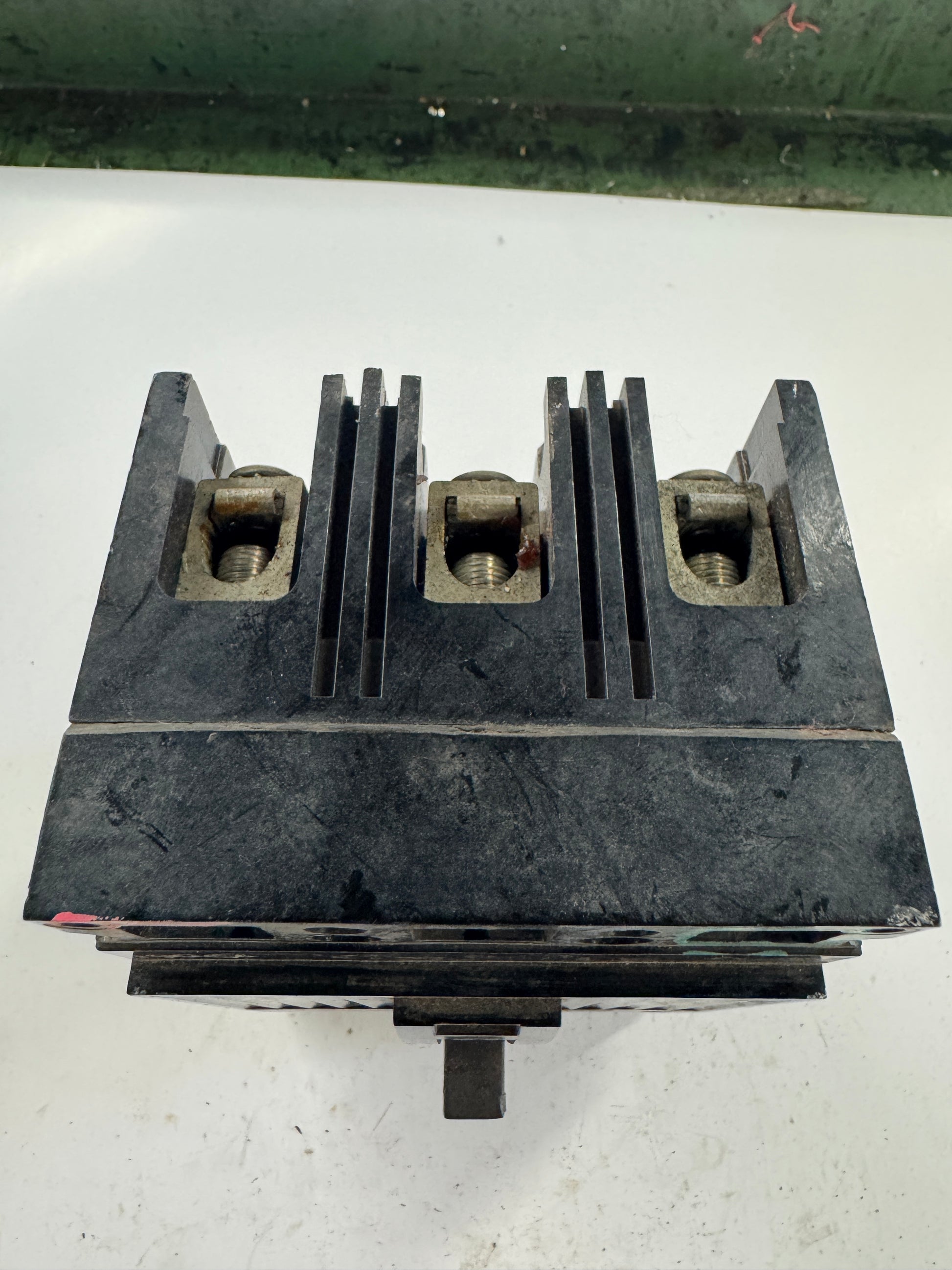

The General Electric TED134070 is a molded case thermal magnetic circuit breaker rated at 70 amps, 600 VAC maximum, 3 pole, 3 phase configuration. It carries an ambient compensation rating of 40 degrees C and a current interrupting rating of 18,000 amps RMS symmetrical at 240 VAC, 14,000 amps at 480 VAC, and 14,000 amps at 600 VAC. The nameplate identifies the unit as GE type TED, E150 line, manufactured in the USA at Plant D. UL listed as a 3-pole circuit breaker unit per file LM-6788, issue E11592D. Wire range accommodates 6-2/0 copper or 6-2/0 aluminum conductors, with a terminal torque rating of 55 lb-in. The load-side terminals accept 6-1 copper or 4-2 aluminum conductors in Canadian configurations. Nameplate serial reference NP245862P. The bolt-on frame is compatible with GE TED-series panelboards and switchboards. This is a used surplus unit offered as removed. No accessories, mounting hardware, or documentation are included unless pictured.
Stock # 0426-02052
