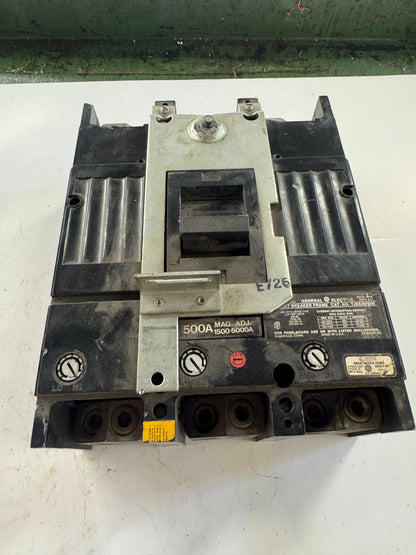

General Electric Circuit Breaker TJK636F000 600V AC
General Electric Circuit Breaker TJK636F000 600V AC
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
Stock #:

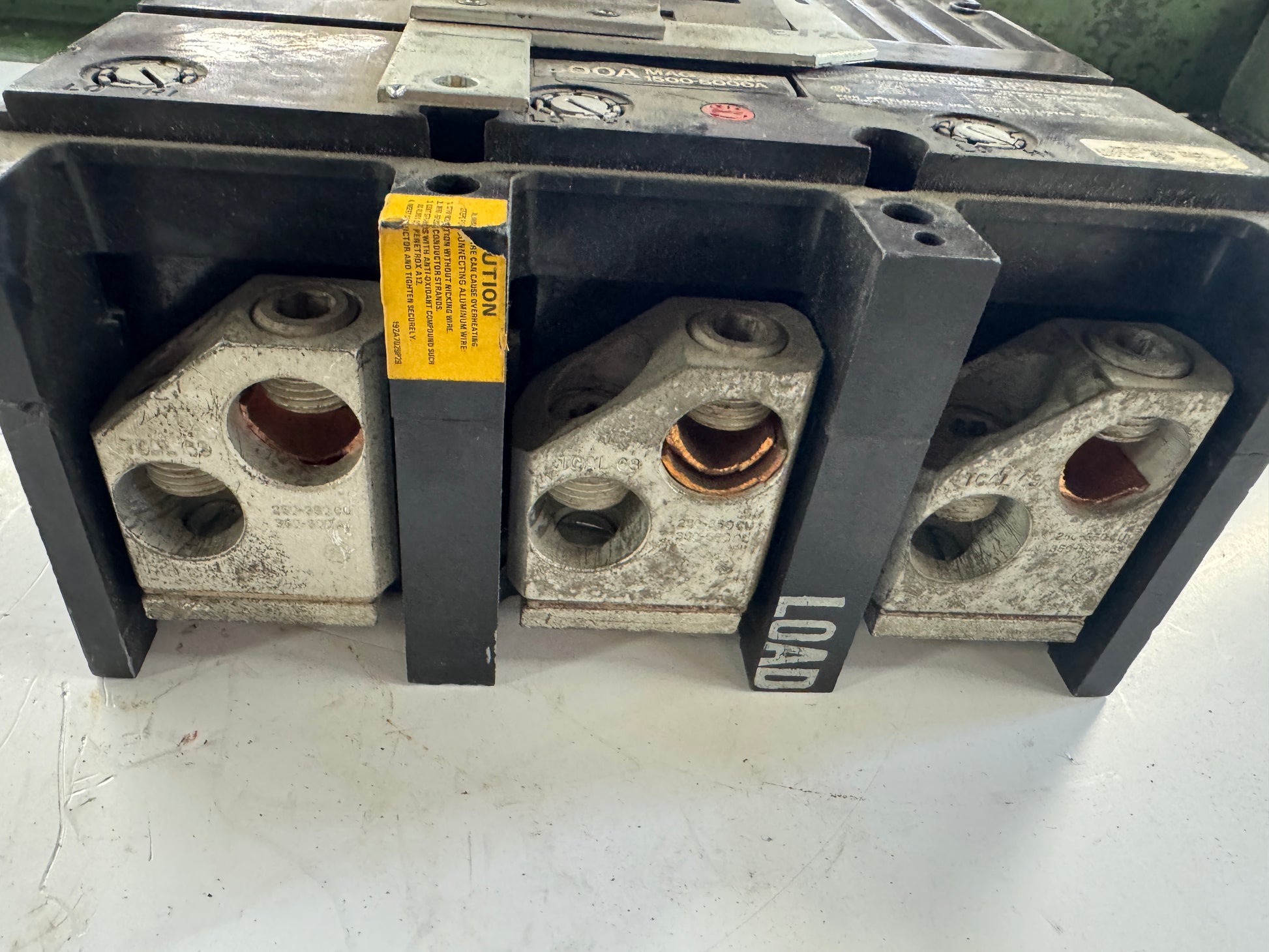

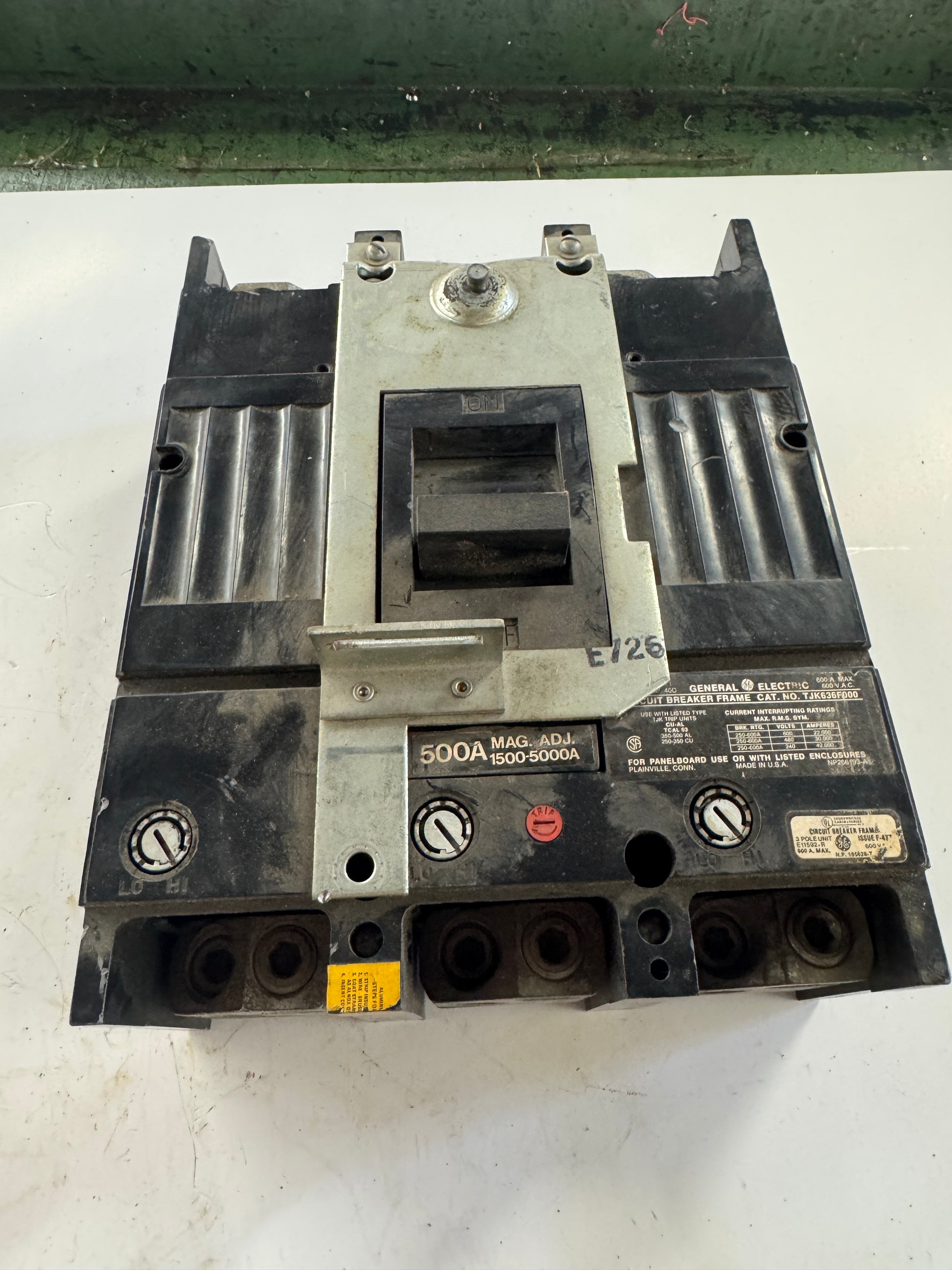

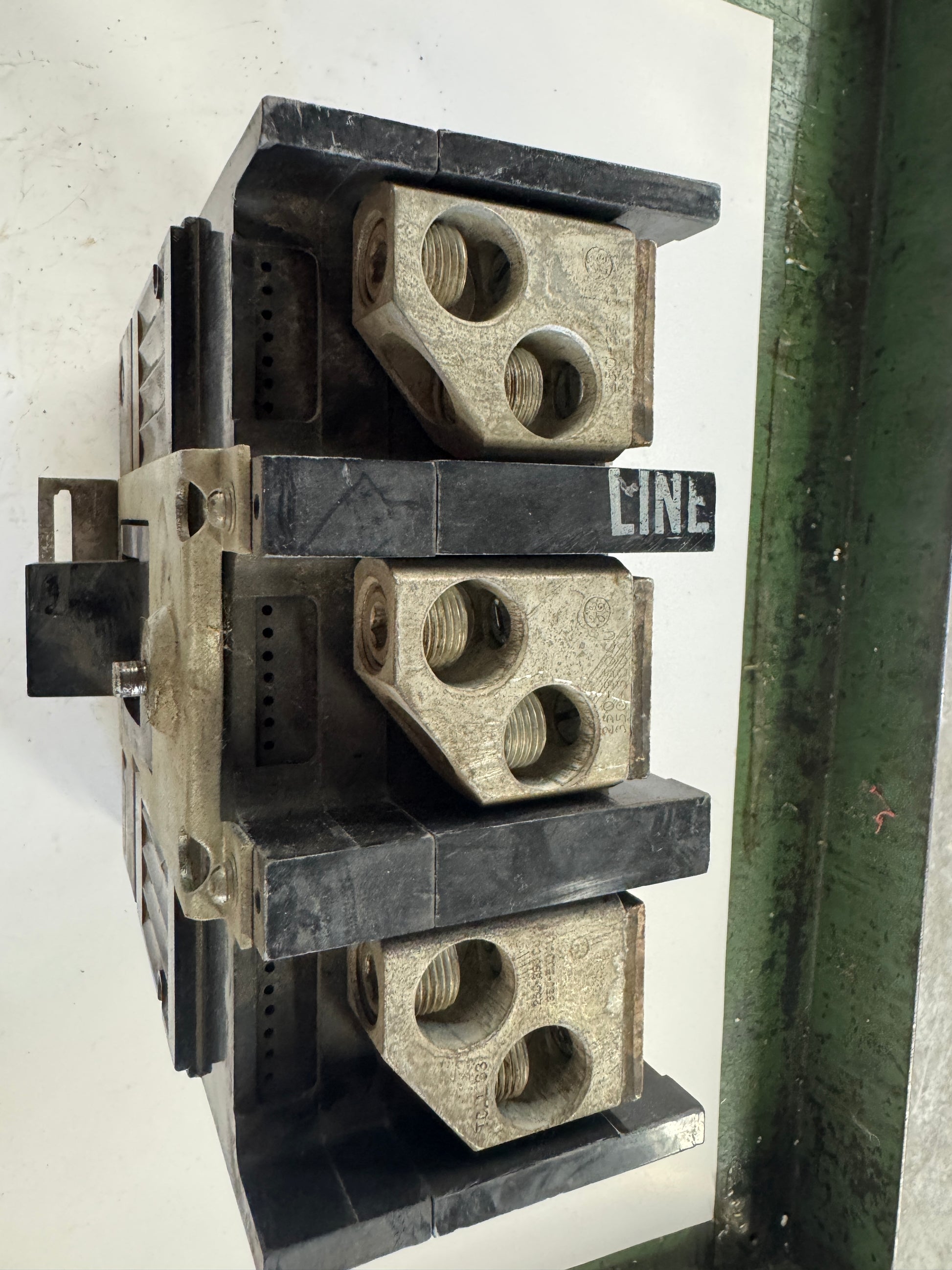

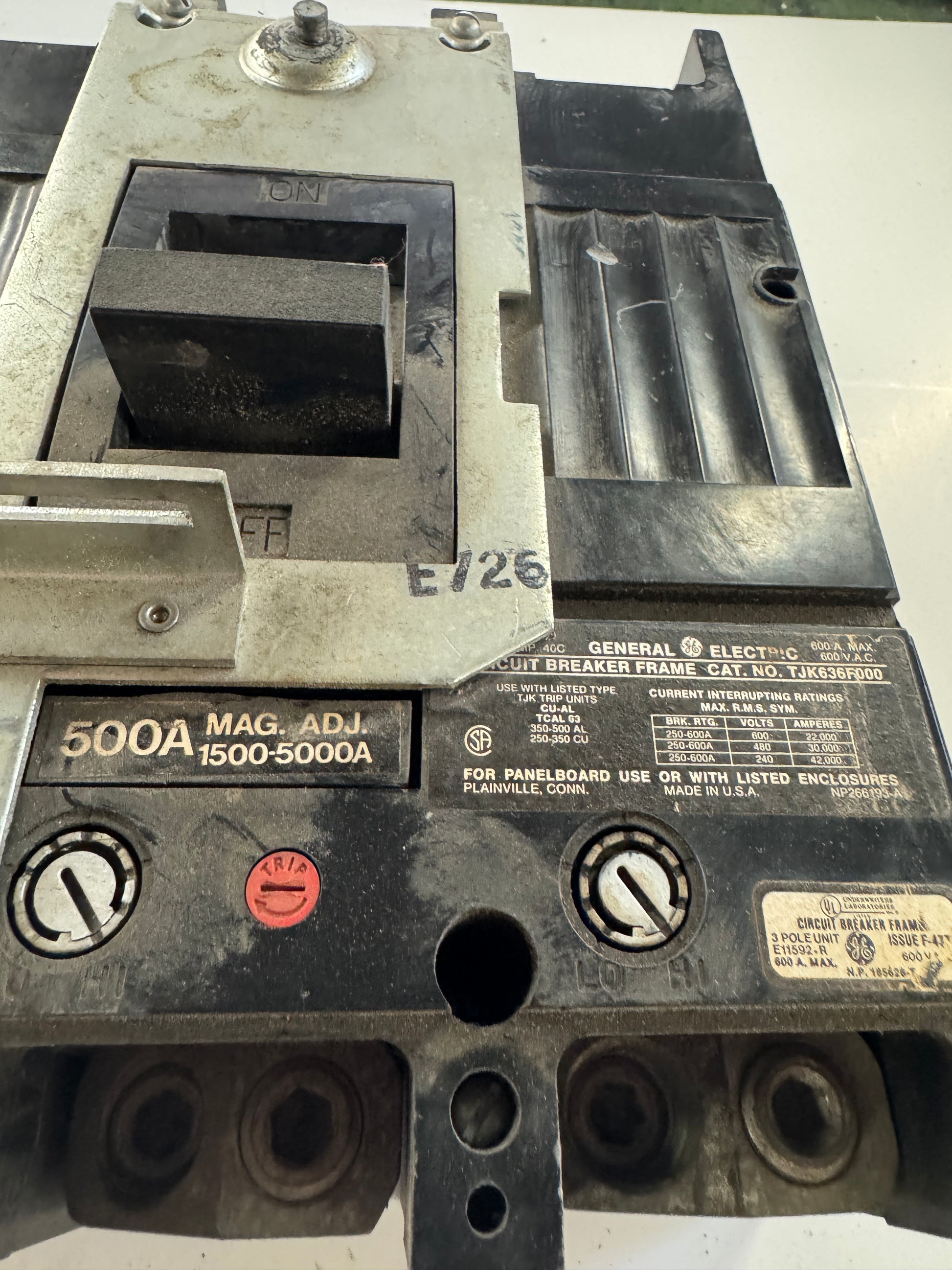

Used in industrial and commercial power distribution systems, the General Electric TJK636F000 is a 600A frame, 3-pole molded case circuit breaker installed with a 500A magnetic-adjustable trip unit. The nameplate confirms Cat. No. TJK636F000, manufactured in Plainville, Connecticut, with a trip setting labeled 500A Mag. Adj. 1500-5000A. Voltage rating is 600V AC maximum. Current interrupting ratings per nameplate are 22,000A RMS symmetrical at 600V, 30,000A at 480V, and 42,000A at 240V. The breaker is listed for use with Type TJK trip units; acceptable conductor types include copper-aluminum per the TCAL 63 lug markings visible on the load-side terminals. Wire range on the load-side lugs indicates 250-500KCMIL CU and 350-500KCMIL AL. The unit is a 3-pole bolt-on style with line and load terminations clearly labeled. An internal marker reads E126, which appears to be an installation or equipment reference. The trip indicator button is visible and red, consistent with a tripped or as-removed condition. Frame size and configuration are consistent with Type TJK J600-frame construction as referenced in GE literature. UL and CSA listed. Dimensions per published GE specification: 8-1/4 in. W x 3-13/16 in. D x 10-1/8 in. H.
Stock # 0426-02058
