General Electric Molded Case Circuit Breaker TED113030 277 VAC / 125 VDC
General Electric Molded Case Circuit Breaker TED113030 277 VAC / 125 VDC
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
MPN: TED113030
Stock #: 0226-00343

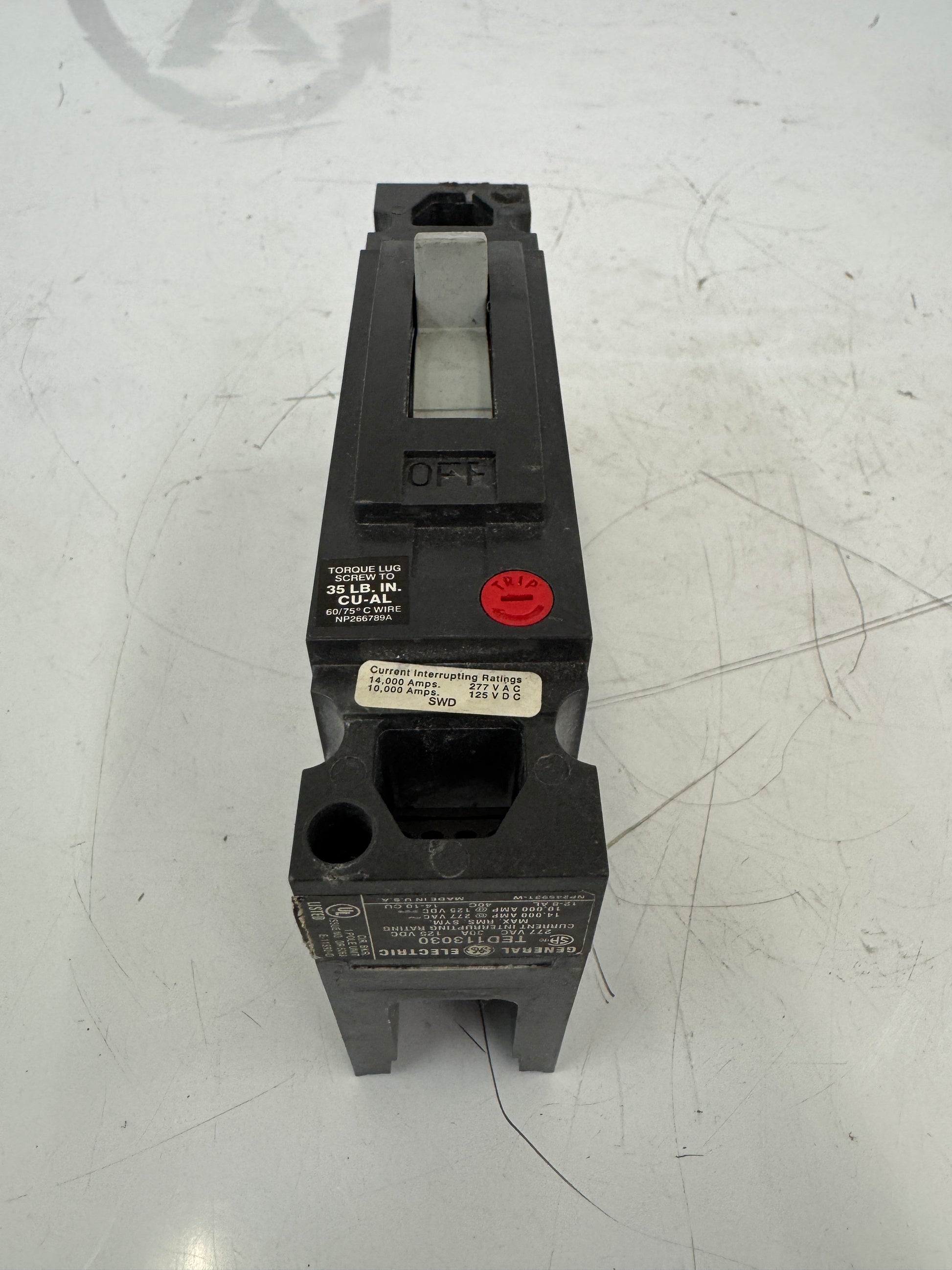

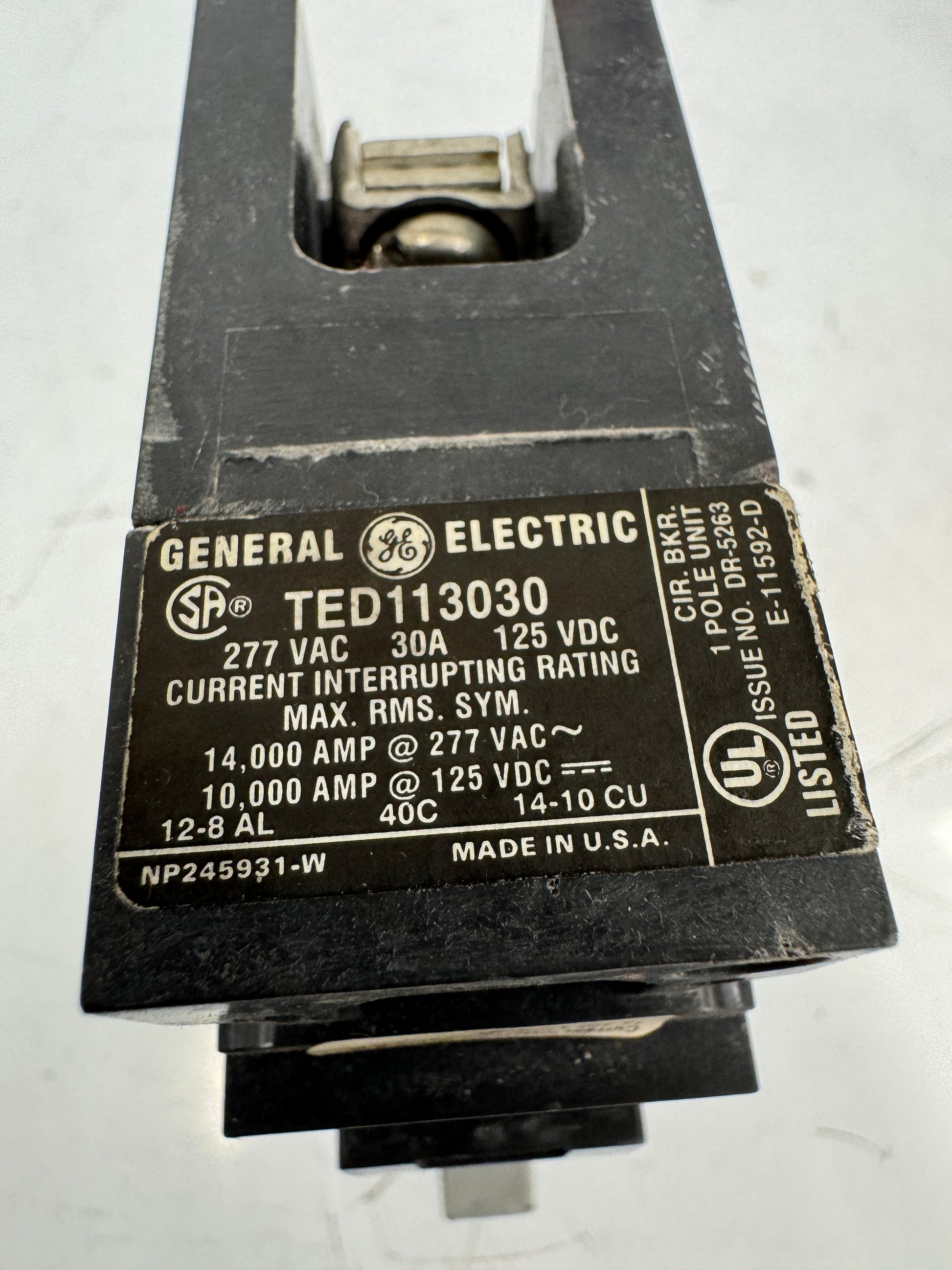

The General Electric TED113030 is a Type TED thermal magnetic molded case circuit breaker rated at 30 amperes and 277 VAC, with an additional DC rating of 125 VDC. It is a 1-pole, single-phase bolt-on unit belonging to GE's E150 line. The interrupting capacity is 14,000 amperes RMS symmetrical at 277 VAC and 10,000 amperes at 125 VDC. The SWD (Switching Duty) rating is confirmed on the nameplate label, making this unit suitable for lighting circuit switching applications in addition to standard branch circuit protection. Wire range is 12 to 8 AWG aluminum and 14 to 10 AWG copper, rated for 40 degrees Celsius ambient operation. Torque specification for the lug screw is 35 lb-in. The breaker is constructed with a fixed thermal magnetic trip mechanism providing both long-time overload and instantaneous short-circuit protection. The unit is UL Listed under file E-11592-D and carries CSA certification. It is manufactured in the USA. MPN TED113030 is widely referenced in the US industrial and MRO market for branch circuit protection in lighting panels, motor branch circuits, and general distribution applications. Physical dimensions are approximately 1 3/8 in. wide by 3 3/8 in. deep by 6 5/16 in. tall.
Stock # 0226-343
