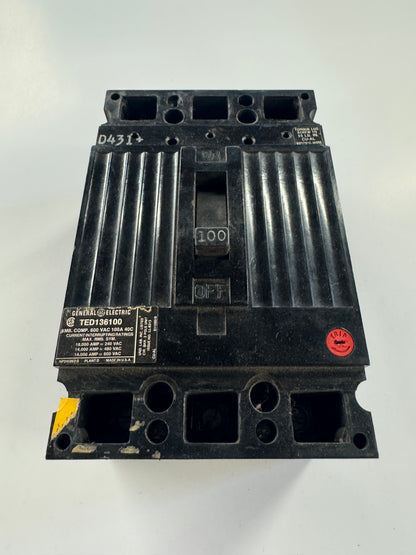

General Electric Molded Case Circuit Breaker TED136100 600V

$79.00 USD

Sale Sold out

U.S. shipping, securely packaged. Ships in 1-2 Days
Questions? Real support team available before purchase
Secure checkout with trusted payment methods

Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.

Stock #:

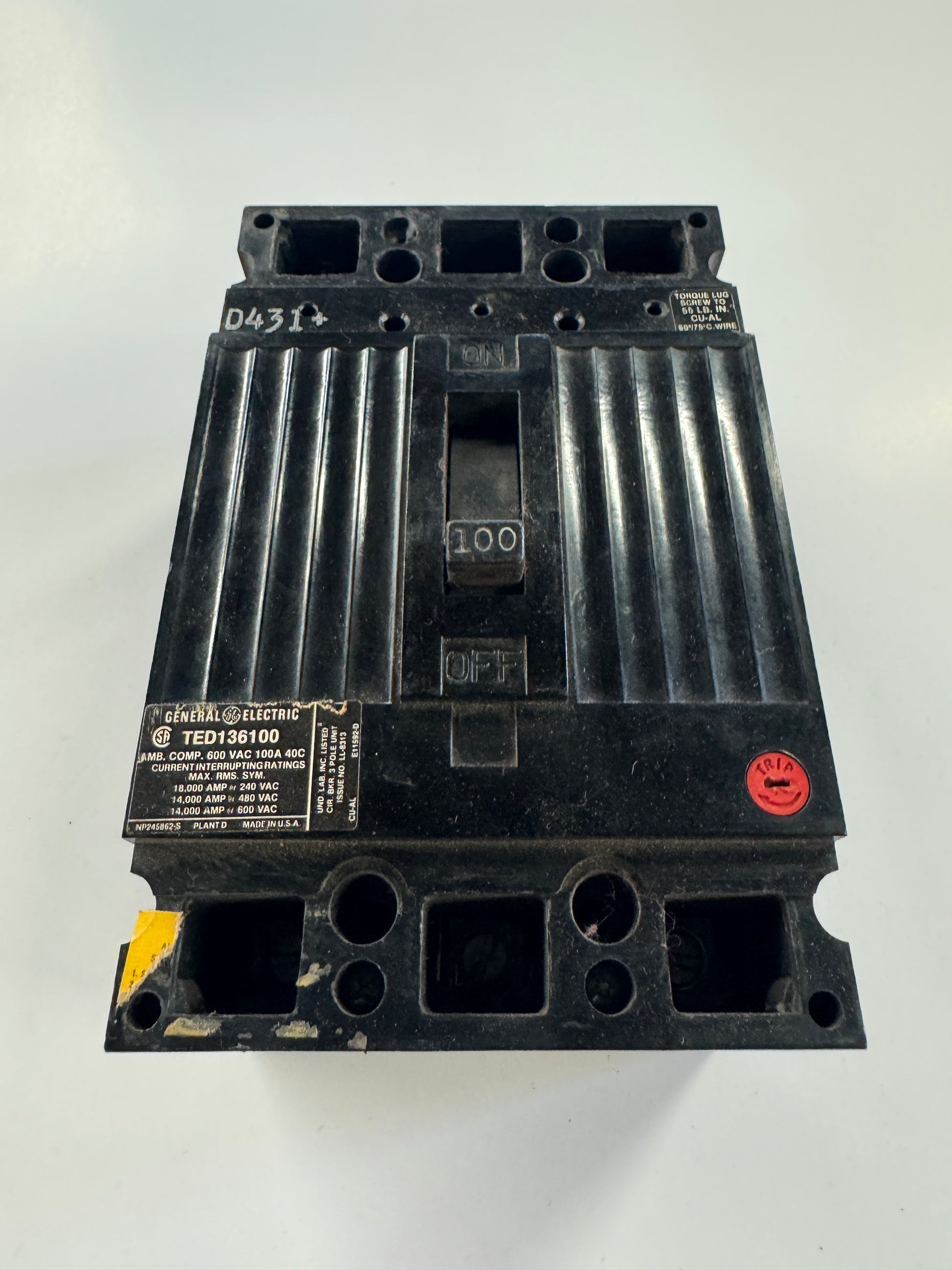

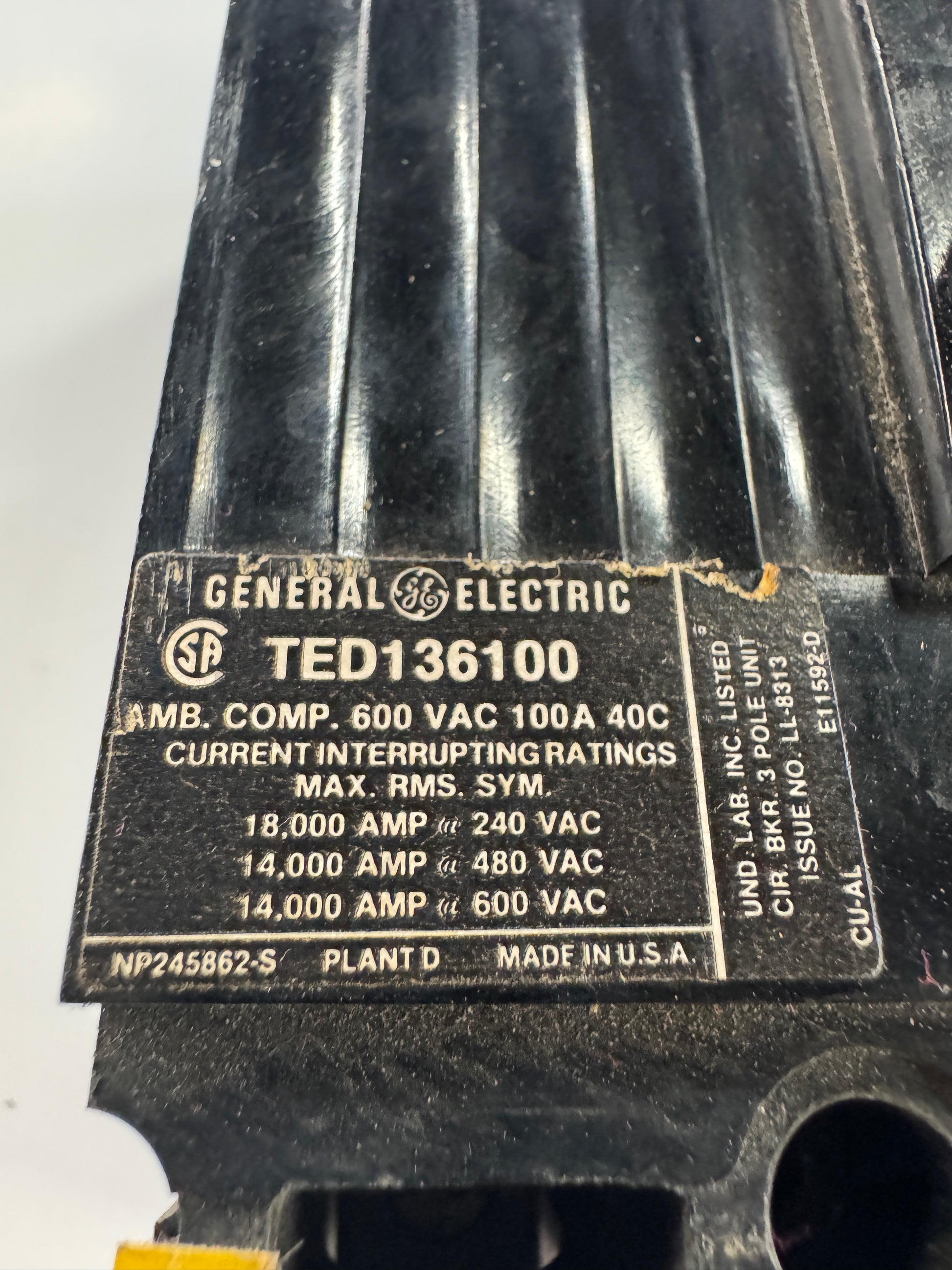

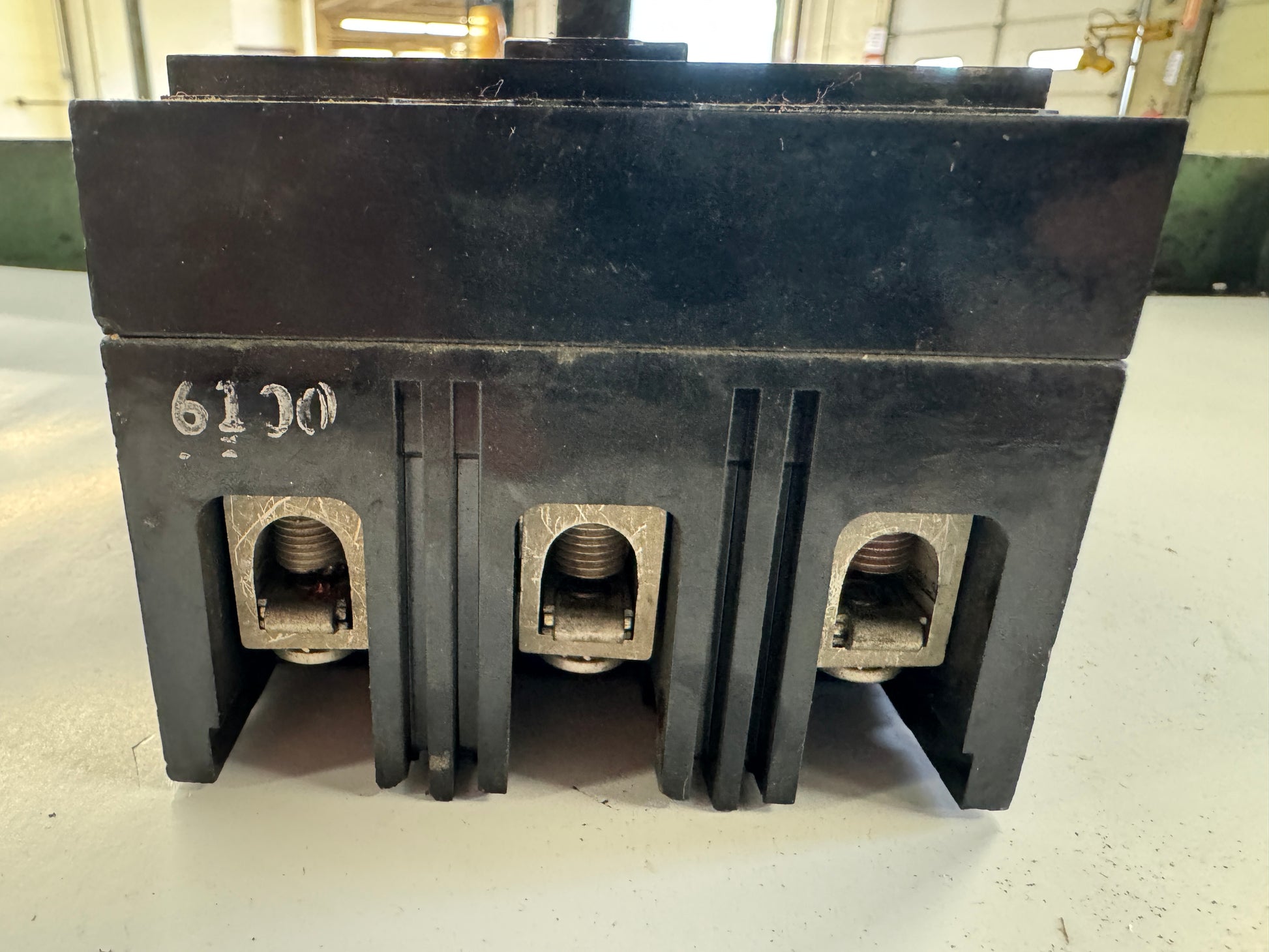

A molded case circuit breaker from General Electric, the TED136100 is a 3-pole, 100-amp unit rated for 600 VAC and 250 VDC service. The nameplate identifies it as ambient compensated at 40 degrees C with a current interrupting rating of 18,000 amps RMS symmetrical at 240 VAC, 14,000 amps at 480 VAC, and 14,000 amps at 600 VAC. Manufactured in the USA, it carries UL listing (issue no. E11592-D) and CSA certification. The unit is rated for copper or aluminum conductors (CU-AL) and is designated as a 3-pole circuit breaker unit per the nameplate. It is part of the GE TED series, designed for use in industrial power distribution applications including motor control centers, switchgear assemblies, and panelboard installations. The TED series is compatible with GE A-Series and Spectra Series panelboards. The single-toggle mechanism provides On/Off/Trip indication. This breaker incorporates a quick-make, quick-break mechanism standard to the TED series. The manufacturing batch reference visible on the body is NP245862-S, Plant D. The numeral "6130" is marked on the frame, consistent with an internal manufacturing or date reference. MPN TED136100 is the OEM market-recognized part number for this assembly.

Stock # 0426-02048
