General Electric Molded Case Circuit Breaker TFJ236175 600V AC / 250V DC
General Electric Molded Case Circuit Breaker TFJ236175 600V AC / 250V DC
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
Stock #:

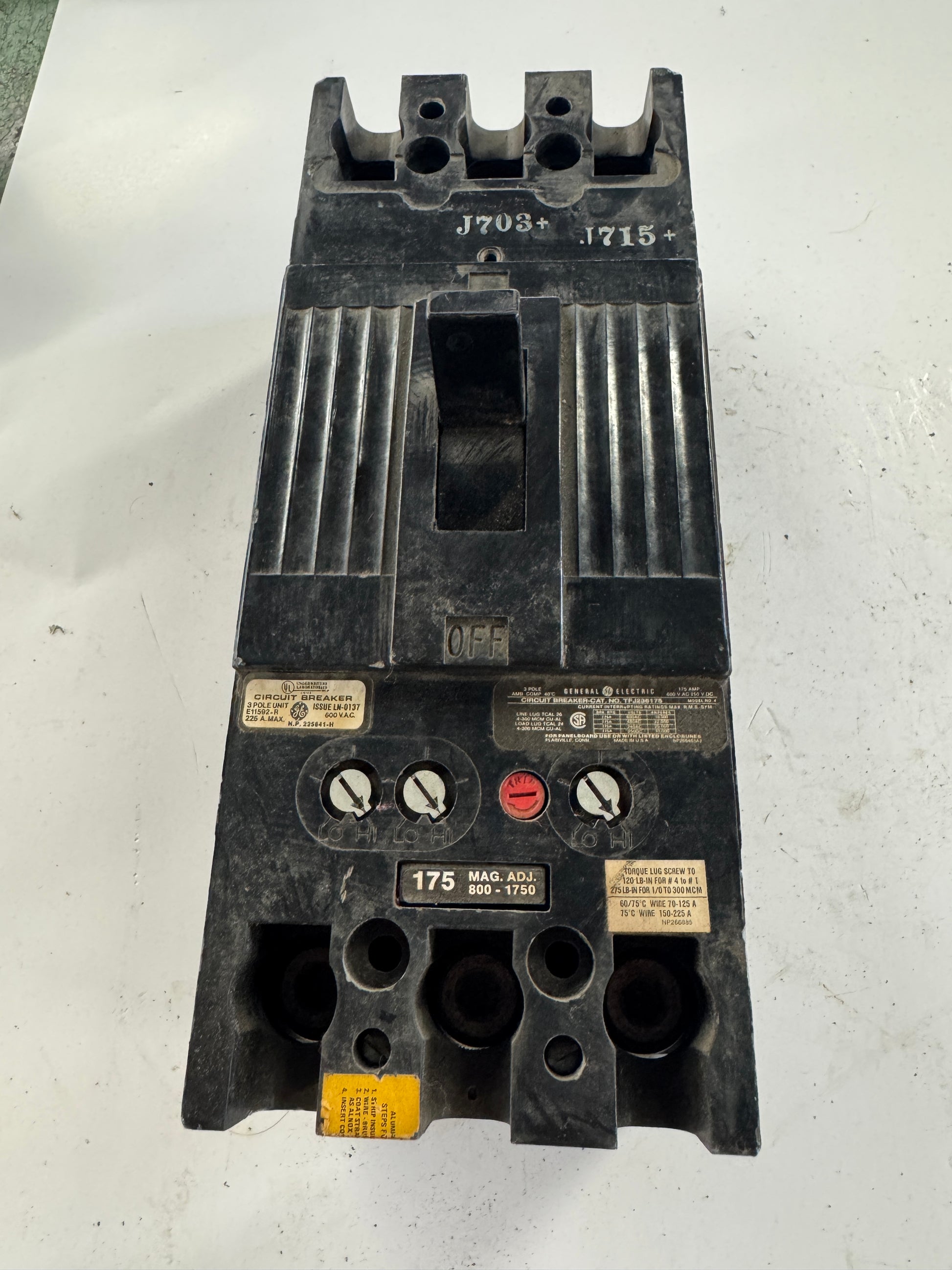

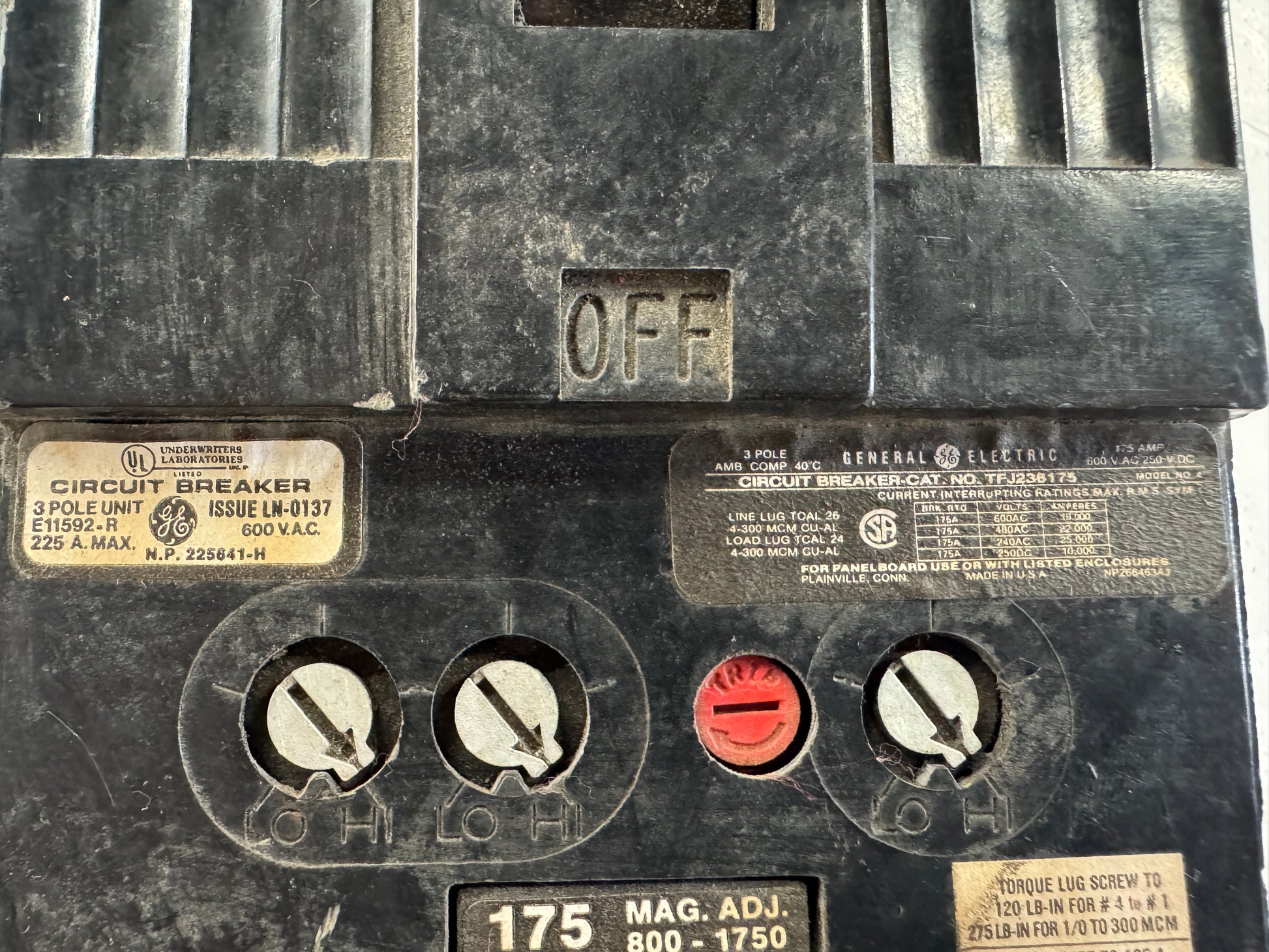

Used in industrial panelboards and switchgear applications requiring robust overcurrent protection, the General Electric TFJ236175 is a 3-pole molded case circuit breaker rated 175 amperes at 600V AC and 250V DC. Catalog number TFJ236175 is confirmed on the nameplate along with Issue LN-0137, UL File E11592-R, and N.P. 225641-H. The breaker carries a 225A maximum frame rating with a 175A trip setting. Magnetic adjustment is set in the 800 to 1750 range, as indicated on the front label. Current interrupting ratings per the nameplate include 22,000 amperes symmetrical at 480V AC and 25,000 amperes symmetrical at 240V AC.

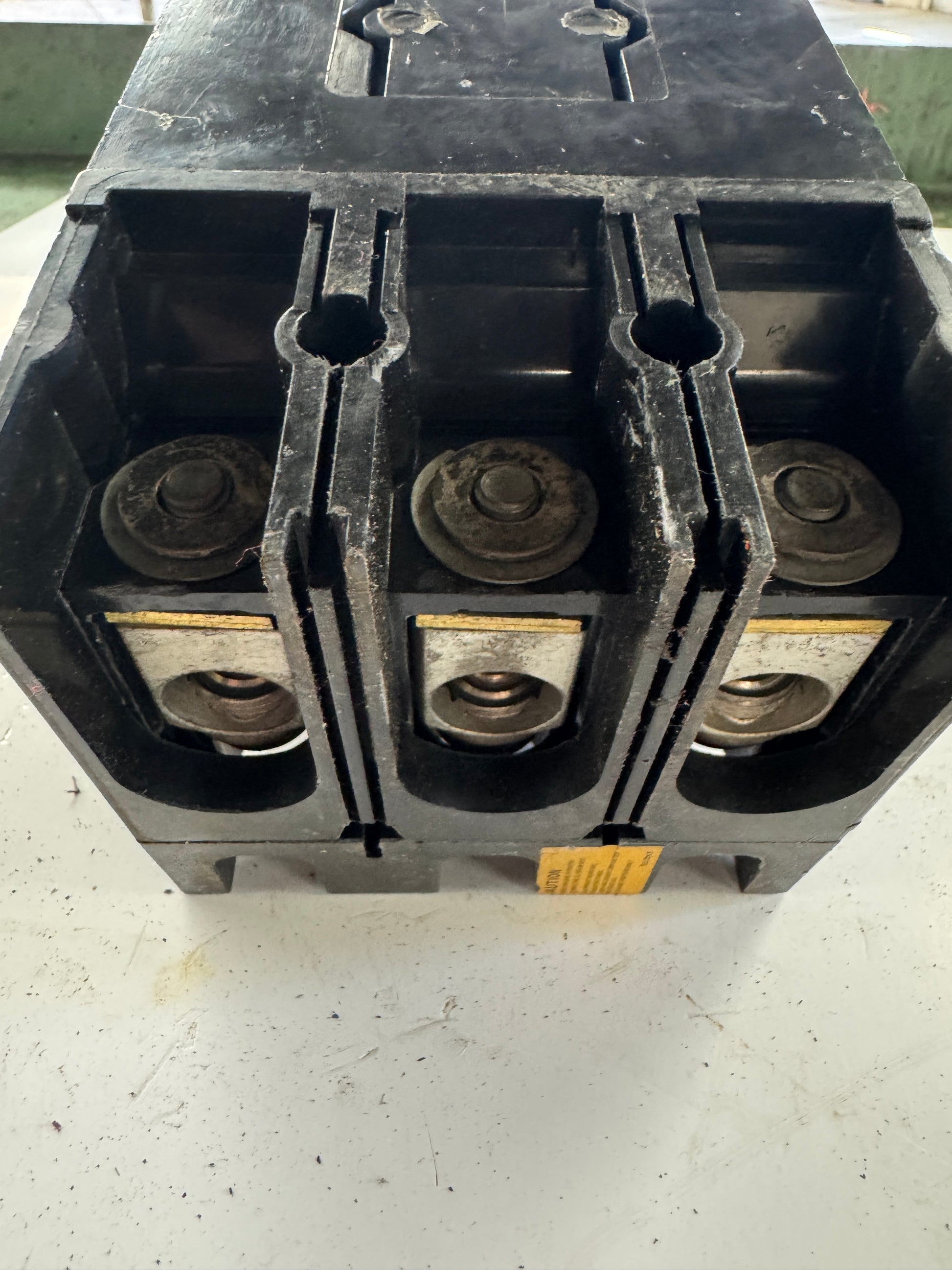

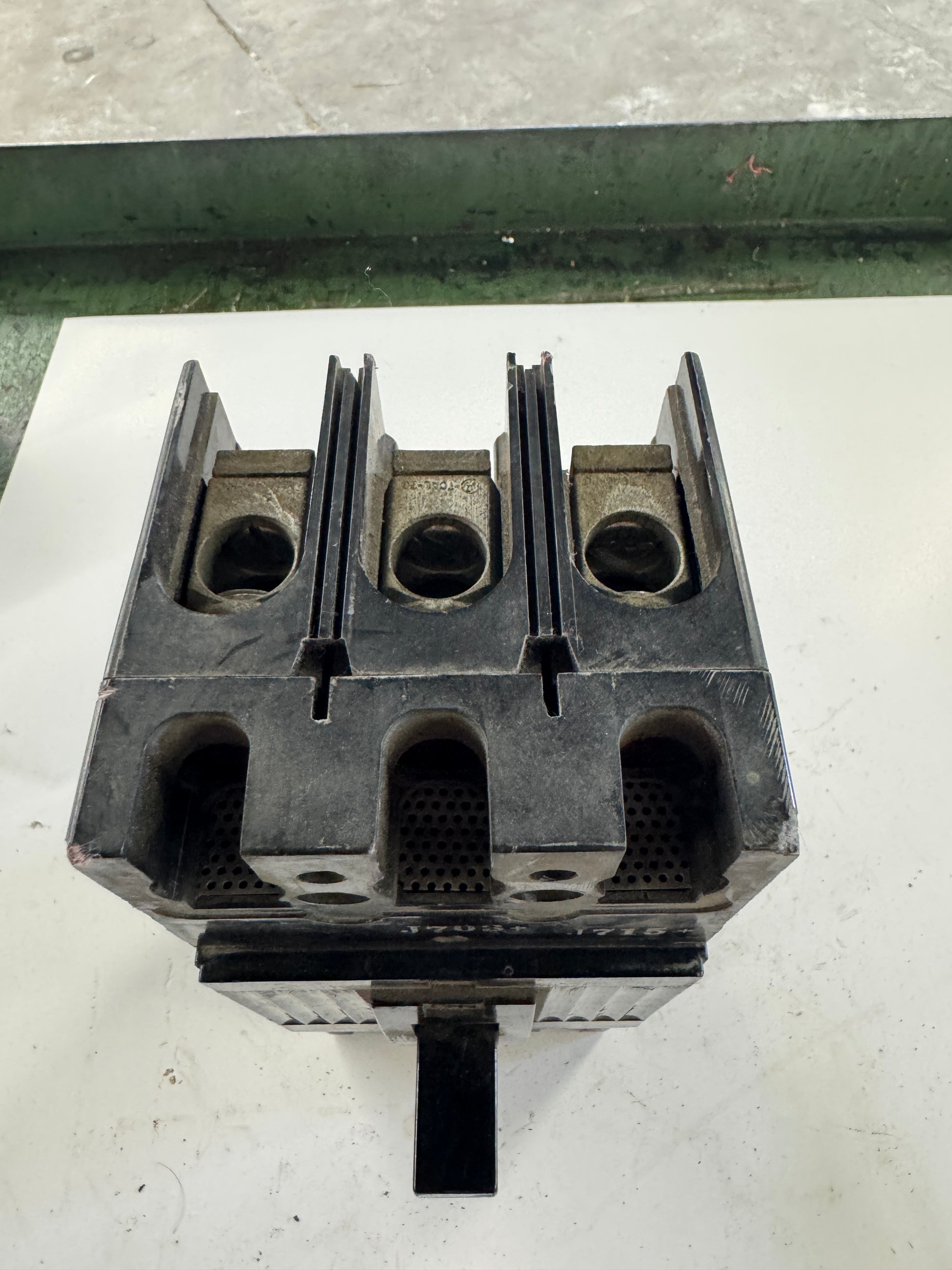

The unit is a 3-pole bolt-on type configured for panelboard use or installation with listed enclosures, manufactured in Plainville, Connecticut. Lug terminations accommodate conductors from 4 AWG to 300 MCM on the line side and the same range on the load side. The front face includes three adjustable trip elements with LO/HI selectors and a test button. Date codes J703 and J715 are visible on the molded case body. This item is offered as removed surplus and is listed individually.
Stock # 0426-02054
