General Electric TFJ236175 Molded Case Circuit Breaker 600V AC / 250V DC

$179.00 USD

Sale Sold out

ConditionSurplus - Untested MPNTFJ236175 Stock #0426-02055

Photos reflect current condition. Items differing from description may be eligible for return or refund — see our condition guide.

Shipping Estimate

Estimated package weight: 15.0 lbs

Select your state above for a shipping estimate.

U.S. shipping, securely packaged. Ships in 1-2 Days
Questions? Real support team available before purchase
Secure checkout with trusted payment methods

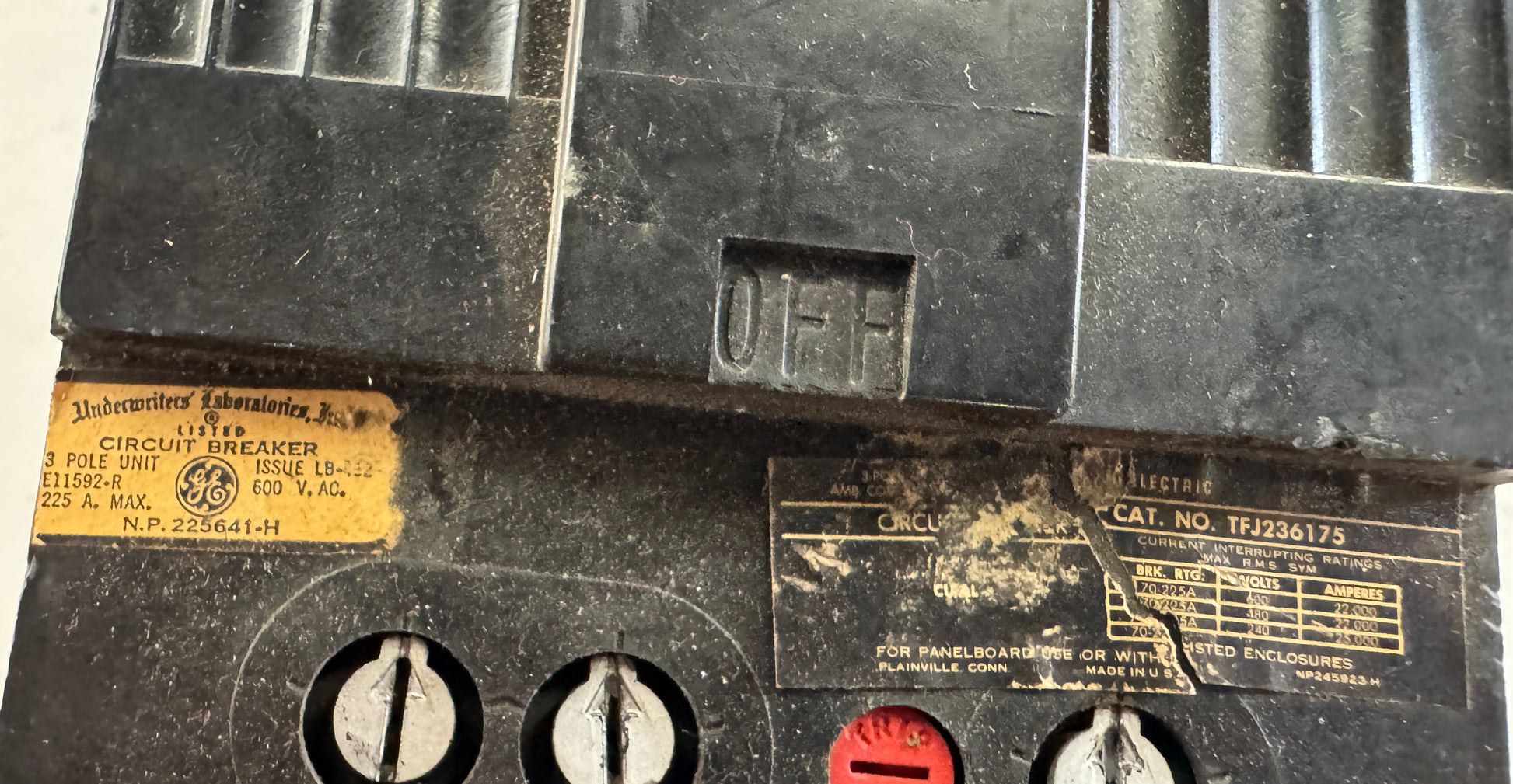

The General Electric TFJ236175 is a 3-pole molded case circuit breaker rated at 175 amps and 600 volts AC. Catalog number TFJ236175 is confirmed on the nameplate label, along with UL listing under Underwriters Laboratories Issue LB-452, frame reference E11592-R, and nameplate number NP.225641-H. The breaker is identified as a 3-pole unit with a 225A maximum frame rating operating at 600V AC.

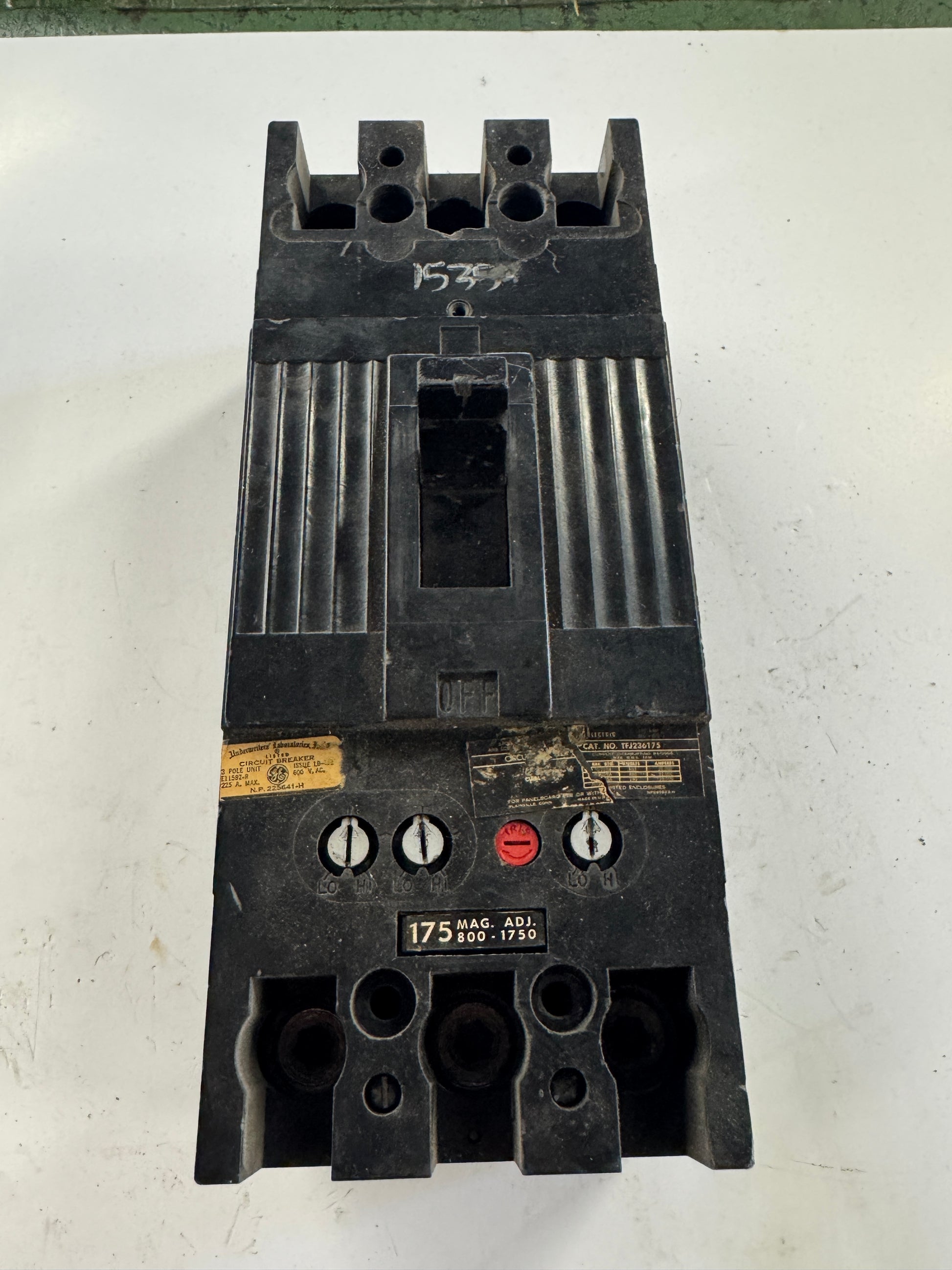

The front face displays a 175 MAG. ADJ. label showing a magnetic trip adjustment range of 800 to 1750, indicating this is an adjustable magnetic-only (instantaneous-only) trip configuration. Individual low and high magnetic adjustment dials are visible on each pole position, along with a red trip indicator button. The unit mounts bolt-on style and is suited for panelboard use or listed enclosures, as noted on the rating label. Manufactured in Plainville, Connecticut.

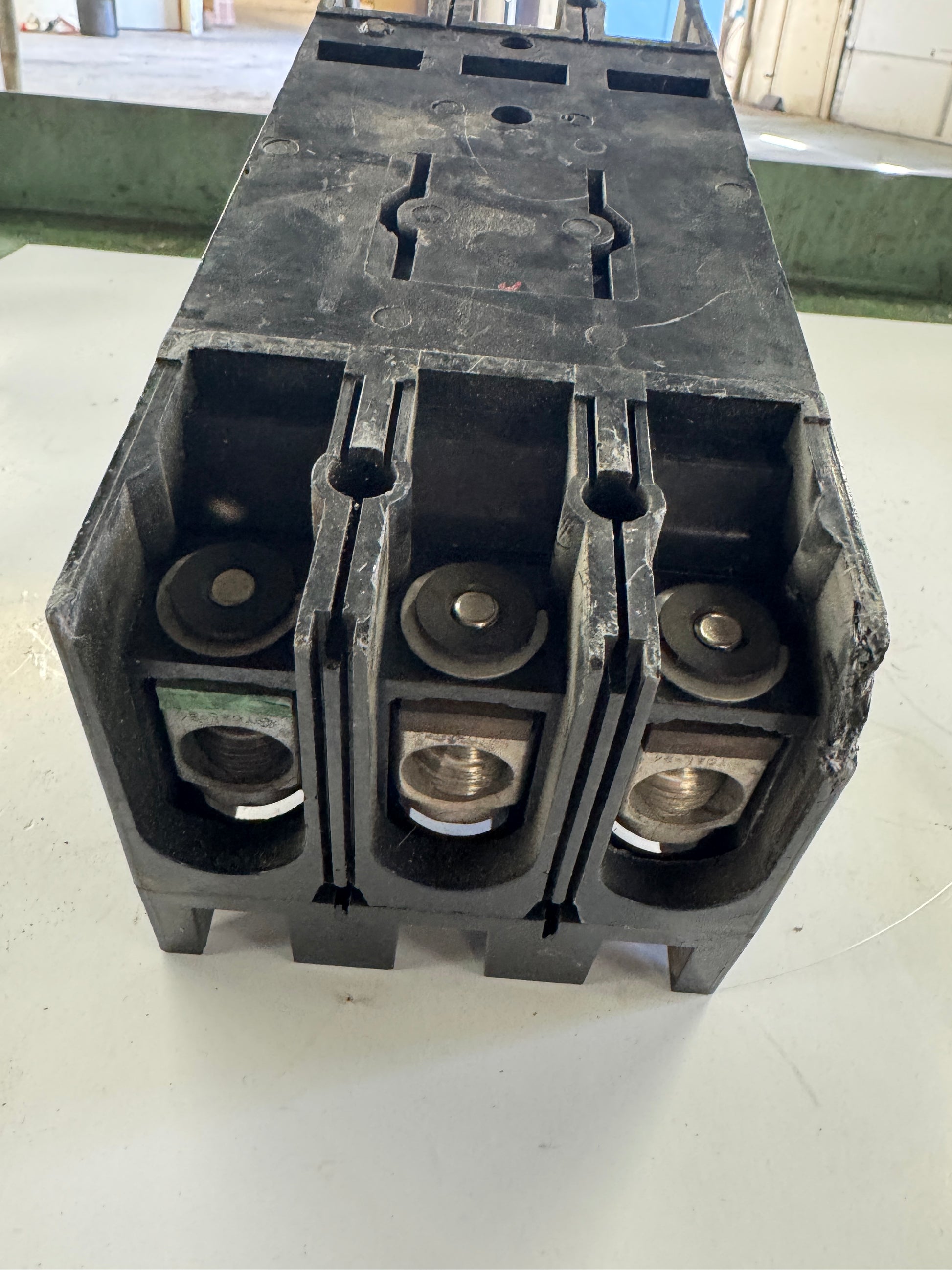

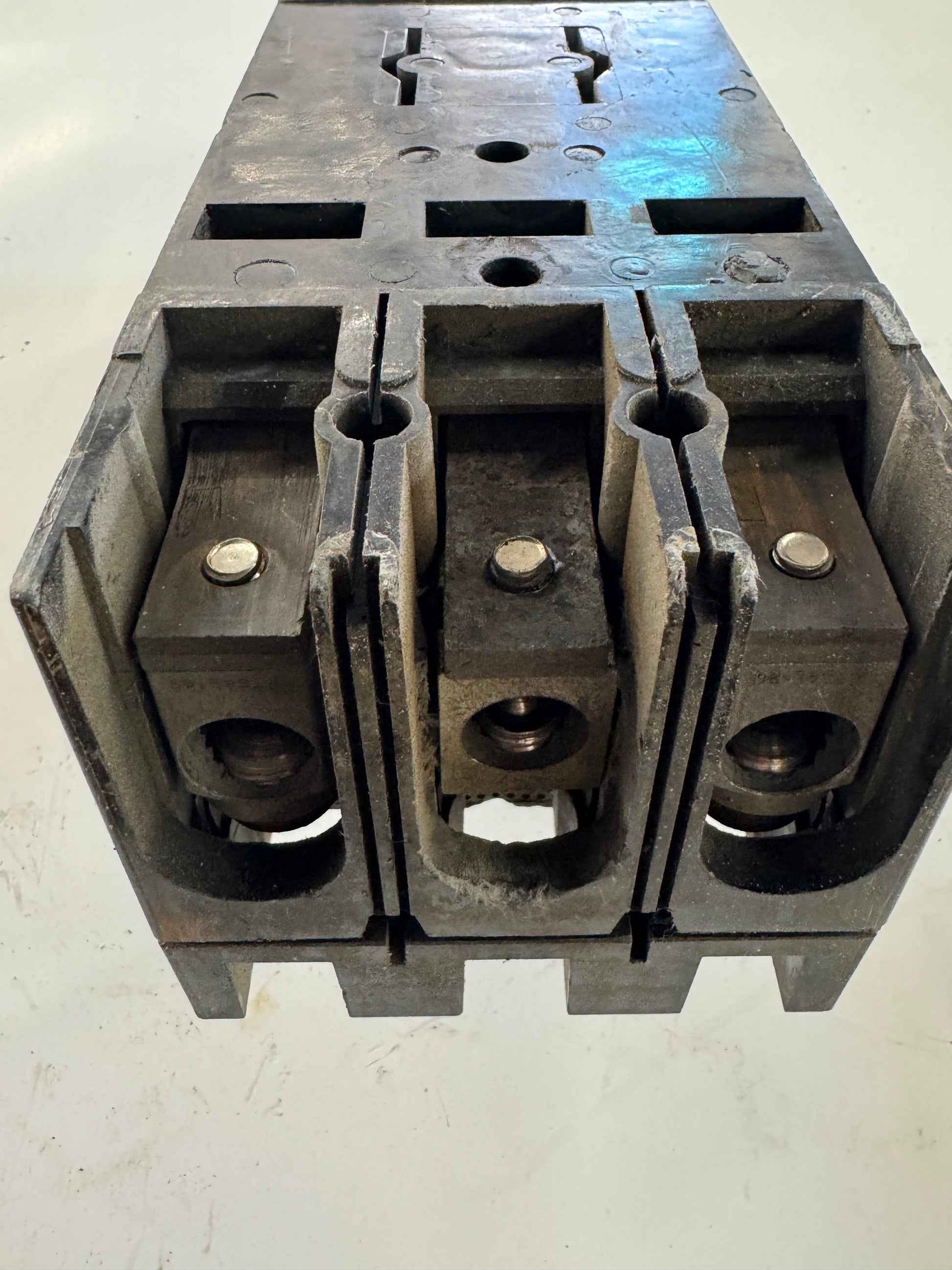

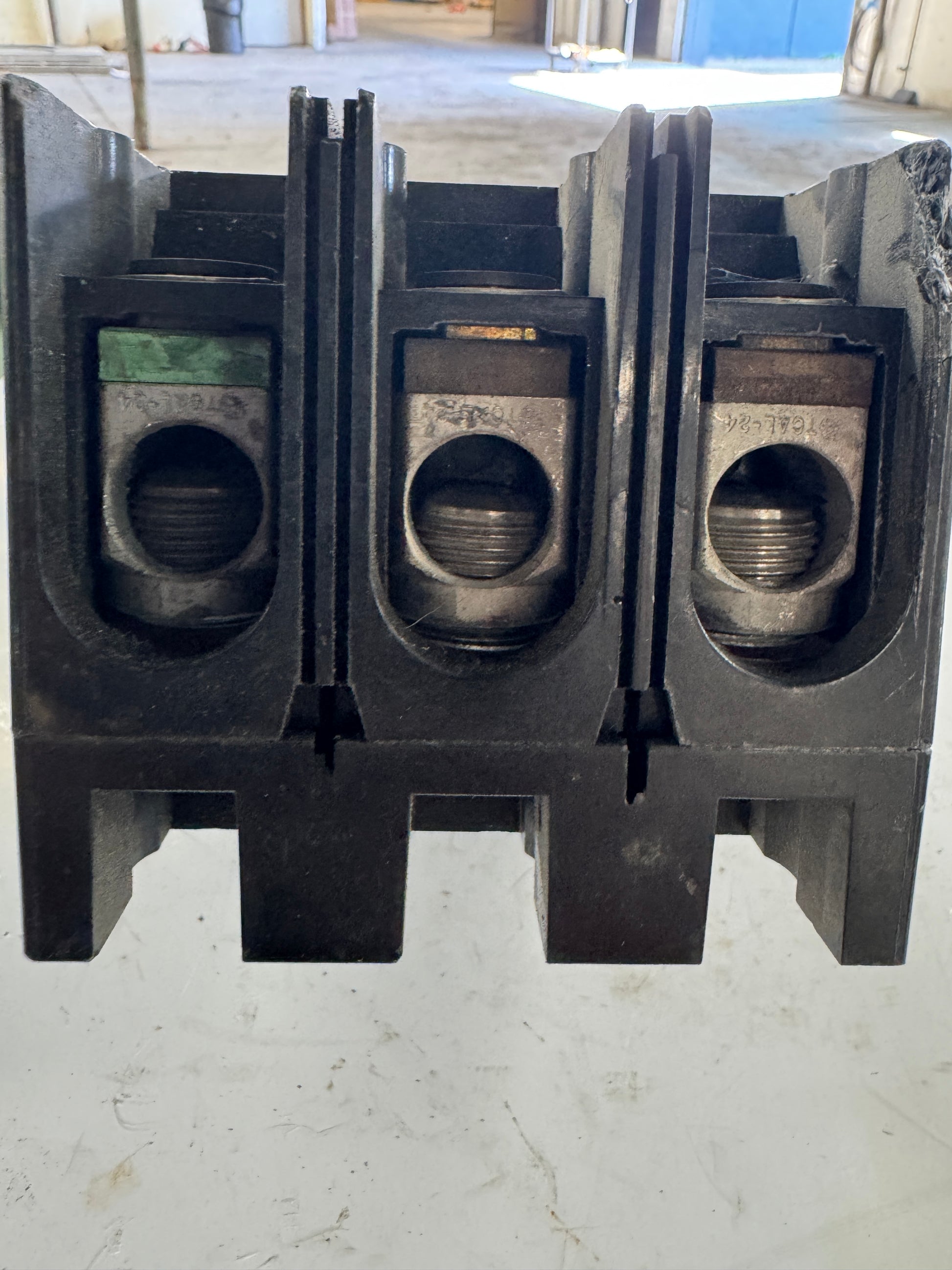

Interrupting ratings from the nameplate show 22,000 amps RMS symmetrical at 480V and 380V, and 25,000 amps symmetrical at 240V. Terminal lugs are present at both the line and load sides. The TFJ series is a legacy GE molded case breaker used in industrial panelboards, motor control centers, and feeder applications requiring 600V three-phase overcurrent protection with field-adjustable instantaneous trip settings.

Stock # 0426-02055
