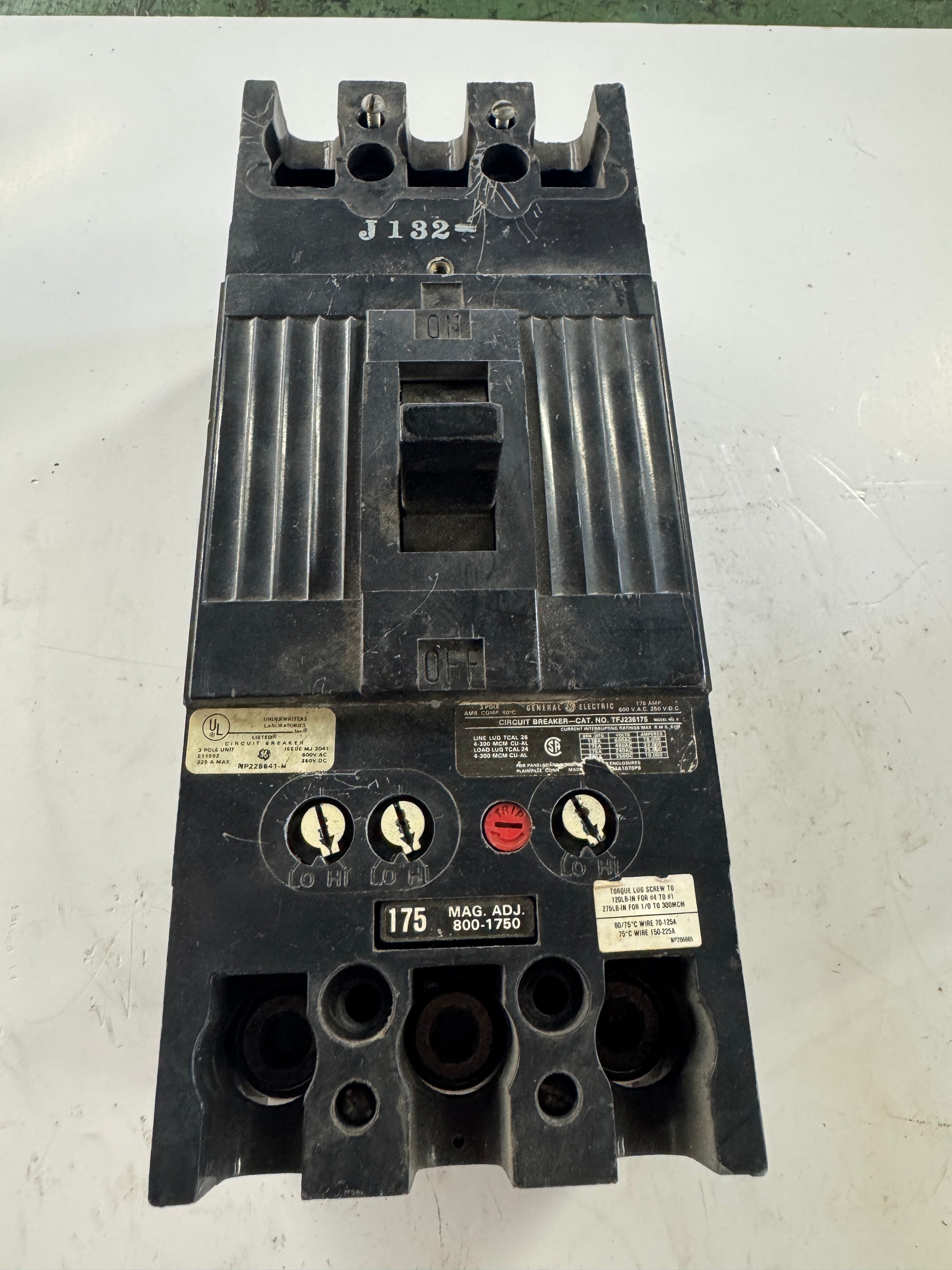

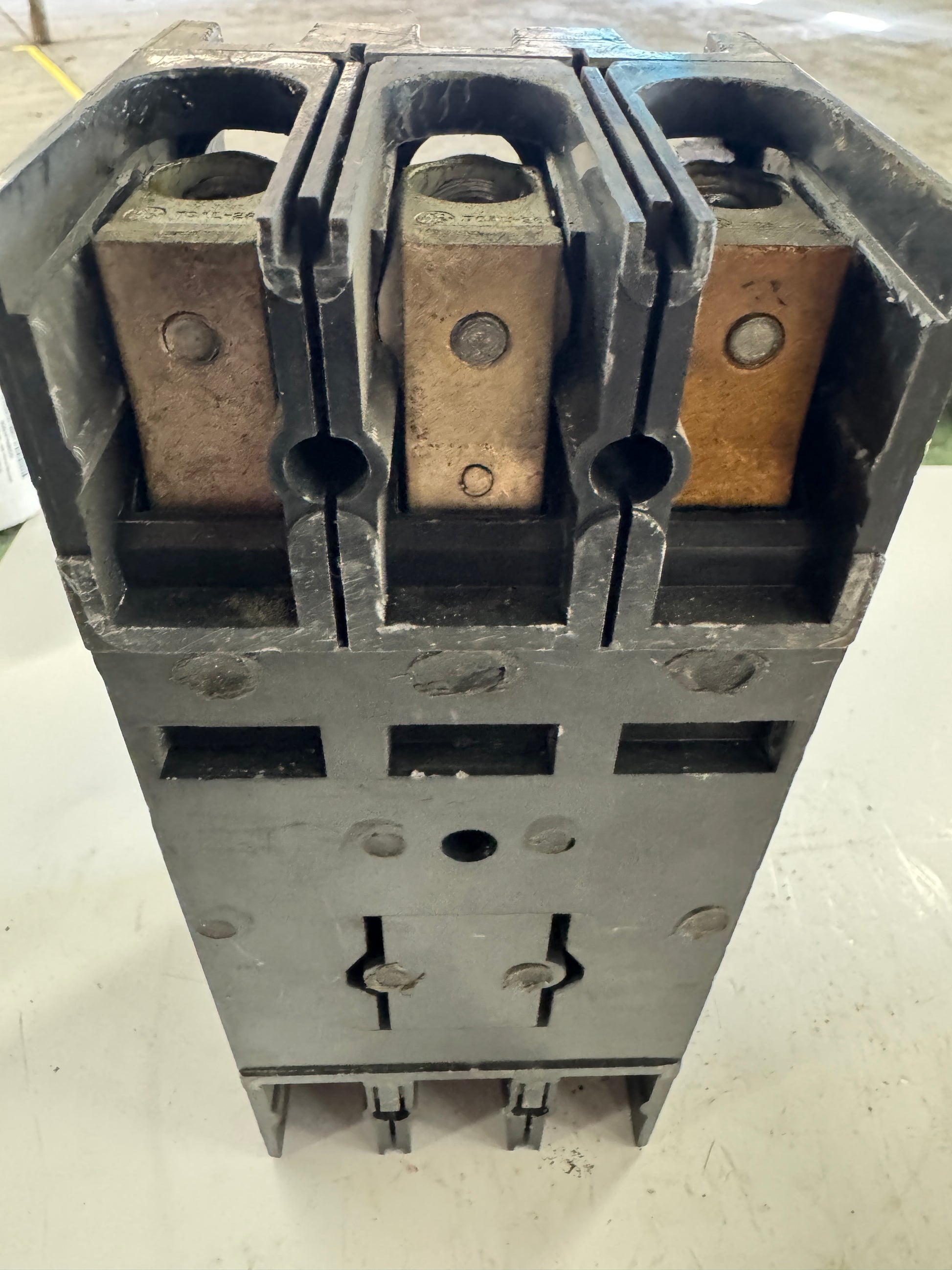

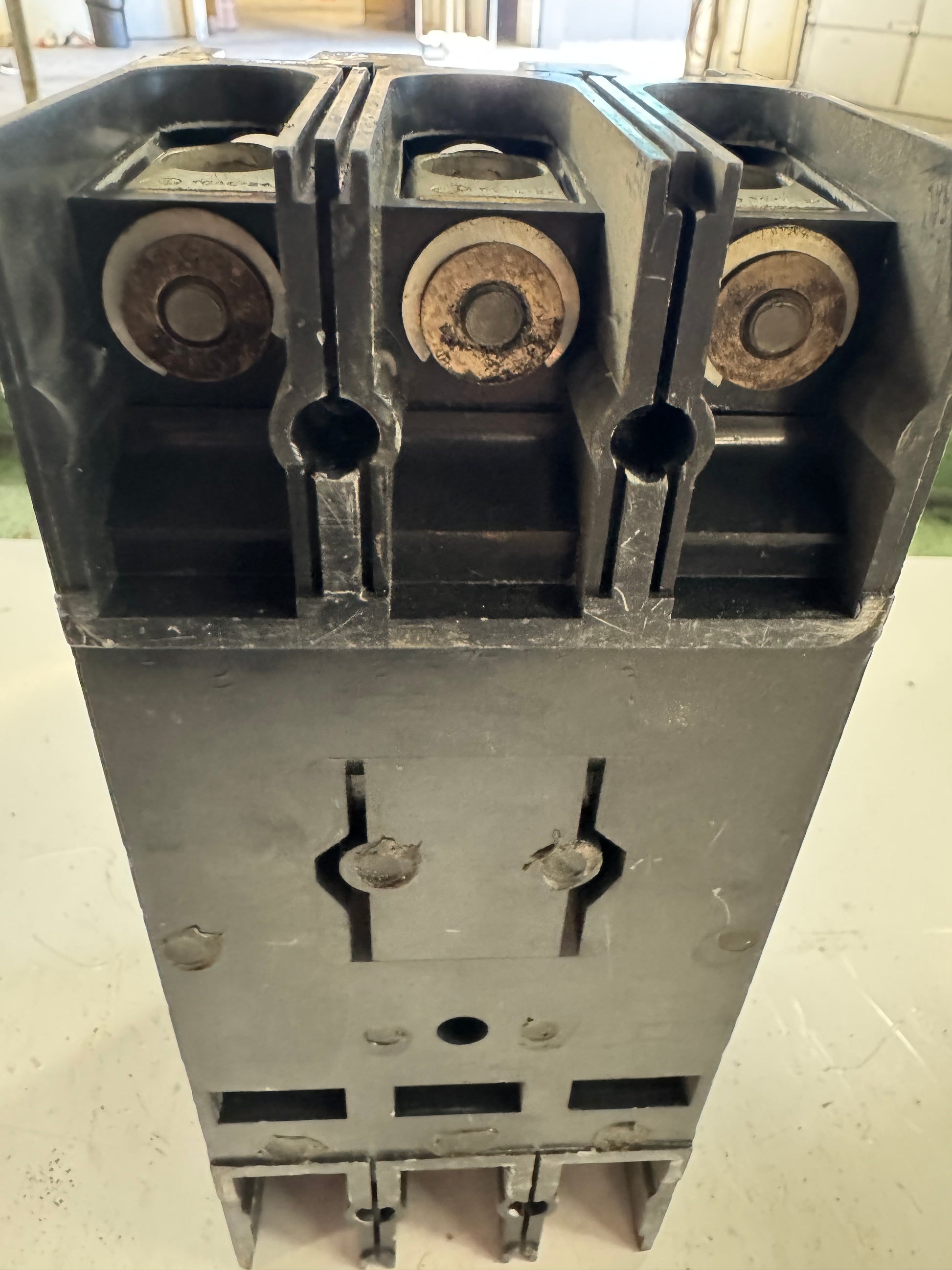

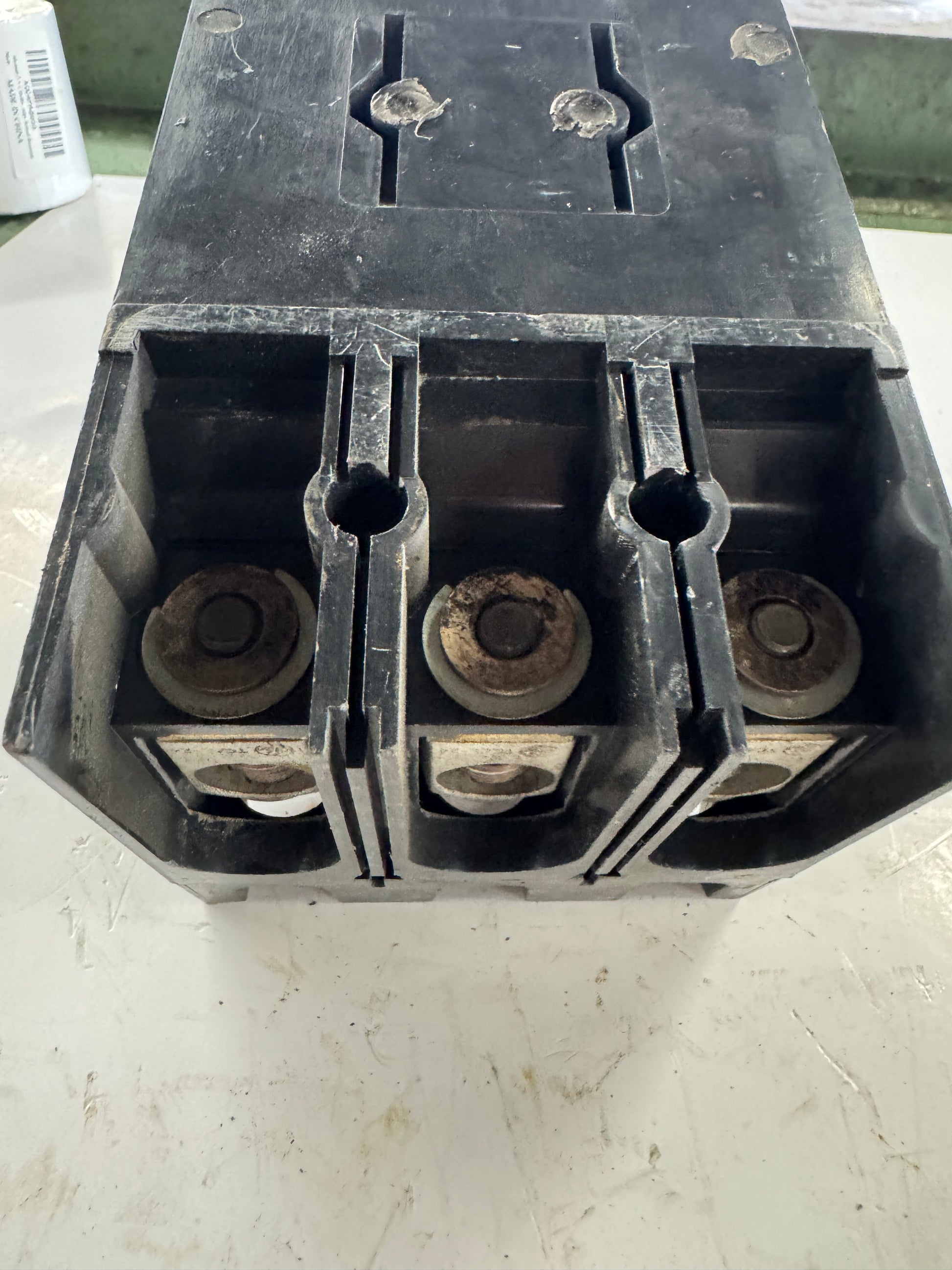

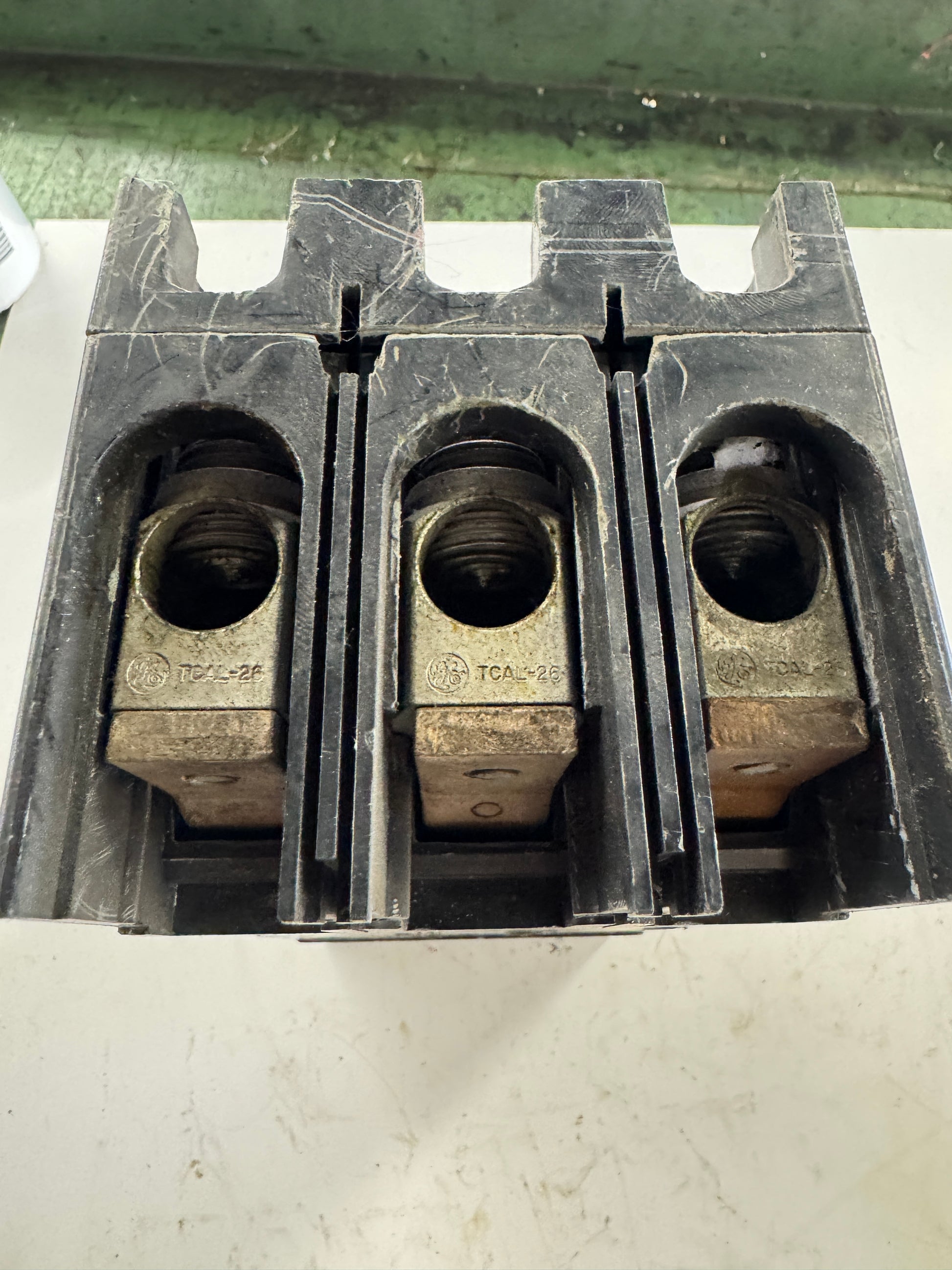

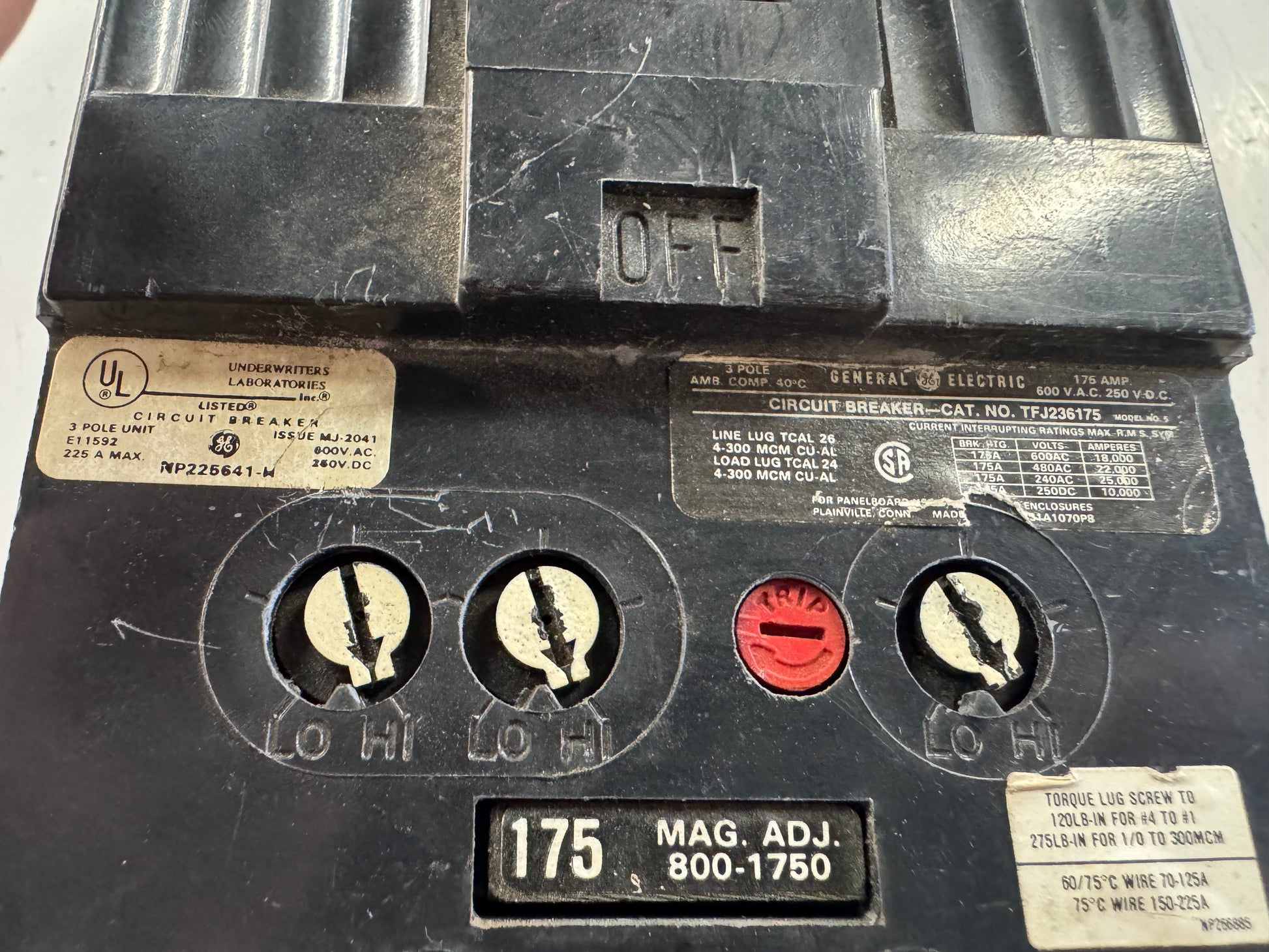

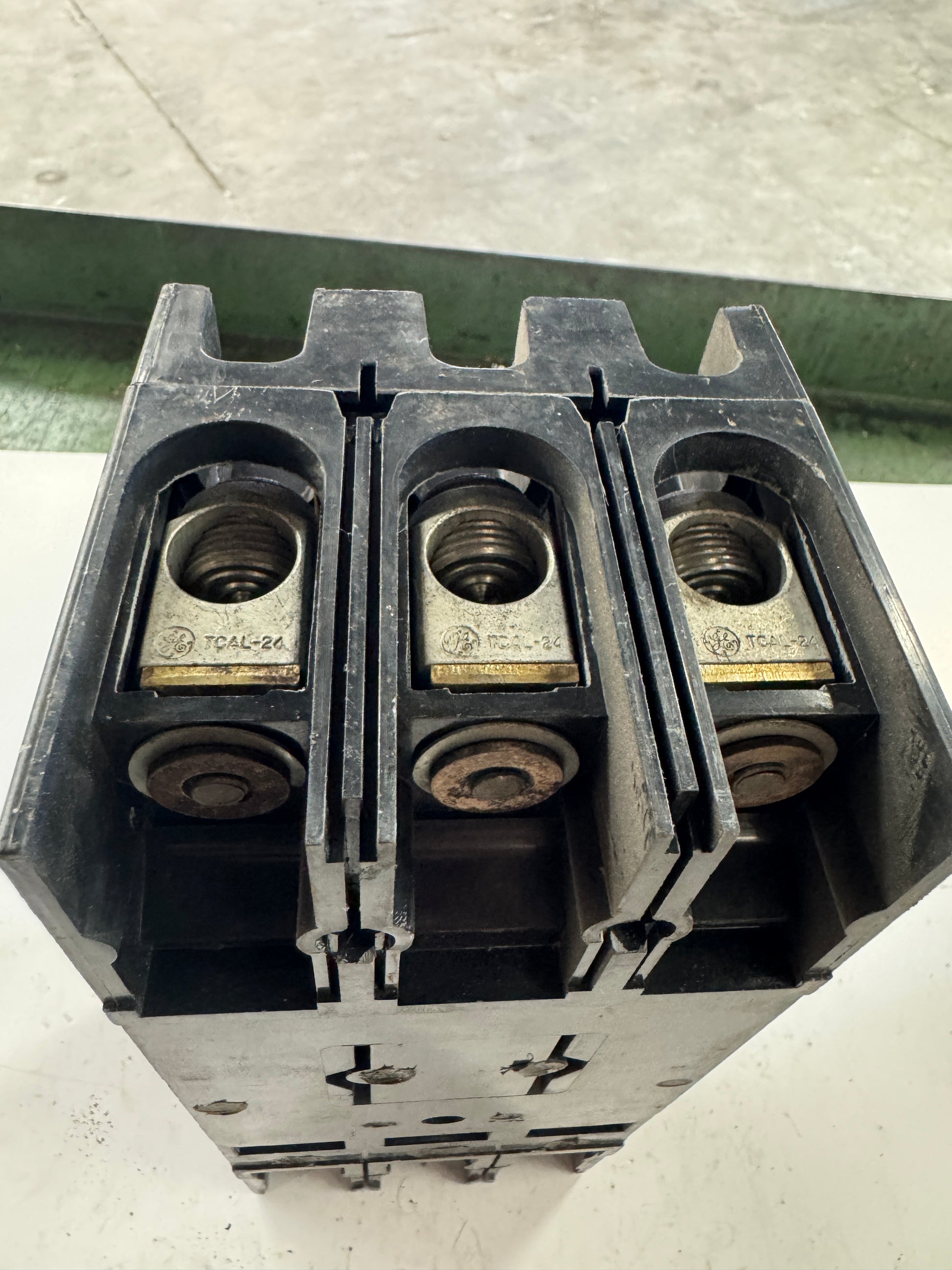

Used in panelboards and industrial distribution systems requiring robust overcurrent protection, the General Electric TFJ236175 is a molded case circuit breaker rated at 175 amps and 600V AC / 250V DC. This 3-pole, 3-phase unit carries catalog number TFJ236175, Model 5, and is UL Listed under file E11592 as a 3-pole unit rated 225A max per the UL label (NP225641-H). The nameplate confirms current interrupting ratings of 18,000 amps at 600V AC, 22,000 amps at 480V AC, and 25,000 amps at 240V AC. The magnetic trip is adjustable from 800 to 1750 percent of rated current via front-accessible LO/HI dial adjusters. Line side lugs are GE TCAL-26 (4-300 MCM CU/AL) and load side lugs are GE TCAL-24 (4-300 MCM CU/AL), visible and intact on both ends. Ambient compensation is rated to 40 degrees C. The breaker is manufactured in Plainville, Connecticut. Wire ratings per the nameplate label are 60/75 degrees C for 70-125A conductors and 75 degrees C for 150-225A conductors. Enclosure designation reference is LA1070P8. The unit shows field use wear consistent with removed-from-service surplus. No shunt trip or auxiliary accessories are present or included.
