Generic UCF209-27 4-Bolt Flange Bearing Unit UCF209-27 1-11/16 in. Bore, UCF209-27, 4-Bolt Square Flange
Generic UCF209-27 4-Bolt Flange Bearing Unit UCF209-27 1-11/16 in. Bore, UCF209-27, 4-Bolt Square Flange
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
MPN: UCF209-27
Stock #: 0226-00699

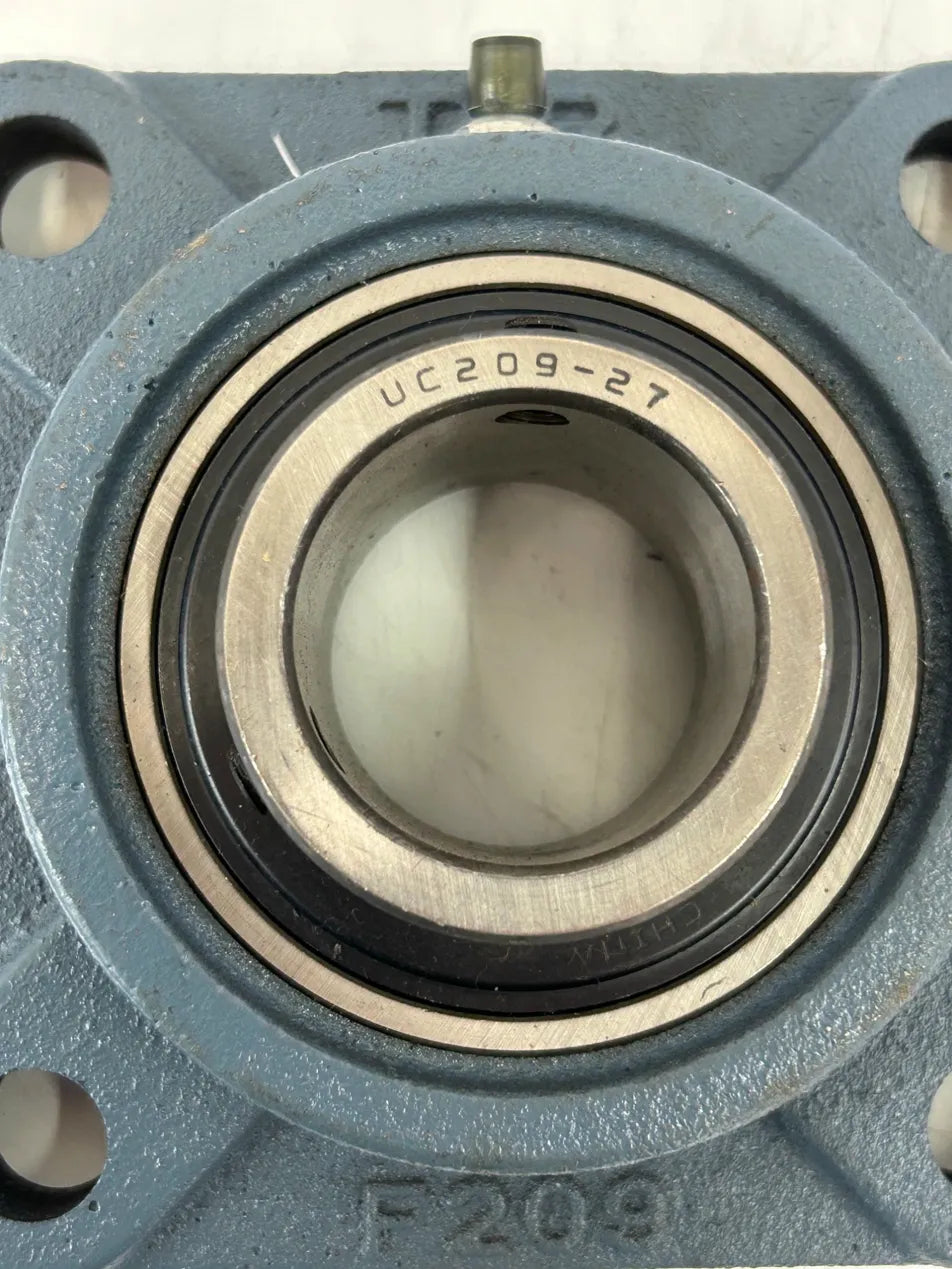

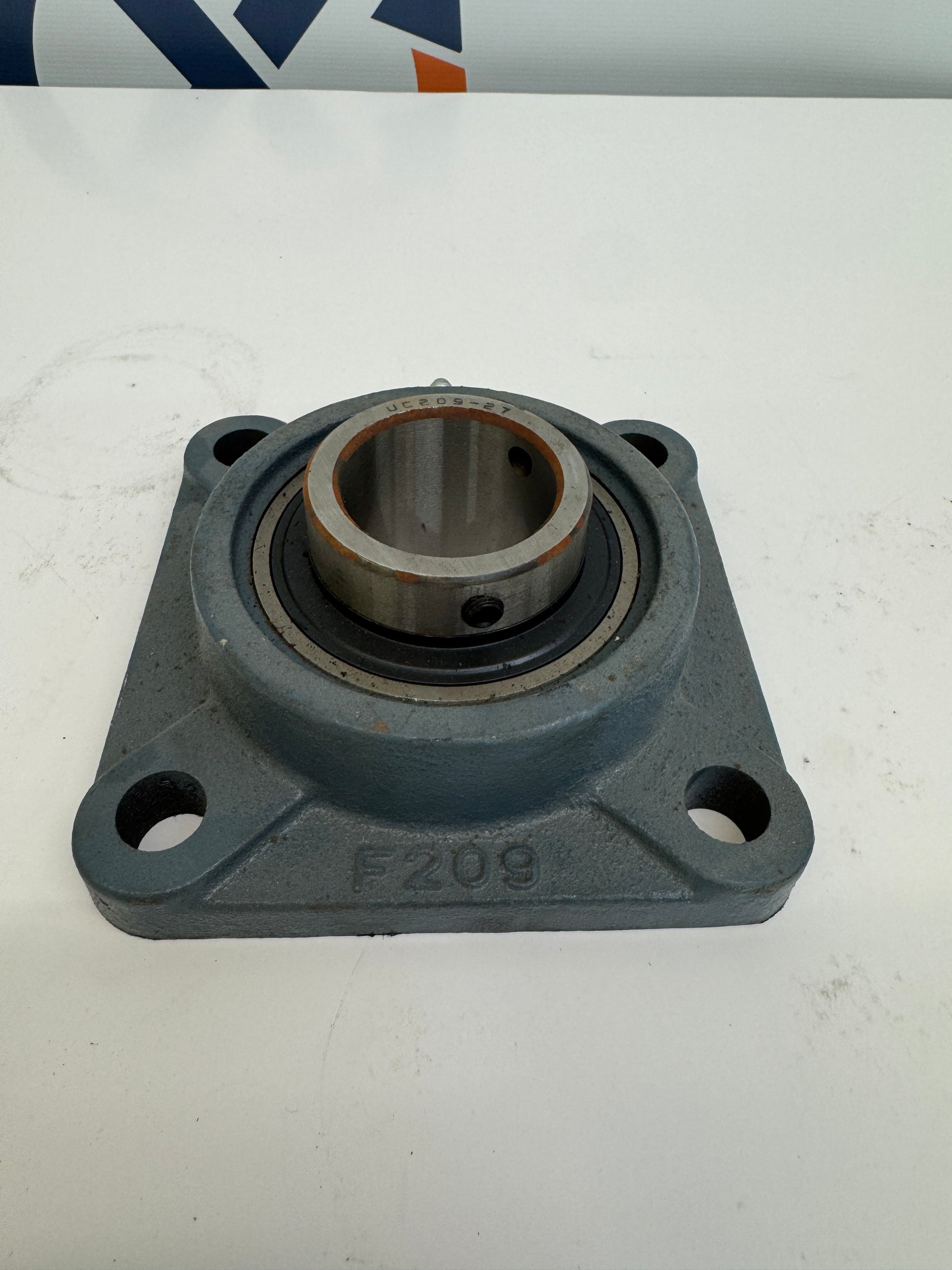

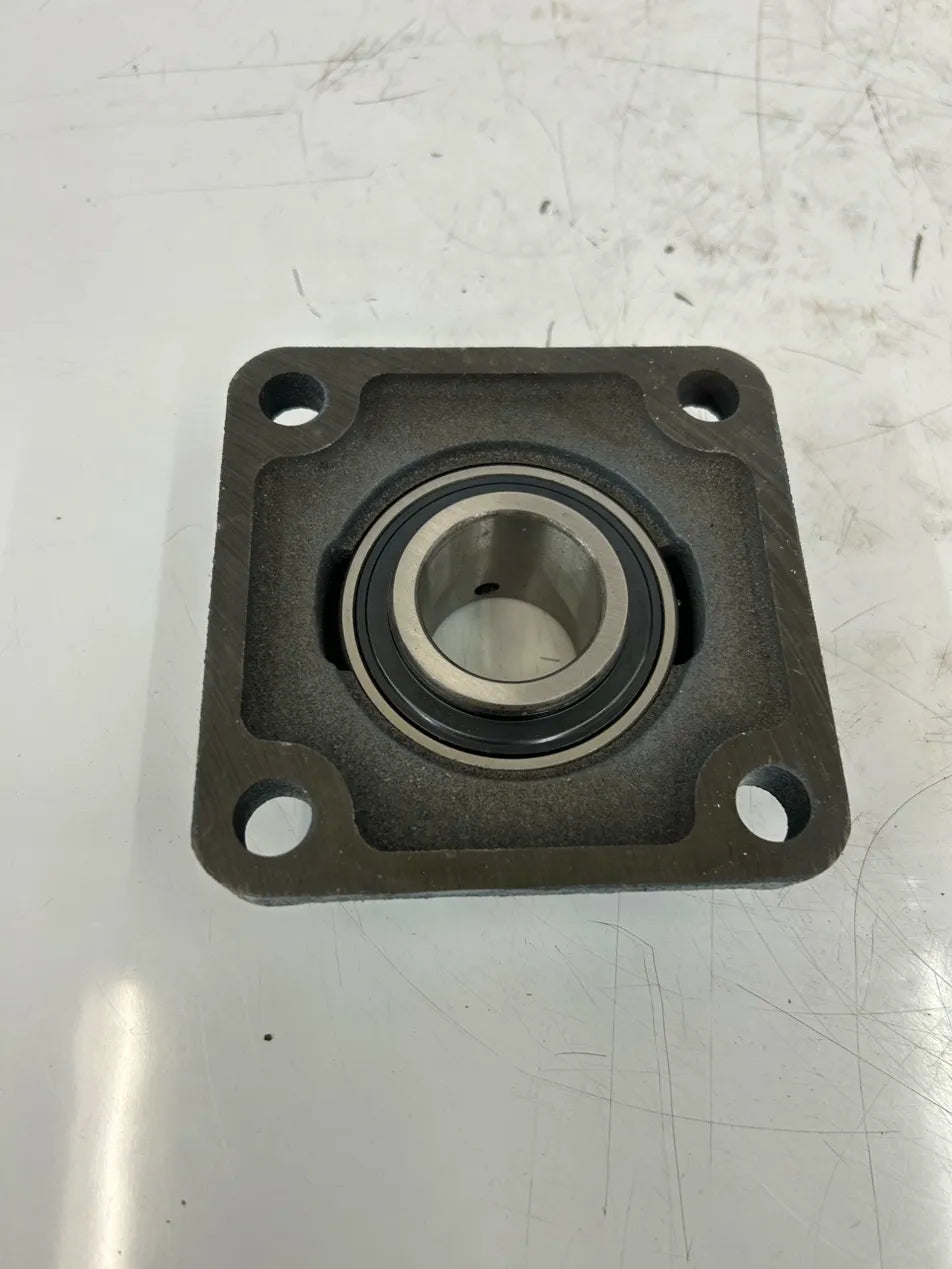

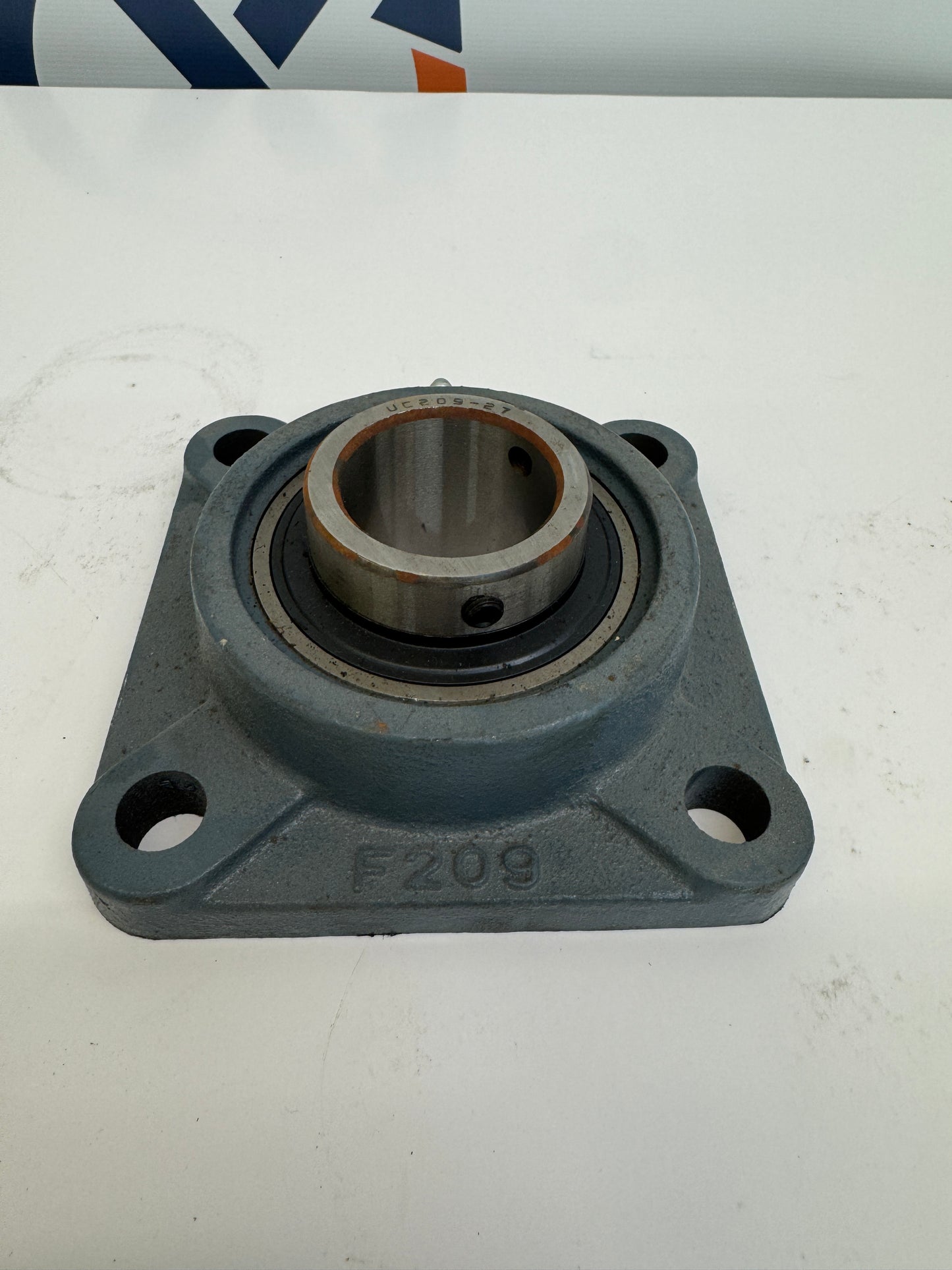

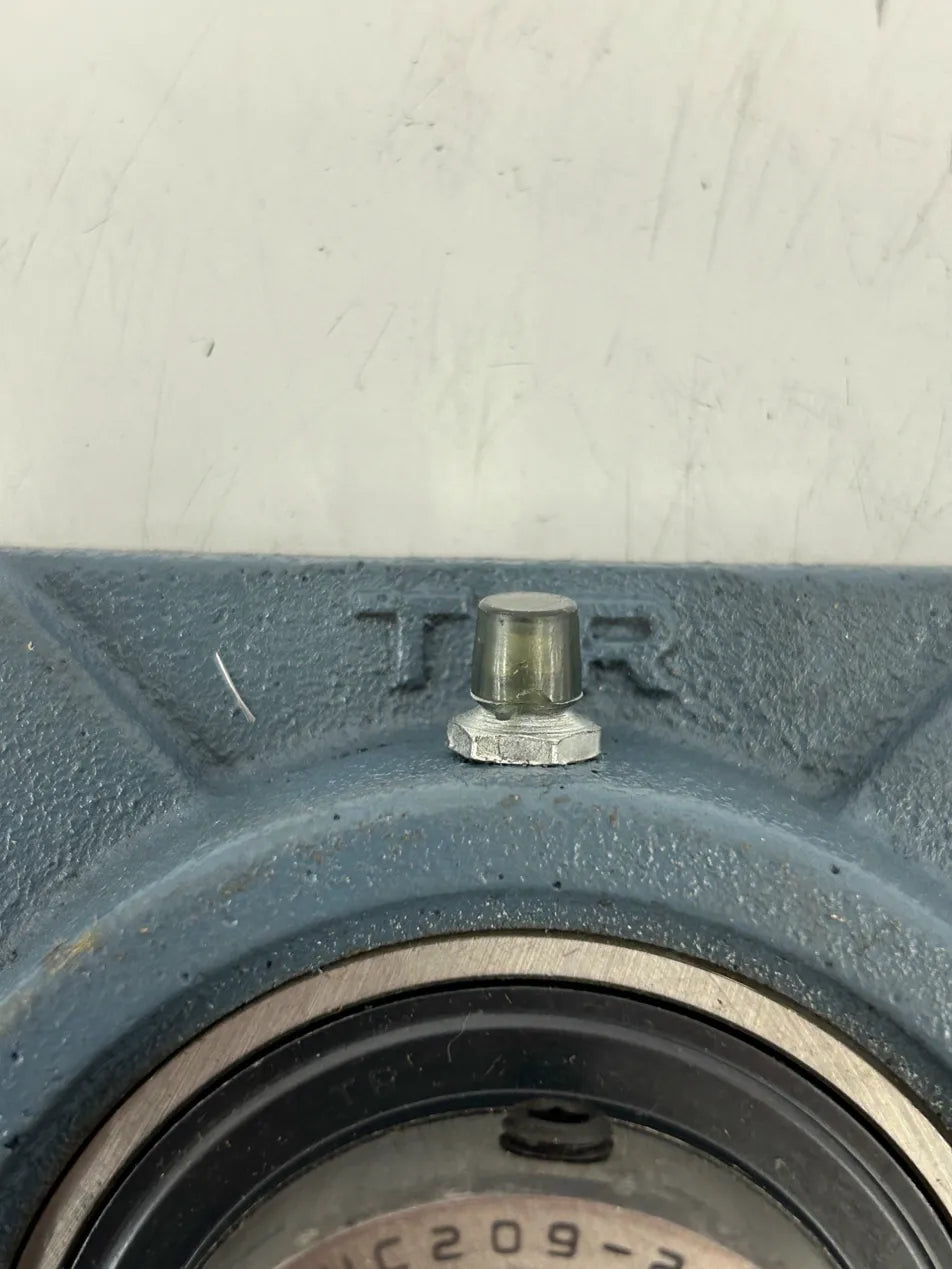

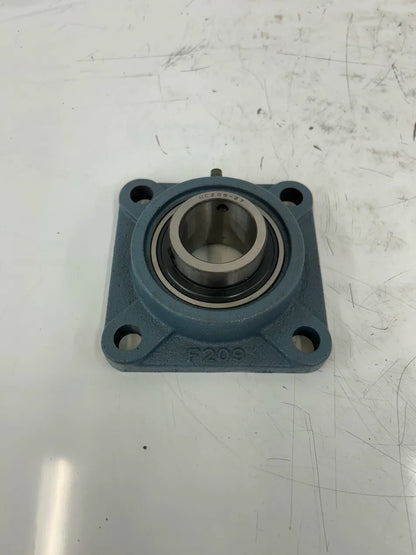

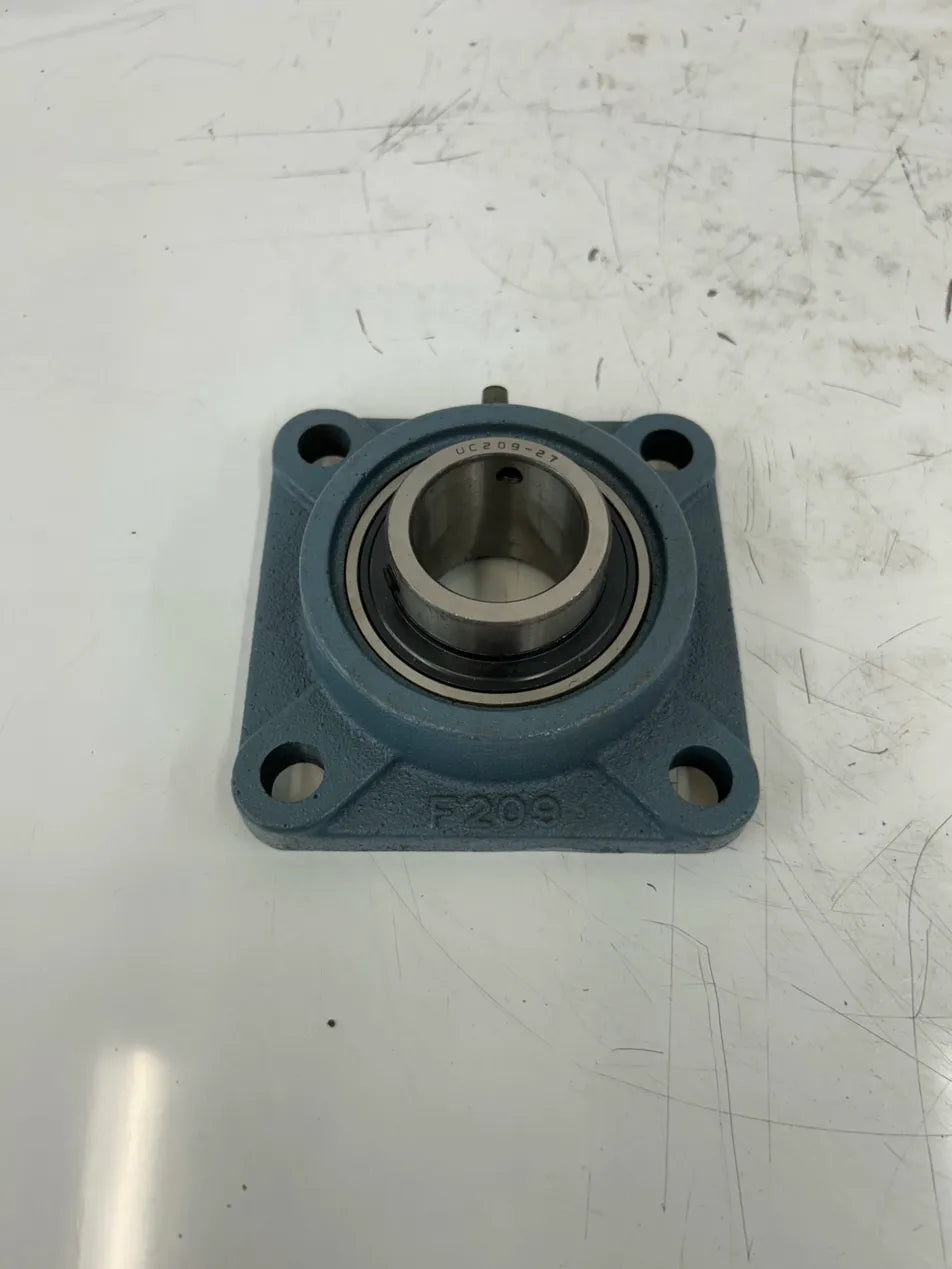

Used in conveyor systems, agricultural equipment, HVAC assemblies, feed mills, and general industrial machinery, the UCF209-27 is a square 4-bolt flange mounted bearing unit with a 1-11/16 in. bore. The unit combines a UC209-27 wide inner ring insert bearing with a cast iron square flange housing, secured by two set screws on the extended inner ring for shaft locking. The housing accepts four 1/2 in. diameter mounting bolts with a bolt center distance of 4-1/8 in. A grease fitting is present for field re-lubrication. The insert features a slinger-type contact seal and an anti-rotation pin to prevent the bearing outer ring from spinning within the housing. The cast housing is marked F209 and the insert is marked UC209-27. No manufacturer name is visible on the unit. Compatible cross-references for this part number include Dodge F4B-SC-112, AMI UCF209-28, Browning VF4S-228, Link-Belt F3-U228N, NSK UCF209-28S, NTN UCF209-112T, and Sealmaster SF-1-3/4. Overall length is approximately 5-13/32 in.
Stock # 0226-699
