Giddings and Lewis CNC Control Module 501-04119-00
Giddings and Lewis CNC Control Module 501-04119-00
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
Stock #:

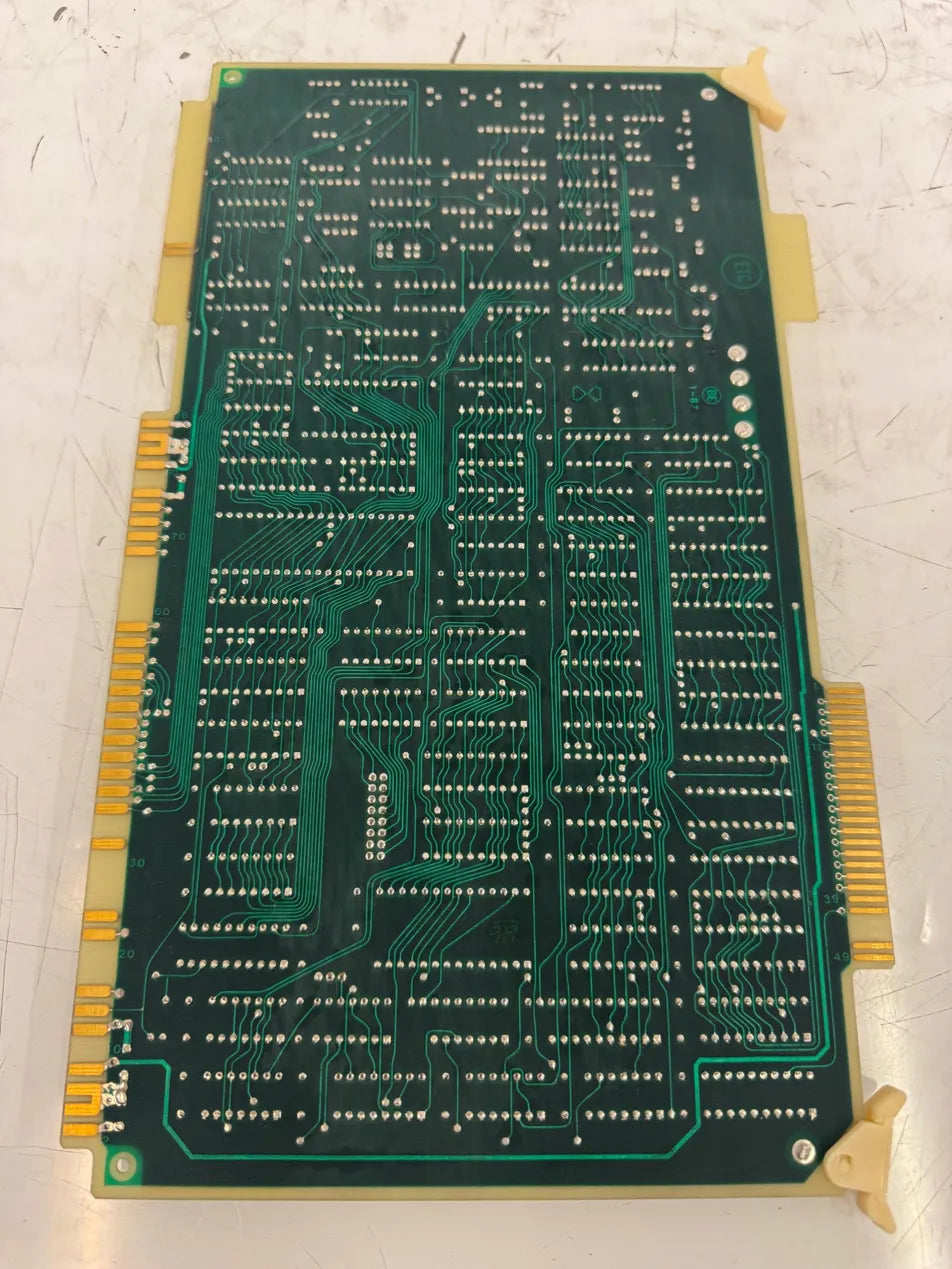

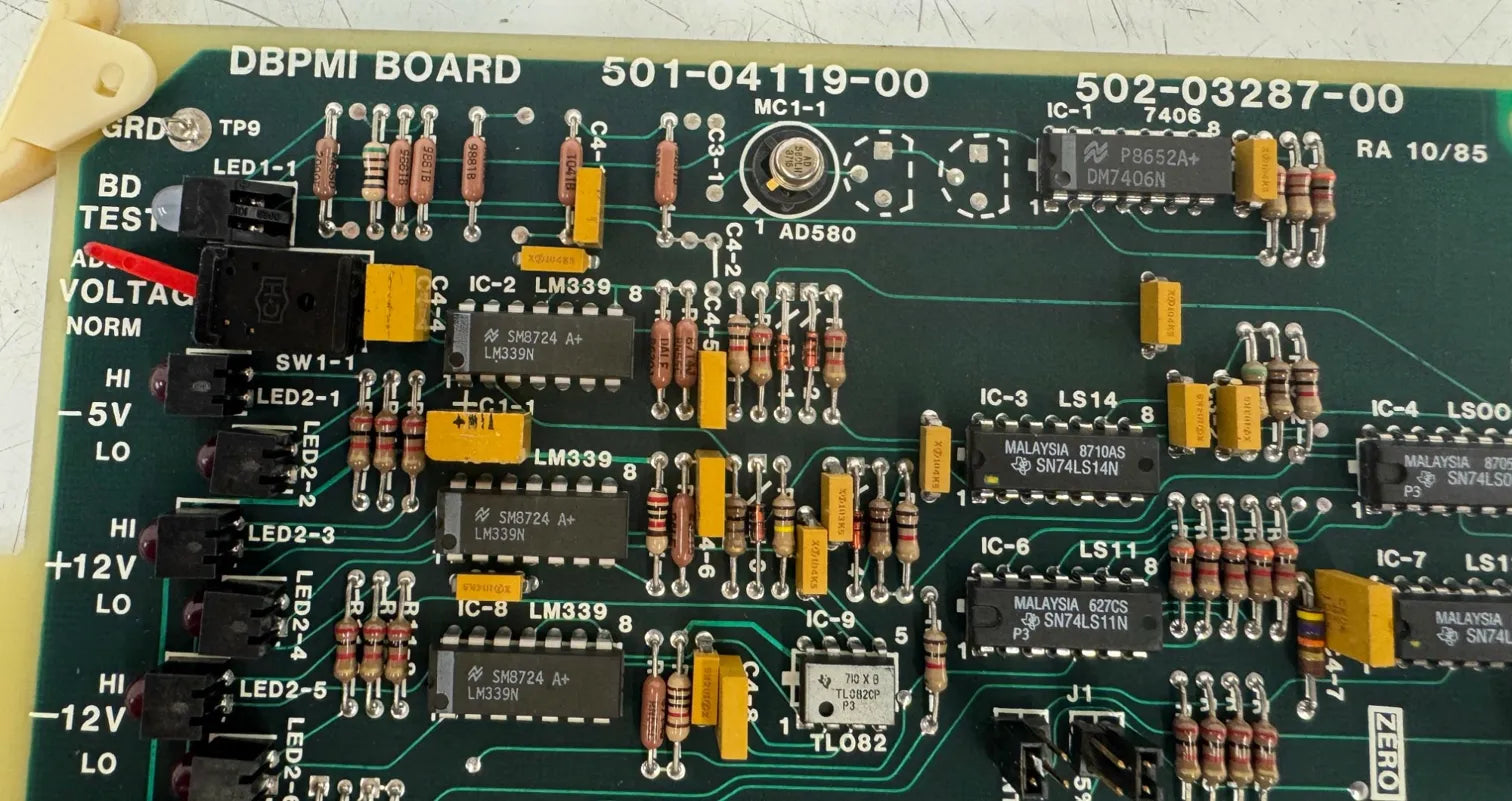

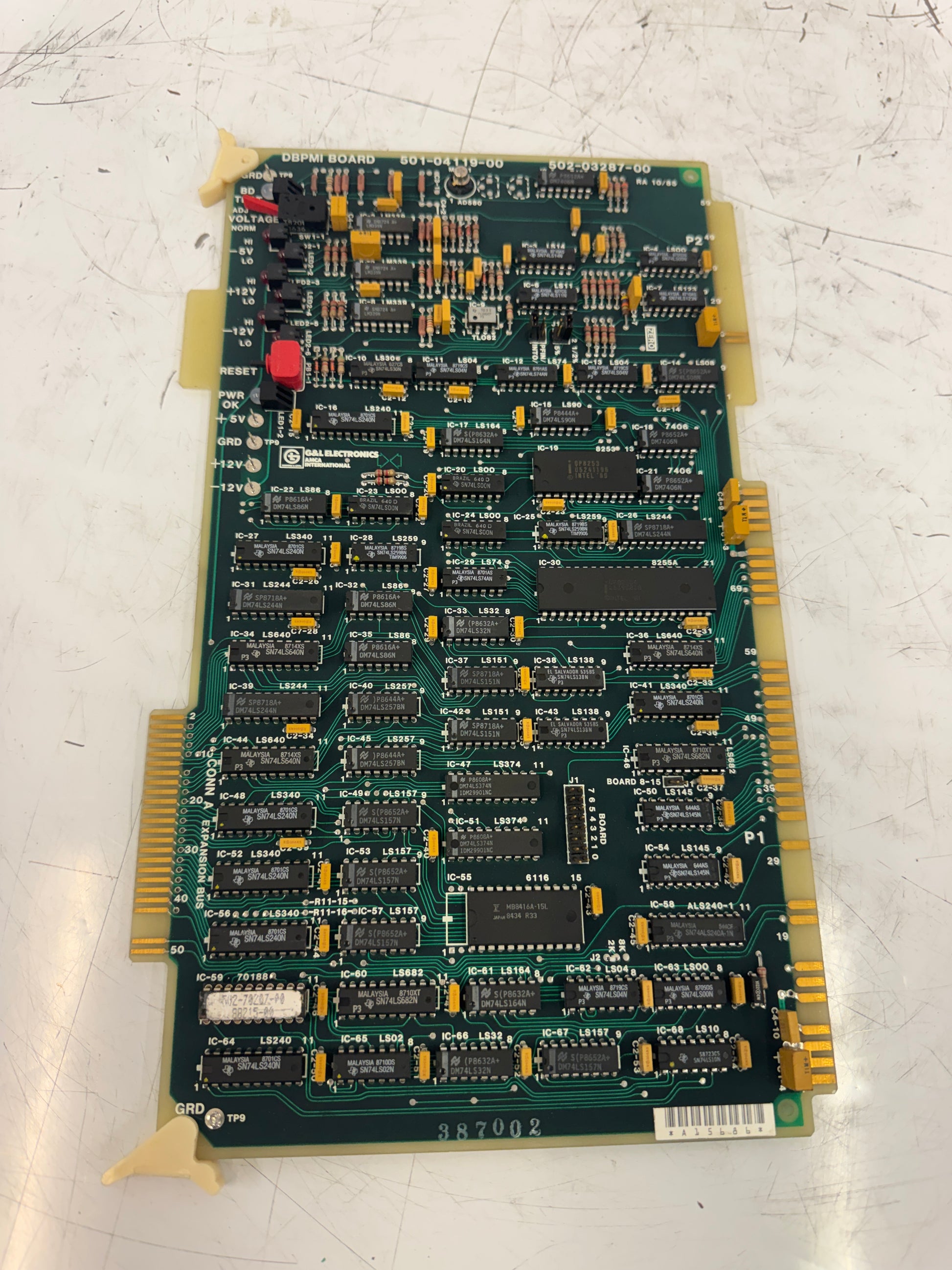

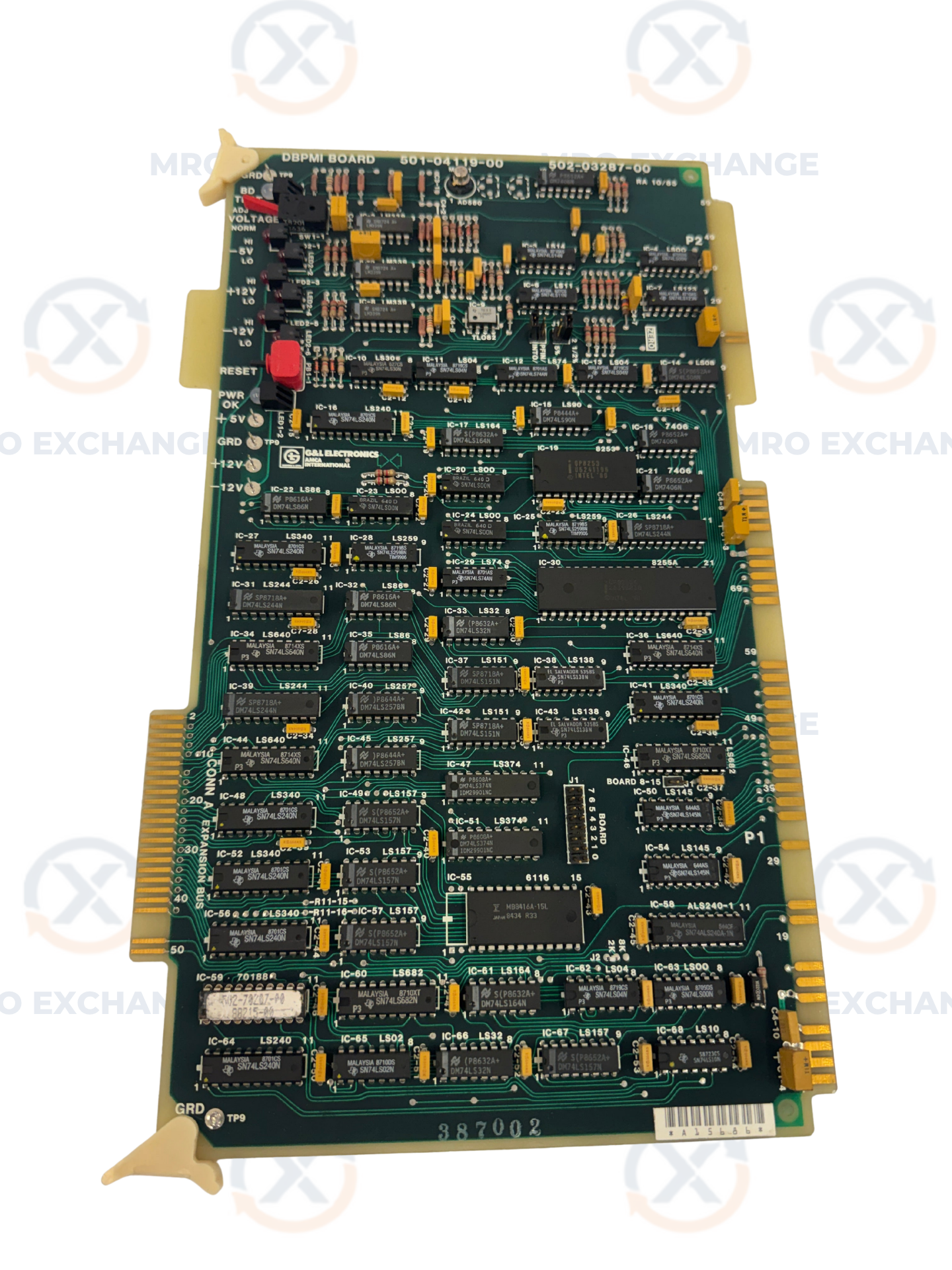

Used in Giddings and Lewis CNC machining systems, the DBPMI Board carries part number 501-04119-00 and secondary assembly reference 502-03287-00, as silkscreened directly on the component side of the board. The revision marking RA 10/85 is also visible on the board face. This is a multi-layer through-hole PCB in the standard Giddings and Lewis card format, featuring gold-edge connector fingers on both the left and right side edges and yellow card ejector handles at each corner. The board is populated with a dense array of TTL logic ICs including LS series devices, LM339 quad comparators, a TLO82 op-amp, and an AD580 voltage reference. Indicator LEDs are present along the left edge and are labeled for voltage monitoring functions including +5V, +12V, and minus 12V rails, along with HI and LO status indicators. A RESET pushbutton and voltage NORM labeling are also silkscreened near the LED cluster. The board name DBPMI is printed across the top edge of the component side. Giddings and Lewis CNC control boards of this era were used in NumeriPath and related machine control systems on horizontal boring mills and large machining centers. This board is surplus and is sold as-is.
