Giddings and Lewis Linear Isolator Circuit Board 501-04172-00 / 502-03326-00 m00555

$239.00 USD

Sale Sold out

U.S. shipping, securely packaged. Ships in 1-2 Days
Questions? Real support team available before purchase
Secure checkout with trusted payment methods

Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.

Stock #:

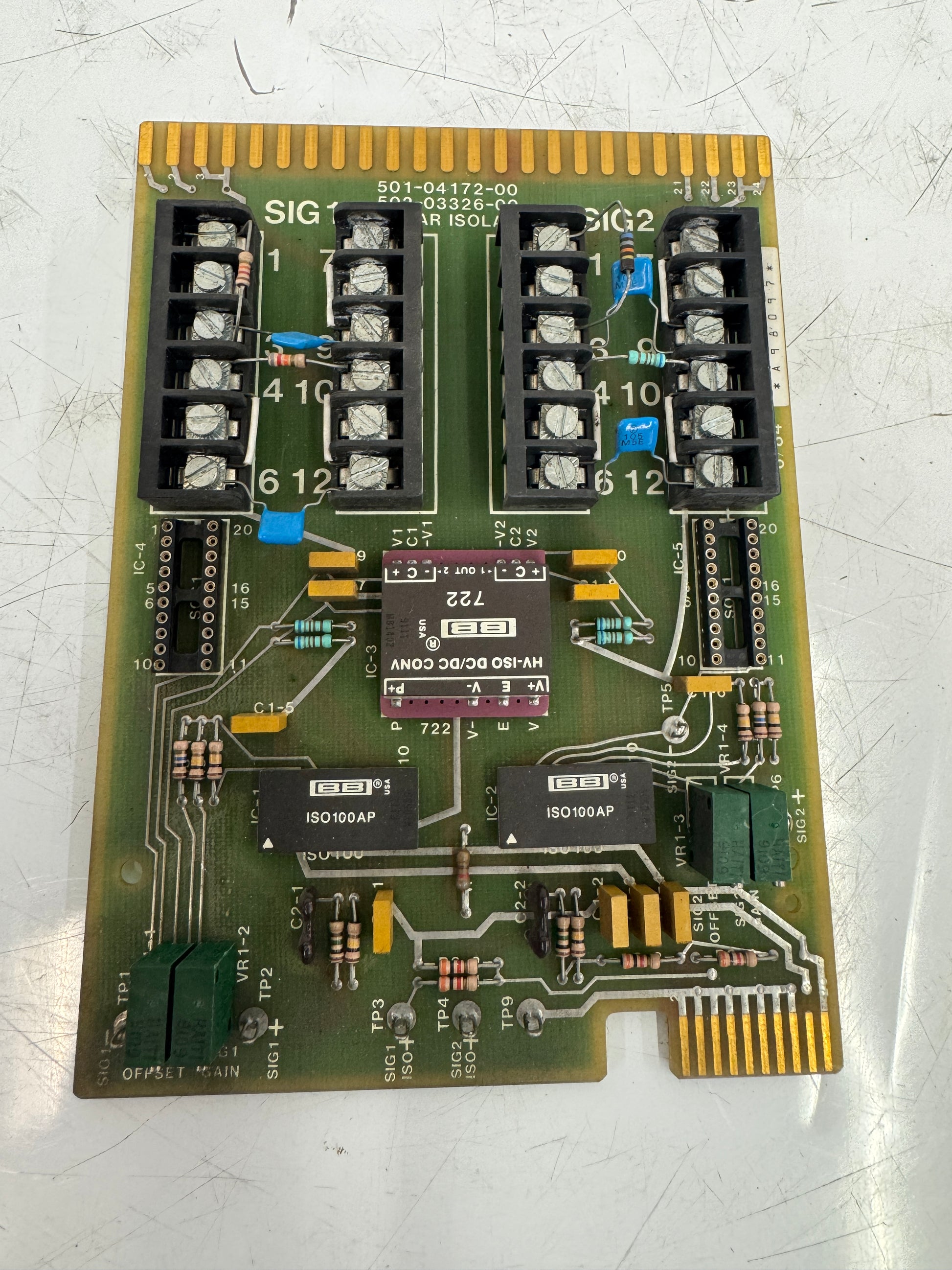

This listing is for one used Giddings and Lewis Linear Isolator circuit board, assembly number 501-04172-00, schematic number 502-03326-00. The serial number A98097 is visible on the barcode label at the board edge. The board is designed as a dual-channel linear signal isolation card featuring two Burr-Brown ISO100AP precision isolation amplifiers (IC-1 and IC-2), a Burr-Brown model 722 HV-ISO DC/DC converter module (IC-3) providing isolated power, and two IC-4 and IC-5 DIP socket positions for additional signal conditioning. Each channel section is labeled SIG1 and SIG2 and includes a 12-position screw terminal block for field wiring connections, with terminals numbered 1 through 12. On-board trimmer potentiometers VR1-2, VR1-3, and VR1-4 are visible for channel calibration. Yellow film capacitors, ceramic disc capacitors, and metal film resistors populate the remaining circuit areas. A gold-fingered edge connector at the top of the board allows plug-in installation into a compatible Giddings and Lewis CNC backplane. This board functions to provide galvanic isolation of analog signals within Giddings and Lewis CNC machine tool control systems. All components appear visually present with no visible signs of burning, cracking, or physical damage. Buyers are responsible for confirming compatibility with their specific machine configuration prior to purchase.

Stock # 0226-555
