Giddings and Lewis Servo Interface Circuit Board 502-03420-00

$149.00 USD

Sale Sold out

U.S. shipping, securely packaged. Ships in 1-2 Days
Questions? Real support team available before purchase
Secure checkout with trusted payment methods

Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.

Stock #:

This listing is for a used Giddings and Lewis Servo Interface board, part number 502-03420-00, assembly drawing number 501-04306-00, Revision 1, dated 8/87. This board is also referenced in some sources under the FIVES brand, which acquired the Giddings and Lewis machine tool product line. The board is described by the manufacturer as a PC Board Assembly, Servo Interface, and is confirmed discontinued by the original manufacturer.

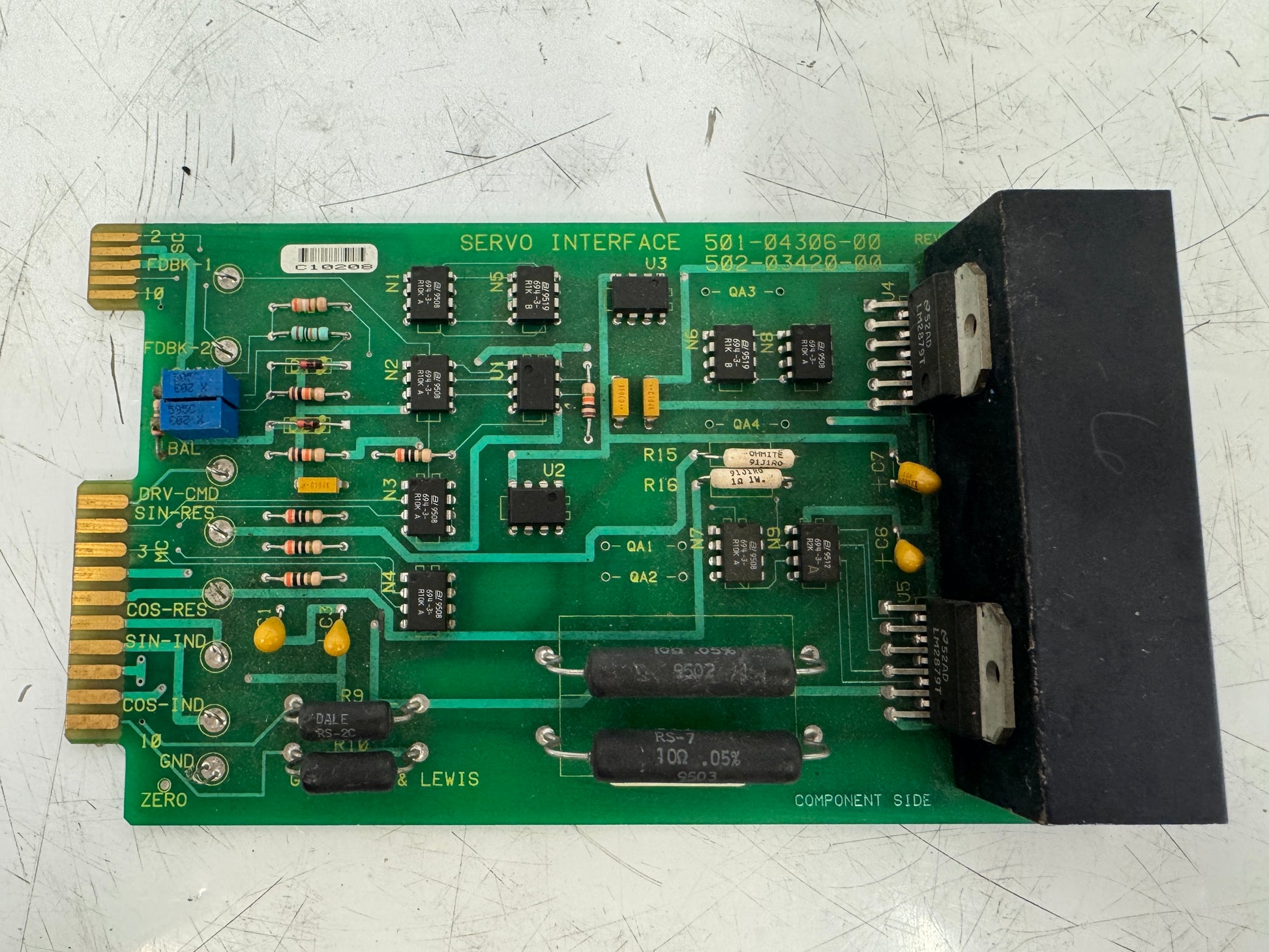

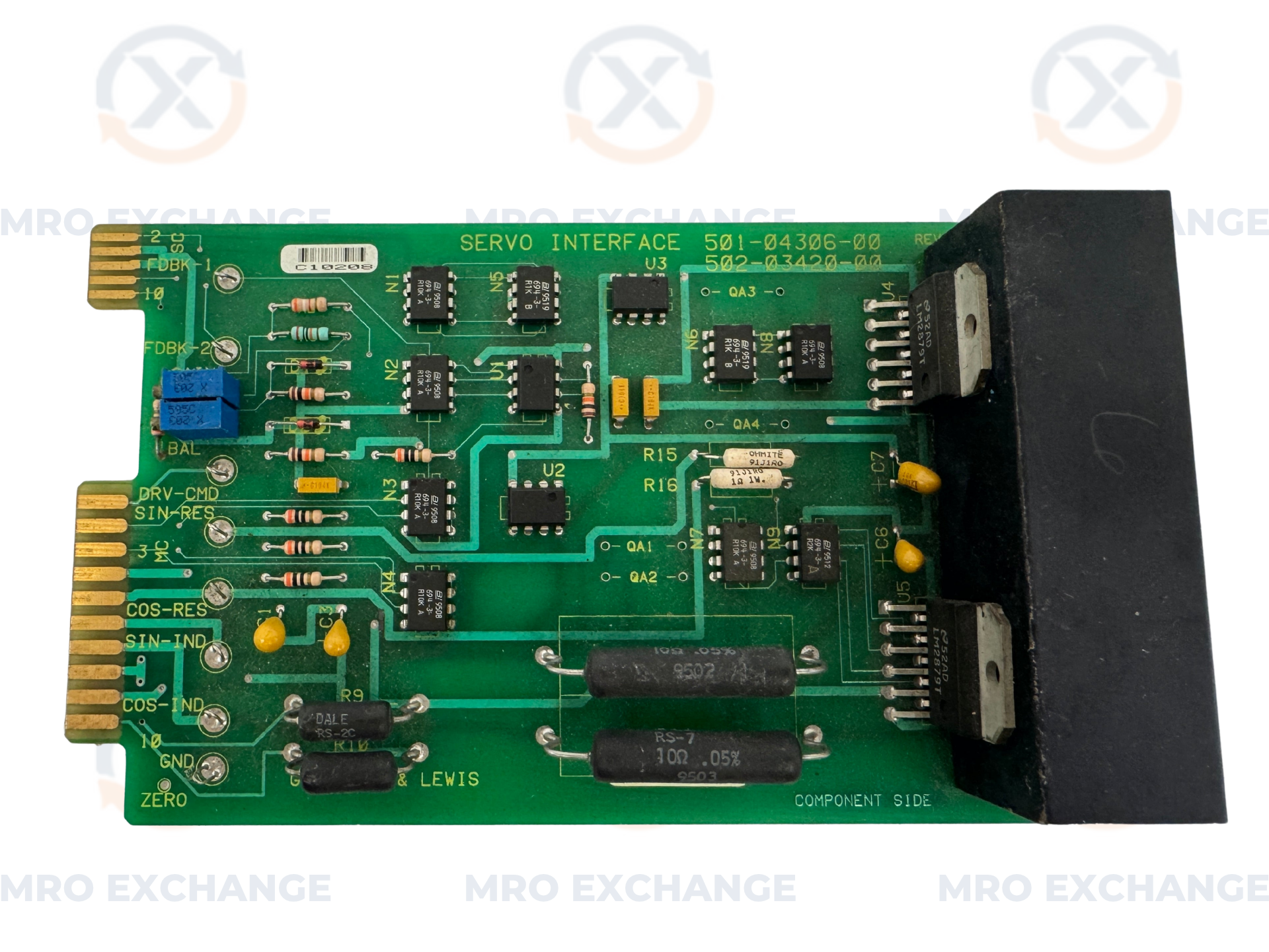

The PCB silkscreen label reads "SERVO INTERFACE" and identifies both part numbers prominently. Signal labels visible along the edge connector include FDBK-1, FDBK-2, DRV-CMD, SIN-RES, COS-RES, SIN-IND, COS-IND, GND, and ZERO, indicating resolver-based servo feedback interface functionality. Additional labeled test points include QA1, QA2, QA3, and QA4. The board carries a BAL trimmer potentiometer and an Ohmite precision resistor (91J1R0, 10 ohm 1%) along with Dale RS-2C and RS-7 precision resistors marked 10 ohm 0.05%. Two power transistor packages are mounted at one edge via a heatsink bracket. The board uses a gold-finger edge connector for rack insertion.

This board is used in Giddings and Lewis CNC machine tool systems requiring resolver-based analog servo feedback interfacing.

Stock # 0226-537
