Giddings & Lewis Communication Board 501-03854-01 / 502-03063-01
Giddings & Lewis Communication Board 501-03854-01 / 502-03063-01
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
Stock #:

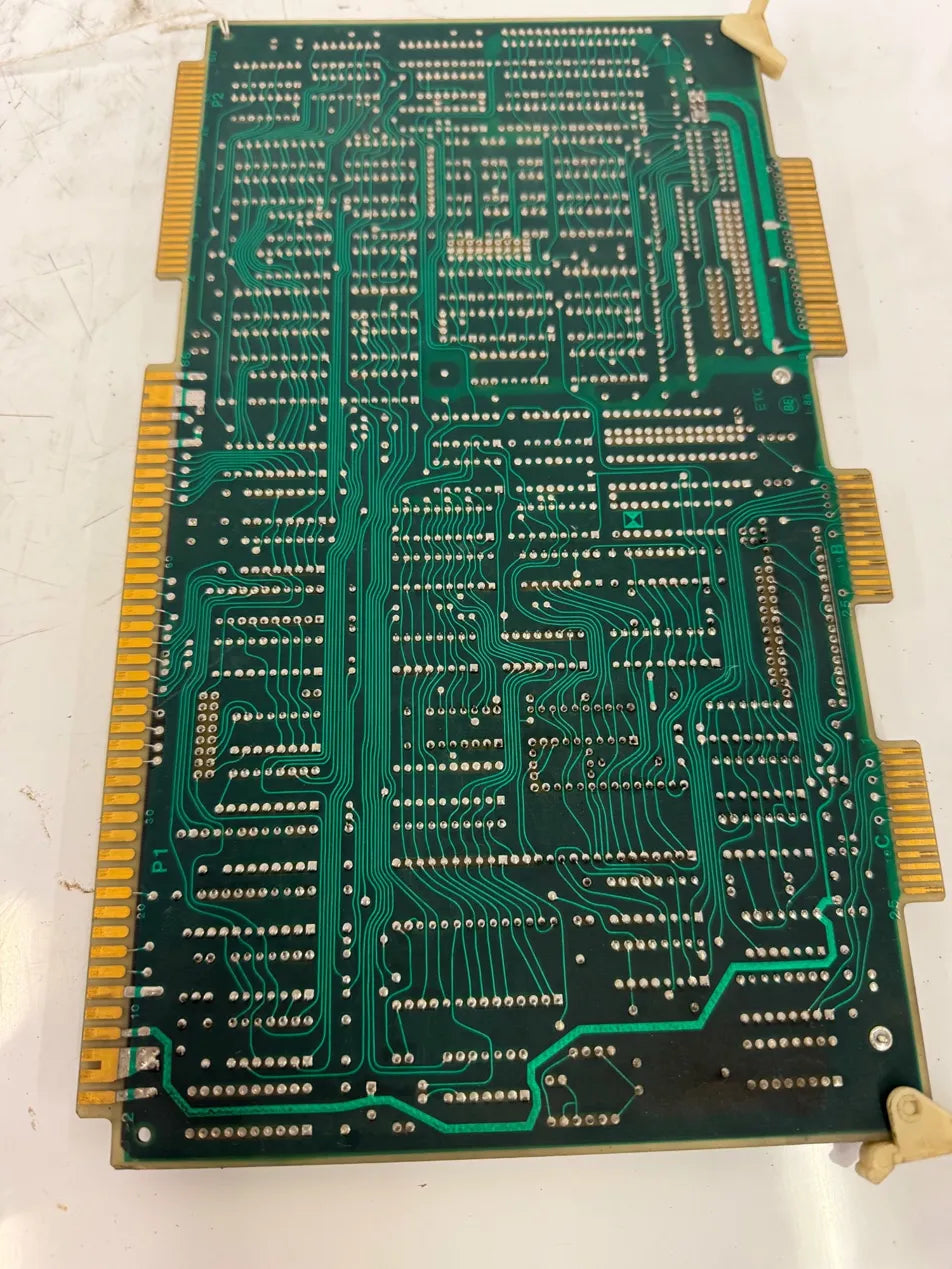

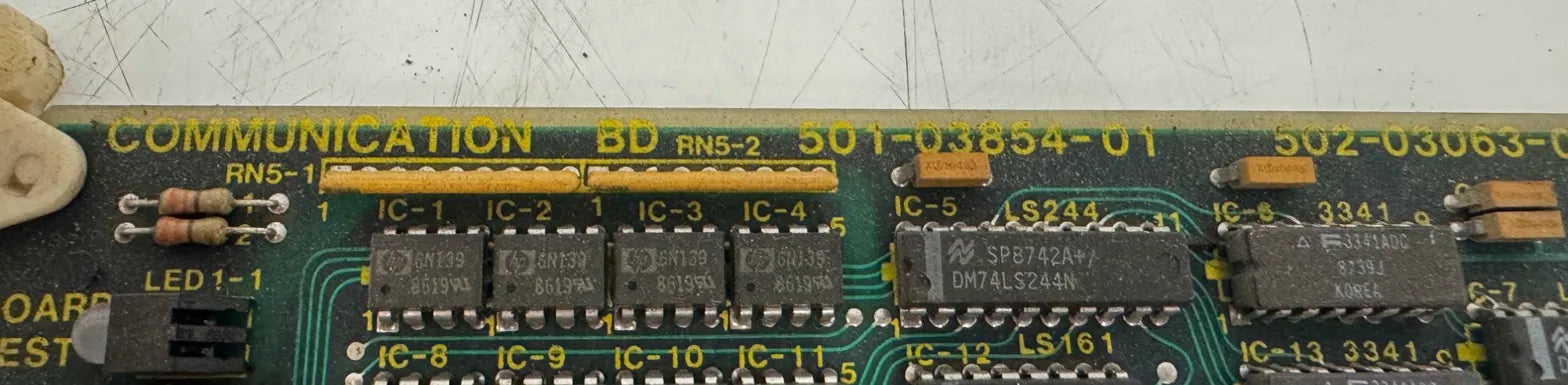

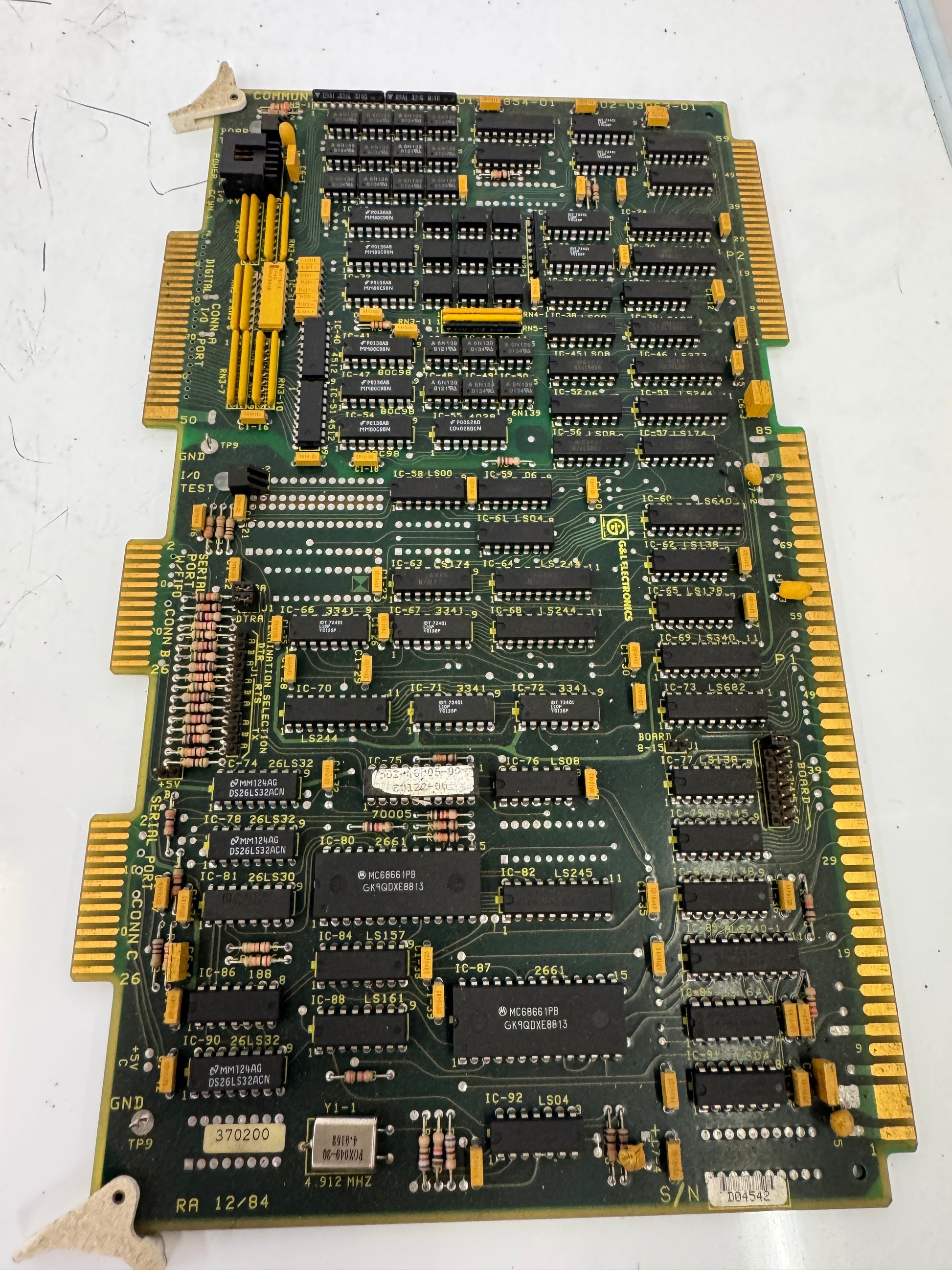

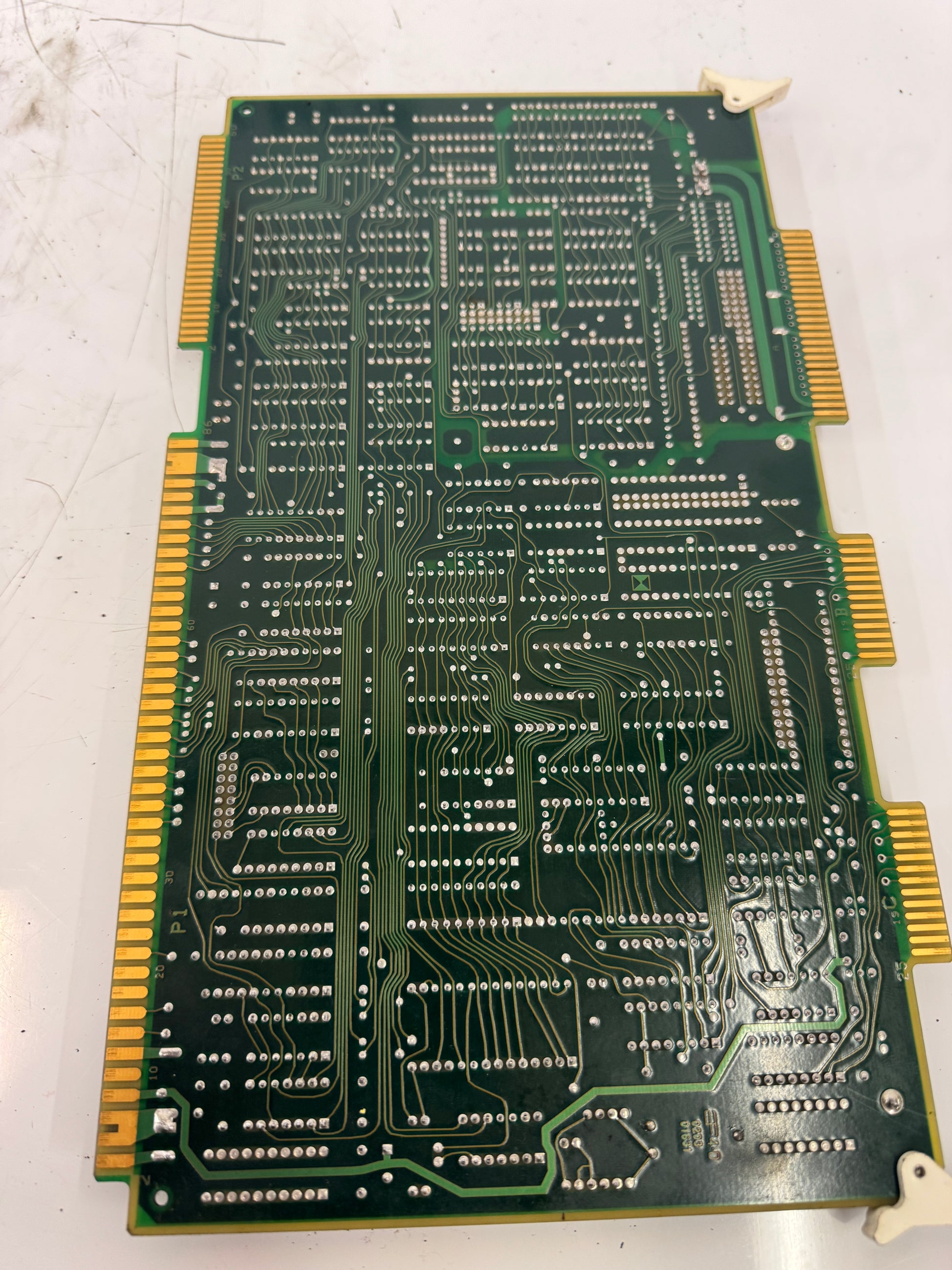

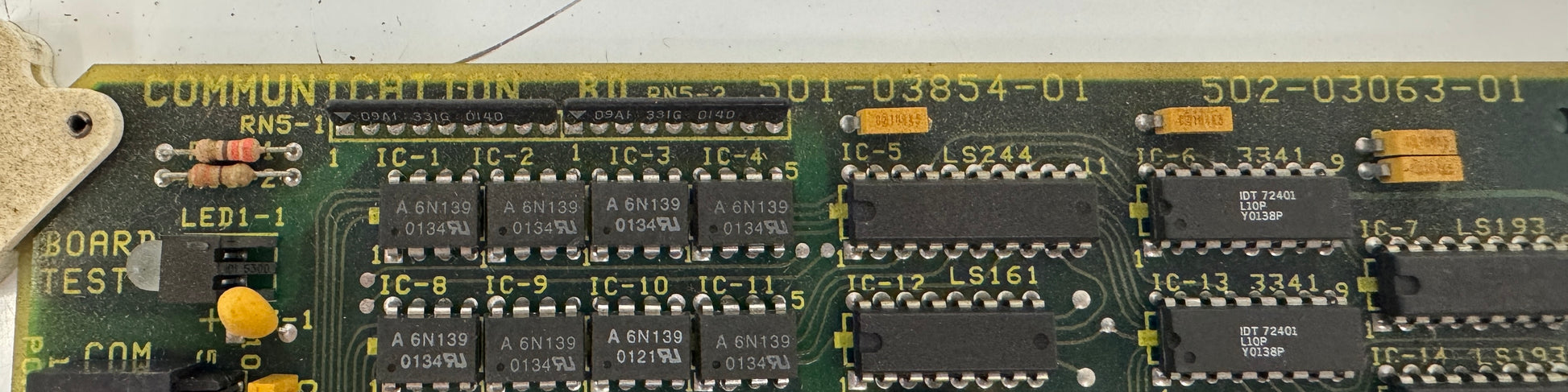

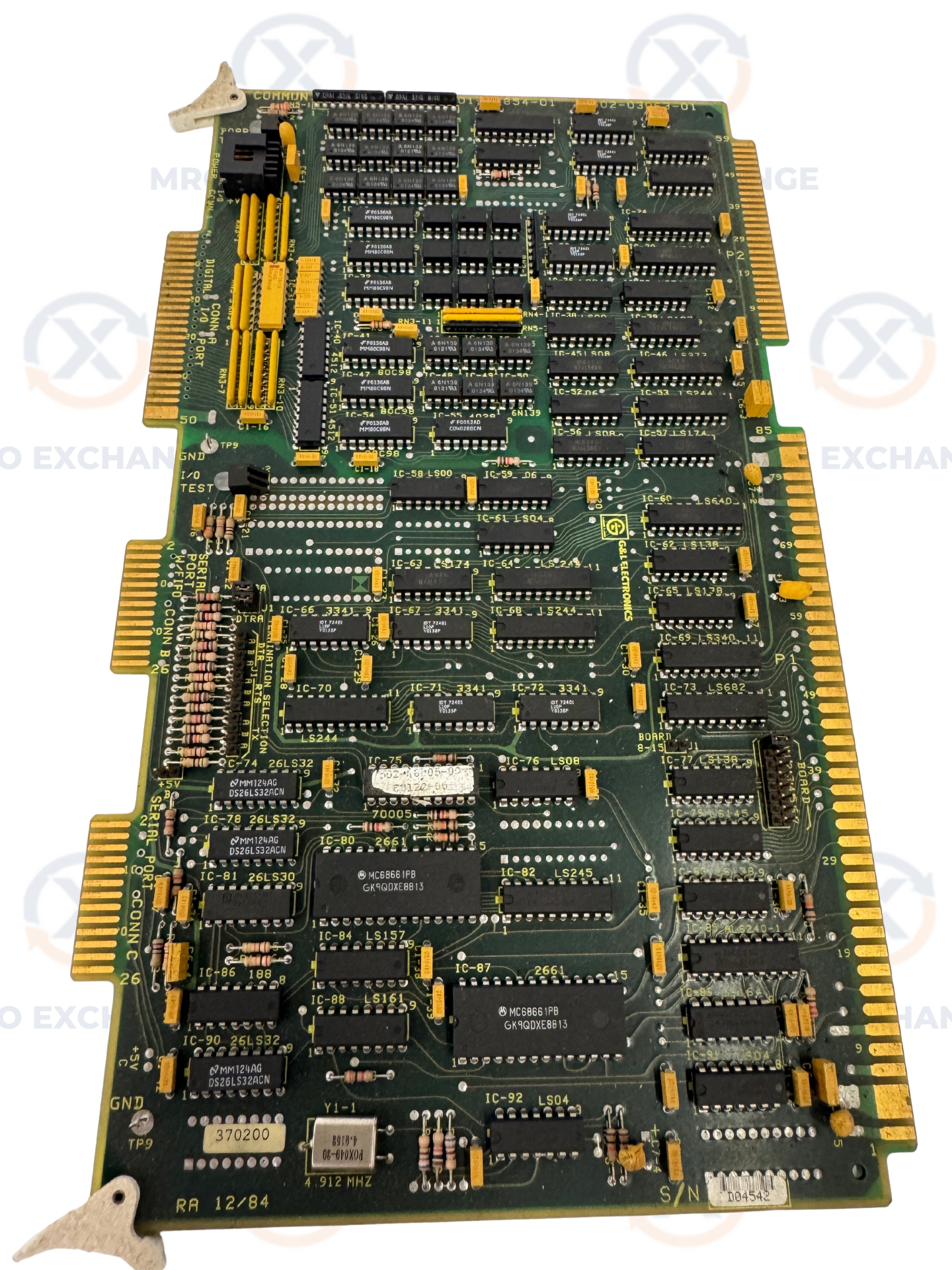

Used in Giddings & Lewis CNC machining center control systems, this Communication Board carries part number 501-03854-01 with secondary assembly number 502-03063-01. The board is branded G&L Electronics and features a dense double-sided PCB populated with optoisolator arrays (A 6N139 series), logic ICs including LS244, LS161, LS193, LS340, LS138, LS602, and 3341 series devices, as well as IDT 72401 FIFOs and MC68B661PB serial communications controllers. Connector designations silkscreened on the board include Digital I/O Conn A Port, Serial Comm Port B, and Serial Conn C, indicating this board manages serial and digital I/O communication routing within the CNC control rack. A crystal oscillator marked 4.912 MHz is present, providing the communications clock reference. Board revision is RA 12/84, and serial number D04542 is visible. The second assembly number 502-03063-01 is also clearly labeled in the board header silkscreen. This is a legacy board intended for use in G&L CNC control systems requiring this specific communication interface. Compatible systems include Giddings & Lewis CNC controls of the era associated with this board generation.
Stock # 0226-503
