Giddings & Lewis CRT Data Interface Board 501-03895-02
Giddings & Lewis CRT Data Interface Board 501-03895-02
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
Stock #:

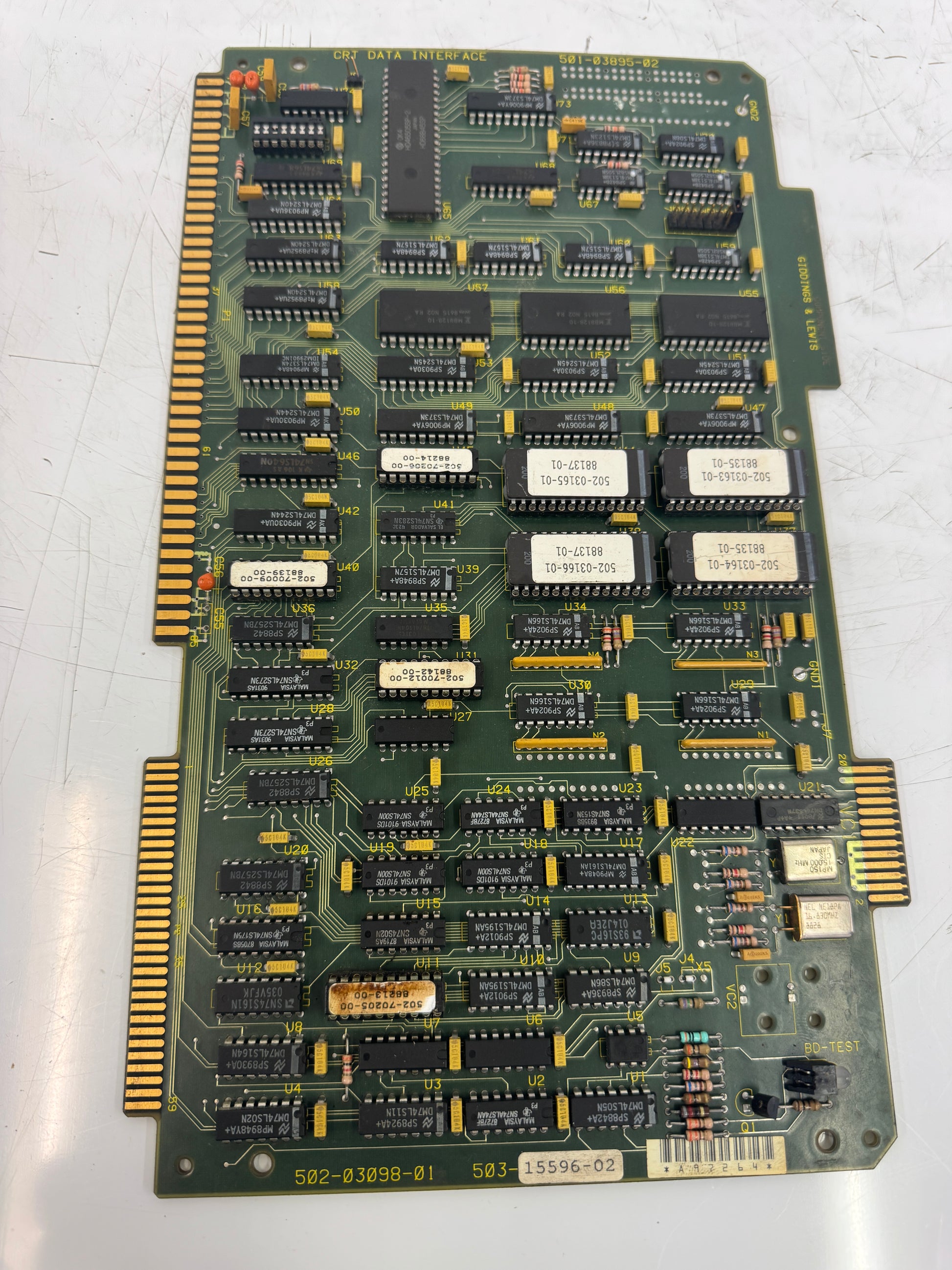

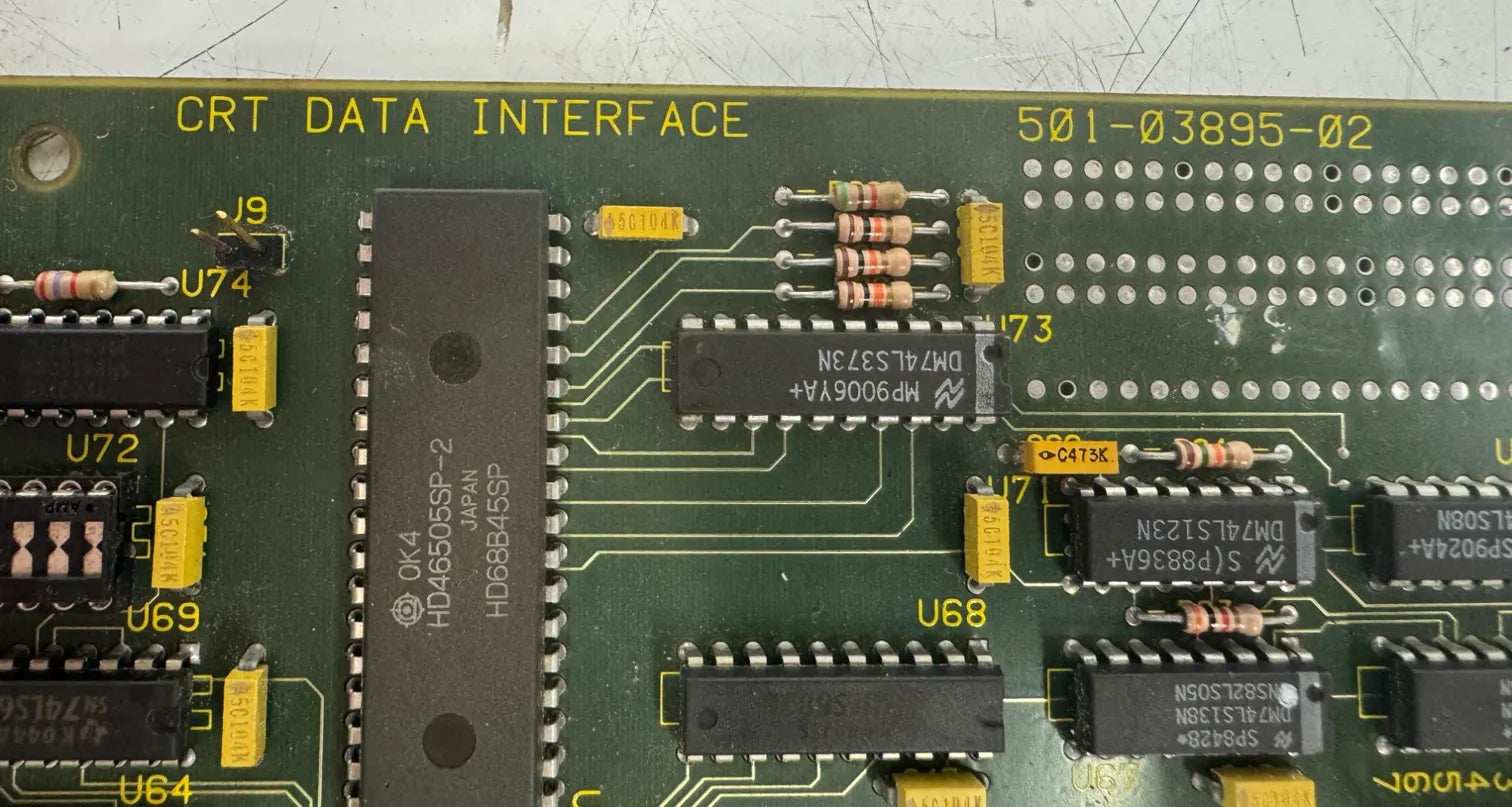

Used in Giddings & Lewis CNC machining center control systems, the 501-03895-02 is a CRT Data Interface board carrying assembly numbers 502-03098-01 and 503-15596-02 as printed on the PCB silkscreen. The board is a large-format, double-sided printed circuit assembly populated with TTL logic ICs including DM74LS series devices, SP9000-series components, and a Hitachi HD46505SP-2 CRT controller IC, which is consistent with display interfacing functions in legacy CNC operator panel systems. The Hitachi HD68B45SP processor visible at position U70 further supports a CRT-based display controller function. Multiple sub-assembly sticker labels are present on ICs across the board, indicating factory-level component-level assembly tracking. Edge connectors are visible along two sides of the board, consistent with a backplane or card cage installation. The board shows signs of previous installation use. Silkscreen text reads "CRT DATA INTERFACE" across the top edge, with board identifier 501-03895-02 printed alongside. A "BD-TEST" label is visible in the lower right corner of the component side. This board is a direct fit for Giddings & Lewis CNC control cabinets utilizing the 500-series control architecture.
