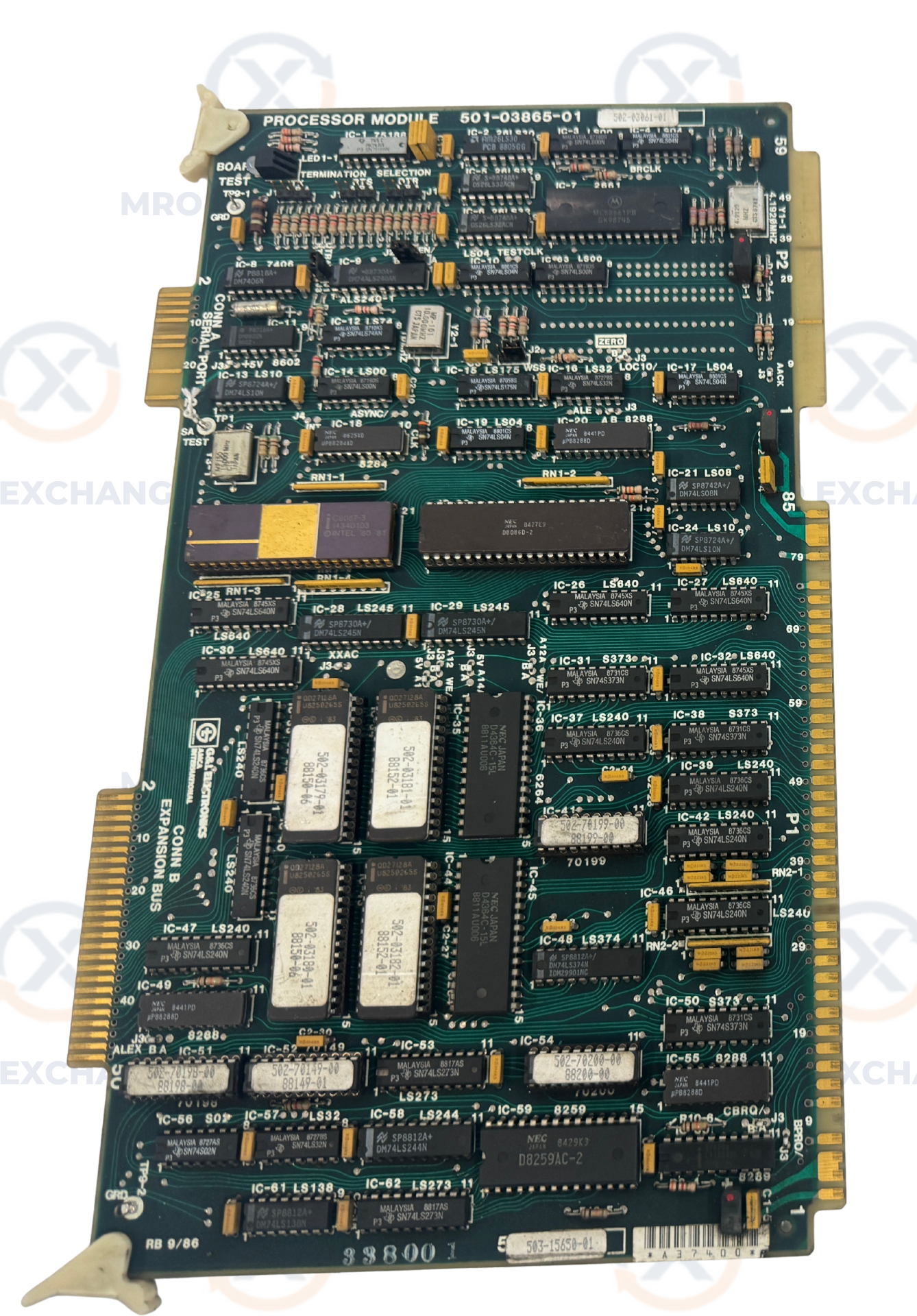

Giddings & Lewis Electronics Processor Module 501-03865-01 / 502-03061-01

$149.00 USD

Sale Sold out

U.S. shipping, securely packaged. Ships in 1-2 Days
Questions? Real support team available before purchase
Secure checkout with trusted payment methods

Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.

Stock #:

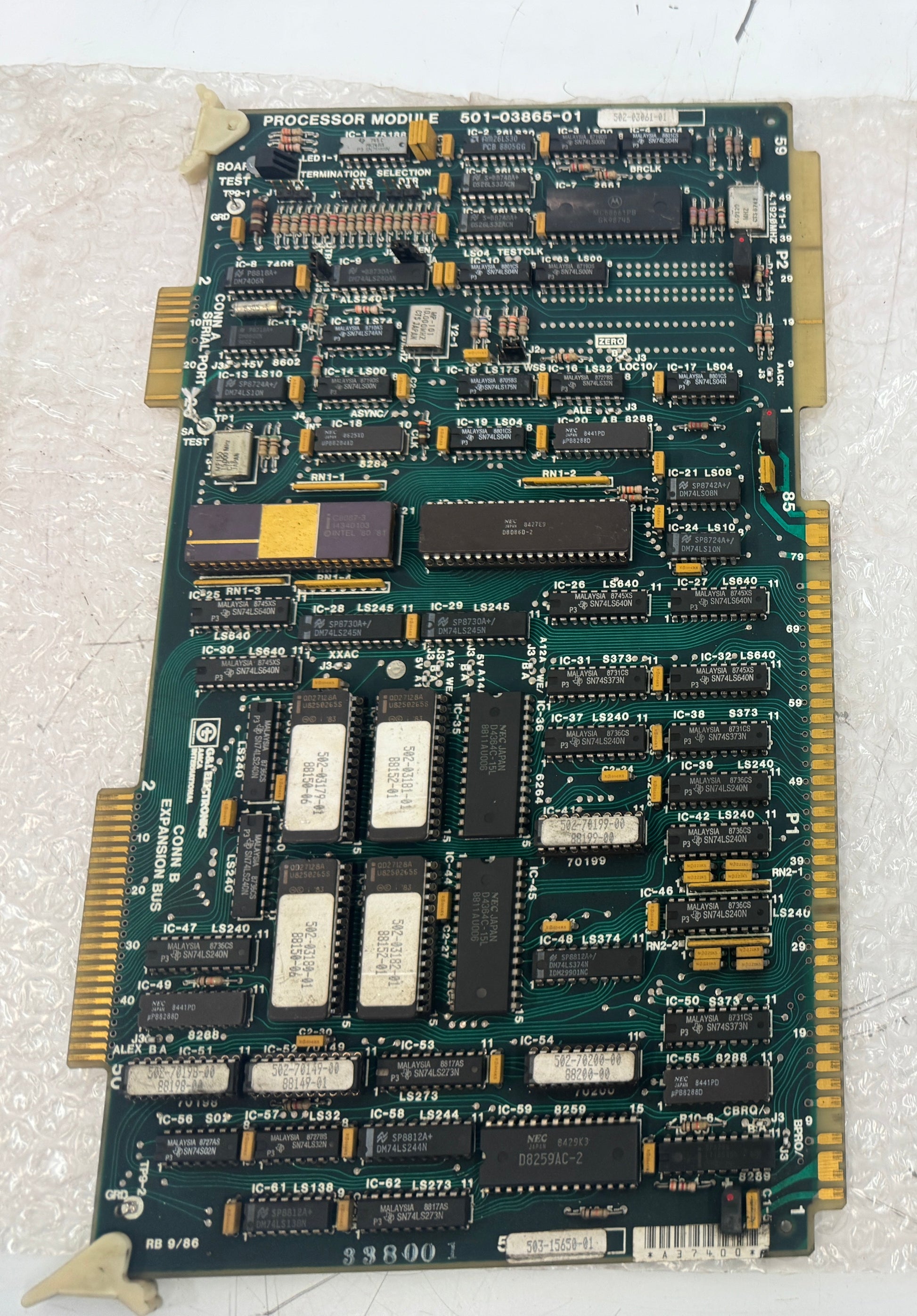

Giddings & Lewis Processor Module 501-03865-01 (secondary assembly 502-03061-01) represents a legacy CNC control component engineered for MPX series machine systems. This multi-layer green PCB incorporates industrial-grade TTL logic architecture with integrated clock generation (8284), bus control (8288), and dual serial communications capabilities via MC2661/MC68661 controllers. The card-edge connector design facilitates standard rack-mount integration, while onboard line drivers (AM26LS30/AM26LS32) and a precision 10 MHz crystal oscillator ensure reliable signal integrity in demanding manufacturing environments. Silkscreened test points and jumper-selectable termination options support field diagnostics and configuration flexibility. Ideal for CNC equipment restoration, maintenance, or parts inventory. Sold as-is surplus without functional verification.

Stock # 0226-418-1
