Giddings & Lewis Servo Board 502-03055-00

$999.00 USD

Sale Sold out

U.S. shipping, securely packaged. Ships in 1-2 Days
Questions? Real support team available before purchase
Secure checkout with trusted payment methods

Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.

Stock #:

This listing is for a used Giddings and Lewis Servo Board, part number 502-03055-00, serial number C90735, date code 439708. The OEM nameplate label notes this version is replaced by the 502-03055-01 revision. The board is manufactured by Giddings and Lewis Electronics and carries the Giddings and Lewis logo on the PCB surface.

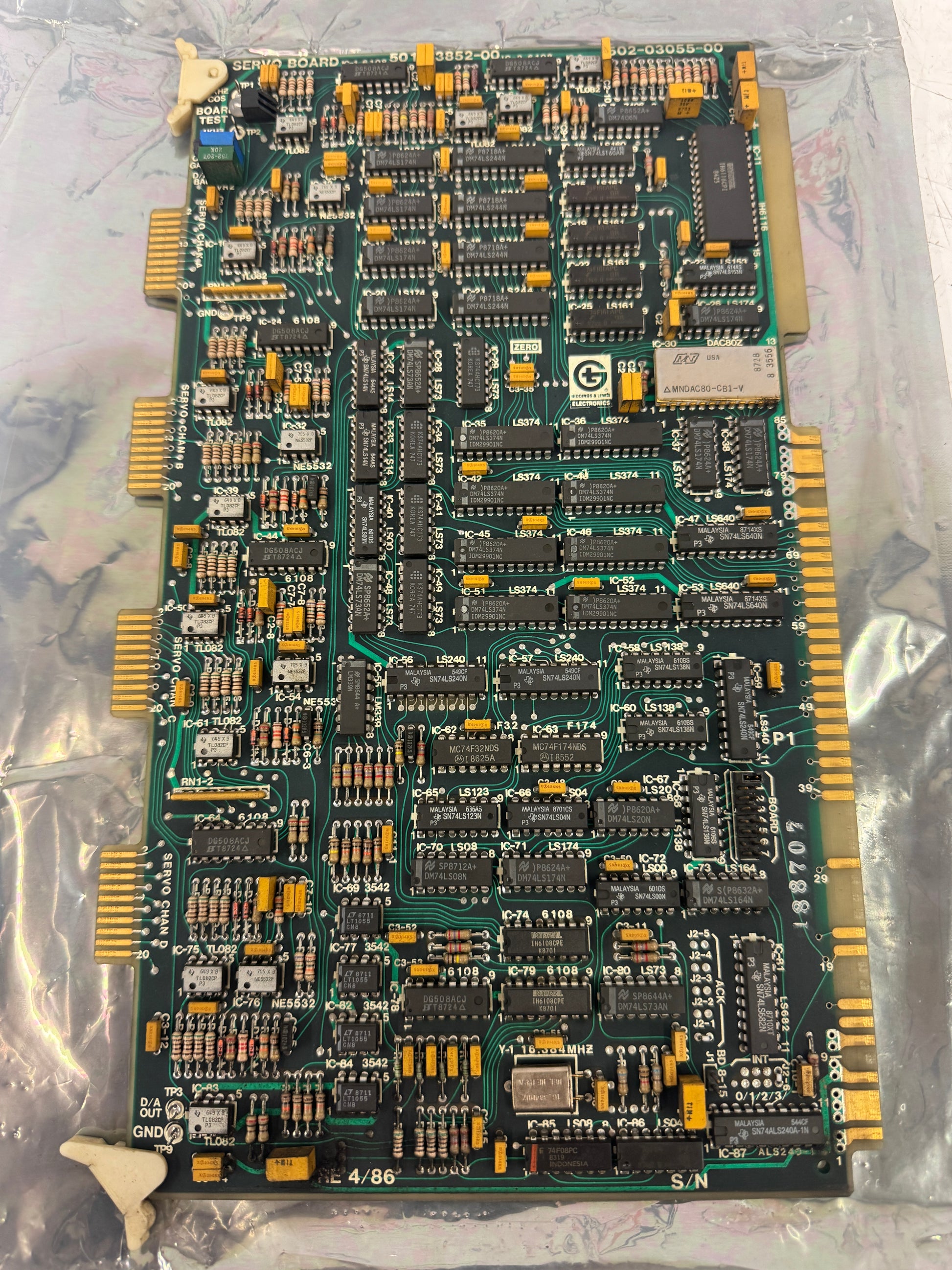

The 502-03055-00 is a densely populated multi-channel analog servo control board. Labeled servo channels on the board silkscreen include SERVO CHAN B, SERVO CHAN C, and SERVO CHAN D, with D/A OUT and TP3 test point positions. Key components visible include a DAC80Z precision digital-to-analog converter, an MNDAC80-CBI-V hybrid DAC module, NE5532 and NE5533 dual op-amps, DG508ACJ 8-channel analog multiplexers, TLO82 JFET-input op-amps, LM339 quad comparators, 74LS-series logic ICs (LS240, LS374, LS573, LS640, LS138, LS123, LS20, LS08, LS174, LS00, LS164), MC74F32NDS and MC74F174NDS fast logic, and a Y-1 16.384 MHz crystal oscillator. The board uses yellow tantalum capacitors throughout and carries resistor networks at RN1-2 position. Edge connector P1 and labeled connectors provide backplane and external signal connections.

This board is a discontinued, obsolete component available only through the industrial surplus market. Repaired units are actively listed at significantly higher prices.

Stock # 0226-545
